HJ61RG-MNZXQ (1987)

Toyota Land Cruiser

Production Aug 1987 - Aug 1988
Engine 12HT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )2H

Click highlighted areas on diagram

diagram 19850 19850B 19871
Part # Description Qty Price

(8708- )12HT

Click highlighted areas on diagram

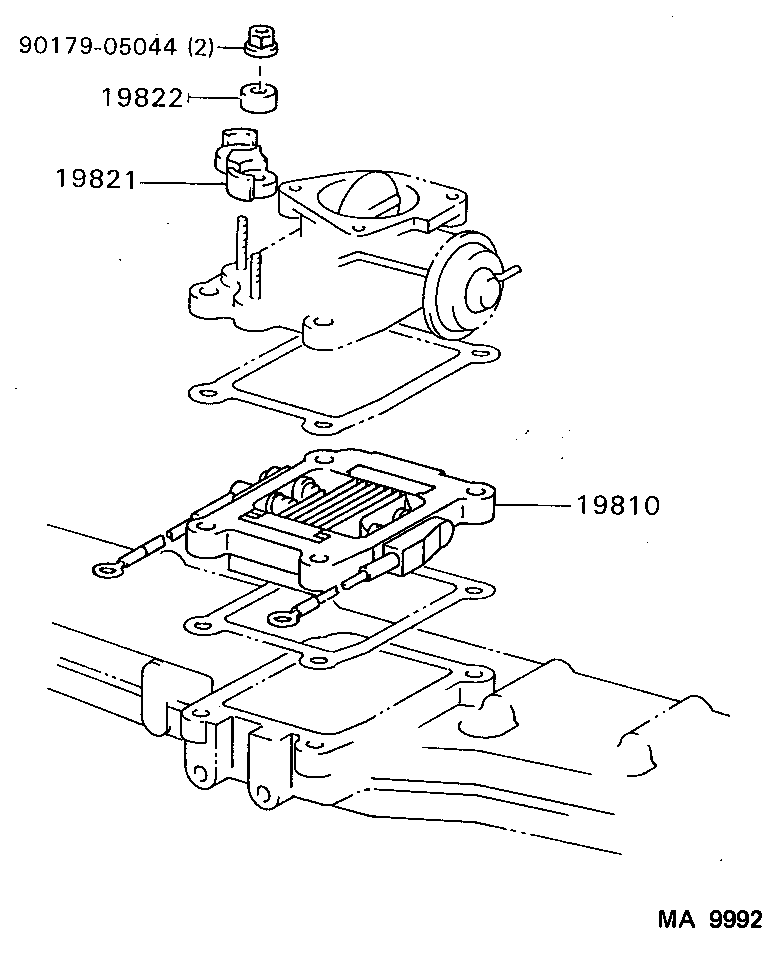

diagram 19810 19821 19822 9017905044
Part # Description Qty Price
19810 - HEATER ASSY, INTAKE
19810-68010

12HT..HJ61

 1
19821 - INSULATOR, INTAKE HEATER TERMINAL
19821-68010

12HT..HJ61

 1
19822 - INSULATOR, INTAKE HEATER TERMINAL, NO.2
19822-68010

12HT..HJ61

 2
Common parts
90179-05044
