HJ61RG-MNZXQ (1987)

Toyota Land Cruiser

Production Aug 1987 - Aug 1988
Engine 12HT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9001-0701)2H

Click highlighted areas on diagram

diagram 1709 17700 17700A 17703 17703A 17705 17801 17841 17841 17845 9011908806 9017908096
Part # Description Qty Price
Common parts
90119-08806
90179-08096
Linked diagrams
1709

ILLUST NO. 2 OF 2(9001-0701)2H

Click highlighted areas on diagram

diagram 17881 17881A 17881A 53199B 9099992002 9099992002 9166140614 9356054010 9611110800
Part # Description Qty Price
Common parts
90999-92002
91661-40614
93560-54010
96111-10800

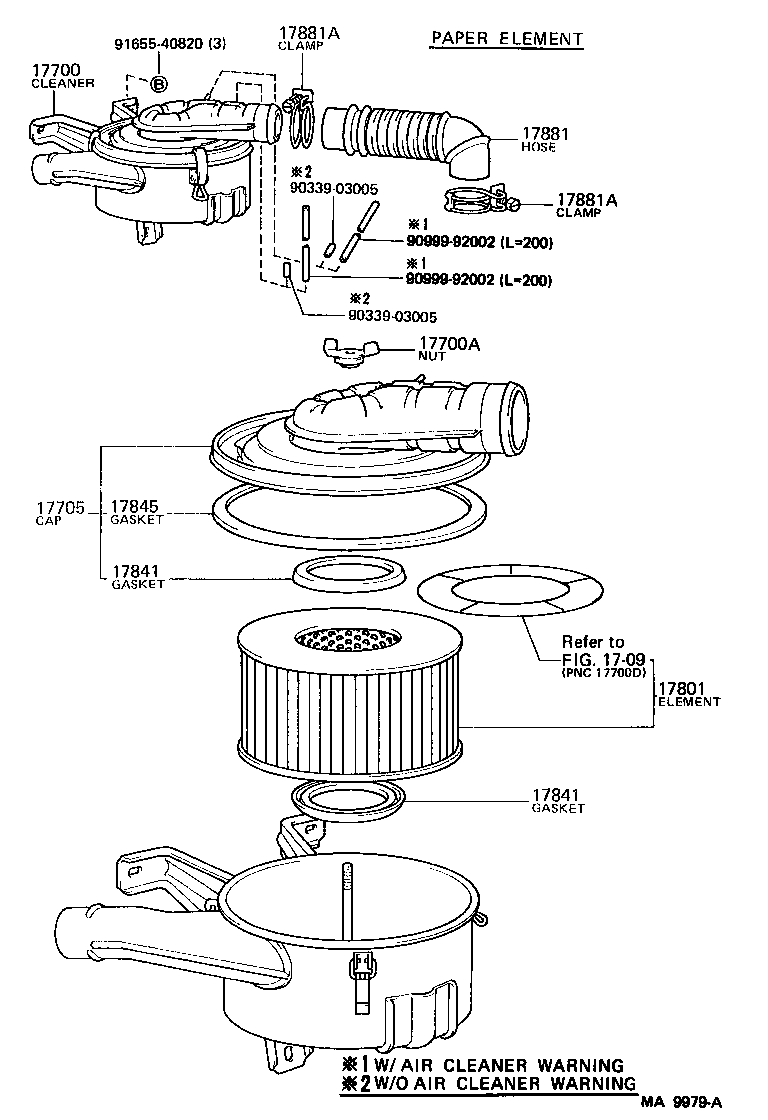

ILLUST NO. 1 OF 2(8708- )2H

Click highlighted areas on diagram

diagram 1709 17700 17700A 17705 17801 17841 17841 17845 17881 17881A 17881A 9033903005 9033903005 9099992002 9099992002 9165540820
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-68260

12HT..HJ61

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-08008

12HT,2H..HJ6#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-68120

12HT..HJ61

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-61030

12HT,2H..HJ6#

 1
17841 - GASKET, FILTER ELEMENT
17841-68010

12HT,2H..HJ6#

 2
17841 - GASKET, FILTER ELEMENT
17841-68010

12HT,2H..HJ6#

 2
17845 - GASKET, AIR CLEANER CAP
17845-61011

12HT,2H..HJ6#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-68060

12HT..HJ61

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10830

12HT,2H..HJ6#

AIR CLEANER SIDE

 1
96111-10900

12HT..HJ61

PIPE SIDE

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10830

12HT,2H..HJ6#

AIR CLEANER SIDE

 1
96111-10900

12HT..HJ61

PIPE SIDE

 1
Common parts
90339-03005
90999-92002
91655-40820
Linked diagrams
1709

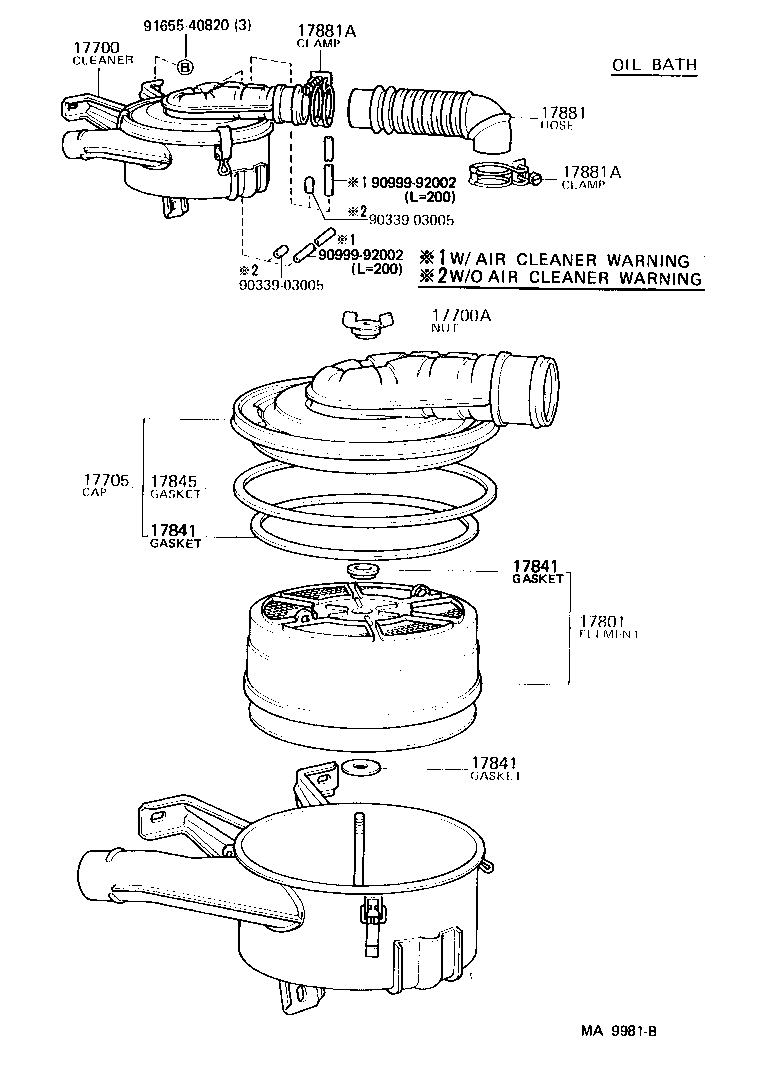

ILLUST NO. 1 OF 2(8708- )2H

Click highlighted areas on diagram

diagram 17700 17700A 17705 17801 17841 17841 17841 17845 17881 17881A 17881A 9033903005 9033903005 9099992002 9099992002 9165540820
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-68260

12HT..HJ61

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-08008

12HT,2H..HJ6#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-68120

12HT..HJ61

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-61030

12HT,2H..HJ6#

 1
17841 - GASKET, FILTER ELEMENT
17841-68010

12HT,2H..HJ6#

 2
17841 - GASKET, FILTER ELEMENT
17841-68010

12HT,2H..HJ6#

 2
17841 - GASKET, FILTER ELEMENT
17841-68010

12HT,2H..HJ6#

 2
17845 - GASKET, AIR CLEANER CAP
17845-61011

12HT,2H..HJ6#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-68060

12HT..HJ61

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10830

12HT,2H..HJ6#

AIR CLEANER SIDE

 1
96111-10900

12HT..HJ61

PIPE SIDE

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10830

12HT,2H..HJ6#

AIR CLEANER SIDE

 1
96111-10900

12HT..HJ61

PIPE SIDE

 1
Common parts
90339-03005
90999-92002
91655-40820

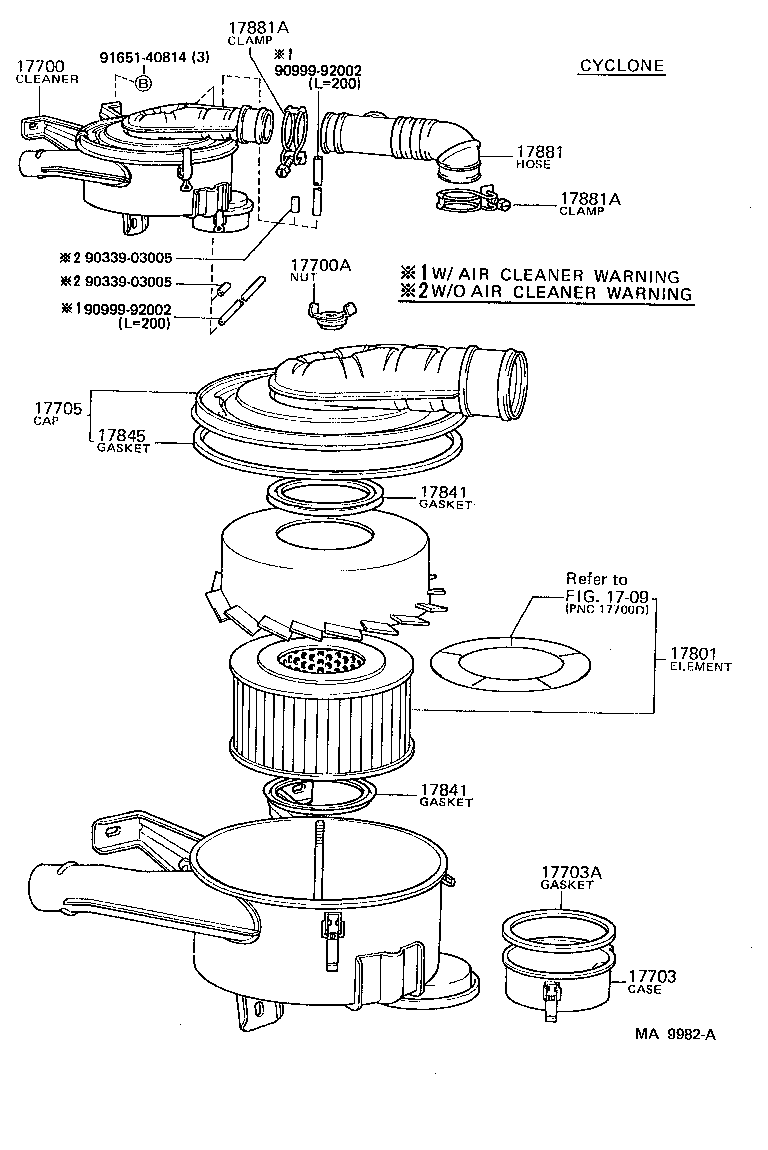

ILLUST NO. 2 OF 2(8708- )2H

Click highlighted areas on diagram

diagram 1709 17700 17700A 17703 17703A 17705 17801 17841 17841 17845 17881 17881A 17881A 9033903005 9033903005 9099992002 9099992002 9165140814
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-68260

12HT..HJ61

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-08008

12HT,2H..HJ6#

 1
17703 - CASE SUB-ASSY, BOTTOM AIR CLEANER FILTER
17703-68010

12HT,2H..HJ6#

 1
17703A - GASKET(FOR BOTTOM AIR CLEANER FILTER CASE)
90430-98001

12HT,2H..HJ6#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-68120

12HT..HJ61

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-61030

12HT,2H..HJ6#

 1
17841 - GASKET, FILTER ELEMENT
17841-68010

12HT,2H..HJ6#

 2
17841 - GASKET, FILTER ELEMENT
17841-68010

12HT,2H..HJ6#

 2
17845 - GASKET, AIR CLEANER CAP
17845-61011

12HT,2H..HJ6#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-68060

12HT..HJ61

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10830

12HT,2H..HJ6#

AIR CLEANER SIDE

 1
96111-10900

12HT..HJ61

PIPE SIDE

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10830

12HT,2H..HJ6#

AIR CLEANER SIDE

 1
96111-10900

12HT..HJ61

PIPE SIDE

 1
Common parts
90339-03005
90999-92002
91651-40814
Linked diagrams
1709

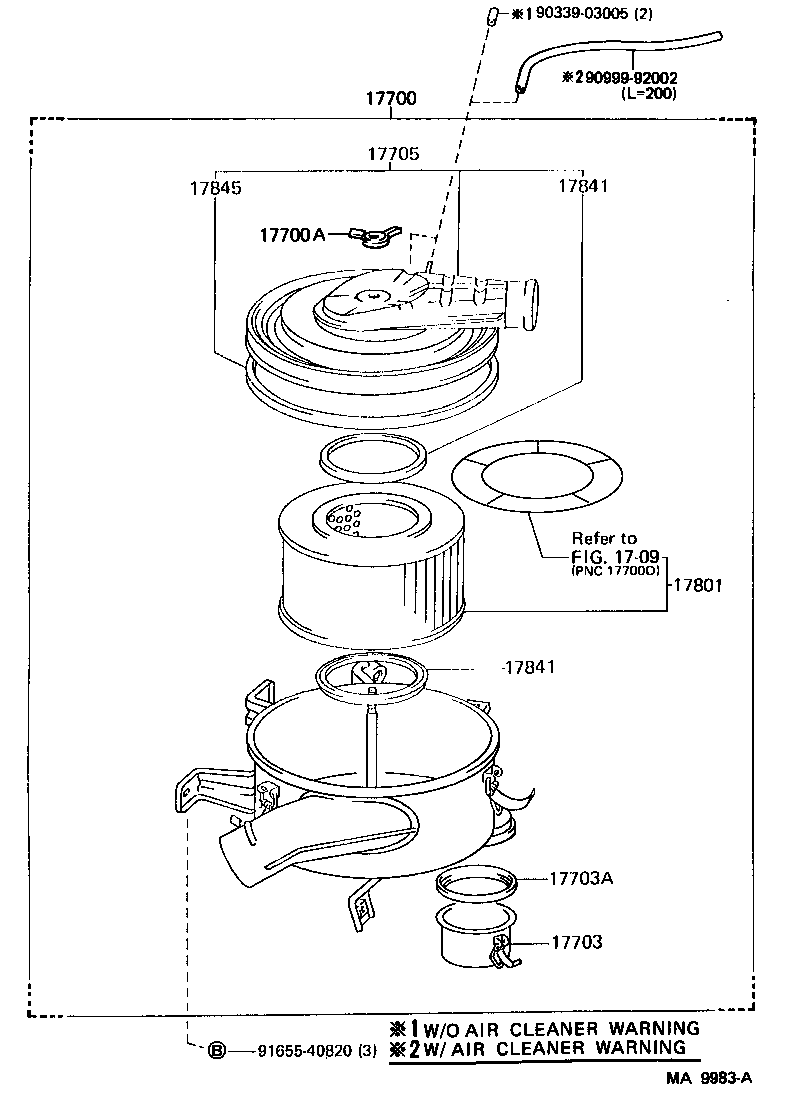

ILLUST NO. 1 OF 2(8708- )12HT

Click highlighted areas on diagram

diagram 1709 17700 17700A 17703 17703A 17705 17801 17841 17841 17845 9033903005 9099992002 9165540820
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-68260

12HT..HJ61

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-08008

12HT,2H..HJ6#

 1
17703 - CASE SUB-ASSY, BOTTOM AIR CLEANER FILTER
17703-68010

12HT,2H..HJ6#

 1
17703A - GASKET(FOR BOTTOM AIR CLEANER FILTER CASE)
90430-98001

12HT,2H..HJ6#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-68120

12HT..HJ61

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-61030

12HT,2H..HJ6#

 1
17841 - GASKET, FILTER ELEMENT
17841-68010

12HT,2H..HJ6#

 2
17841 - GASKET, FILTER ELEMENT
17841-68010

12HT,2H..HJ6#

 2
17845 - GASKET, AIR CLEANER CAP
17845-61011

12HT,2H..HJ6#

 1
Common parts
90339-03005
90999-92002
91655-40820
Linked diagrams
1709

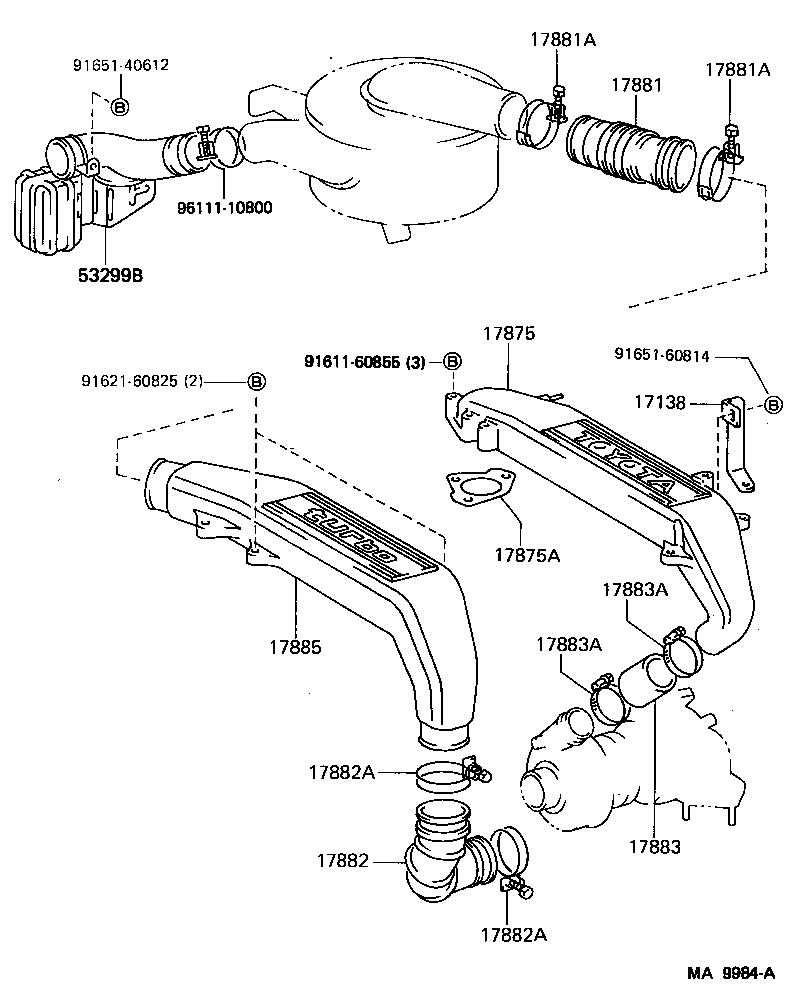

ILLUST NO. 2 OF 2(8708- )12HT

Click highlighted areas on diagram

diagram 17138 17875 17875A 17881 17881A 17881A 17882 17882A 17882A 17883 17883A 17883A 17885 53299B 9161160855 9162160825 9165140612 9165160814 9611110800
Part # Description Qty Price
17138 - STAY, INTAKE PIPE OR HOSE
17138-68010

12HT..HJ61

 1
17875 - PIPE, INTAKE AIR CONNECTOR
17113-68010

12HT..HJ61

 1
17875A - GASKET, INTAKE PIPE
17115-68010

12HT..HJ61

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-68060

12HT..HJ61

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10830

12HT,2H..HJ6#

AIR CLEANER SIDE

 1
96111-10900

12HT..HJ61

PIPE SIDE

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10830

12HT,2H..HJ6#

AIR CLEANER SIDE

 1
96111-10900

12HT..HJ61

PIPE SIDE

 1
17882 - HOSE, AIR CLEANER, NO.2
17342-68010

12HT..HJ61

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10800

12HT..HJ61

TURBO SIDE

 1
96111-10900

12HT..HJ61

PIPE SIDE

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10800

12HT..HJ61

TURBO SIDE

 1
96111-10900

12HT..HJ61

PIPE SIDE

 1
17883 - HOSE, AIR CLEANER, NO.3
17341-68010

12HT..HJ61

 1
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
90460-65004

12HT..HJ61

 2
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
90460-65004

12HT..HJ61

 2
17885 - PIPE, AIR CLEANER
17875-68010

12HT..HJ61

 1
53299B - DUCT, COOL AIR INTAKE
53207-90A01

HJ6#

 1
Common parts
91611-60855
91621-60825
91651-40612
91651-60814
96111-10800

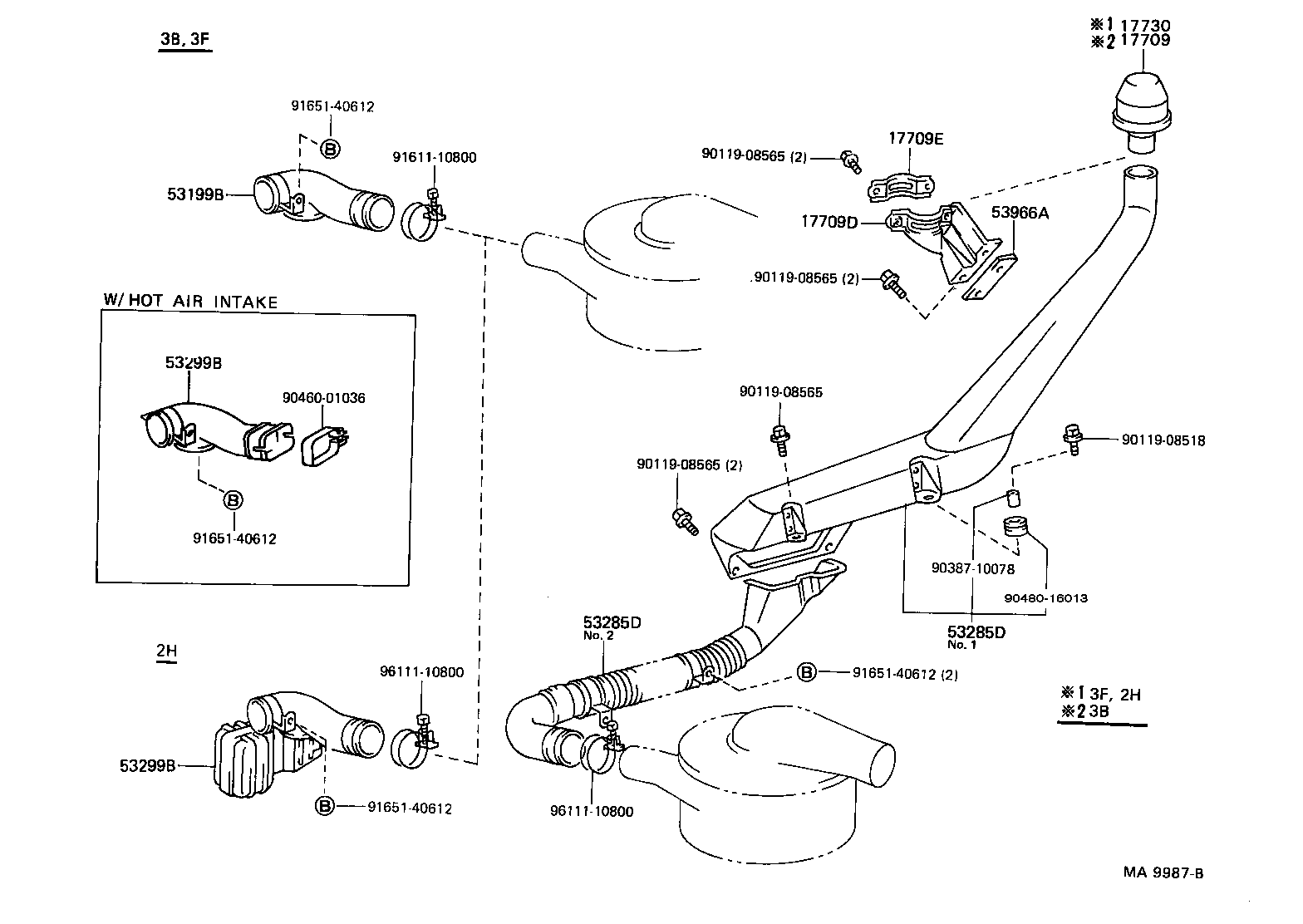

ILLUST NO. 2 OF 2(8708- )12HT,2H

Click highlighted areas on diagram

diagram 17709 17709D 17709E 17730 53199B 53285D 53285D 53299B 53299B 53966A 9011908518 9011908565 9011908565 9011908565 9011908565 9038710078 9046001036 9048016013 9161110800 9165140612 9165140612 9165140612 9165140612 9611110800 9611110800
Part # Description Qty Price
53299B - DUCT, COOL AIR INTAKE
53207-90A01

HJ6#

 1
53207-90A01

HJ6#

 1
53207-90A01

HJ6#

 1
53299B - DUCT, COOL AIR INTAKE
53207-90A01

HJ6#

 1
53207-90A01

HJ6#

 1
53207-90A01

HJ6#

 1
Common parts
90119-08518
90119-08565
90387-10078
90460-01036
90480-16013
91611-10800
91651-40612
96111-10800
