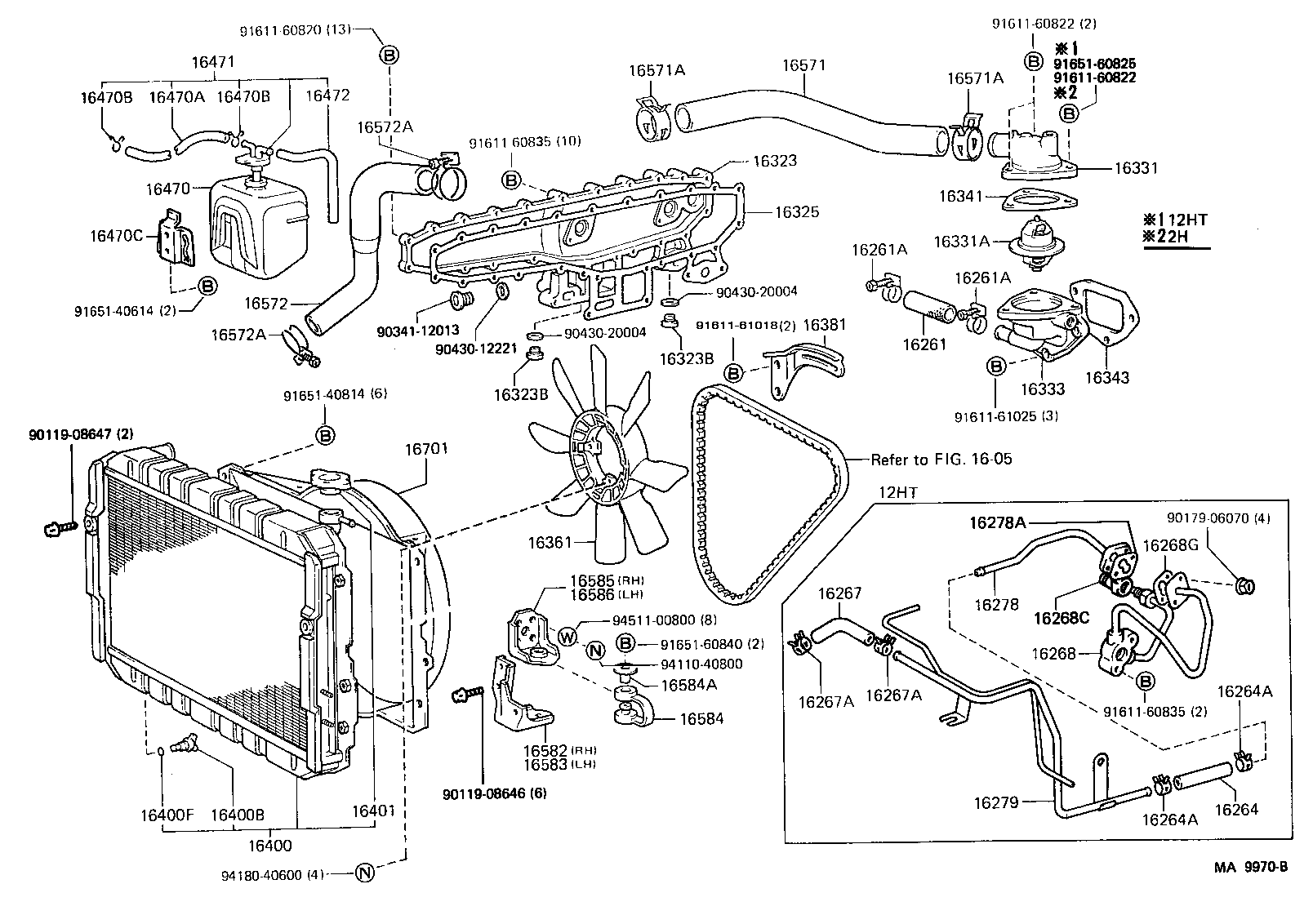

HJ61RG-MNZXQ (1987)
Toyota Land Cruiser
(8708- )12HT,2H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 99555-40090 |
12HT,2H..HJ6# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96111-10330 |
12HT,2H..HJ6# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96111-10330 |
12HT,2H..HJ6# |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 99556-10110 |
12HT..HJ61 *H,L=110 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13038 |
12HT..HJ61 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13038 |
12HT..HJ61 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 99556-10170 |
12HT..HJ61 *H,L=170 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13038 |
12HT..HJ61 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13038 |
12HT..HJ61 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-68010 |
12HT..HJ61 |
1 | ||
| 16268C - UNION, WATER BY-PASS PIPE | ||||
| 90404-53061 |
12HT..HJ61 |
1 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16347-28010 |
12HT..HJ61 |
1 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-68010 |
12HT..HJ61 |
1 | ||
| 16278A - GASKET, WATER BY-PASS | ||||
| 16347-28010 |
12HT..HJ61 |
1 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16279-68020 |
12HT..HJ61 |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-68030 |
12HT..HJ61 |
1 | ||
| 16323B - PLUG(FOR WATER INLET HOUSING) | ||||
| 90341-20002 |
12HT,2H..HJ6# |
2 | ||
| 16323B - PLUG(FOR WATER INLET HOUSING) | ||||
| 90341-20002 |
12HT,2H..HJ6# |
2 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-68020 |
12HT,2H..HJ6# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-68011 |
12HT,2H..HJ6# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03026 |
12HT,2H..HJ6# *WAX 82-95 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-68010 |
12HT,2H..HJ6# |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-68010 |
12HT,2H..HJ6# |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-68010 |
12HT,2H..HJ6# |
1 | ||
| 16361 - FAN | ||||
| 16361-68010 |
12HT..HJ61;2H..HJ60..LHD..STD;2H..HJ60..(GX,VX)..(GEN,ME) |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-68030 |
12HT,2H..HJ6#..ARL |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-68080 |
12HT,2H..HJ6#..MTM..(ARL,GEN) |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-24200 |
12HT,2H..HJ6# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24200 |
12HT,2H..HJ6# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-71010 |
12HT,2H..HJ6# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16480-90A00 |
12HT,2H..HJ6# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
12HT,2H..HJ6# L=600 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
12HT,2H..HJ6# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
12HT,2H..HJ6# |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 85361-30070 |
12HT,2H..HJ6# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-90A01 |
12HT,2H..HJ6# |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85379-90A00 |
12HT,2H..HJ6# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-68010 |
12HT,2H..HJ6# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-42001 |
12HT,2H..HJ6# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-42001 |
12HT,2H..HJ6# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-68010 |
12HT,2H..HJ6# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10560 |
12HT,2H..HJ6# ID=56 |
1 | ||
| 96111-10510 |
12HT,2H..HJ6# ID=51 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10560 |
12HT,2H..HJ6# ID=56 |
1 | ||
| 96111-10510 |
12HT,2H..HJ6# ID=51 |
1 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-61010 |
12HT,2H..HJ6# |
1 | ||
| 16583 - BRACKET, RADIATOR, NO.2 | ||||
| 16583-61010 |
12HT,2H..HJ6# |
1 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-61010 |
12HT,2H..HJ6# |
2 | ||
| 16584A - SPACER, RADIATOR MOUNTING INSULATOR | ||||
| 90561-09005 |
12HT,2H..HJ6# |
2 | ||
| 16585 - BRACKET, RADIATOR, NO.3 | ||||
| 16585-61010 |
12HT,2H..HJ6# |
1 | ||
| 16586 - BRACKET, RADIATOR, NO.4 | ||||
| 16586-61010 |
12HT,2H..HJ6# |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-68010 |
12HT,2H..HJ6# |
1 | ||
| Common parts | ||||
| 90119-08646 | ||||
| 90119-08647 | ||||
| 90179-06070 | ||||
| 90341-12013 | ||||
| 90430-12221 | ||||
| 90430-20004 | ||||
| 91611-60820 | ||||
| 91611-60822 | ||||
| 91611-60835 | ||||
| 91611-61018 | ||||
| 91611-61025 | ||||
| 91651-40614 | ||||
| 91651-40814 | ||||
| 91651-60825 | ||||
| 91651-60840 | ||||
| 94110-40800 | ||||
| 94180-40600 | ||||
| 94511-00800 | ||||
| Linked diagrams | ||||
| 1605 | ||||
