HJ61RG-MNZXQ (1987)

Toyota Land Cruiser

Production Aug 1987 - Aug 1988
Engine 12HT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )2H

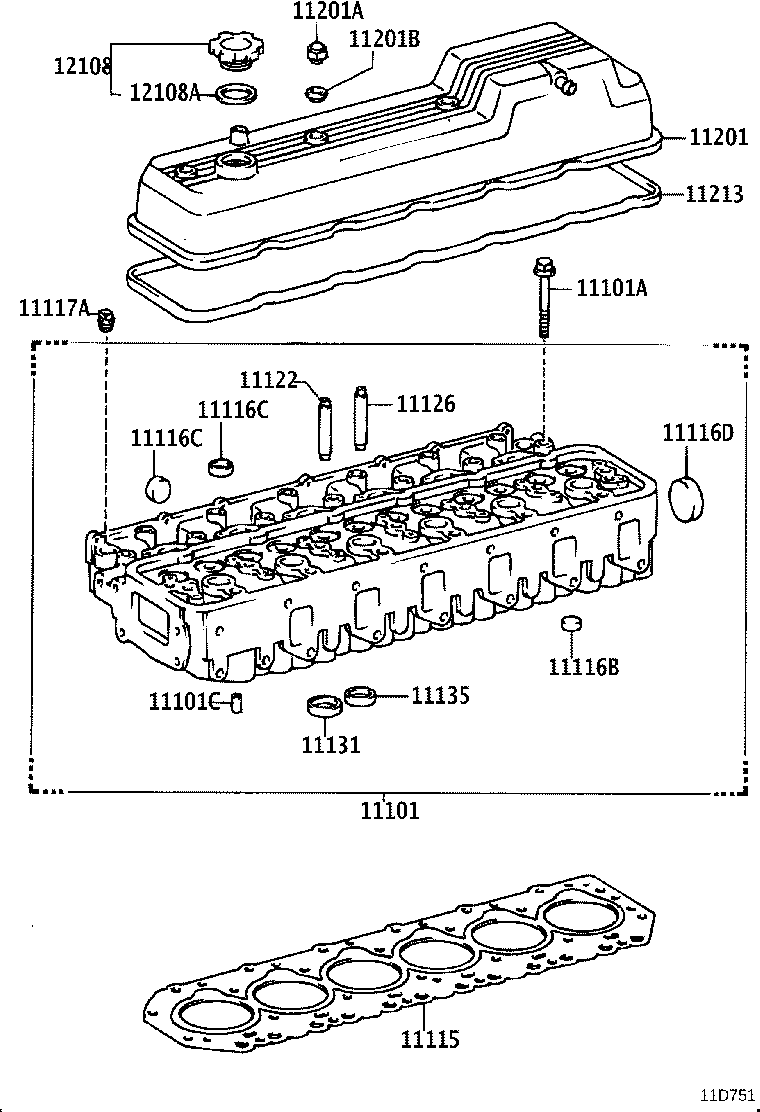

Click highlighted areas on diagram

diagram 11101 11101A 11101C 11115 11116A 11116B 11116C 11116C 11116C 11116C 11116C 11116C 11116C 11116D 11117A 11117A 11122 11126 11131 11135 11201 11201A 11201B 11213 12108 12108A 1701 1701
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-68020

12HT..HJ61

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02070

12HT,2H..HJ6#

 26
11101C - TUBE(FOR CYLINDER HEAD)
90440-15141

12HT,2H..HJ6#

 6
11115 - GASKET, CYLINDER HEAD
11115-68030

12HT..HJ61

 1
11116B - PLUG, TIGHT, NO.2
96411-42500

12HT,2H..HJ6#

 5
11116C - PLUG, TIGHT, NO.3
96411-43000

12HT,2H..HJ6#

 12
11116C - PLUG, TIGHT, NO.3
96411-43000

12HT,2H..HJ6#

 12
11116C - PLUG, TIGHT, NO.3
96411-43000

12HT,2H..HJ6#

 12
11116C - PLUG, TIGHT, NO.3
96411-43000

12HT,2H..HJ6#

 12
11116C - PLUG, TIGHT, NO.3
96411-43000

12HT,2H..HJ6#

 12
11116C - PLUG, TIGHT, NO.3
96411-43000

12HT,2H..HJ6#

 12
11116C - PLUG, TIGHT, NO.3
96411-43000

12HT,2H..HJ6#

 12
11116D - PLUG, TIGHT, NO.4
96411-45000

12HT,2H..HJ6#

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-54005

2H..HJ60..HRF;2H..HJ60..STD..ARL;12HT,2H..HJ6#..RHD..LUB

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-54005

2H..HJ60..HRF;2H..HJ60..STD..ARL;12HT,2H..HJ6#..RHD..LUB

 1
11122 - BUSH, INTAKE VALVE GUIDE
11122-68010

12HT,2H..HJ6#

STD

 6
11126 - BUSH, EXHAUST VALVE GUIDE
11122-68010

12HT,2H..HJ6#

STD

 6
11131 - SEAT, INTAKE VALVE
11131-68020

12HT..HJ61

STD

 6
11135 - SEAT, EXHAUST VALVE
11135-68010

12HT,2H..HJ6#

STD

 6
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-68020

12HT..HJ61

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-08014

12HT,2H..HJ6#

 4
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-13001

12HT,2H..HJ6#

 4
11213 - GASKET, CYLINDER HEAD COVER
11213-68020

12HT..HJ61

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-13030

12HT,2H..HJ6#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

12HT,2H..HJ6#

 1
Linked diagrams
1701

(8708- )12HT

Click highlighted areas on diagram

diagram 11101 11101A 11101C 11115 11116B 11116C 11116C 11116D 11117A 11122 11126 11131 11135 11201 11201A 11201B 11213 12108 12108A
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-68020

12HT..HJ61

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02070

12HT,2H..HJ6#

 26
11101C - TUBE(FOR CYLINDER HEAD)
90440-15141

12HT,2H..HJ6#

 6
11115 - GASKET, CYLINDER HEAD
11115-68030

12HT..HJ61

 1
11116B - PLUG, TIGHT, NO.2
96411-42500

12HT,2H..HJ6#

 5
11116C - PLUG, TIGHT, NO.3
96411-43000

12HT,2H..HJ6#

 12
11116C - PLUG, TIGHT, NO.3
96411-43000

12HT,2H..HJ6#

 12
11116D - PLUG, TIGHT, NO.4
96411-45000

12HT,2H..HJ6#

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-54005

2H..HJ60..HRF;2H..HJ60..STD..ARL;12HT,2H..HJ6#..RHD..LUB

 1
11122 - BUSH, INTAKE VALVE GUIDE
11122-68010

12HT,2H..HJ6#

STD

 6
11126 - BUSH, EXHAUST VALVE GUIDE
11122-68010

12HT,2H..HJ6#

STD

 6
11131 - SEAT, INTAKE VALVE
11131-68020

12HT..HJ61

STD

 6
11135 - SEAT, EXHAUST VALVE
11135-68010

12HT,2H..HJ6#

STD

 6
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-68020

12HT..HJ61

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-08014

12HT,2H..HJ6#

 4
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-13001

12HT,2H..HJ6#

 4
11213 - GASKET, CYLINDER HEAD COVER
11213-68020

12HT..HJ61

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-13030

12HT,2H..HJ6#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

12HT,2H..HJ6#

 1
