HJ61RG-MNXQ (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 12HT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

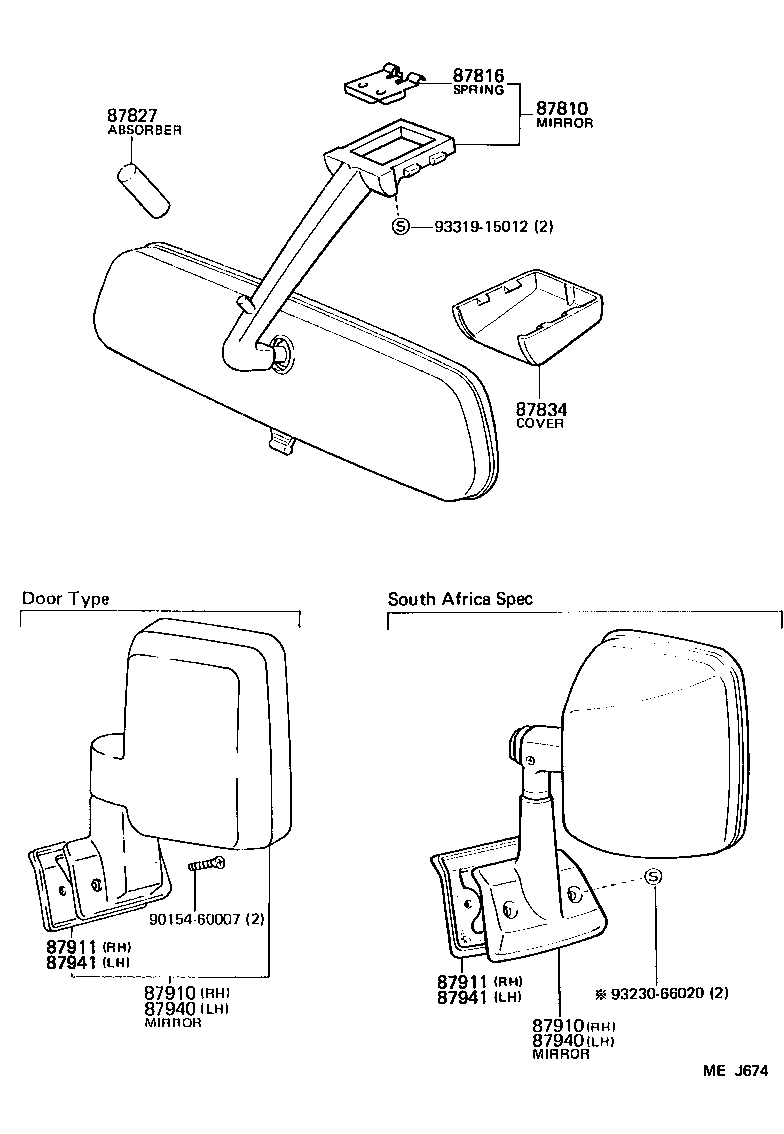

Click highlighted areas on diagram

diagram 87810 87816 87827 87834 87910 87910 87911 87911 87940 87940 87941 87941 9015460007 9323066020 9331915012
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-90A03

HJ60..LUB;FJ62,HJ61..GX,VX;FJ62,HJ60..STD..ARL

 1
87816 - SPRING, INNER REAR VIEW MIRROR
74372-90A00

BJ60,FJ62,HJ6#

 1
87827 - ABSORBER, INNER REAR VIEW MIRROR
87828-90A01

BJ60,HJ61;HJ60..LUB;FJ62..GX,VX;FJ62,HJ60..STD..ARL

L=45

 1
87828-90A00

BJ60,HJ61;HJ60..LUB;FJ62..GX,VX;FJ62,HJ60..STD..ARL

L=40

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87834-1401128

BJ60,FJ62,HJ6#..GX,VX

IVORY,TRIM1#,4#

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-90A07

BJ60,FJ62,HJ6#..RHD

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-90A07

BJ60,FJ62,HJ6#..RHD

 1
87911 - GASKET, OUTER REAR VIEW MIRROR, RH
87911-90A05

BJ60,FJ62,HJ6#

 1
87911 - GASKET, OUTER REAR VIEW MIRROR, RH
87911-90A05

BJ60,FJ62,HJ6#

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-90A06

BJ60,HJ61..RHD;FJ62,HJ60..ARL

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-90A06

BJ60,HJ61..RHD;FJ62,HJ60..ARL

 1
87941 - GASKET, OUTER REAR VIEW MIRROR, LH
87911-90A05

HJ60..5F;FJ62..LHD;FJ62..ARL;BJ60,HJ61;HJ60..LHD..4F

 1
87941 - GASKET, OUTER REAR VIEW MIRROR, LH
87911-90A05

HJ60..5F;FJ62..LHD;FJ62..ARL;BJ60,HJ61;HJ60..LHD..4F

 1
Common parts
90154-60007
93230-66020
93319-15012
