HJ61RG-MNXQ (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 12HT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9001-0701) ; (0701-0808)LX

Click highlighted areas on diagram

FRONT SEAT

diagram 73130 73140 73150 73150 73150 73173 73174 73181C 73181C 73210 73210 73220 73220 73220 73230 73230 73240 73240 73297B 73298B 9046708008 9162140614 9166160616 9354055010 9356054014
Part # Description Qty Price
Common parts
90467-08008
91621-40614
91661-60616
93540-55010
93560-54014

ILLUST NO. 2 OF 2(9001-0701) ; (0701-0808)LX

Click highlighted areas on diagram

REAR SEAT

diagram 73139B 73158 73178A 73219 73298 73299 73320B 73330 73330B 73340 73340B 73350 73350 73350 73350B 73350B 73360 73360 73370 73370 73371A 73371A 73371A 73371A 73380 73380 73390 73390 9010511007 9010511007 9018304046 9020411042 9020411042 9046708008 9354025012 9354055010
Part # Description Qty Price
Common parts
90105-11007
90183-04046
90204-11042
90467-08008
93540-25012
93540-55010

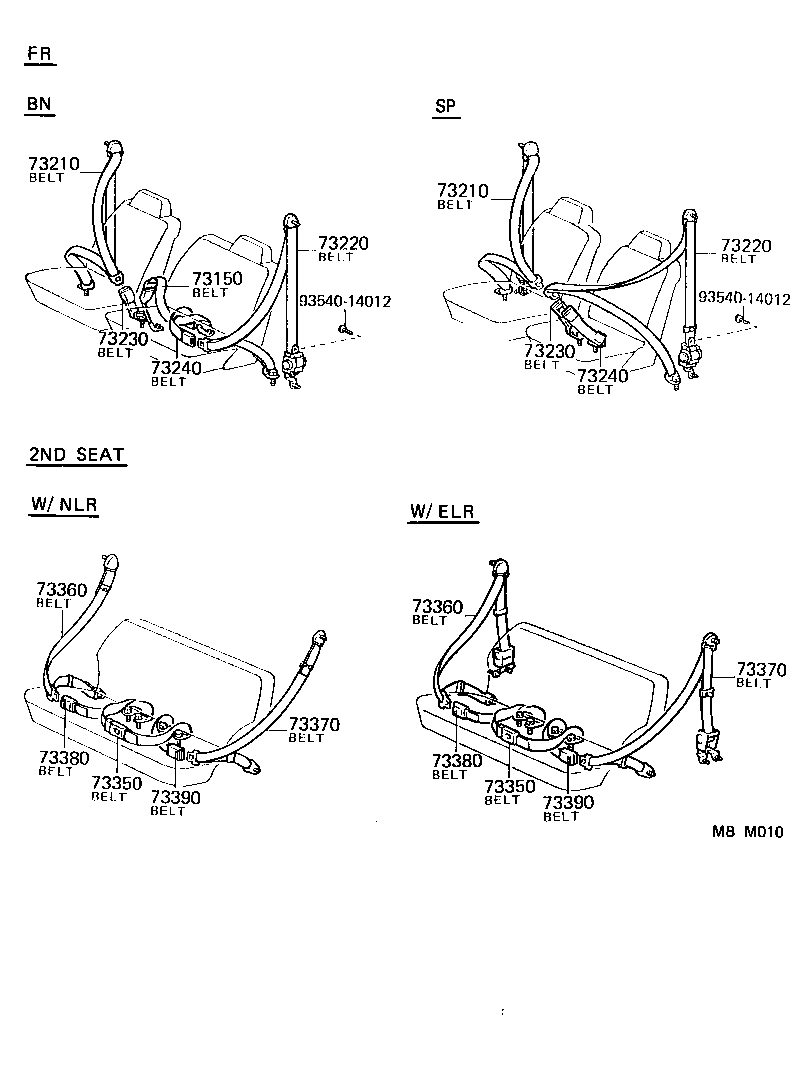

ILLUST NO. 1 OF 2(8708- )ARL

Click highlighted areas on diagram

diagram 73150 73210 73210 73220 73220 73230 73230 73240 73240 73350 73350 73360 73360 73370 73370 73380 73380 73390 73390 9354014012 9354014012
Part # Description Qty Price
73150 - BELT ASSY, FRONT SEAT LAP TYPE, CENTER
73150-90A1206

FJ62,HJ6#..RHD..(4FC,5F)..SRF

SEPIA BROWN,TRIM4#

 1
73150-90A1203

FJ62,HJ6#..RHD..(4FC,5F)..SRF..GX

GRAY,TRIM1#

 1
73150-90A1206

FJ62,HJ6#..SRF..ARL

SEPIA BROWN,TRIM4#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-90A2403

FJ62,HJ6#..LUB..ARL

GRAY,TRIM1#

 1
73210-90A2406

FJ62,HJ6#..ARL

SEPIA BROWN,TRIM4#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-90A2403

FJ62,HJ6#..LUB..ARL

GRAY,TRIM1#

 1
73210-90A2406

FJ62,HJ6#..ARL

SEPIA BROWN,TRIM4#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-90A1306

FJ62,HJ6#..ARL

SEPIA BROWN,TRIM4#

 1
73220-90A1303

FJ62,HJ6#..LUB..ARL

GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-90A1306

FJ62,HJ6#..ARL

SEPIA BROWN,TRIM4#

 1
73220-90A1303

FJ62,HJ6#..LUB..ARL

GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-90A2206

FJ62,HJ6#..ARL

SEPIA BROWN,TRIM4#

 1
73230-90A2203

FJ62,HJ6#..LUB..ARL

GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-90A2206

FJ62,HJ6#..ARL

SEPIA BROWN,TRIM4#

 1
73230-90A2203

FJ62,HJ6#..LUB..ARL

GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-90A2306

FJ62,HJ6#..SRF..ARL

SEPIA BROWN,TRIM4#

 1
73240-90A2303

FJ62,HJ6#..SRF..GX..ARL

GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-90A2306

FJ62,HJ6#..SRF..ARL

SEPIA BROWN,TRIM4#

 1
73240-90A2303

FJ62,HJ6#..SRF..GX..ARL

GRAY,TRIM1#

 1
73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER
73330-90A2803

FJ62,HJ6#..SRF..GX..ARL

GRAY,TRIM1#

 1
73330-90A2806

FJ62,HJ6#..SRF..ARL

SEPIA BROWN,TRIM4#

 1
73330-90A4206

FJ62,HJ6#..SRF..ARL

SEPIA BROWN,TRIM4#

 1
73330-90A4203

FJ62,HJ6#..GX..ARL

GRAY,TRIM1#

 1
73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER
73330-90A2803

FJ62,HJ6#..SRF..GX..ARL

GRAY,TRIM1#

 1
73330-90A2806

FJ62,HJ6#..SRF..ARL

SEPIA BROWN,TRIM4#

 1
73330-90A4206

FJ62,HJ6#..SRF..ARL

SEPIA BROWN,TRIM4#

 1
73330-90A4203

FJ62,HJ6#..GX..ARL

GRAY,TRIM1#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-90A2703

FJ62,HJ6#..SRF..GX..ARL

GRAY,TRIM1#

 1
73360-90A2706

FJ62,HJ6#..SRF..ARL

SEPIA BROWN,TRIM4#

 1
73360-90A3506

FJ62,HJ6#..SRF..ARL

SEPIA BROWN,TRIM4#

 1
73360-90A3503

FJ62,HJ6#..GX..ARL

GRAY,TRIM1#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-90A2703

FJ62,HJ6#..SRF..GX..ARL

GRAY,TRIM1#

 1
73360-90A2706

FJ62,HJ6#..SRF..ARL

SEPIA BROWN,TRIM4#

 1
73360-90A3506

FJ62,HJ6#..SRF..ARL

SEPIA BROWN,TRIM4#

 1
73360-90A3503

FJ62,HJ6#..GX..ARL

GRAY,TRIM1#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73360-90A2703

FJ62,HJ6#..SRF..GX..ARL

GRAY,TRIM1#

 1
73360-90A2706

FJ62,HJ6#..SRF..ARL

SEPIA BROWN,TRIM4#

 1
73360-90A3506

FJ62,HJ6#..SRF..ARL

SEPIA BROWN,TRIM4#

 1
73360-90A3503

FJ62,HJ6#..GX..ARL

GRAY,TRIM1#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73360-90A2703

FJ62,HJ6#..SRF..GX..ARL

GRAY,TRIM1#

 1
73360-90A2706

FJ62,HJ6#..SRF..ARL

SEPIA BROWN,TRIM4#

 1
73360-90A3506

FJ62,HJ6#..SRF..ARL

SEPIA BROWN,TRIM4#

 1
73360-90A3503

FJ62,HJ6#..GX..ARL

GRAY,TRIM1#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73380-90A1403

HJ6#..RHD..SRF..GX;FJ62..5F..SRF..GX..ARL;FJ62..RHD..(4F,4FC)..GX

GRAY,TRIM1#

 1
73380-90A1806

HJ6#..RHD..SRF;HJ60..LHD..STD;FJ62..5F..SRF..ARL;FJ62..RHD..(4F,4FC)..SRF

SEPIA BROWN,TRIM4#

 1
73380-90A1406

HJ6#..RHD..SRF;BJ60..LHD..GEN;FJ62..5F..SRF..ARL;FJ62..RHD..(4F,4FC)..SRF

SEPIA BROWN,TRIM4#

 1
73380-90A1803

HJ6#..RHD..GX;FJ62..5F..GX..ARL;FJ62..RHD..(4F,4FC)..GX

GRAY,TRIM1#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73380-90A1403

HJ6#..RHD..SRF..GX;FJ62..5F..SRF..GX..ARL;FJ62..RHD..(4F,4FC)..GX

GRAY,TRIM1#

 1
73380-90A1806

HJ6#..RHD..SRF;HJ60..LHD..STD;FJ62..5F..SRF..ARL;FJ62..RHD..(4F,4FC)..SRF

SEPIA BROWN,TRIM4#

 1
73380-90A1406

HJ6#..RHD..SRF;BJ60..LHD..GEN;FJ62..5F..SRF..ARL;FJ62..RHD..(4F,4FC)..SRF

SEPIA BROWN,TRIM4#

 1
73380-90A1803

HJ6#..RHD..GX;FJ62..5F..GX..ARL;FJ62..RHD..(4F,4FC)..GX

GRAY,TRIM1#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73380-90A1406

HJ6#..RHD..SRF;BJ60..LHD..GEN;FJ62..5F..SRF..ARL;FJ62..RHD..(4F,4FC)..SRF

SEPIA BROWN,TRIM4#

 1
73380-90A1403

HJ6#..RHD..SRF..GX;FJ62..5F..SRF..GX..ARL;FJ62..RHD..(4F,4FC)..GX

GRAY,TRIM1#

 1
73380-90A1803

HJ6#..RHD..GX;FJ62..5F..GX..ARL;FJ62..RHD..(4F,4FC)..GX

GRAY,TRIM1#

 1
73380-90A1806

HJ6#..RHD..SRF;HJ60..LHD..STD;FJ62..5F..SRF..ARL;FJ62..RHD..(4F,4FC)..SRF

SEPIA BROWN,TRIM4#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73380-90A1406

HJ6#..RHD..SRF;BJ60..LHD..GEN;FJ62..5F..SRF..ARL;FJ62..RHD..(4F,4FC)..SRF

SEPIA BROWN,TRIM4#

 1
73380-90A1403

HJ6#..RHD..SRF..GX;FJ62..5F..SRF..GX..ARL;FJ62..RHD..(4F,4FC)..GX

GRAY,TRIM1#

 1
73380-90A1803

HJ6#..RHD..GX;FJ62..5F..GX..ARL;FJ62..RHD..(4F,4FC)..GX

GRAY,TRIM1#

 1
73380-90A1806

HJ6#..RHD..SRF;HJ60..LHD..STD;FJ62..5F..SRF..ARL;FJ62..RHD..(4F,4FC)..SRF

SEPIA BROWN,TRIM4#

 1
Common parts
93540-14012

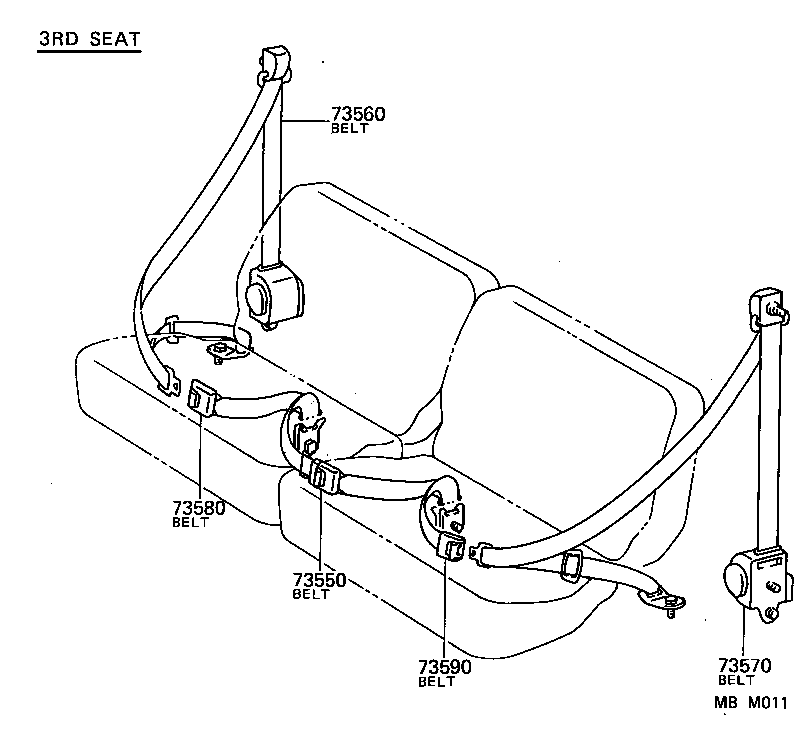

ILLUST NO. 2 OF 2(8708- )ARL

Click highlighted areas on diagram

diagram 73550 73560 73570 73580 73590
Part # Description Qty Price
