HJ61RG-MNXQ (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 12HT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

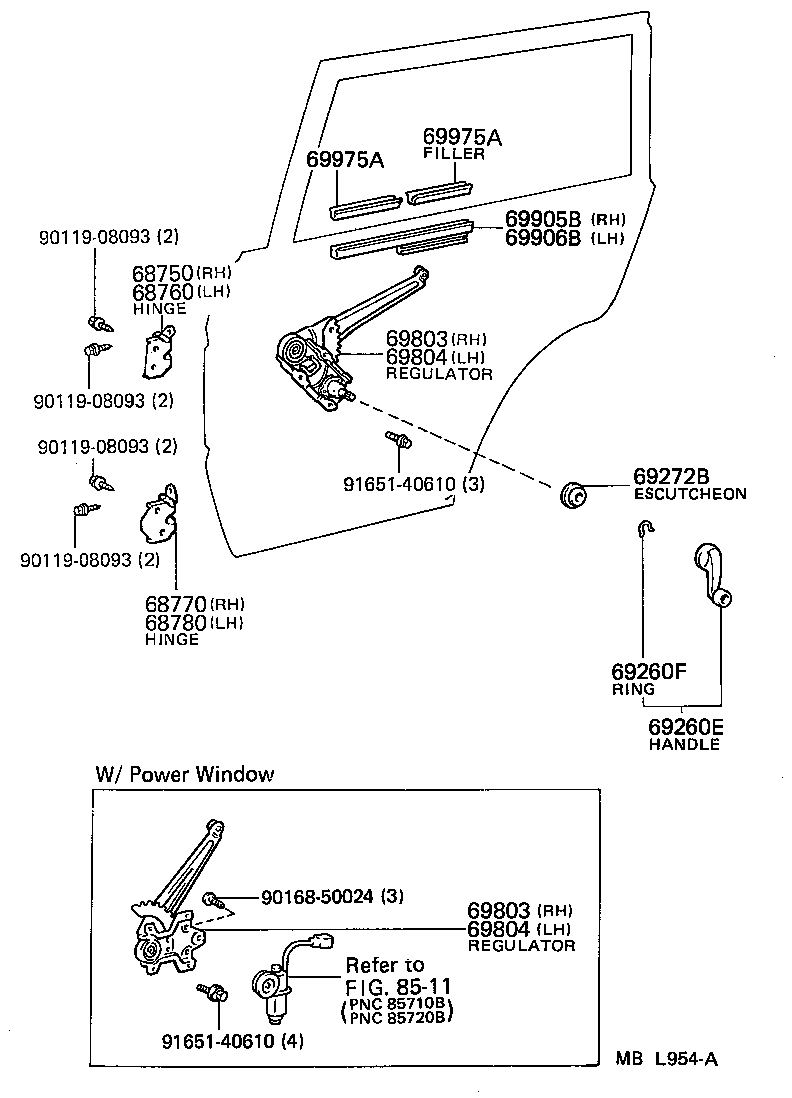

Click highlighted areas on diagram

diagram 68750 68760 68770 68780 69260E 69260F 69272B 69803 69803 69804 69804 69905B 69906B 69975A 69975A 8511 9011908093 9011908093 9011908093 9011908093 9016850024 9165140610 9165140610
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68710-30080

BJ60,FJ62,HJ6#

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68720-30020

BJ60,FJ62,HJ6#

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68730-14020

BJ60,FJ62,HJ6#

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68740-14020

BJ60,FJ62,HJ6#

 1
69260E - HANDLE ASSY, REAR DOOR WINDOW REGULATOR
69260-1201046

BJ60,HJ60;FJ62..VX..GEN;FJ62,HJ61..GX,STD

BROWN,TRIM4#

 2
69260-1201003

FJ62,HJ61..GX;FJ62..VX..GEN;BJ60,HJ60..GX,VX

GRAY,TRIM1#

 2
69260F - RING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
90520-01002

BJ60,HJ60;FJ62..VX..GEN;FJ62,HJ61..GX,STD

 2
69272B - PLATE, REAR DOOR REGULATOR INSIDE HANDLE
69285-2201008

FJ62,HJ61..GX;FJ62..VX..GEN;BJ60,HJ60..GX,VX

NATURAL WHITE,TRIM1#,4#

 2
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-90A00

HJ60..LUB;FJ62,HJ61..GX;FJ62..VX..GEN

W(*PW)

 1
69830-90A01

BJ60,HJ60;FJ62..VX..GEN;FJ62,HJ61..GX,STD

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-90A00

HJ60..LUB;FJ62,HJ61..GX;FJ62..VX..GEN

W(*PW)

 1
69830-90A01

BJ60,HJ60;FJ62..VX..GEN;FJ62,HJ61..GX,STD

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69840-90A01

BJ60,HJ60;FJ62..VX..GEN;FJ62,HJ61..GX,STD

 1
69804-90A00

HJ60..LUB;FJ62,HJ61..GX;FJ62..VX..GEN

W(*PW)

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69840-90A01

BJ60,HJ60;FJ62..VX..GEN;FJ62,HJ61..GX,STD

 1
69804-90A00

HJ60..LUB;FJ62,HJ61..GX;FJ62..VX..GEN

W(*PW)

 1
69905B - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69905-90A03

BJ60,FJ62,HJ6#

 1
69906B - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69906-90A03

BJ60,FJ62,HJ6#

 1
69975A - FILLER, REAR DOOR GLASS CHANNEL
69975-90A00

BJ60,FJ62,HJ6#

REAR

 2
69973-90A00

BJ60,FJ62,HJ6#

FRONT

 2
69975A - FILLER, REAR DOOR GLASS CHANNEL
69975-90A00

BJ60,FJ62,HJ6#

REAR

 2
69973-90A00

BJ60,FJ62,HJ6#

FRONT

 2
Common parts
90119-08093
90168-50024
91651-40610
Linked diagrams
8511
