HJ61RG-MNXQ (1987)
Toyota Land Cruiser

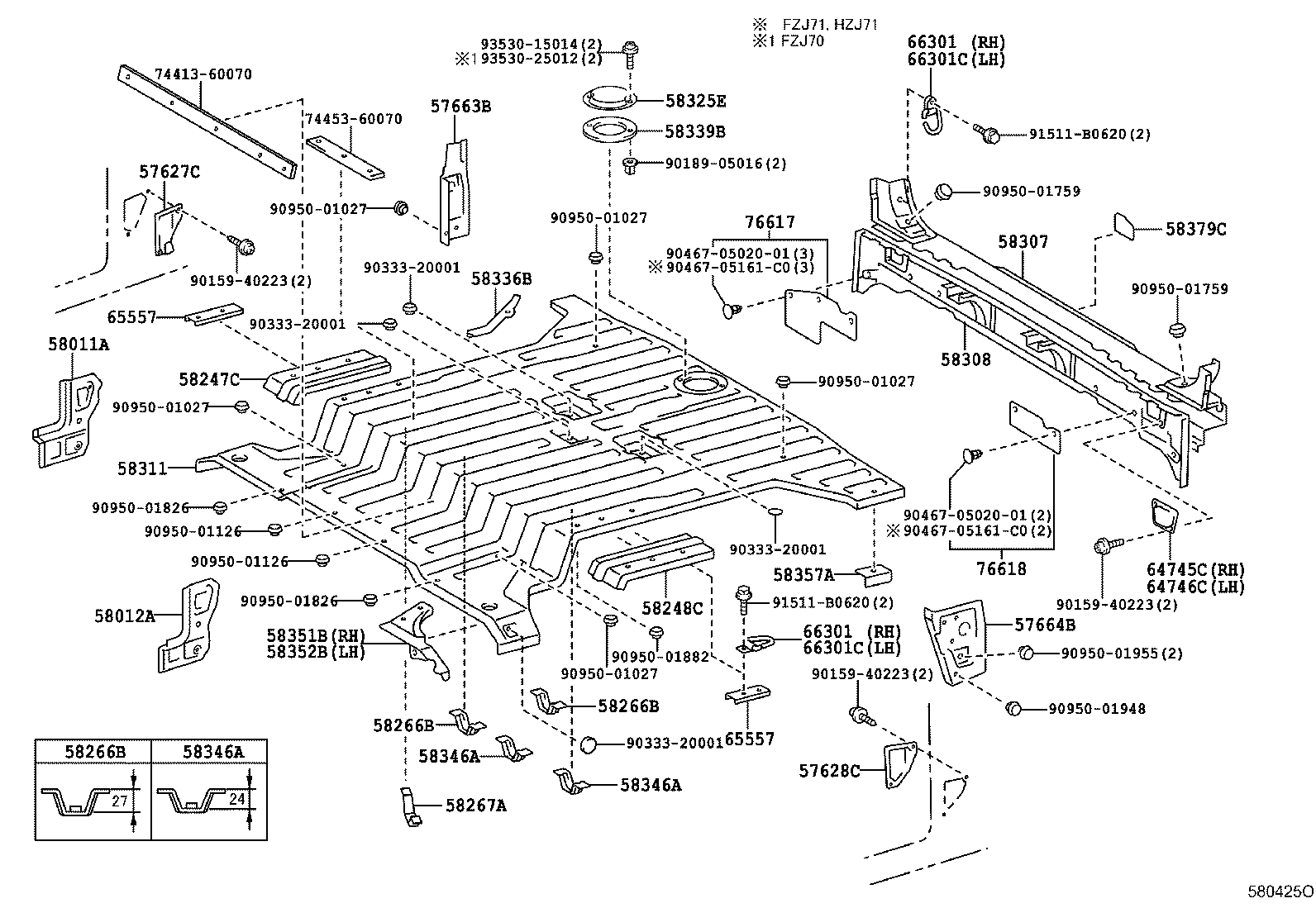

(9001-9908)FJ70,FZJ70,HZJ70,KZJ70,LJ70,72,PZJ70,RJ70 ; (9908-0701)FZJ70,HZJ70,71 ;
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 74413-60070 | ||||
| 74453-60070 | ||||
| 90159-40223 | ||||
| 90189-05016 | ||||
| 90333-20001 | ||||
| 90467-0502001 | ||||
| 90467-05161C0 | ||||
| 90950-01027 | ||||
| 90950-01126 | ||||
| 90950-01759 | ||||
| 90950-01826 | ||||
| 90950-01882 | ||||
| 90950-01948 | ||||
| 90950-01955 | ||||
| 91511-B0620 | ||||
| 93530-15014 | ||||
| 93530-25012 | ||||
(9001-9908)FJ75,FZJ75,HJ75,HZJ75,PZJ75 ; (9908-0701)FZJ75,HDJ7#,HZJ75,78,79 ; (9908
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90044-63020 | ||||
| 90189-05016 | ||||
| 90333-20001 | ||||
| 90463-08063 | ||||
| 90467-0502001 | ||||
| 90467-05161C0 | ||||
| 90467-08029 | ||||
| 90950-01011 | ||||
| 90950-01056 | ||||
| 90950-01126 | ||||
| 90950-01759 | ||||
| 90950-01882 | ||||
| 90950-01948 | ||||
| 90950-01955 | ||||
| 93530-15014 | ||||
| 93530-25012 | ||||
| 93540-14008 | ||||
| 93560-14010 | ||||

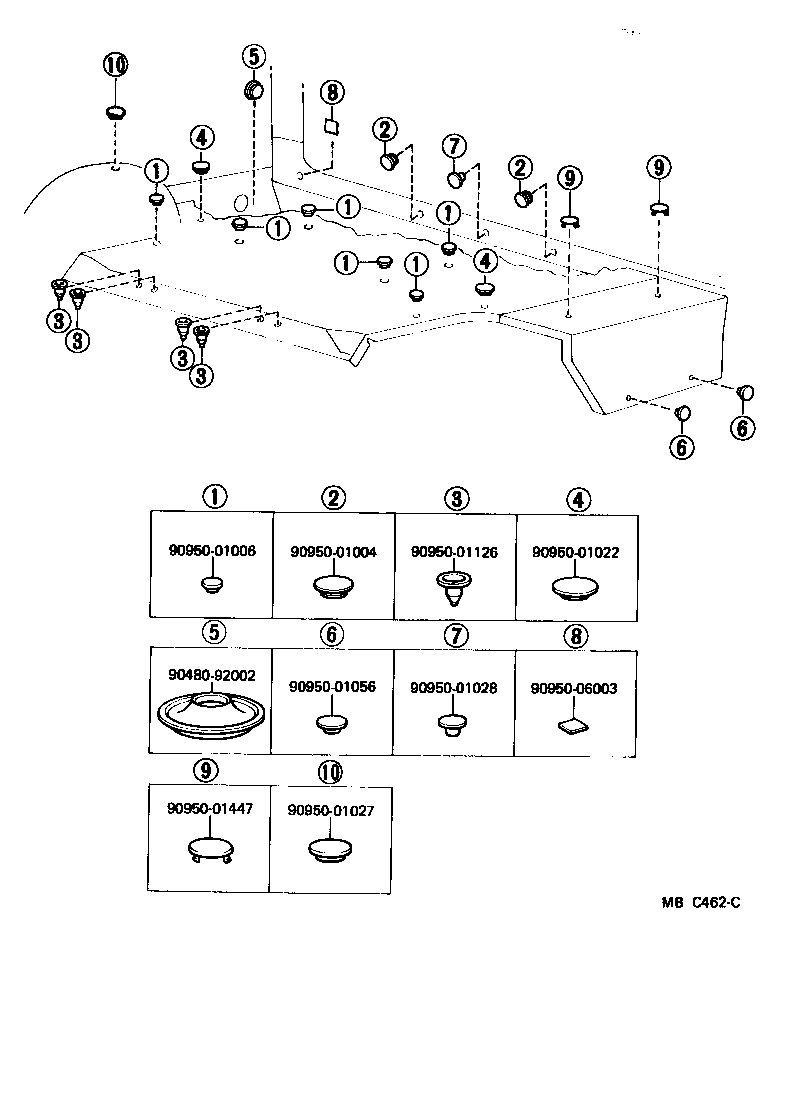

ILLUST NO. 2 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90480-92002 | ||||
| 90950-01004 | ||||
| 90950-01006 | ||||
| 90950-01022 | ||||
| 90950-01027 | ||||
| 90950-01028 | ||||
| 90950-01056 | ||||
| 90950-01126 | ||||
| 90950-01447 | ||||
| 90950-06003 | ||||

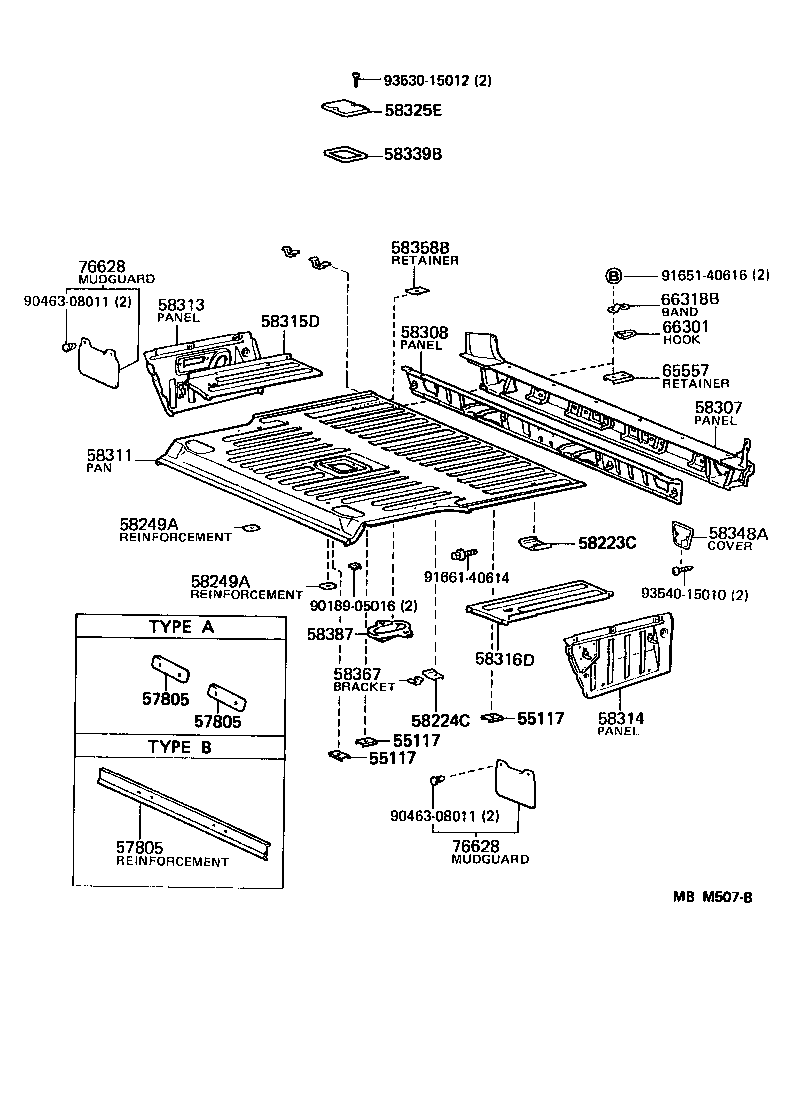

ILLUST NO. 1 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57805 - REINFORCEMENT SUB-ASSY, BELT ANCHOR | ||||
| 57805-90A00 |
BJ60,HJ60..GX,STD;FJ62,HJ61..SRF..(GX,STD);FJ62..LHD..HRF..(GX,STD) TYPE A |
2 | ||
| 57805 - REINFORCEMENT SUB-ASSY, BELT ANCHOR | ||||
| 57805-90A00 |
BJ60,HJ60..GX,STD;FJ62,HJ61..SRF..(GX,STD);FJ62..LHD..HRF..(GX,STD) TYPE A |
2 | ||
| 57805 - REINFORCEMENT SUB-ASSY, BELT ANCHOR | ||||
| 57805-90A00 |
BJ60,HJ60..GX,STD;FJ62,HJ61..SRF..(GX,STD);FJ62..LHD..HRF..(GX,STD) TYPE A |
2 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-90A00 |
FJ62,HJ6#..LUB |
1 | ||
| 58308 - PANEL SUB-ASSY, BODY LOWER BACK, INNER | ||||
| 58308-90A03 |
FJ62,HJ6#..LUB |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-90A19 |
BJ60,HJ60..GX,STD;FJ62,HJ61..SRF..(GX,STD);FJ62..LHD..HRF..(GX,STD) |
1 | ||
| 58313 - PANEL, REAR FLOOR SIDE, RH | ||||
| 58305-90A07 |
BJ60,HJ60;FJ62..GEN,ME;FJ62,HJ61..SRF..ARL |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58306-90A12 |
BJ60,HJ60;FJ62..GEN,ME;FJ62,HJ61..SRF..ARL |
1 | ||
| 58315D - EXTENSION, REAR FLOOR PAN, RH | ||||
| 58315-90A00 |
BJ60,HJ60;FJ62..STD;FJ62..SRF..SOB..VX;FJ62..HRF..GX..GEN;FJ62,HJ61..SRF..LUB;FJ62..SRF..SOB..GX..GEN |
1 | ||
| 58316D - EXTENSION, REAR FLOOR PAN, LH | ||||
| 58316-90A04 |
BJ60,HJ60;FJ62..STD;FJ62..SRF..SOB..VX;FJ62..HRF..GX..GEN;FJ62,HJ61..SRF..LUB;FJ62..SRF..SOB..GX..GEN |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-90A00 |
BJ60,FJ62,HJ6# |
1 | ||
| 58339B - PACKING, REAR FLOOR SERVICE HOLE | ||||
| 58339-90A00 |
BJ60,FJ62,HJ6# |
1 | ||
| 58348A - COVER, REAR BODY MOUNTING SERVICE HOLE | ||||
| 58348-90A00 |
BJ60,FJ62,HJ6# |
2 | ||
| 58367 - BRACKET, FUEL TUBE CLAMP | ||||
| 58367-90A00 |
BJ60,FJ62,HJ6# |
1 | ||
| 65557 - RETAINER, ROPE HOOK | ||||
| 65557-90A01 |
BJ60,FJ62,HJ6# |
4 | ||
| 66301 - HOOK SUB-ASSY, ROPE | ||||
| 66301-90A00 |
BJ60,FJ62,HJ6# |
4 | ||
| 66318B - BAND, ROPE HOOK | ||||
| 66318-90A00 |
BJ60,FJ62,HJ6# |
4 | ||
| 76628 - MUDGUARD, QUARTER PANEL, REAR | ||||
| 76628-90A01 |
BJ60,FJ62,HJ6# |
2 | ||
| 76628 - MUDGUARD, QUARTER PANEL, REAR | ||||
| 76628-90A01 |
BJ60,FJ62,HJ6# |
2 | ||
| Common parts | ||||
| 90189-05016 | ||||
| 90463-08011 | ||||
| 91611-40614 | ||||
| 91651-40616 | ||||
| 93530-15012 | ||||
| 93540-15010 | ||||
