HJ61RG-MNXQ (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 12HT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

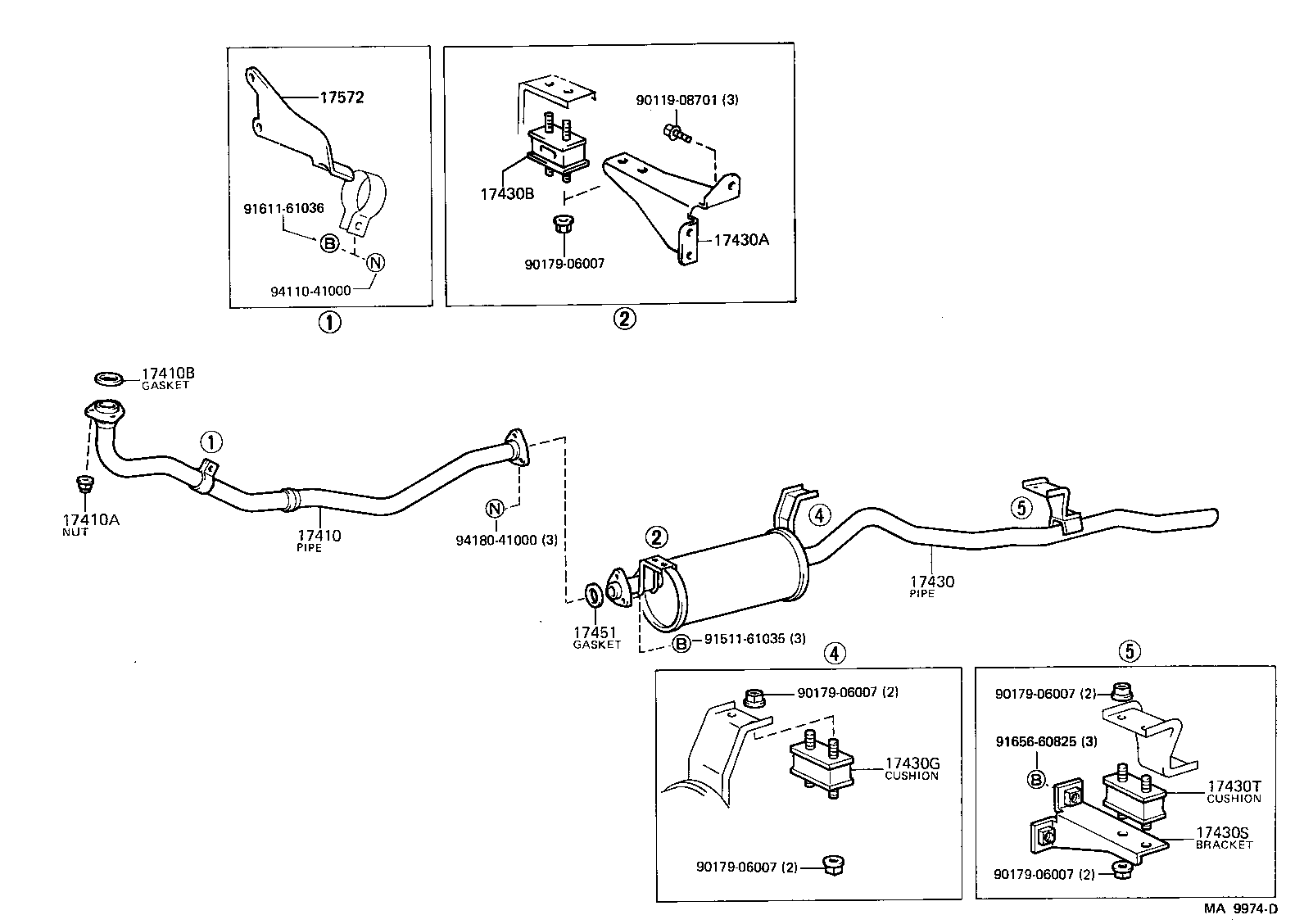

(8708- )2H

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17430 17430A 17430B 17430G 17430S 17430T 17451 17572 9011908701 9017906007 9017906007 9017906007 9017906007 9017906007 9151161035 9161161036 9165660825 9411041000 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17401-68040

12HT..HJ61

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

12HT,3B,3F,2H..BJ60,FJ62,HJ6#

 3
17410B - GASKET, EXHAUST PIPE
90917-06034

12HT..HJ61

 1
90917-06034

12HT,3B..BJ60,HJ61

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-68061

12HT..HJ61

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17574-61071

12HT,3B,3F,2H..BJ60,FJ62,HJ6#

 1
17430B - CUSHION, EXHAUST TAIL PIPE(FOR FRONT)
17567-61030

12HT,3B,3F,2H..BJ60,FJ62,HJ6#

 1
17430G - CUSHION, EXHAUST TAIL PIPE(FOR CENTER)
17567-61030

12HT,3B,3F,2H..BJ60,FJ62,HJ6#

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17574-61060

12HT,3B,3F,2H..BJ60,FJ62,HJ6#

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17567-61030

12HT,3B,3F,2H..BJ60,FJ62,HJ6#

 1
17451 - GASKET, EXHAUST PIPE
90917-06024

12HT,3F,2H..FJ62,HJ6#

 1
Common parts
90119-08701
90179-06007
91511-61035
91611-61036
91656-60825
94110-41000
94180-41000

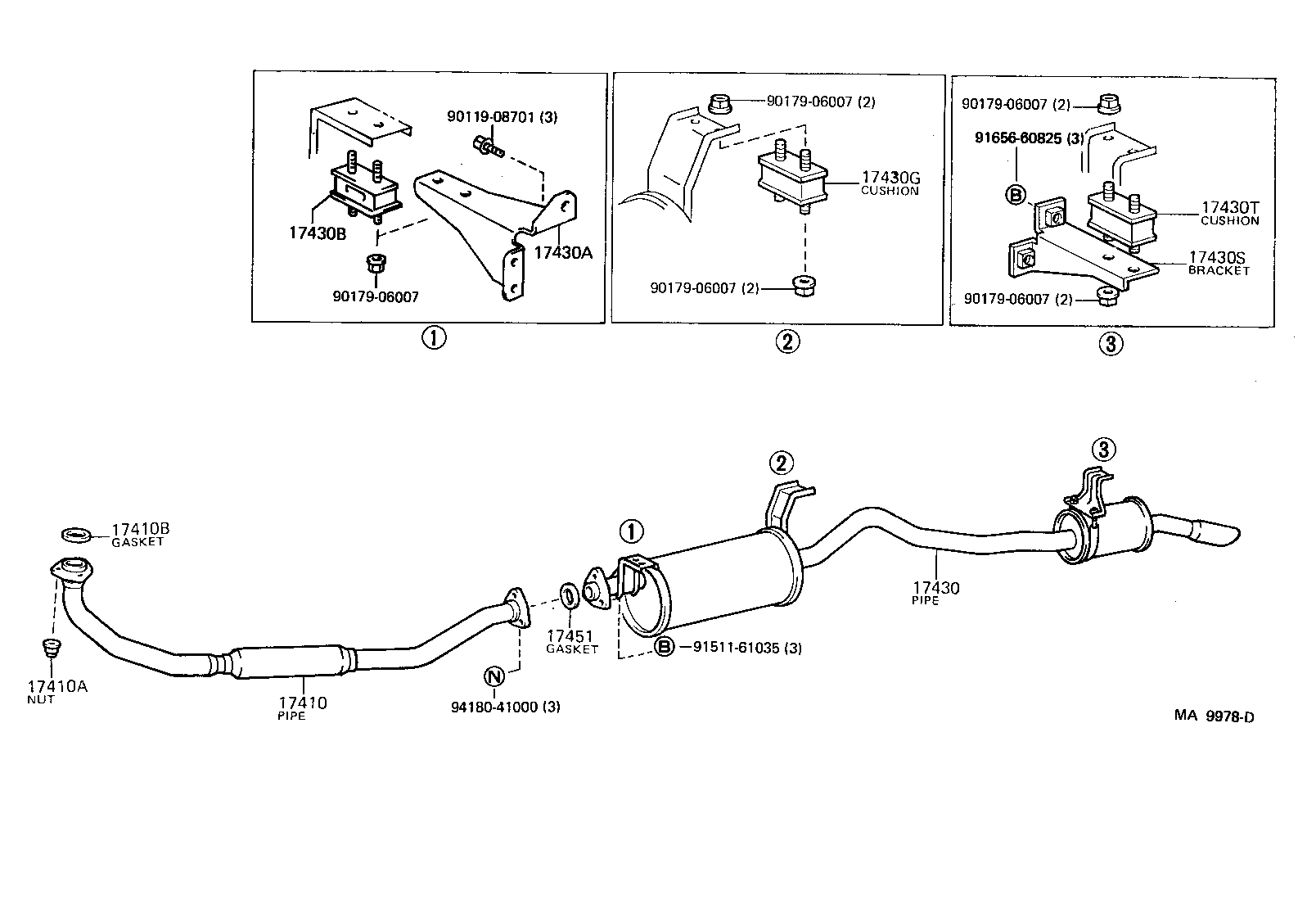

(8708- )12HT

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17430 17430A 17430B 17430G 17430S 17430T 17451 9011908701 9017906007 9017906007 9017906007 9017906007 9017906007 9151161035 9165660825 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17401-68040

12HT..HJ61

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

12HT,3B,3F,2H..BJ60,FJ62,HJ6#

 3
17410B - GASKET, EXHAUST PIPE
90917-06034

12HT..HJ61

 1
90917-06034

12HT,3B..BJ60,HJ61

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-68061

12HT..HJ61

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17574-61071

12HT,3B,3F,2H..BJ60,FJ62,HJ6#

 1
17430B - CUSHION, EXHAUST TAIL PIPE(FOR FRONT)
17567-61030

12HT,3B,3F,2H..BJ60,FJ62,HJ6#

 1
17430G - CUSHION, EXHAUST TAIL PIPE(FOR CENTER)
17567-61030

12HT,3B,3F,2H..BJ60,FJ62,HJ6#

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17574-61060

12HT,3B,3F,2H..BJ60,FJ62,HJ6#

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17567-61030

12HT,3B,3F,2H..BJ60,FJ62,HJ6#

 1
17451 - GASKET, EXHAUST PIPE
90917-06024

12HT,3F,2H..FJ62,HJ6#

 1
Common parts
90119-08701
90179-06007
91511-61035
91656-60825
94180-41000
