HJ61RG-MNXQ (1987)
Toyota Land Cruiser
(8708- )2H

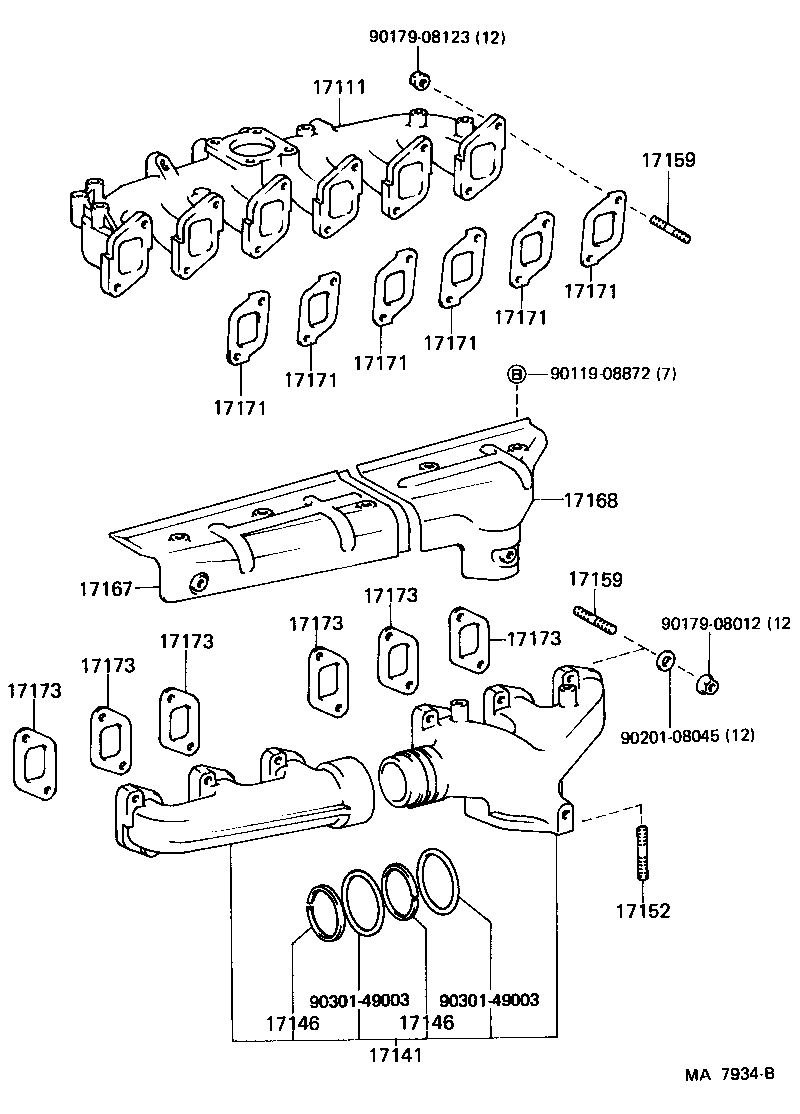

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-68060 |
12HT..HJ61 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17140-68020 |
12HT..HJ61 |
1 | ||
| 17146 - RING, EXHAUST MANIFOLD | ||||
| 17151-68010 |
12HT,2H..HJ6# |
2 | ||
| 17146 - RING, EXHAUST MANIFOLD | ||||
| 17151-68010 |
12HT,2H..HJ6# |
2 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10087 |
12HT,2H..HJ6# |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08222 |
12HT,2H..HJ6# EXHAUST MANIFOLD |
12 | ||
| 90116-08131 |
12HT..HJ61 INTAKE MANIFOLD |
10 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08222 |
12HT,2H..HJ6# EXHAUST MANIFOLD |
12 | ||
| 90116-08131 |
12HT..HJ61 INTAKE MANIFOLD |
10 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-68020 |
12HT..HJ61 |
1 | ||
| 17171 - GASKET, INTAKE TO EXHAUST MANIFOLD | ||||
| 17171-68020 |
12HT..HJ61 |
1 | ||
| 17171 - GASKET, INTAKE TO EXHAUST MANIFOLD | ||||
| 17171-68020 |
12HT..HJ61 |
1 | ||
| 17171 - GASKET, INTAKE TO EXHAUST MANIFOLD | ||||
| 17171-68020 |
12HT..HJ61 |
1 | ||
| 17171 - GASKET, INTAKE TO EXHAUST MANIFOLD | ||||
| 17171-68020 |
12HT..HJ61 |
1 | ||
| 17171 - GASKET, INTAKE TO EXHAUST MANIFOLD | ||||
| 17171-68020 |
12HT..HJ61 |
1 | ||
| 17171 - GASKET, INTAKE TO EXHAUST MANIFOLD | ||||
| 17171-68020 |
12HT..HJ61 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-68021 |
12HT..HJ61 |
2 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-68021 |
12HT..HJ61 |
2 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-68021 |
12HT..HJ61 |
2 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-68021 |
12HT..HJ61 |
2 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-68021 |
12HT..HJ61 |
2 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-68021 |
12HT..HJ61 |
2 | ||
| Common parts | ||||
| 90119-08872 | ||||
| 90179-08012 | ||||
| 90179-08123 | ||||
| 90201-08045 | ||||
| 90301-49003 | ||||

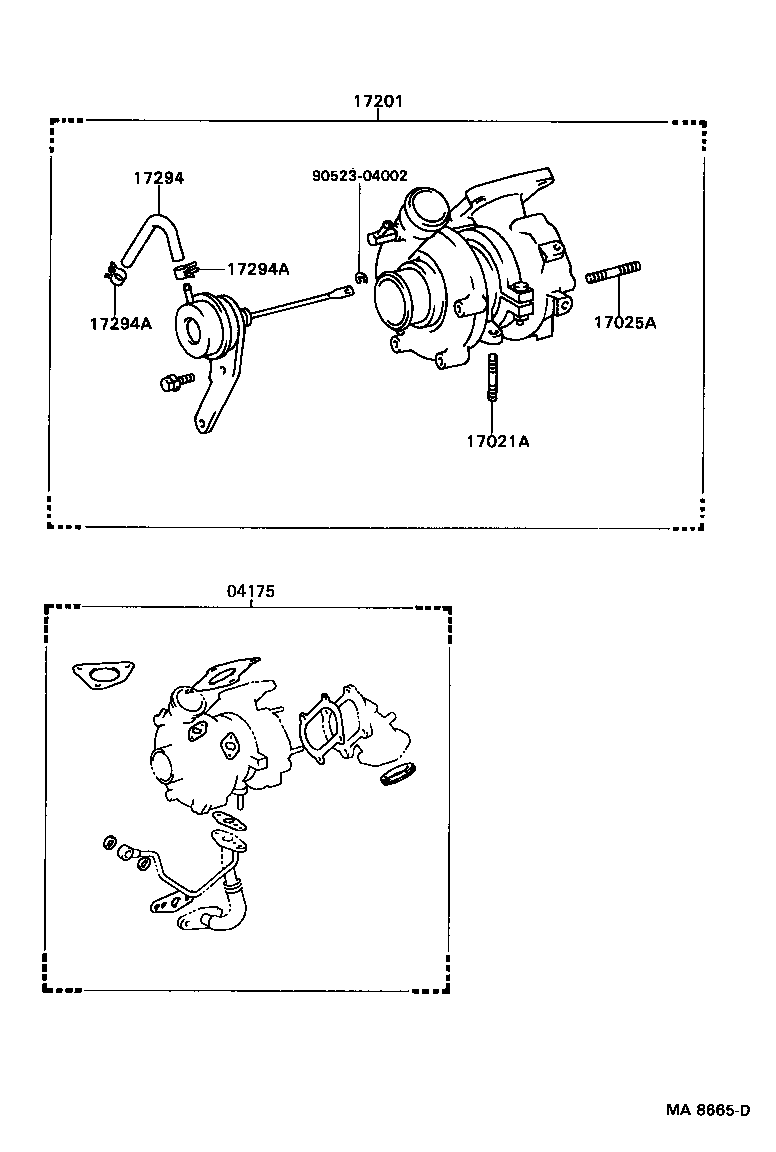

ILLUST NO. 2 OF 2(8708- )12HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04175 - GASKET KIT, TURBOCHARGER | ||||
| 04175-68010 |
12HT..HJ61 |
1 | ||
| 17021A - BOLT, STUD(FOR BEARING HOUSING) | ||||
| 90116-08158 |
12HT..HJ61 |
2 | ||
| 17025A - BOLT, STUD(FOR TURBINE HOUSING) | ||||
| 90116-10125 |
12HT..HJ61 |
4 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-68010 |
12HT..HJ61 |
1 | ||
| 17294 - HOSE, ACTUATOR | ||||
| 17294-28010 |
12HT..HJ61 |
1 | ||
| 17294A - CLIP(FOR ACTUATOR HOSE) | ||||
| 96132-30600 |
12HT..HJ61 |
2 | ||
| 96132-41100 |
12HT..HJ61 |
2 | ||
| 17294A - CLIP(FOR ACTUATOR HOSE) | ||||
| 96132-30600 |
12HT..HJ61 |
2 | ||
| 96132-41100 |
12HT..HJ61 |
2 | ||
| Common parts | ||||
| 90523-04002 | ||||

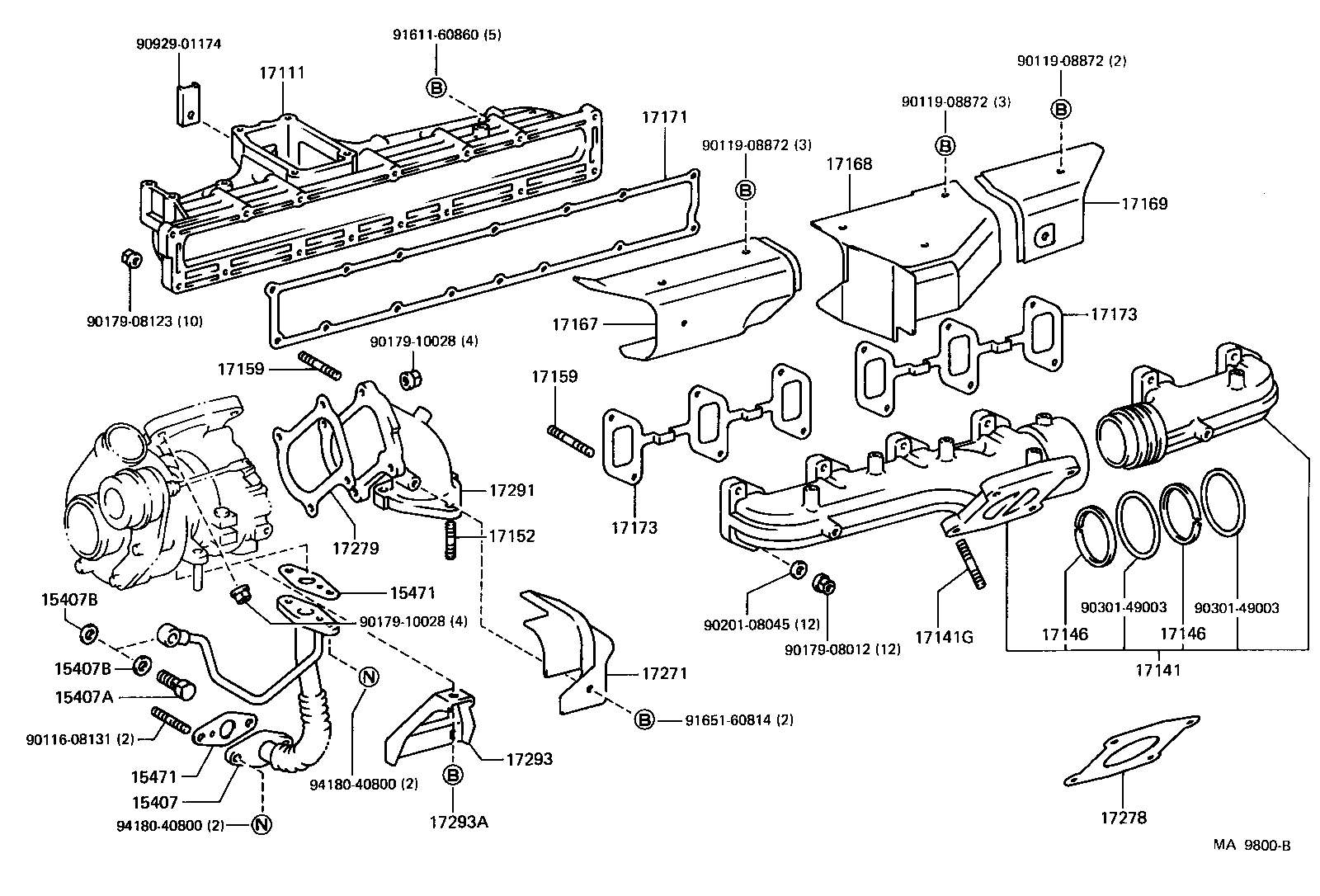

ILLUST NO. 1 OF 2(8708- )12HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15407 - PIPE SUB-ASSY, TURBO OIL INLET | ||||
| 15407-68010 |
12HT..HJ61 |
1 | ||
| 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) | ||||
| 90401-12097 |
12HT..HJ61 |
1 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90430-12221 |
12HT..HJ61 |
2 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90430-12221 |
12HT..HJ61 |
2 | ||
| 15471 - GASKET, TURBO OIL INLET | ||||
| 15471-54010 |
12HT..HJ61 |
2 | ||
| 15471 - GASKET, TURBO OIL INLET | ||||
| 15471-54010 |
12HT..HJ61 |
2 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-68060 |
12HT..HJ61 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17140-68020 |
12HT..HJ61 |
1 | ||
| 17141G - BOLT, STUD(FOR TURBOCHARGER) | ||||
| 90116-10117 |
12HT..HJ61 |
4 | ||
| 17146 - RING, EXHAUST MANIFOLD | ||||
| 17151-68010 |
12HT,2H..HJ6# |
2 | ||
| 17146 - RING, EXHAUST MANIFOLD | ||||
| 17151-68010 |
12HT,2H..HJ6# |
2 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10087 |
12HT,2H..HJ6# |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08222 |
12HT,2H..HJ6# EXHAUST MANIFOLD |
12 | ||
| 90116-08131 |
12HT..HJ61 INTAKE MANIFOLD |
10 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08222 |
12HT,2H..HJ6# EXHAUST MANIFOLD |
12 | ||
| 90116-08131 |
12HT..HJ61 INTAKE MANIFOLD |
10 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-68020 |
12HT..HJ61 |
1 | ||
| 17169 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.3 | ||||
| 17169-68010 |
12HT..HJ61 |
1 | ||
| 17171 - GASKET, INTAKE TO EXHAUST MANIFOLD | ||||
| 17171-68020 |
12HT..HJ61 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-68021 |
12HT..HJ61 |
2 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-68021 |
12HT..HJ61 |
2 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-68010 |
12HT..HJ61 |
1 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| 17278-58010 |
12HT..HJ61 |
1 | ||
| 17279 - GASKET, TURBINE OUTLET ELBOW | ||||
| 17279-58010 |
12HT..HJ61 |
1 | ||
| 17291 - ELBOW, TURBINE OUTLET | ||||
| 17291-68010 |
12HT..HJ61 |
1 | ||
| 17293 - STAY, TURBOCHARGER | ||||
| 17293-68010 |
12HT..HJ61 |
1 | ||
| 17293A - BOLT, STUD(FOR TURBOCHARGER STAY) | ||||
| 91659-61220 |
12HT..HJ61 |
3 | ||
| Common parts | ||||
| 90116-08131 | ||||
| 90119-08872 | ||||
| 90179-08012 | ||||
| 90179-08123 | ||||
| 90179-10028 | ||||
| 90201-08045 | ||||
| 90301-49003 | ||||
| 90929-01174 | ||||
| 91611-60860 | ||||
| 91651-60814 | ||||
| 94180-40800 | ||||
