HJ60RV-PCQ (1984)

Toyota Land Cruiser

Production Nov 1984 - Oct 1985
Engine 2H
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )HJ60..4FC

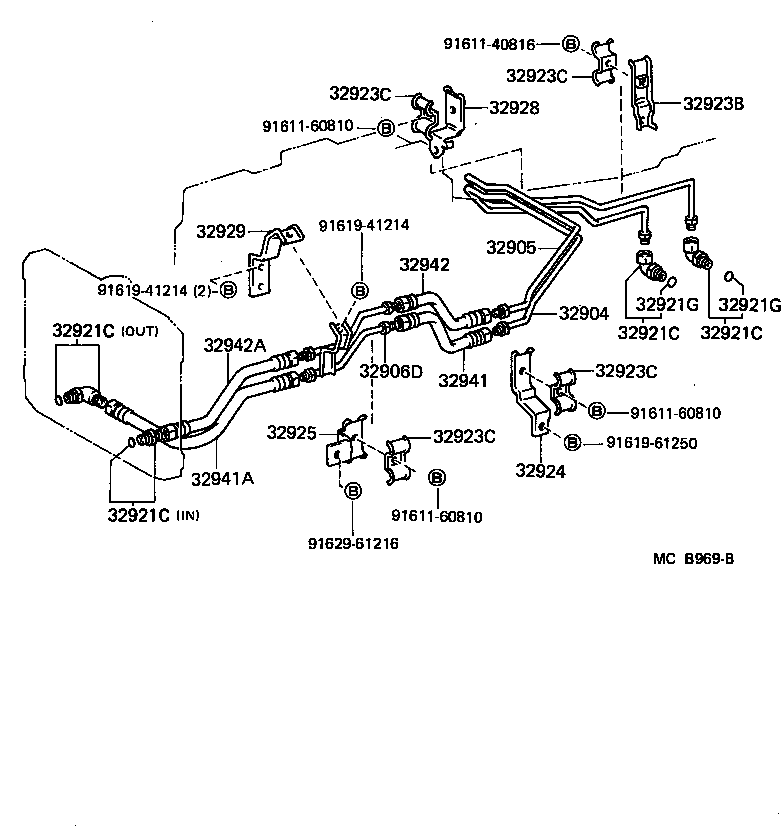

Click highlighted areas on diagram

diagram 32904 32905 32906D 32921C 32921C 32921C 32921C 32921G 32921G 32923B 32923C 32923C 32923C 32923C 32924 32925 32928 32929 32941 32941A 32942 32942A 9161140816 9161160810 9161160810 9161160810 9161941214 9161941214 9161961250 9162961216
Part # Description Qty Price
32906D - TUBE SUB-ASSY, OIL COOLER, NO.2
32907-60020

HJ60..4FC

 1
32929 - CLAMP, FLEXIBLE HOSE, NO.2
32929-60020

HJ60..4FC

 1
Common parts
91611-40816
91611-60810
91619-41214
91619-61250
91629-61216
