HJ60RV-PCQ (1984)

Toyota Land Cruiser

Production Nov 1984 - Oct 1985
Engine 2H
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )HJ6#..4FC

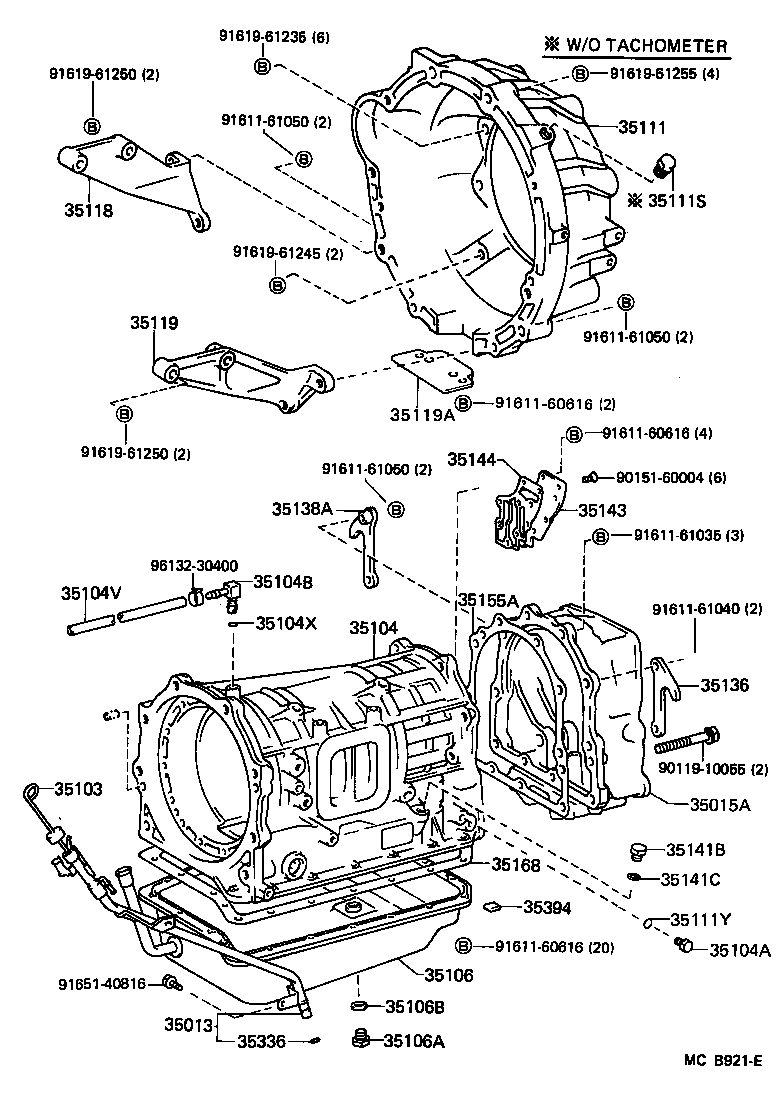

Click highlighted areas on diagram

diagram 35013 35015A 35103 35104 35104A 35104B 35104V 35104X 35106 35106A 35106B 35111 35111S 35111Y 35118 35119 35119A 35136 35138A 35141B 35141C 35143 35144 35155A 35168 35336 35394 9011910055 9015160004 9161160616 9161160616 9161160616 9161161035 9161161040 9161161050 9161161050 9161161050 9161961235 9161961245 9161961250 9161961250 9161961255 9165140816 9613230400
Part # Description Qty Price
35111S - PLUG (FOR TRANSMISSION HOUSING)
90341-20086

HJ60..4FC..SOB

 1
Common parts
90119-10055
90151-60004
91611-60616
91611-61035
91611-61040
91611-61050
91619-61235
91619-61245
91619-61250
91619-61255
91651-40816
96132-30400
