HJ60RG-PZQ (1984)
Toyota Land Cruiser
(8411- )FJ62,HJ6#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 87104-87008 |
FJ62,HJ6#..LUB..(ARL,GEN) COOL BOX |
1 | ||
| 87104-90A05 |
HJ60..HRF..ARL |
1 | ||
| 87104-90A05 |
FJ62,HJ6#..HRF..(ARL,GEN) |
1 | ||
| 88361 - FAN, COOLER BLOWER, NO.1 | ||||
| 87105-14020 |
FJ62,HJ6#..ARL,GEN |
1 | ||
| 87105-14020 |
HJ60..HRF..ARL |
1 | ||
| 87105-87004 |
FJ62,HJ6#..LUB..(ARL,GEN) COOL BOX |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-90A00 |
BJ60,FJ60,HJ60..RHD..(ARL,GEN) |
1 | ||
| 88501-90A04 |
HJ60..HRF..ARL RR |
1 | ||
| 88501-90A02 |
BJ60,FJ62,HJ6#..RHD..(ARL,GEN) FR |
1 | ||
| 88501-90A02 |
FJ62,HJ60..HRF..ARL W/*ODAC,FR |
1 | ||
| 88501-90A05 |
FJ62,HJ6#..LUB..(ARL,GEN) COOL BOX |
1 | ||
| 88501-90A04 |
FJ62,HJ6#..ARL,GEN RR |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-90A00 |
BJ60,FJ60,HJ60..RHD..(ARL,GEN) |
1 | ||
| 88510-90A1203 |
HJ60..HRF..ARL RR,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 88510-90A07 |
HJ60..HRF..ARL W/*ODAC,FR |
1 | ||
| 88510-90A1206 |
HJ60..HRF..ARL RR,BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 88510-90A17 |
HJ6#..RHD..(ARL,GEN) W/*ODAC,FR |
1 | ||
| 88510-90A10 |
FJ62,HJ6#..ARL FR |
1 | ||
| 88510-90A29 |
FJ62,HJ6#..HRF..(ARL,GEN) RR |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-16030 |
HJ60..HRF..ARL RR |
1 | ||
| 88515-87004 |
FJ62,HJ6#..ARL FR |
1 | ||
| 88515-87004 |
FJ62,HJ60..ARL,GEN W/*ODAC |
2 | ||
| 88515-87003 |
FJ62,HJ6#..LUB..(ARL,GEN) COOL BOX |
1 | ||
| 88521 - CASE, COOLER UNIT | ||||
| 88502-90A03 |
FJ62,HJ6#..HRF..(ARL,GEN) |
1 | ||
| 88502-90A01 |
HJ60..HRF..ARL |
1 | ||
| 88899-90A01 |
FJ62,HJ6#..LUB..(ARL,GEN) COOL BOX |
2 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-90A01 |
HJ60..HRF..ARL RR |
1 | ||
| 88539-90A01 |
FJ62,HJ6#..ARL,GEN RR |
1 | ||
| 88539-90A00 |
BJ60,FJ6#,HJ6#..ARL,GEN,ME FR |
1 | ||
| 88539-90A02 |
FJ62,HJ6#..LUB..(ARL,GEN) COOL BOX |
1 | ||
| 88568 - FILTER, COOLER UNIT COVER | ||||
| 88568-90A00 |
FJ62,HJ6#..ARL,GEN |
1 | ||
| 88568-90A00 |
HJ60..HRF..ARL |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-90A09 |
BJ60,FJ62,HJ6#..ARL,GEN,ME FR |
1 | ||
| 88605-90A08 |
HJ60..RHD..(ARL,GEN) |
1 | ||
| 88605-90A11 |
HJ60..HRF..ARL W/*ODAC,FR |
1 | ||
| 88605-90A15 |
HJ60..HRF..ARL RR |
1 | ||
| 88605-90A15 |
FJ62,HJ6#..ARL,GEN RR |
1 | ||
| 88605-90A19 |
HJ6#..ARL,GEN W/*ODAC,FR |
1 | ||
| 88605-90A22 |
FJ62,HJ6#..LUB..(ARL,GEN) COOL BOX |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-90A00 |
BJ60,FJ60,HJ60..ARL,GEN |
1 | ||
| 88625-87003 |
FJ62,HJ6#..LUB..(ARL,GEN) COOL BOX |
1 | ||
| 88625-95A00 |
HJ60..HRF..ARL |
1 | ||
| 88625-95A00 |
FJ62,HJ6#..ARL,GEN |
1 | ||
| 88635 - RESISTOR, COOLER UNIT BLOWER | ||||
| 87138-90A01 |
FJ62,HJ6#..ARL,GEN |
1 | ||
| 87138-87008 |
HJ60..HRF..ARL |
1 | ||
| 88690 - VALVE ASSY, COOLER MAGNET | ||||
| 88690-90A07 |
HJ60..HRF..ARL |
1 | ||
| 88690-90A07 |
FJ62,HJ6#..ARL,GEN |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-90A04 |
BJ60,FJ60,HJ60..RHD..(ARL,GEN) FR |
1 | ||
| 88716-90A11 |
HJ60..HRF..ARL RR |
1 | ||
| 88716-90A11 |
FJ62,HJ6#..ARL,GEN RR |
1 | ||
| 88716-90A33 |
FJ62,HJ6#..LUB..(ARL,GEN) COOL BOX |
1 | ||
| 88716-90A28 |
FJ62,HJ6#..RHD..(ARL,GEN) W/*ODAC,FR |
1 | ||
| 88716-90A26 |
BJ60,FJ62,HJ6#..RHD..(ARL,GEN) FR |
1 | ||
| 88716G - PIPE, COOLER REFRIGERANT LIQUID, G | ||||
| 88716-90A12 |
HJ60..HRF..ARL |
1 | ||
| 88716-90A12 |
FJ62,HJ6#..ARL,GEN |
1 | ||
| 88717F - PIPE, COOLER REFRIGERANT SUCTION, F | ||||
| 88717-90A10 |
FJ62,HJ6#..LUB..(ARL,GEN) COOL BOX |
1 | ||
| 88717-90A06 |
FJ62,HJ6#..ARL,GEN |
1 | ||
| 88717-90A06 |
HJ60..HRF..ARL |
1 | ||
| Common parts | ||||
| 88653-90A00 | ||||
| 91665-40616 | ||||

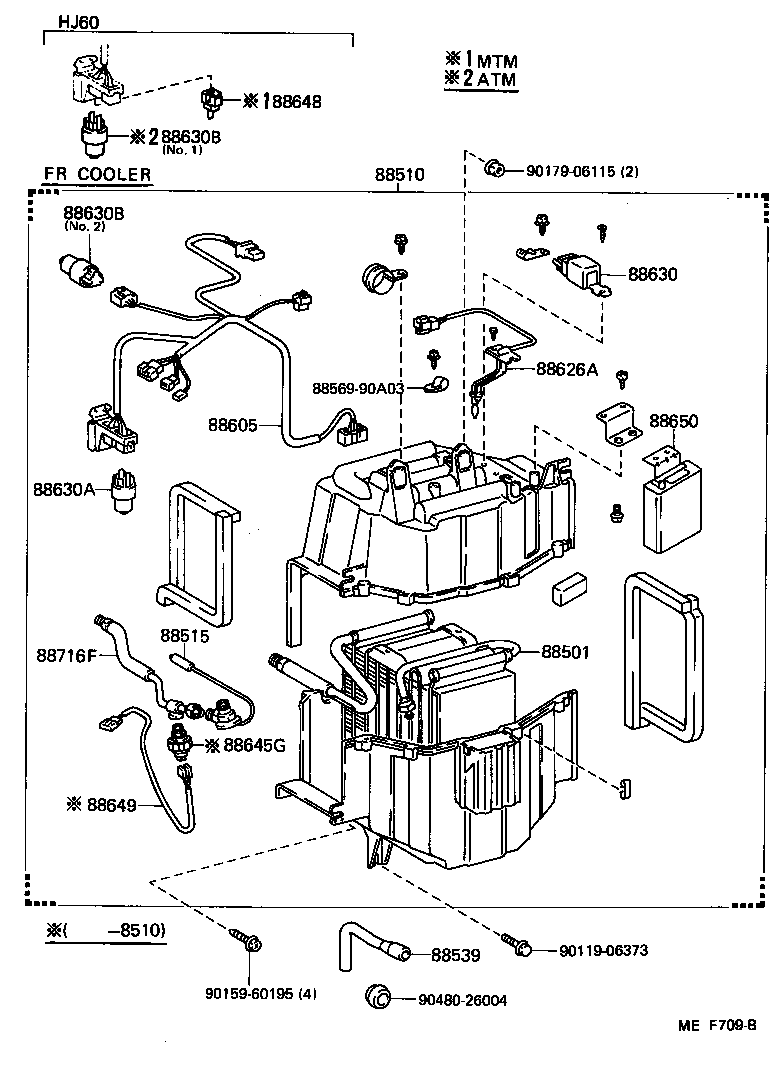

(8411- )FJ62..HRF ; (8411- )HJ60..HRF..ARL
*ODAC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-90A00 |
BJ60,FJ60,HJ60..RHD..(ARL,GEN) |
1 | ||
| 88501-90A04 |
HJ60..HRF..ARL RR |
1 | ||
| 88501-90A02 |
BJ60,FJ62,HJ6#..RHD..(ARL,GEN) FR |
1 | ||
| 88501-90A02 |
FJ62,HJ60..HRF..ARL W/*ODAC,FR |
1 | ||
| 88501-90A05 |
FJ62,HJ6#..LUB..(ARL,GEN) COOL BOX |
1 | ||
| 88501-90A04 |
FJ62,HJ6#..ARL,GEN RR |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-90A00 |
BJ60,FJ60,HJ60..RHD..(ARL,GEN) |
1 | ||
| 88510-90A1203 |
HJ60..HRF..ARL RR,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 88510-90A07 |
HJ60..HRF..ARL W/*ODAC,FR |
1 | ||
| 88510-90A1206 |
HJ60..HRF..ARL RR,BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 88510-90A17 |
HJ6#..RHD..(ARL,GEN) W/*ODAC,FR |
1 | ||
| 88510-90A10 |
FJ62,HJ6#..ARL FR |
1 | ||
| 88510-90A29 |
FJ62,HJ6#..HRF..(ARL,GEN) RR |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-16030 |
HJ60..HRF..ARL RR |
1 | ||
| 88515-87004 |
FJ62,HJ6#..ARL FR |
1 | ||
| 88515-87004 |
FJ62,HJ60..ARL,GEN W/*ODAC |
2 | ||
| 88515-87003 |
FJ62,HJ6#..LUB..(ARL,GEN) COOL BOX |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-90A01 |
HJ60..HRF..ARL RR |
1 | ||
| 88539-90A01 |
FJ62,HJ6#..ARL,GEN RR |
1 | ||
| 88539-90A00 |
BJ60,FJ6#,HJ6#..ARL,GEN,ME FR |
1 | ||
| 88539-90A02 |
FJ62,HJ6#..LUB..(ARL,GEN) COOL BOX |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-90A09 |
BJ60,FJ62,HJ6#..ARL,GEN,ME FR |
1 | ||
| 88605-90A08 |
HJ60..RHD..(ARL,GEN) |
1 | ||
| 88605-90A11 |
HJ60..HRF..ARL W/*ODAC,FR |
1 | ||
| 88605-90A15 |
HJ60..HRF..ARL RR |
1 | ||
| 88605-90A15 |
FJ62,HJ6#..ARL,GEN RR |
1 | ||
| 88605-90A19 |
HJ6#..ARL,GEN W/*ODAC,FR |
1 | ||
| 88605-90A22 |
FJ62,HJ6#..LUB..(ARL,GEN) COOL BOX |
1 | ||
| 88626A - HOLDER, THERMISTOR | ||||
| 88626-90A00 |
BJ60,FJ6#,HJ6#..RHD..(ARL,GEN) |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 85913-90A01 |
BJ60,FJ60,HJ60..ARL,GEN |
1 | ||
| 88630-90A00 |
FJ62,HJ6#..ARL,GEN |
1 | ||
| 88630-14010 |
HJ60..HRF..ARL W/*ODAC |
1 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 90987-02004 |
HJ60..HRF..ARL W/*ODAC |
1 | ||
| 90987-02004 |
FJ62,HJ6#..ARL,GEN W/*ODAC |
1 | ||
| 88630B - RELAY ASSY, COOLER | ||||
| 90987-02004 |
HJ60..4FC..HRF..ARL W/*ODAC,NO.1 |
1 | ||
| 90987-03001 |
HJ60..ARL,GEN W/*ODAC,NO.2 |
1 | ||
| 88630B - RELAY ASSY, COOLER | ||||
| 90987-02004 |
HJ60..4FC..HRF..ARL W/*ODAC,NO.1 |
1 | ||
| 90987-03001 |
HJ60..ARL,GEN W/*ODAC,NO.2 |
1 | ||
| 88645G - SWITCH, PRESSURE | ||||
| 88645-22020 |
BJ60,FJ6#,HJ60..ARL,GEN,ME |
1 | ||
| 88645-30250 |
BJ60,FJ62,HJ6#..ARL,GEN,ME |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-90A02 |
HJ60..ARL,GEN W/*ODAC |
1 | ||
| 88649 - WIRING, COOLER, NO.2 | ||||
| 88648-90A00 |
BJ60,FJ6#,HJ6#..ARL,GEN,ME |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-60030 |
BJ60,HJ60..ARL,GEN |
1 | ||
| 88650-90A03 |
BJ60,HJ6#..ARL,GEN,ME |
1 | ||
| 88650-95J02 |
HJ60..HRF..ARL W/*ODAC |
1 | ||
| 88650-90A06 |
FJ62,HJ6#..LUB..(ARL,GEN) COOL BOX |
1 | ||
| 88650-95J02 |
HJ60..ARL,GEN W/*ODAC |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-90A04 |
BJ60,FJ60,HJ60..RHD..(ARL,GEN) FR |
1 | ||
| 88716-90A11 |
HJ60..HRF..ARL RR |
1 | ||
| 88716-90A11 |
FJ62,HJ6#..ARL,GEN RR |
1 | ||
| 88716-90A33 |
FJ62,HJ6#..LUB..(ARL,GEN) COOL BOX |
1 | ||
| 88716-90A28 |
FJ62,HJ6#..RHD..(ARL,GEN) W/*ODAC,FR |
1 | ||
| 88716-90A26 |
BJ60,FJ62,HJ6#..RHD..(ARL,GEN) FR |
1 | ||
| Common parts | ||||
| 88569-90A03 | ||||
| 90119-06373 | ||||
| 90159-60195 | ||||
| 90480-26004 | ||||
| 99179-06115 | ||||
(8510- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 87104-87008 |
FJ62,HJ6#..LUB..(ARL,GEN) COOL BOX |
1 | ||
| 87104-90A05 |
HJ60..HRF..ARL |
1 | ||
| 87104-90A05 |
FJ62,HJ6#..HRF..(ARL,GEN) |
1 | ||
| 88361 - FAN, COOLER BLOWER, NO.1 | ||||
| 87105-14020 |
FJ62,HJ6#..ARL,GEN |
1 | ||
| 87105-14020 |
HJ60..HRF..ARL |
1 | ||
| 87105-87004 |
FJ62,HJ6#..LUB..(ARL,GEN) COOL BOX |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-90A00 |
BJ60,FJ60,HJ60..RHD..(ARL,GEN) |
1 | ||
| 88501-90A04 |
HJ60..HRF..ARL RR |
1 | ||
| 88501-90A02 |
BJ60,FJ62,HJ6#..RHD..(ARL,GEN) FR |
1 | ||
| 88501-90A02 |
FJ62,HJ60..HRF..ARL W/*ODAC,FR |
1 | ||
| 88501-90A05 |
FJ62,HJ6#..LUB..(ARL,GEN) COOL BOX |
1 | ||
| 88501-90A04 |
FJ62,HJ6#..ARL,GEN RR |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-16030 |
HJ60..HRF..ARL RR |
1 | ||
| 88515-87004 |
FJ62,HJ6#..ARL FR |
1 | ||
| 88515-87004 |
FJ62,HJ60..ARL,GEN W/*ODAC |
2 | ||
| 88515-87003 |
FJ62,HJ6#..LUB..(ARL,GEN) COOL BOX |
1 | ||
| 88520 - BOX ASSY, COOLING | ||||
| 88520-90A0006 |
FJ62,HJ6#..LUB..(ARL,GEN) SEPIA BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 88520-90A0003 |
FJ62,HJ6#..LUB..(ARL,GEN) SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 88521 - CASE, COOLER UNIT | ||||
| 88502-90A03 |
FJ62,HJ6#..HRF..(ARL,GEN) |
1 | ||
| 88502-90A01 |
HJ60..HRF..ARL |
1 | ||
| 88899-90A01 |
FJ62,HJ6#..LUB..(ARL,GEN) COOL BOX |
2 | ||
| 88522 - DOOR, COOLING UNIT | ||||
| 88522-90A01 |
FJ62,HJ6#..LUB..(ARL,GEN) COOL BOX |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-90A01 |
HJ60..HRF..ARL RR |
1 | ||
| 88539-90A01 |
FJ62,HJ6#..ARL,GEN RR |
1 | ||
| 88539-90A00 |
BJ60,FJ6#,HJ6#..ARL,GEN,ME FR |
1 | ||
| 88539-90A02 |
FJ62,HJ6#..LUB..(ARL,GEN) COOL BOX |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-90A09 |
BJ60,FJ62,HJ6#..ARL,GEN,ME FR |
1 | ||
| 88605-90A08 |
HJ60..RHD..(ARL,GEN) |
1 | ||
| 88605-90A11 |
HJ60..HRF..ARL W/*ODAC,FR |
1 | ||
| 88605-90A15 |
HJ60..HRF..ARL RR |
1 | ||
| 88605-90A15 |
FJ62,HJ6#..ARL,GEN RR |
1 | ||
| 88605-90A19 |
HJ6#..ARL,GEN W/*ODAC,FR |
1 | ||
| 88605-90A22 |
FJ62,HJ6#..LUB..(ARL,GEN) COOL BOX |
1 | ||
| 88610 - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-90A03 |
FJ62,HJ6#..LUB..(ARL,GEN) COOL BOX |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-90A00 |
BJ60,FJ60,HJ60..ARL,GEN |
1 | ||
| 88625-87003 |
FJ62,HJ6#..LUB..(ARL,GEN) COOL BOX |
1 | ||
| 88625-95A00 |
HJ60..HRF..ARL |
1 | ||
| 88625-95A00 |
FJ62,HJ6#..ARL,GEN |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-60030 |
BJ60,HJ60..ARL,GEN |
1 | ||
| 88650-90A03 |
BJ60,HJ6#..ARL,GEN,ME |
1 | ||
| 88650-95J02 |
HJ60..HRF..ARL W/*ODAC |
1 | ||
| 88650-90A06 |
FJ62,HJ6#..LUB..(ARL,GEN) COOL BOX |
1 | ||
| 88650-95J02 |
HJ60..ARL,GEN W/*ODAC |
1 | ||
| 88688T - BRACKET (FOR COOL BOX) | ||||
| 88688-90A24 |
FJ62,HJ6#..LUB..(ARL,GEN) COOL BOX |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-90A04 |
BJ60,FJ60,HJ60..RHD..(ARL,GEN) FR |
1 | ||
| 88716-90A11 |
HJ60..HRF..ARL RR |
1 | ||
| 88716-90A11 |
FJ62,HJ6#..ARL,GEN RR |
1 | ||
| 88716-90A33 |
FJ62,HJ6#..LUB..(ARL,GEN) COOL BOX |
1 | ||
| 88716-90A28 |
FJ62,HJ6#..RHD..(ARL,GEN) W/*ODAC,FR |
1 | ||
| 88716-90A26 |
BJ60,FJ62,HJ6#..RHD..(ARL,GEN) FR |
1 | ||
| 88717F - PIPE, COOLER REFRIGERANT SUCTION, F | ||||
| 88717-90A10 |
FJ62,HJ6#..LUB..(ARL,GEN) COOL BOX |
1 | ||
| 88717-90A06 |
FJ62,HJ6#..ARL,GEN |
1 | ||
| 88717-90A06 |
HJ60..HRF..ARL |
1 | ||
| Common parts | ||||
| 88688-90A01 | ||||
| 90159-80127 | ||||
| 91651-41016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
