HJ60RG-PW (1984)

Toyota Land Cruiser

Production Nov 1984 - Aug 1986
Engine 2H
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )RHD..4FC

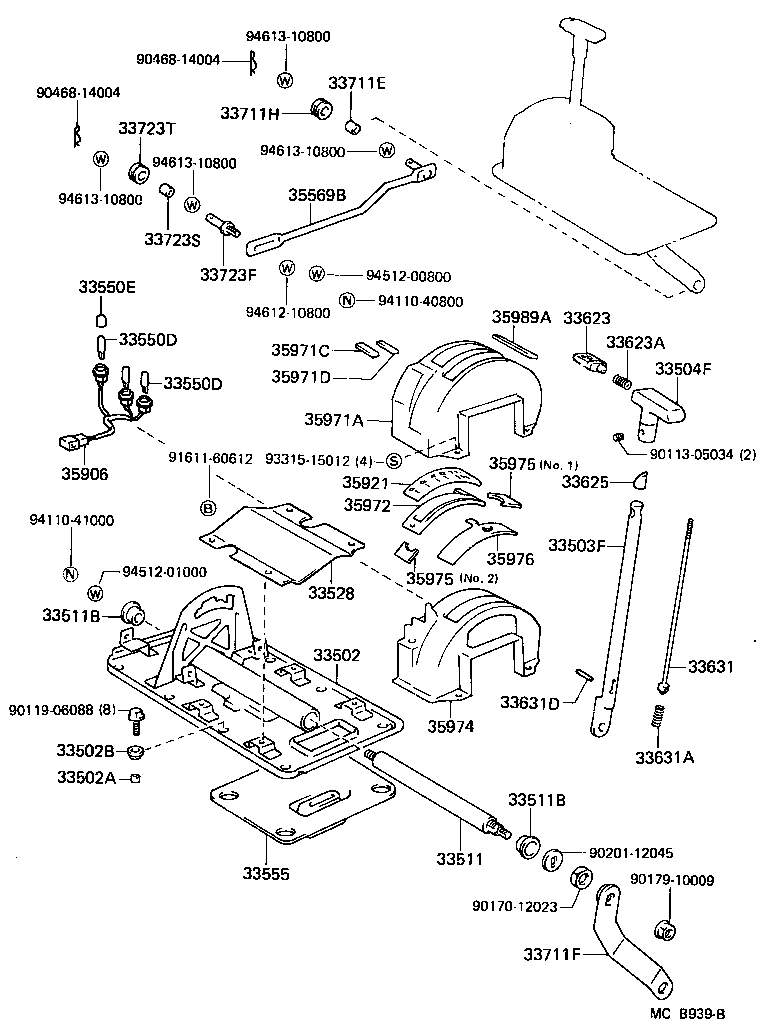

Click highlighted areas on diagram

diagram 33502 33502A 33502B 33503F 33504F 33511 33511B 33511B 33528 33550D 33550D 33550E 33555 33623 33623A 33625 33631 33631A 33631D 33711E 33711F 33711H 33723F 33723S 33723T 35569B 35906 35921 35971A 35971C 35971D 35972 35974 35975 35975 35976 35989A 9011305034 9011906088 9017012023 9017910009 9020112045 9046814004 9046814004 9161160612 9331515012 9411040800 9411041000 9451200800 9451201000 9461210800 9461310800 9461310800 9461310800 9461310800
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-60040

FJ60,HJ60..LUB

 1
Common parts
90113-05034
90119-06088
90170-12023
90179-10009
90201-12045
90468-14004
91611-60612
93315-15012
94110-40800
94110-41000
94512-00800
94512-01000
94612-10800
94613-10800
