HJ60RG-MZQ (1983)
Toyota Land Cruiser
Production
May 1983
-
Oct 1985
Engine
2H
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8411- )HRF

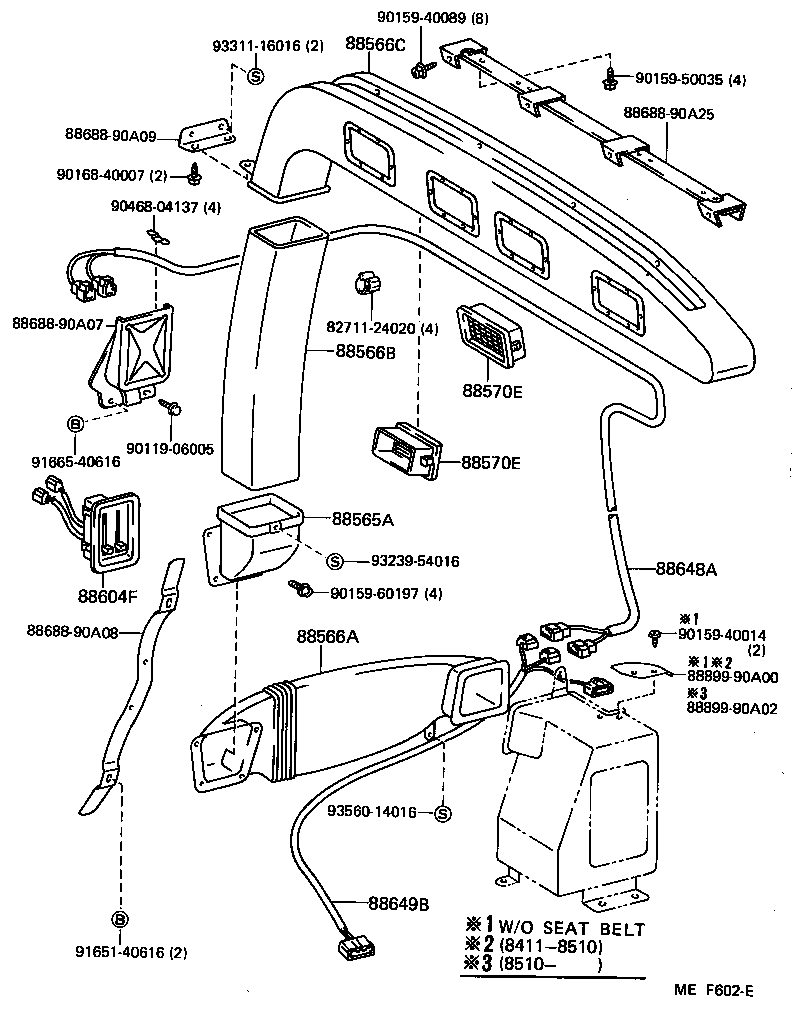

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88565A - ADAPTER, AIR DUCT, NO.1 | ||||
| 88565-90A0003 |
HJ60..HRF..ARL GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 88565-90A0006 |
HJ60..HRF..ARL BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 88566A - DUCT, COOLER AIR, NO.1 | ||||
| 88566-90A00 |
HJ60..HRF..ARL |
1 | ||
| 88566B - DUCT, COOLER AIR, NO.2 | ||||
| 88566-90A01 |
HJ60..HRF..ARL |
1 | ||
| 88566C - DUCT, COOLER AIR, NO.3 | ||||
| 88576-90A01 |
HJ60..HRF..ARL W/SUN ROOF |
1 | ||
| 88576-90A00 |
HJ60..HRF..ARL |
1 | ||
| 88570E - GRILLE ASSY, AIR OUTLET | ||||
| 88570-90A00 |
HJ60..HRF..ARL |
8 | ||
| 88570E - GRILLE ASSY, AIR OUTLET | ||||
| 88570-90A00 |
HJ60..HRF..ARL |
8 | ||
| 88604F - PANEL SUB-ASSY, COOLER CONTROL | ||||
| 88604-90A00 |
HJ60..HRF..ARL |
1 | ||
| 88648A - WIRING, COOLER | ||||
| 88605-90A14 |
HJ60..HRF..ARL |
1 | ||
| 88649B - WIRING, COOLER | ||||
| 88605-90A13 |
HJ60..HRF..ARL |
1 | ||
| Common parts | ||||
| 82711-24020 | ||||
| 88688-90A07 | ||||
| 88688-90A08 | ||||
| 88688-90A09 | ||||
| 88688-90A25 | ||||
| 88899-90A00 | ||||
| 88899-90A02 | ||||
| 90119-06005 | ||||
| 90159-40014 | ||||
| 90159-40089 | ||||
| 90159-50035 | ||||
| 90159-60197 | ||||
| 90168-40007 | ||||
| 90468-04137 | ||||
| 91651-40616 | ||||
| 91665-40616 | ||||
| 93239-54016 | ||||
| 93311-16016 | ||||
| 93560-14016 | ||||
