HJ60RG-MRCQ (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 2H
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9001-9305) ; (9305- )FZJ7#,HDJ7#,HZJ7#,PZJ7#

Click highlighted areas on diagram

diagram 53301 53303 53304 53341B 53341C 53381 53381A 53382 53384A 53385B 53386 53386B 53390 53390 53781 53801 53801 53802 53802 53803 53833 53833 53834 53834 53835A 53859 53878C 53879C 53899B 53903B 53911 9011906366 9011908563 9011908563 9017008034 9017906097 9017906206 9046709036 9046709046 9048018011 9048020276 9095003041 9095003041 9163140814 9165140614 9165140616 9165140616 9165140816 9165140816 9165140816 9165140816 9165140820 9165140820 91665F0616
Part # Description Qty Price
Common parts
90119-06366
90119-08563
90170-08034
90179-06097
90179-06206
90467-09036
90467-09046
90480-18011
90480-20276
90950-03041
91631-40814
91651-40614
91651-40616
91651-40816
91651-40820
91665-F0616

ILLUST NO. 1 OF 2(8708- )

Click highlighted areas on diagram

diagram 53301 53341B 53341C 53381 53381A 53382 53386 53386 53801 53802 53931C 76603 76604 9015960008 9017008023 9017906097 9018906006 9095003041 9095003041 9161160614 9165140614 9165540820
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-90A01

BJ60,FJ62,HJ6#..ARL,GEN

 1
53341B - INSULATOR, HOOD
53341-90A00

BJ60,FJ62,HJ60

 1
53341C - CLIP(FOR HOOD INSULATOR)
90467-09014

BJ60,FJ62,HJ6#

 17
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-90A00

BJ60,FJ62,HJ6#

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

BJ60,FJ62,HJ6#

 9
53386 - BUMPER, HOOD, REAR
53382-30060

BJ60,FJ62,HJ6#

 4
53386 - BUMPER, HOOD, REAR
53382-30060

BJ60,FJ62,HJ6#

 4
53801 - FENDER SUB-ASSY, FRONT RH
53801-90A85

BJ60,FJ62,HJ6#

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-90A63

BJ60,FJ62,HJ6#

 1
53931C - PANEL, FRONT END
53931-90A06

BJ60,FJ62,HJ6#

 1
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76603-69015

FJ62..ME;HJ60..RHD..STD;FJ62,HJ61..4FC..ARL;FJ62,HJ61..5F..GX..ARL;BJ60,FJ62..STD..(ARL,GEN)

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76604-69015

FJ62..ME;HJ60..RHD..STD;FJ62,HJ61..4FC..ARL;FJ62,HJ61..5F..GX..ARL;BJ60,FJ62..STD..(ARL,GEN)

 1
Common parts
90159-60008
90170-08023
90179-06097
90189-06006
90950-03041
91611-60614
91651-40614
91655-40820

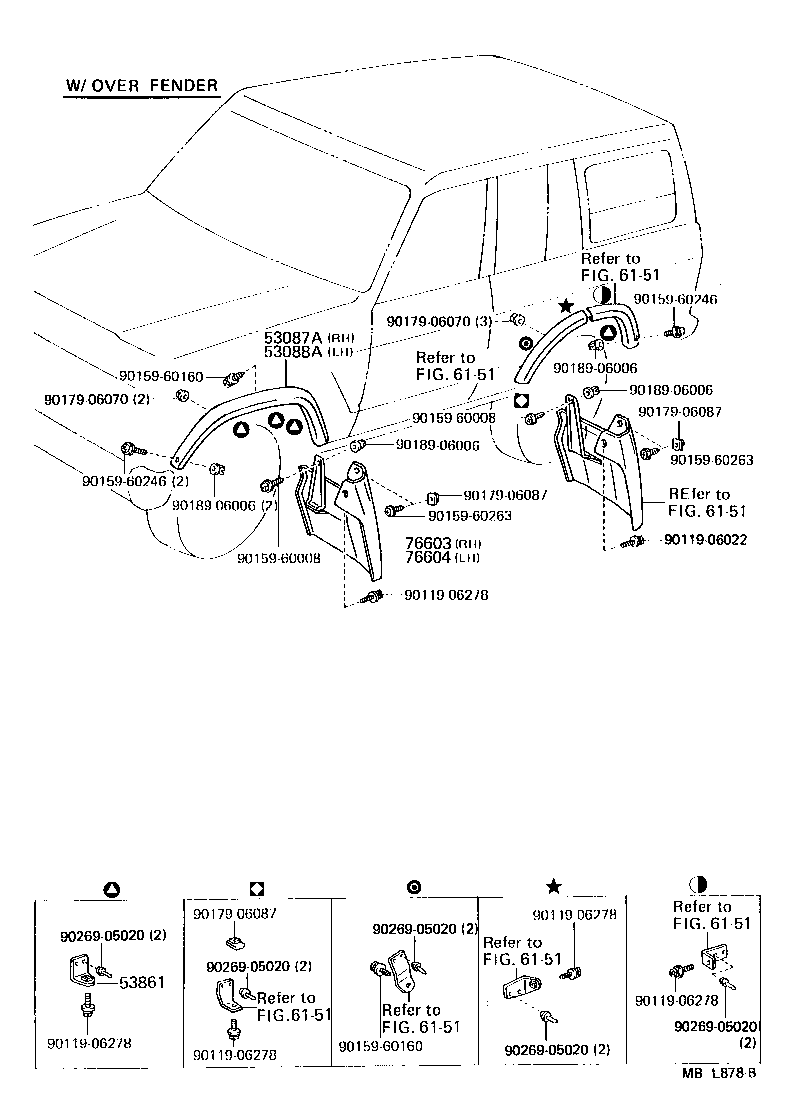

ILLUST NO. 2 OF 2(8708- )

Click highlighted areas on diagram

diagram 53087A 53088A 53861 6151 6151 6151 6151 6151 6151 6151 76603 76604 9011906022 9011906278 9011906278 9011906278 9011906278 9011906278 9015960008 9015960008 9015960160 9015960160 9015960246 9015960246 9015960263 9015960263 9017906070 9017906070 9017906087 9017906087 9017906087 9018906006 9018906006 9018906006 9018906006 9026905020 9026905020 9026905020 9026905020 9026905020
Part # Description Qty Price
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76603-69015

FJ62..ME;HJ60..RHD..STD;FJ62,HJ61..4FC..ARL;FJ62,HJ61..5F..GX..ARL;BJ60,FJ62..STD..(ARL,GEN)

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76604-69015

FJ62..ME;HJ60..RHD..STD;FJ62,HJ61..4FC..ARL;FJ62,HJ61..5F..GX..ARL;BJ60,FJ62..STD..(ARL,GEN)

 1
Common parts
90119-06022
90119-06278
90159-60008
90159-60160
90159-60246
90159-60263
90179-06070
90179-06087
90189-06006
90269-05020
Linked diagrams
6151
