HJ60RG-MRCQ (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 2H
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

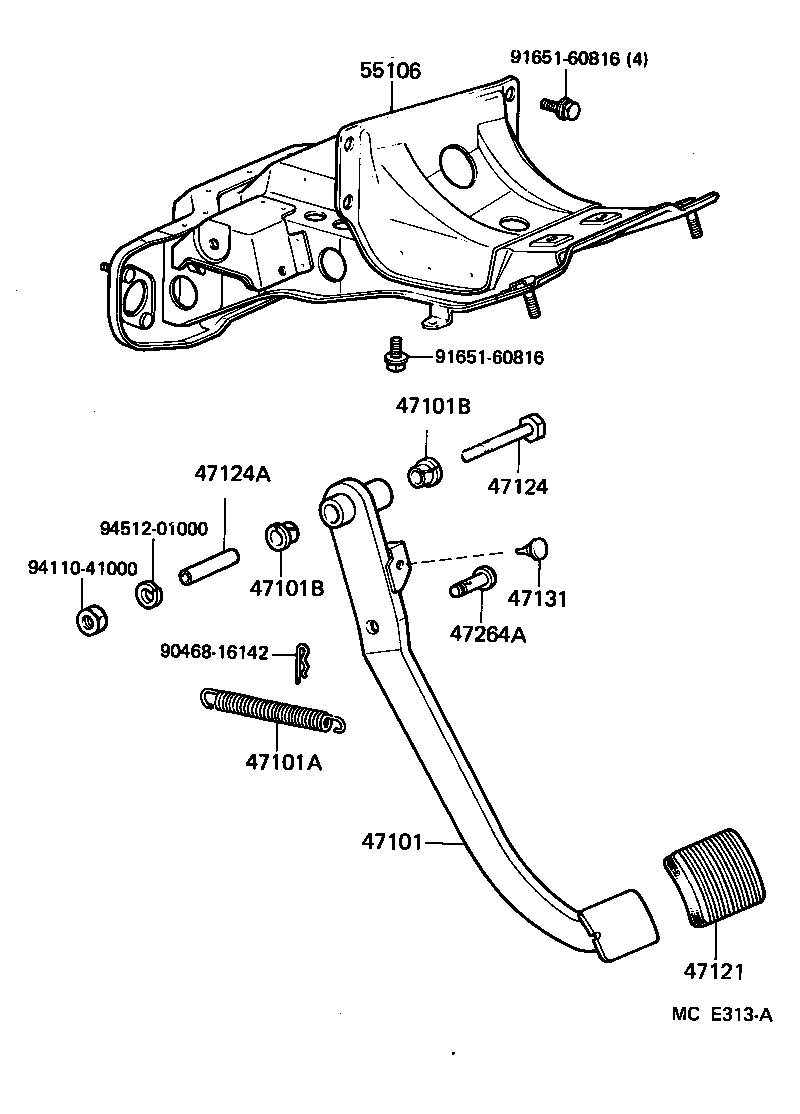

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47124 47124A 47131 47264A 55106 9046816142 9165160816 9165160816 9411041000 9451201000
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-60081

BJ60,FJ62,HJ6#..RHD..MTM

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90506-12451

BJ60,FJ62,HJ6#

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13192

BJ60,FJ62,HJ6#

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13192

BJ60,FJ62,HJ6#

 2
47121 - PAD, BRAKE PEDAL
31321-36010

BJ60,FJ62,HJ6#..MTM

 1
47124 - SHAFT, BRAKE PEDAL
91121-51070

BJ60,FJ62,HJ6#

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90387-10004

BJ60,FJ62,HJ6#

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06008

BJ60,FJ62,HJ6#

 1
47264A - PIN(FOR PUSH ROD)
90249-10017

BJ60,FJ62,HJ6#

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-90A11

BJ60,FJ62,HJ6#..RHD..MTM

 1
55106-90A13

BJ60,FJ62,HJ6#..RHD..MTM

W(CLUTCH BOOSTER)

 1
Common parts
90468-16142
91651-60816
94110-41000
94512-01000
