HJ60RG-MRCQ (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 2H
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001-9108)2H

Click highlighted areas on diagram

diagram 29300 29300A 29300B 29311 29331 29342 29364 29369 9009904577 9020114099 9020114099 9020114099 9040109001 9040110035 9040110035 9040414008 9040451012 9043010035 9043010035 9043010035 9046716016 9046716016
Part # Description Qty Price
Common parts
90099-04577
90201-14099
90401-09001
90401-10035
90404-14008
90404-51012
90430-10035
90467-16016

(8708-8808)3B ; (8708- )12HT,2H

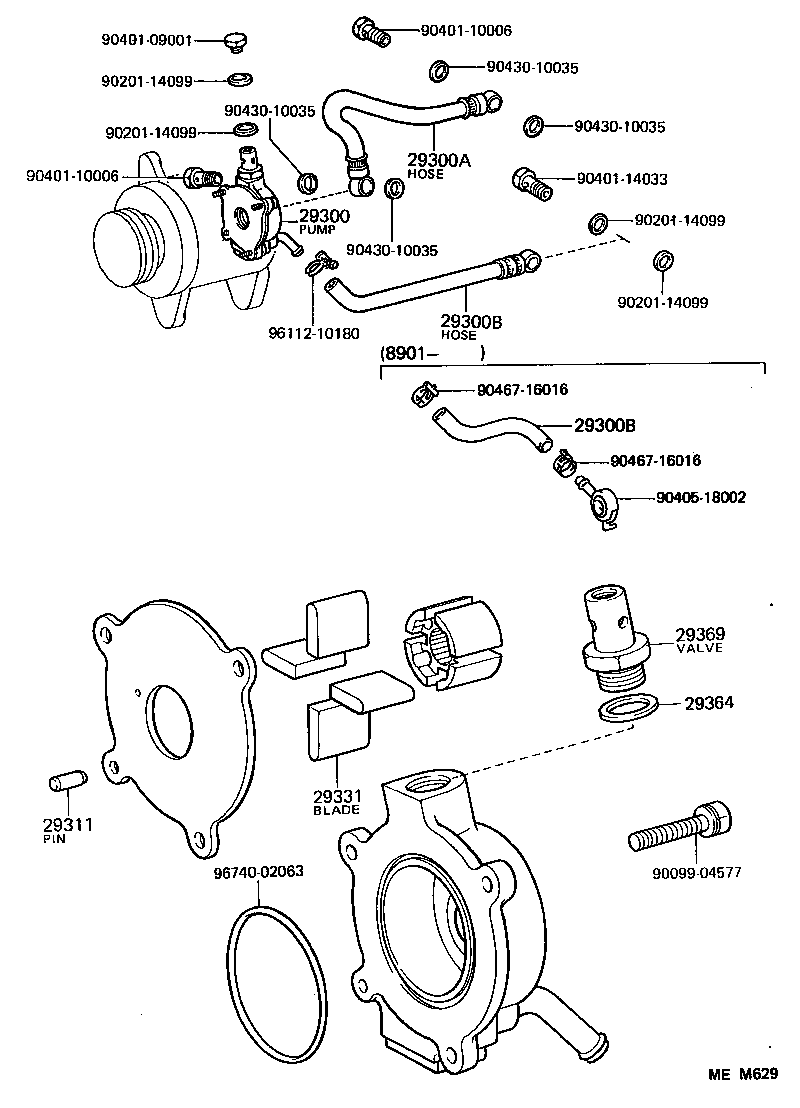

Click highlighted areas on diagram

diagram 29300 29300A 29300B 29300B 29311 29331 29364 29369 9009904577 9020114099 9020114099 9020114099 9020114099 9040109001 9040110006 9040110006 9040114033 9040518002 9043010035 9043010035 9043010035 9043010035 9046716016 9046716016 9611210180 9674002063
Part # Description Qty Price
29300 - PUMP ASSY, VACUUM
29300-54050

12HT,2H..HJ6#

 1
29300A - HOSE, VACUUM PUMP OIL INLET
90923-02100

2H..HJ60

 1
29300B - HOSE, VACUUM PUMP OIL OUTLET
90923-02079

12HT,2H..HJ6#

 1
29611-68010

12HT,2H..HJ6#

 1
29300B - HOSE, VACUUM PUMP OIL OUTLET
90923-02079

12HT,2H..HJ6#

 1
29611-68010

12HT,2H..HJ6#

 1
29311 - PIN, VACUUM PUMP DOWEL, NO.1
90099-08082

12HT,3B,2H..BJ60,HJ6#

 1
90099-08082

2H..HJ60

 1
29331 - BLADE, VACUUM PUMP, A
29331-56070

12HT,3B,2H..BJ60,HJ6#

 4
29331-56070

12HT,2H..HJ6#

 4
29364 - WASHER, VACUUM PUMP
29364-66010

12HT,3B,2H..BJ60,HJ6#

 1
29369 - VALVE SUB-ASSY, CHECK
29369-56070

12HT,2H..HJ6#

 1
29369-56070

12HT,3B,2H..BJ60,HJ6#

 1
Common parts
90099-04577
90201-14099
90401-09001
90401-10006
90401-14033
90405-18002
90430-10035
90467-16016
96112-10180
96740-02063
