HJ60RG-MQ (1982)
Toyota Land Cruiser
(8008-8411)

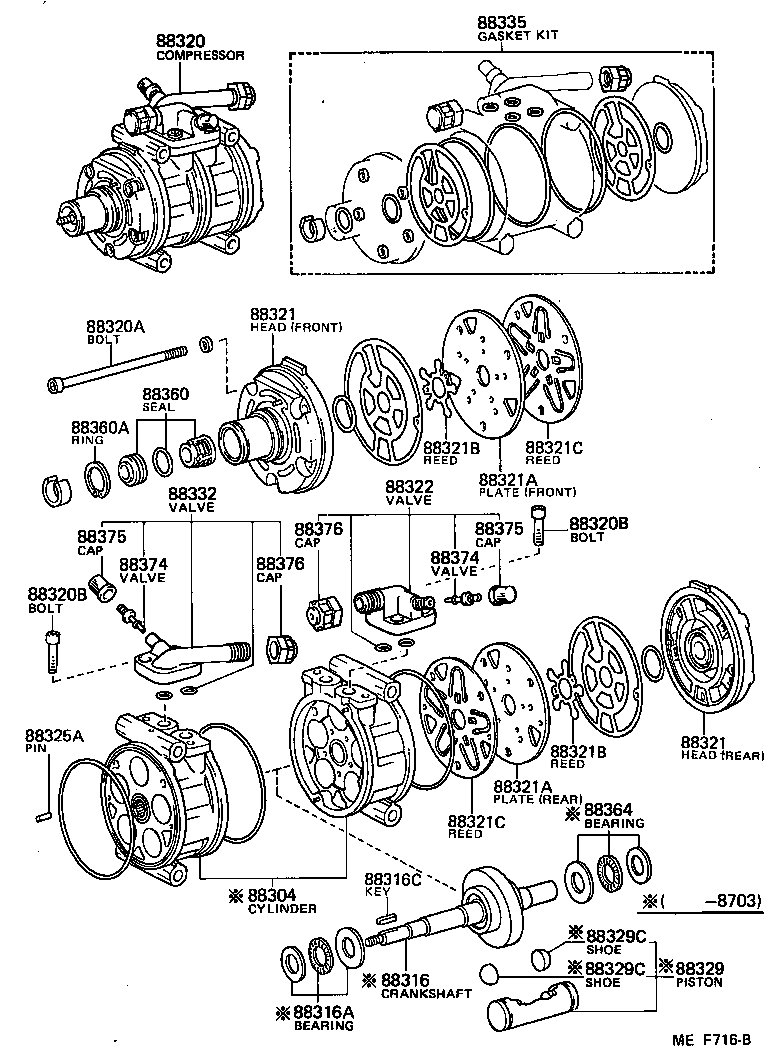

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88304 - CYLINDER SUB-ASSY, COOLER COMPRESSOR | ||||
| 88304-14021 |
BJ60,FJ62,HJ60..ARL,GEN,ME |
1 | ||
| 88304-22010 |
HJ60..ARL,GEN |
1 | ||
| 88304-14021 |
HJ6# |
1 | ||
| 88304-14021 |
BJ60,HJ6#..ARL,GEN |
1 | ||
| 88316 - CRANKSHAFT, COOLER COMPRESSOR | ||||
| 88316-14011 |
BJ60,FJ62,HJ60..ARL,GEN,ME |
1 | ||
| 88316-20070 |
BJ60,FJ60,HJ60..ARL,GEN |
1 | ||
| 88316-14011 |
BJ60,HJ6#..ARL,GEN |
1 | ||
| 88316-14011 |
HJ6# |
1 | ||
| 88316A - BEARING, COMPRESSOR CRANKSHAFT, FRONT | ||||
| 88366-20050 |
BJ60,FJ60,HJ60..ARL,GEN |
1 | ||
| 88366-14010 |
HJ6# |
1 | ||
| 88366-14010 |
BJ60,FJ62,HJ6#..ARL,GEN,ME |
1 | ||
| 88316C - KEY, COMPRESSOR CRANKSHAFT | ||||
| 90099-13011 |
BJ60,FJ60,HJ60..ARL,GEN |
1 | ||
| 90099-13012 |
BJ60,FJ62,HJ6#..ARL,GEN,ME |
1 | ||
| 90099-13024 |
HJ60..MTM..(ARL,GEN);BJ60,FJ62,HJ61..ARL,GEN,ME |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-60100 |
HJ60..RHD..(ARL,GEN) |
1 | ||
| 88320-60180 |
HJ6#..RHD..(ARL,GEN) |
1 | ||
| 88320-60181 |
HJ61..ARL;HJ60..RHD..SRF..(ARL,GEN) |
1 | ||
| 88320-60191 |
HJ6# |
1 | ||
| 88320A - BOLT, THROUGH | ||||
| 90099-04926 |
BJ60,FJ60,HJ60..ARL,GEN |
6 | ||
| 90099-04958 |
BJ60,HJ6#..ARL,GEN |
5 | ||
| 90099-04958 |
BJ60,FJ62,HJ60..ARL,GEN,ME |
5 | ||
| 88320B - BOLT, SERVICE VALVE | ||||
| 90099-04924 |
BJ60,FJ62,HJ6#..ARL,GEN,ME |
4 | ||
| 90099-04905 |
BJ60,FJ60,HJ60..ARL,GEN |
4 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-20040 |
BJ60,FJ60,HJ60..ARL,GEN RR |
1 | ||
| 88321-20061 |
BJ60,FJ60,HJ60..ARL,GEN FR |
1 | ||
| 88321-14011 |
BJ60,FJ62,HJ60..ARL,GEN,ME FR |
1 | ||
| 88321-14011 |
BJ60,HJ6#..ARL,GEN FR |
1 | ||
| 88322-14011 |
BJ60,FJ62,HJ60..ARL,GEN,ME RR |
1 | ||
| 88322-14011 |
BJ60,HJ6#..ARL,GEN RR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-20040 |
BJ60,FJ60,HJ60..ARL,GEN RR |
1 | ||
| 88321-20061 |
BJ60,FJ60,HJ60..ARL,GEN FR |
1 | ||
| 88321-14011 |
BJ60,FJ62,HJ60..ARL,GEN,ME FR |
1 | ||
| 88321-14011 |
BJ60,HJ6#..ARL,GEN FR |
1 | ||
| 88322-14011 |
BJ60,FJ62,HJ60..ARL,GEN,ME RR |
1 | ||
| 88322-14011 |
BJ60,HJ6#..ARL,GEN RR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88305-20070 |
BJ60,FJ60,HJ60..ARL,GEN FR |
1 | ||
| 88306-20040 |
BJ60,FJ60,HJ60..ARL,GEN RR |
1 | ||
| 88342-14010 |
BJ60,FJ62,HJ60..ARL,GEN,ME RR |
1 | ||
| 88341-14010 |
BJ60,FJ62,HJ60..ARL,GEN,ME FR |
1 | ||
| 88341-14010 |
BJ60,HJ6#..ARL,GEN FR |
1 | ||
| 88342-14010 |
BJ60,HJ6#..ARL,GEN RR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88305-20070 |
BJ60,FJ60,HJ60..ARL,GEN FR |
1 | ||
| 88306-20040 |
BJ60,FJ60,HJ60..ARL,GEN RR |
1 | ||
| 88342-14010 |
BJ60,FJ62,HJ60..ARL,GEN,ME RR |
1 | ||
| 88341-14010 |
BJ60,FJ62,HJ60..ARL,GEN,ME FR |
1 | ||
| 88341-14010 |
BJ60,HJ6#..ARL,GEN FR |
1 | ||
| 88342-14010 |
BJ60,HJ6#..ARL,GEN RR |
1 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-20050 |
BJ60,FJ60,HJ60..ARL,GEN SMALL |
2 | ||
| 88307-20060 |
BJ60,FJ60,HJ60..ARL,GEN LARGE |
2 | ||
| 88344-14011 |
BJ60,HJ6#..ARL,GEN |
2 | ||
| 88344-14011 |
BJ60,FJ62,HJ60..ARL,GEN,ME |
2 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-20050 |
BJ60,FJ60,HJ60..ARL,GEN SMALL |
2 | ||
| 88307-20060 |
BJ60,FJ60,HJ60..ARL,GEN LARGE |
2 | ||
| 88344-14011 |
BJ60,HJ6#..ARL,GEN |
2 | ||
| 88344-14011 |
BJ60,FJ62,HJ60..ARL,GEN,ME |
2 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-20050 |
BJ60,FJ60,HJ60..ARL,GEN SMALL |
2 | ||
| 88307-20060 |
BJ60,FJ60,HJ60..ARL,GEN LARGE |
2 | ||
| 88344-14011 |
BJ60,HJ6#..ARL,GEN |
2 | ||
| 88344-14011 |
BJ60,FJ62,HJ60..ARL,GEN,ME |
2 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-20050 |
BJ60,FJ60,HJ60..ARL,GEN SMALL |
2 | ||
| 88307-20060 |
BJ60,FJ60,HJ60..ARL,GEN LARGE |
2 | ||
| 88344-14011 |
BJ60,HJ6#..ARL,GEN |
2 | ||
| 88344-14011 |
BJ60,FJ62,HJ60..ARL,GEN,ME |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-14011 |
BJ60,FJ62,HJ60..ARL,GEN,ME |
2 | ||
| 88343-14011 |
BJ60,HJ6#..ARL,GEN |
2 | ||
| 88343-20040 |
BJ60,FJ60,HJ60..ARL,GEN |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-14011 |
BJ60,FJ62,HJ60..ARL,GEN,ME |
2 | ||
| 88343-14011 |
BJ60,HJ6#..ARL,GEN |
2 | ||
| 88343-20040 |
BJ60,FJ60,HJ60..ARL,GEN |
2 | ||
| 88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE | ||||
| 88371-30310 |
HJ60..RHD..(ARL,GEN) |
1 | ||
| 88371-14230 |
HJ6#..RHD..(ARL,GEN) |
1 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
BJ60,FJ6#,HJ6#..ARL,GEN,ME |
4 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
BJ60,FJ6#,HJ6#..ARL,GEN,ME |
4 | ||
| 88329 - PISTON SUB-ASSY, COOLER COMPRESSOR | ||||
| 88301-20050 |
BJ60,FJ60,HJ60..ARL,GEN |
3 | ||
| 88301-14020 |
HJ6# |
5 | ||
| 88301-14020 |
BJ60,FJ62,HJ60..ARL,GEN,ME |
5 | ||
| 88301-14020 |
BJ60,HJ6#..ARL,GEN |
5 | ||
| 88329B - BALL, PISTON | ||||
| 88312-30250 |
BJ60,FJ60,HJ60..ARL,GEN |
6 | ||
| 88329C - SHOE, PISTON | ||||
| 88313-20070 |
BJ60,FJ60,HJ60..ARL,GEN |
6 | ||
| 88313-14010 |
HJ6# |
10 | ||
| 88313-14010 |
BJ60,FJ62,HJ6#..ARL,GEN,ME |
10 | ||
| 88329D - RING, PISTON | ||||
| 88317-20030 |
BJ60,FJ60,HJ60..ARL,GEN |
6 | ||
| 88332 - VALVE, COOLER COMPRESSOR DISCHARGE SERVICE | ||||
| 88372-60030 |
HJ60..ARL,GEN |
1 | ||
| 88372-60040 |
HJ6#..ARL,GEN |
1 | ||
| 88372-60041 |
HJ61..ARL;HJ60..MTM..(ARL,GEN) |
1 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 04881-14030 |
BJ60,FJ60,HJ60..ARL,GEN |
1 | ||
| 04881-10010 |
BJ60,FJ62,HJ60..ARL,GEN,ME |
1 | ||
| 04881-10010 |
BJ60,HJ6#..ARL,GEN |
1 | ||
| 88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT | ||||
| 88360-14020 |
BJ60,FJ62,HJ60..ARL,GEN,ME |
1 | ||
| 88360-40010 |
BJ60,FJ62,HJ6#..ARL,GEN,ME |
1 | ||
| 88360-30270 |
BJ60,FJ60,HJ60..ARL,GEN |
1 | ||
| 88364 - BEARING, COMPRESSOR CRANKSHAFT, REAR | ||||
| 88366-20050 |
BJ60,FJ60,HJ60..ARL,GEN |
1 | ||
| 88366-14010 |
HJ6# |
1 | ||
| 88366-14010 |
BJ60,FJ62,HJ6#..ARL,GEN,ME |
1 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
BJ60,FJ6#,HJ6#..ARL,GEN,ME |
2 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
BJ60,FJ6#,HJ6#..ARL,GEN,ME |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-20010 |
HJ60..MTM..(ARL,GEN);BJ60,FJ62,HJ61..ARL,GEN,ME DISCHARGE |
1 | ||
| 88375-30270 |
HJ60..MTM..(ARL,GEN);BJ60,FJ62,HJ61..ARL,GEN,ME SUCTION |
1 | ||
| 88375-30270 |
BJ60,FJ6#,HJ6#..ARL,GEN,ME |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-20010 |
HJ60..MTM..(ARL,GEN);BJ60,FJ62,HJ61..ARL,GEN,ME DISCHARGE |
1 | ||
| 88375-30270 |
HJ60..MTM..(ARL,GEN);BJ60,FJ62,HJ61..ARL,GEN,ME SUCTION |
1 | ||
| 88375-30270 |
BJ60,FJ6#,HJ6#..ARL,GEN,ME |
2 | ||
(8411- )BJ60,HJ6#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88304 - CYLINDER SUB-ASSY, COOLER COMPRESSOR | ||||
| 88304-14021 |
BJ60,FJ62,HJ60..ARL,GEN,ME |
1 | ||
| 88304-22010 |
HJ60..ARL,GEN |
1 | ||
| 88304-14021 |
HJ6# |
1 | ||
| 88304-14021 |
BJ60,HJ6#..ARL,GEN |
1 | ||
| 88316 - CRANKSHAFT, COOLER COMPRESSOR | ||||
| 88316-14011 |
BJ60,FJ62,HJ60..ARL,GEN,ME |
1 | ||
| 88316-20070 |
BJ60,FJ60,HJ60..ARL,GEN |
1 | ||
| 88316-14011 |
BJ60,HJ6#..ARL,GEN |
1 | ||
| 88316-14011 |
HJ6# |
1 | ||
| 88316A - BEARING, COMPRESSOR CRANKSHAFT, FRONT | ||||
| 88366-20050 |
BJ60,FJ60,HJ60..ARL,GEN |
1 | ||
| 88366-14010 |
HJ6# |
1 | ||
| 88366-14010 |
BJ60,FJ62,HJ6#..ARL,GEN,ME |
1 | ||
| 88316C - KEY, COMPRESSOR CRANKSHAFT | ||||
| 90099-13011 |
BJ60,FJ60,HJ60..ARL,GEN |
1 | ||
| 90099-13012 |
BJ60,FJ62,HJ6#..ARL,GEN,ME |
1 | ||
| 90099-13024 |
HJ60..MTM..(ARL,GEN);BJ60,FJ62,HJ61..ARL,GEN,ME |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-60100 |
HJ60..RHD..(ARL,GEN) |
1 | ||
| 88320-60180 |
HJ6#..RHD..(ARL,GEN) |
1 | ||
| 88320-60181 |
HJ61..ARL;HJ60..RHD..SRF..(ARL,GEN) |
1 | ||
| 88320-60191 |
HJ6# |
1 | ||
| 88320A - BOLT, THROUGH | ||||
| 90099-04926 |
BJ60,FJ60,HJ60..ARL,GEN |
6 | ||
| 90099-04958 |
BJ60,HJ6#..ARL,GEN |
5 | ||
| 90099-04958 |
BJ60,FJ62,HJ60..ARL,GEN,ME |
5 | ||
| 88320B - BOLT, SERVICE VALVE | ||||
| 90099-04924 |
BJ60,FJ62,HJ6#..ARL,GEN,ME |
4 | ||
| 90099-04905 |
BJ60,FJ60,HJ60..ARL,GEN |
4 | ||
| 88320B - BOLT, SERVICE VALVE | ||||
| 90099-04924 |
BJ60,FJ62,HJ6#..ARL,GEN,ME |
4 | ||
| 90099-04905 |
BJ60,FJ60,HJ60..ARL,GEN |
4 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-20040 |
BJ60,FJ60,HJ60..ARL,GEN RR |
1 | ||
| 88321-20061 |
BJ60,FJ60,HJ60..ARL,GEN FR |
1 | ||
| 88321-14011 |
BJ60,FJ62,HJ60..ARL,GEN,ME FR |
1 | ||
| 88321-14011 |
BJ60,HJ6#..ARL,GEN FR |
1 | ||
| 88322-14011 |
BJ60,FJ62,HJ60..ARL,GEN,ME RR |
1 | ||
| 88322-14011 |
BJ60,HJ6#..ARL,GEN RR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-20040 |
BJ60,FJ60,HJ60..ARL,GEN RR |
1 | ||
| 88321-20061 |
BJ60,FJ60,HJ60..ARL,GEN FR |
1 | ||
| 88321-14011 |
BJ60,FJ62,HJ60..ARL,GEN,ME FR |
1 | ||
| 88321-14011 |
BJ60,HJ6#..ARL,GEN FR |
1 | ||
| 88322-14011 |
BJ60,FJ62,HJ60..ARL,GEN,ME RR |
1 | ||
| 88322-14011 |
BJ60,HJ6#..ARL,GEN RR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88305-20070 |
BJ60,FJ60,HJ60..ARL,GEN FR |
1 | ||
| 88306-20040 |
BJ60,FJ60,HJ60..ARL,GEN RR |
1 | ||
| 88342-14010 |
BJ60,FJ62,HJ60..ARL,GEN,ME RR |
1 | ||
| 88341-14010 |
BJ60,FJ62,HJ60..ARL,GEN,ME FR |
1 | ||
| 88341-14010 |
BJ60,HJ6#..ARL,GEN FR |
1 | ||
| 88342-14010 |
BJ60,HJ6#..ARL,GEN RR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88305-20070 |
BJ60,FJ60,HJ60..ARL,GEN FR |
1 | ||
| 88306-20040 |
BJ60,FJ60,HJ60..ARL,GEN RR |
1 | ||
| 88342-14010 |
BJ60,FJ62,HJ60..ARL,GEN,ME RR |
1 | ||
| 88341-14010 |
BJ60,FJ62,HJ60..ARL,GEN,ME FR |
1 | ||
| 88341-14010 |
BJ60,HJ6#..ARL,GEN FR |
1 | ||
| 88342-14010 |
BJ60,HJ6#..ARL,GEN RR |
1 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-20050 |
BJ60,FJ60,HJ60..ARL,GEN SMALL |
2 | ||
| 88307-20060 |
BJ60,FJ60,HJ60..ARL,GEN LARGE |
2 | ||
| 88344-14011 |
BJ60,HJ6#..ARL,GEN |
2 | ||
| 88344-14011 |
BJ60,FJ62,HJ60..ARL,GEN,ME |
2 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-20050 |
BJ60,FJ60,HJ60..ARL,GEN SMALL |
2 | ||
| 88307-20060 |
BJ60,FJ60,HJ60..ARL,GEN LARGE |
2 | ||
| 88344-14011 |
BJ60,HJ6#..ARL,GEN |
2 | ||
| 88344-14011 |
BJ60,FJ62,HJ60..ARL,GEN,ME |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-14011 |
BJ60,FJ62,HJ60..ARL,GEN,ME |
2 | ||
| 88343-14011 |
BJ60,HJ6#..ARL,GEN |
2 | ||
| 88343-20040 |
BJ60,FJ60,HJ60..ARL,GEN |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-14011 |
BJ60,FJ62,HJ60..ARL,GEN,ME |
2 | ||
| 88343-14011 |
BJ60,HJ6#..ARL,GEN |
2 | ||
| 88343-20040 |
BJ60,FJ60,HJ60..ARL,GEN |
2 | ||
| 88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE | ||||
| 88371-30310 |
HJ60..RHD..(ARL,GEN) |
1 | ||
| 88371-14230 |
HJ6#..RHD..(ARL,GEN) |
1 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
BJ60,FJ6#,HJ6#..ARL,GEN,ME |
4 | ||
| 88329 - PISTON SUB-ASSY, COOLER COMPRESSOR | ||||
| 88301-20050 |
BJ60,FJ60,HJ60..ARL,GEN |
3 | ||
| 88301-14020 |
HJ6# |
5 | ||
| 88301-14020 |
BJ60,FJ62,HJ60..ARL,GEN,ME |
5 | ||
| 88301-14020 |
BJ60,HJ6#..ARL,GEN |
5 | ||
| 88329C - SHOE, PISTON | ||||
| 88313-20070 |
BJ60,FJ60,HJ60..ARL,GEN |
6 | ||
| 88313-14010 |
HJ6# |
10 | ||
| 88313-14010 |
BJ60,FJ62,HJ6#..ARL,GEN,ME |
10 | ||
| 88329C - SHOE, PISTON | ||||
| 88313-20070 |
BJ60,FJ60,HJ60..ARL,GEN |
6 | ||
| 88313-14010 |
HJ6# |
10 | ||
| 88313-14010 |
BJ60,FJ62,HJ6#..ARL,GEN,ME |
10 | ||
| 88332 - VALVE, COOLER COMPRESSOR DISCHARGE SERVICE | ||||
| 88372-60030 |
HJ60..ARL,GEN |
1 | ||
| 88372-60040 |
HJ6#..ARL,GEN |
1 | ||
| 88372-60041 |
HJ61..ARL;HJ60..MTM..(ARL,GEN) |
1 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 04881-14030 |
BJ60,FJ60,HJ60..ARL,GEN |
1 | ||
| 04881-10010 |
BJ60,FJ62,HJ60..ARL,GEN,ME |
1 | ||
| 04881-10010 |
BJ60,HJ6#..ARL,GEN |
1 | ||
| 88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT | ||||
| 88360-14020 |
BJ60,FJ62,HJ60..ARL,GEN,ME |
1 | ||
| 88360-40010 |
BJ60,FJ62,HJ6#..ARL,GEN,ME |
1 | ||
| 88360-30270 |
BJ60,FJ60,HJ60..ARL,GEN |
1 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
BJ60,FJ62,HJ6#..ARL,GEN,ME |
1 | ||
| 88364 - BEARING, COMPRESSOR CRANKSHAFT, REAR | ||||
| 88366-20050 |
BJ60,FJ60,HJ60..ARL,GEN |
1 | ||
| 88366-14010 |
HJ6# |
1 | ||
| 88366-14010 |
BJ60,FJ62,HJ6#..ARL,GEN,ME |
1 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
BJ60,FJ6#,HJ6#..ARL,GEN,ME |
2 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
BJ60,FJ6#,HJ6#..ARL,GEN,ME |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-20010 |
HJ60..MTM..(ARL,GEN);BJ60,FJ62,HJ61..ARL,GEN,ME DISCHARGE |
1 | ||
| 88375-30270 |
HJ60..MTM..(ARL,GEN);BJ60,FJ62,HJ61..ARL,GEN,ME SUCTION |
1 | ||
| 88375-30270 |
BJ60,FJ6#,HJ6#..ARL,GEN,ME |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-20010 |
HJ60..MTM..(ARL,GEN);BJ60,FJ62,HJ61..ARL,GEN,ME DISCHARGE |
1 | ||
| 88375-30270 |
HJ60..MTM..(ARL,GEN);BJ60,FJ62,HJ61..ARL,GEN,ME SUCTION |
1 | ||
| 88375-30270 |
BJ60,FJ6#,HJ6#..ARL,GEN,ME |
2 | ||
| 88376 - CAP, BLIND | ||||
| 88376-26010 |
BJ60,HJ60..MTM..(ARL,GEN,ME) SUCTION |
1 | ||
| 88376-26020 |
BJ60,HJ60..MTM..(ARL,GEN,ME) DISCHARGE |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-26010 |
BJ60,HJ60..MTM..(ARL,GEN,ME) SUCTION |
1 | ||
| 88376-26020 |
BJ60,HJ60..MTM..(ARL,GEN,ME) DISCHARGE |
1 | ||
ILLUST NO. 2 OF 3(8708-8808) ; (8808- )BJ60,HJ6#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-04349 | ||||
| 90099-07049 | ||||
| 90099-07087 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
