HJ60RG-MQ (1982)

Toyota Land Cruiser

Production Oct 1982 - Aug 1987
Engine 2H
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )BJ60,HJ6#

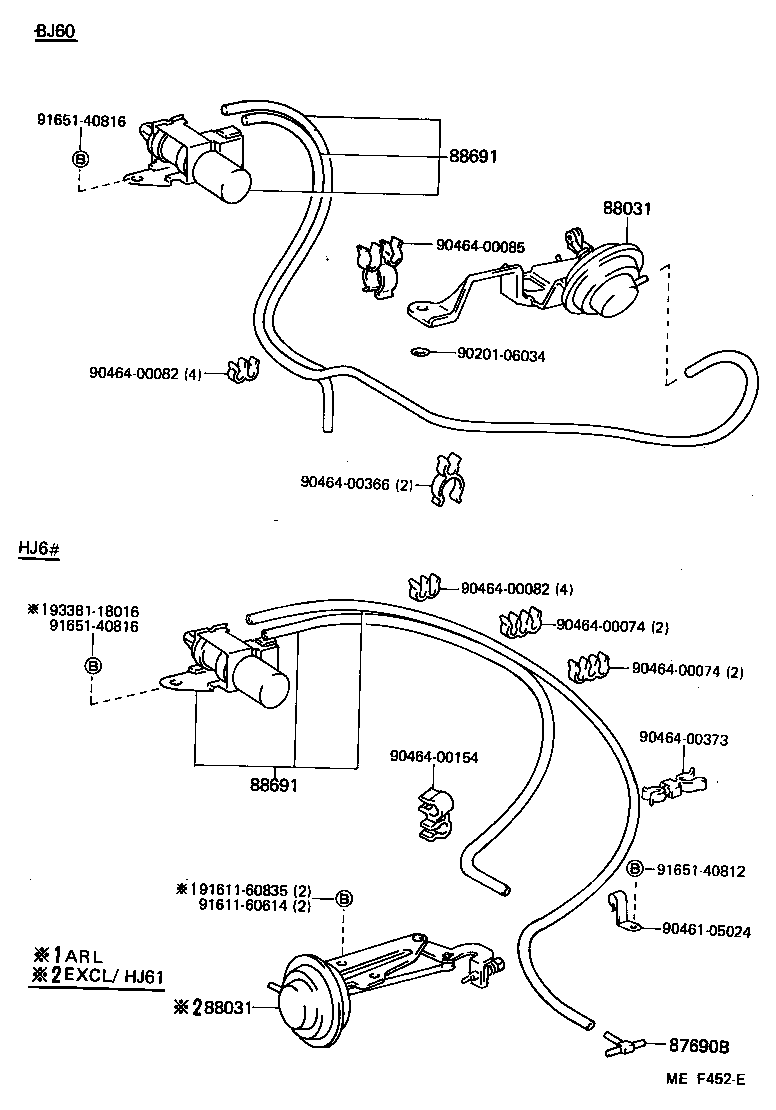

Click highlighted areas on diagram

diagram 87690B 88031 88031 88691 88691 9020106034 9046105024 9046400074 9046400074 9046400082 9046400082 9046400085 9046400154 9046400366 9046400373 9161160614 9161160835 9165140812 9165140816 9165140816 9338118016
Part # Description Qty Price
87690B - WAY, 3
90413-04001

HJ60..ARL

 1
88031 - ACTUATOR SET, IDLE-UP
88031-60030

HJ60..5F..ARL

 1
88031 - ACTUATOR SET, IDLE-UP
88031-60030

HJ60..5F..ARL

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-90A04

HJ60..ARL

W/O *ODAC

 1
88690-90A08

HJ60..ARL

W/*ODAC

 1
88690-90A04

HJ60..ARL

W/*ODAC & *ELC

 1
88690-90A11

HJ6#..ARL

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-90A04

HJ60..ARL

W/O *ODAC

 1
88690-90A08

HJ60..ARL

W/*ODAC

 1
88690-90A04

HJ60..ARL

W/*ODAC & *ELC

 1
88690-90A11

HJ6#..ARL

 1
Common parts
90201-06034
90461-05024
90464-00074
90464-00082
90464-00085
90464-00154
90464-00366
90464-00373
91611-60614
91611-60835
91651-40812
91651-40816
93381-18016
