HJ60RG-MQ (1982)

Toyota Land Cruiser

Production Oct 1982 - Aug 1987
Engine 2H
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(9001-9908)FZJ75,HZJ70..ARL ; (9001-0701)FJ75,FZJ75,HZJ75,PZJ75..CBR,DSL ; (9401-99

Click highlighted areas on diagram

FUEL SUB TANK

diagram 58279A 77017 77017B 77022A 77022A 77022A 77022A 77022A 77022A 77022A 77022A 77022A 77022A 77022A 77023 77023 77031 77031B 77100 77100A 77100B 77100D 77133 77134 77201 77201 77206 77206A 77206A 77213 77222A 77269 77271C 77271C 77290 77291 77293A 77305A 77308A 77366 77391 77606 77611 77611 77611A 77701V 8401 9011906621 9011908701 9011910153 9011910539 9011910539 9011910556 9011910556 9015940155 9046065002 9046106174 9046112296 9046400239 9046720134 91626B0818 9165140614 9165140614 9165160814 9165160814 9165160820 9165160820 9165160820 9165160820 9166540616 9338315014 93383A6014 9613241100 9613241100 9613241100 9613241100 9613241100 9613241100 9613241100 9613241100
Part # Description Qty Price
Common parts
90119-06621
90119-08701
90119-10153
90119-10539
90119-10556
90159-40155
90460-65002
90461-06174
90461-12296
90464-00239
90467-20134
91626-B0818
91651-40614
91651-60814
91651-60820
91665-40616
93383-15014
93383-A6014
96132-41100
Linked diagrams
8401

(8008-8411)HJ60

Click highlighted areas on diagram

diagram 2302 77242 77242A 77242B 77243 77243 77243A 77243A 77243B 77243B 77256 77256 77256 77256B 77256B 77256B 7777760011 9046106156 9046108324 9046108422 9048001107 9048014003 9048014003 9048014003 9161140820 9161140820 9165140814 9165140814 9613230600 9613230800
Part # Description Qty Price

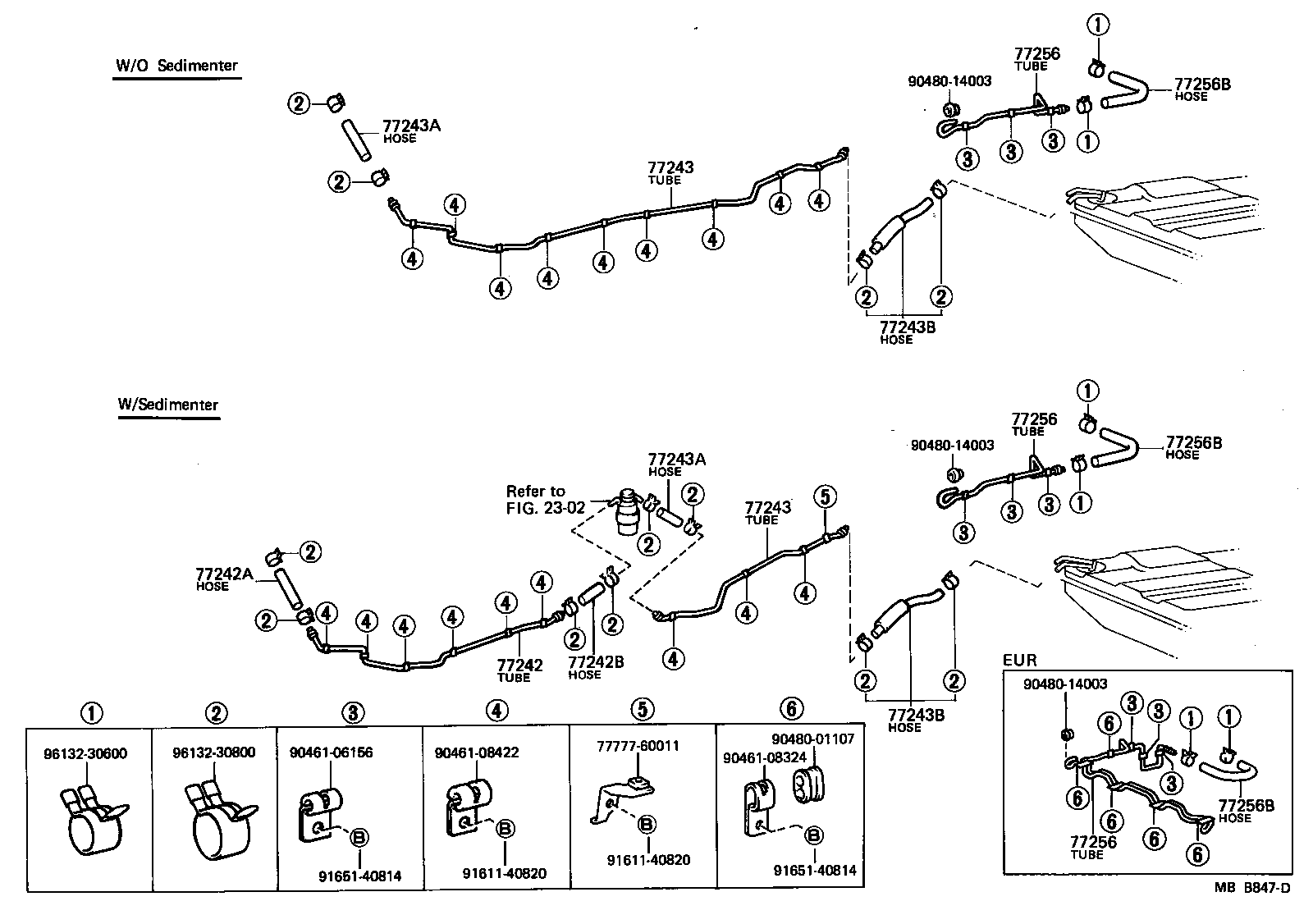

77242 - TUBE, FUEL MAIN, NO.2
77252-60051

HJ60

W/SEDIMENTER

 1
77252-60050

HJ60

W/SEDIMENTER

 1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-08020

HJ60

*H,L=200,ID=7.6

 1
95333-08030

HJ60..MTM;HJ60..4FC..EUR

*H,L=300

 1
95332-08030

HJ60

*H,L=300,ID=7.6

 1
77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2)
95333-08020

BJ60,HJ61;HJ60..MTM;HJ60..4FC..EUR

*H,L=130,W/SEDIMENTER

 1
95332-08020

BJ60,HJ6#

*H,L=130,ID=7.6,W/SEDIMENTER

 1
77243 - TUBE, FUEL MAIN, NO.3
77251-60210

BJ60,HJ60

W/SEDIMENTER

 1
77251-60212

HJ60..MTM;HJ60..4FC..EUR

W/SEDIMENTER

 1
77251-60212

BJ60,HJ60

W/SEDIMENTER

 1
77251-60211

BJ60,HJ60

W/SEDIMENTER

 1
77243 - TUBE, FUEL MAIN, NO.3
77251-60210

BJ60,HJ60

W/SEDIMENTER

 1
77251-60212

HJ60..MTM;HJ60..4FC..EUR

W/SEDIMENTER

 1
77251-60212

BJ60,HJ60

W/SEDIMENTER

 1
77251-60211

BJ60,HJ60

W/SEDIMENTER

 1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-08020

BJ60,HJ6#

*H,L=130,ID=7.6,W/SEDIMENTER

 1
95333-08020

HJ61;HJ60..MTM;HJ60..4FC..EUR

*H,L=130,W/SEDIMENTER

 1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-08020

BJ60,HJ6#

*H,L=130,ID=7.6,W/SEDIMENTER

 1
95333-08020

HJ61;HJ60..MTM;HJ60..4FC..EUR

*H,L=130,W/SEDIMENTER

 1
77243B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.3)
77250-60050

BJ60,FJ6#,HJ6#

 1
77243B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.3)
77250-60050

BJ60,FJ6#,HJ6#

 1
77256 - TUBE, FUEL EMISSION, NO.3
77244-60130

HJ60;BJ60,FJ60..EUR,GEN

 1
77244-60130

BJ60,FJ62,HJ6#..ARL,GEN,ME

W/O CHARCOAL CANISTER

 1
77256 - TUBE, FUEL EMISSION, NO.3
77244-60130

HJ60;BJ60,FJ60..EUR,GEN

 1
77244-60130

BJ60,FJ62,HJ6#..ARL,GEN,ME

W/O CHARCOAL CANISTER

 1
77256 - TUBE, FUEL EMISSION, NO.3
77244-60130

HJ60;BJ60,FJ60..EUR,GEN

 1
77244-60130

BJ60,FJ62,HJ6#..ARL,GEN,ME

W/O CHARCOAL CANISTER

 1
77256B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.3)
95332-06030

BJ60,FJ60,HJ60

*H,L=240

 1
95333-06030

HJ61..ARL;HJ60..MTM..(ARL,GEN)

*H,L=240

 1
95332-06030

BJ60,FJ62,HJ6#..ARL,GEN,ME

*H,L=240

 1
77256B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.3)
95332-06030

BJ60,FJ60,HJ60

*H,L=240

 1
95333-06030

HJ61..ARL;HJ60..MTM..(ARL,GEN)

*H,L=240

 1
95332-06030

BJ60,FJ62,HJ6#..ARL,GEN,ME

*H,L=240

 1
77256B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.3)
95332-06030

BJ60,FJ60,HJ60

*H,L=240

 1
95333-06030

HJ61..ARL;HJ60..MTM..(ARL,GEN)

*H,L=240

 1
95332-06030

BJ60,FJ62,HJ6#..ARL,GEN,ME

*H,L=240

 1
Common parts
77777-60011
90461-06156
90461-08324
90461-08422
90480-01107
90480-14003
91611-40820
91651-40814
96132-30600
96132-30800
Linked diagrams
2302

(8411- )HJ60

Click highlighted areas on diagram

diagram 2302 77242 77242A 77242B 77243 77243 77243A 77243A 77243B 77243B 77256 77256 77256 77256B 77256B 77256B 9046100451 9046106156 9046108324 9046110651 9046110671 9046713007 9048001107 9048014003 9048014003 9048014003 9161640820 9161640820 9165140814 9165140814 9613230600 9613230800
Part # Description Qty Price
77242 - TUBE, FUEL MAIN, NO.2
77252-60051

HJ60

W/SEDIMENTER

 1
77252-60050

HJ60

W/SEDIMENTER

 1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-08020

HJ60

*H,L=200,ID=7.6

 1
95333-08030

HJ60..MTM;HJ60..4FC..EUR

*H,L=300

 1
95332-08030

HJ60

*H,L=300,ID=7.6

 1
77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2)
95333-08020

BJ60,HJ61;HJ60..MTM;HJ60..4FC..EUR

*H,L=130,W/SEDIMENTER

 1
95332-08020

BJ60,HJ6#

*H,L=130,ID=7.6,W/SEDIMENTER

 1
77243 - TUBE, FUEL MAIN, NO.3
77251-60210

BJ60,HJ60

W/SEDIMENTER

 1
77251-60212

HJ60..MTM;HJ60..4FC..EUR

W/SEDIMENTER

 1
77251-60212

BJ60,HJ60

W/SEDIMENTER

 1
77251-60211

BJ60,HJ60

W/SEDIMENTER

 1
77243 - TUBE, FUEL MAIN, NO.3
77251-60210

BJ60,HJ60

W/SEDIMENTER

 1
77251-60212

HJ60..MTM;HJ60..4FC..EUR

W/SEDIMENTER

 1
77251-60212

BJ60,HJ60

W/SEDIMENTER

 1
77251-60211

BJ60,HJ60

W/SEDIMENTER

 1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-08020

BJ60,HJ6#

*H,L=130,ID=7.6,W/SEDIMENTER

 1
95333-08020

HJ61;HJ60..MTM;HJ60..4FC..EUR

*H,L=130,W/SEDIMENTER

 1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-08020

BJ60,HJ6#

*H,L=130,ID=7.6,W/SEDIMENTER

 1
95333-08020

HJ61;HJ60..MTM;HJ60..4FC..EUR

*H,L=130,W/SEDIMENTER

 1
77243B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.3)
77250-60050

BJ60,FJ6#,HJ6#

 1
77243B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.3)
77250-60050

BJ60,FJ6#,HJ6#

 1
77256 - TUBE, FUEL EMISSION, NO.3
77244-60130

HJ60;BJ60,FJ60..EUR,GEN

 1
77244-60130

BJ60,FJ62,HJ6#..ARL,GEN,ME

W/O CHARCOAL CANISTER

 1
77256 - TUBE, FUEL EMISSION, NO.3
77244-60130

HJ60;BJ60,FJ60..EUR,GEN

 1
77244-60130

BJ60,FJ62,HJ6#..ARL,GEN,ME

W/O CHARCOAL CANISTER

 1
77256 - TUBE, FUEL EMISSION, NO.3
77244-60130

HJ60;BJ60,FJ60..EUR,GEN

 1
77244-60130

BJ60,FJ62,HJ6#..ARL,GEN,ME

W/O CHARCOAL CANISTER

 1
77256B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.3)
95332-06030

BJ60,FJ60,HJ60

*H,L=240

 1
95333-06030

HJ61..ARL;HJ60..MTM..(ARL,GEN)

*H,L=240

 1
95332-06030

BJ60,FJ62,HJ6#..ARL,GEN,ME

*H,L=240

 1
77256B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.3)
95332-06030

BJ60,FJ60,HJ60

*H,L=240

 1
95333-06030

HJ61..ARL;HJ60..MTM..(ARL,GEN)

*H,L=240

 1
95332-06030

BJ60,FJ62,HJ6#..ARL,GEN,ME

*H,L=240

 1
77256B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.3)
95332-06030

BJ60,FJ60,HJ60

*H,L=240

 1
95333-06030

HJ61..ARL;HJ60..MTM..(ARL,GEN)

*H,L=240

 1
95332-06030

BJ60,FJ62,HJ6#..ARL,GEN,ME

*H,L=240

 1
Common parts
90461-00451
90461-06156
90461-08324
90461-10651
90461-10671
90467-13007
90480-01107
90480-14003
91616-40820
91651-40814
96132-30600
96132-30800
Linked diagrams
2302
