HJ60RG-MQ (1982)

Toyota Land Cruiser

Production Oct 1982 - Aug 1987
Engine 2H
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )FJ6#,HJ6#..RHD

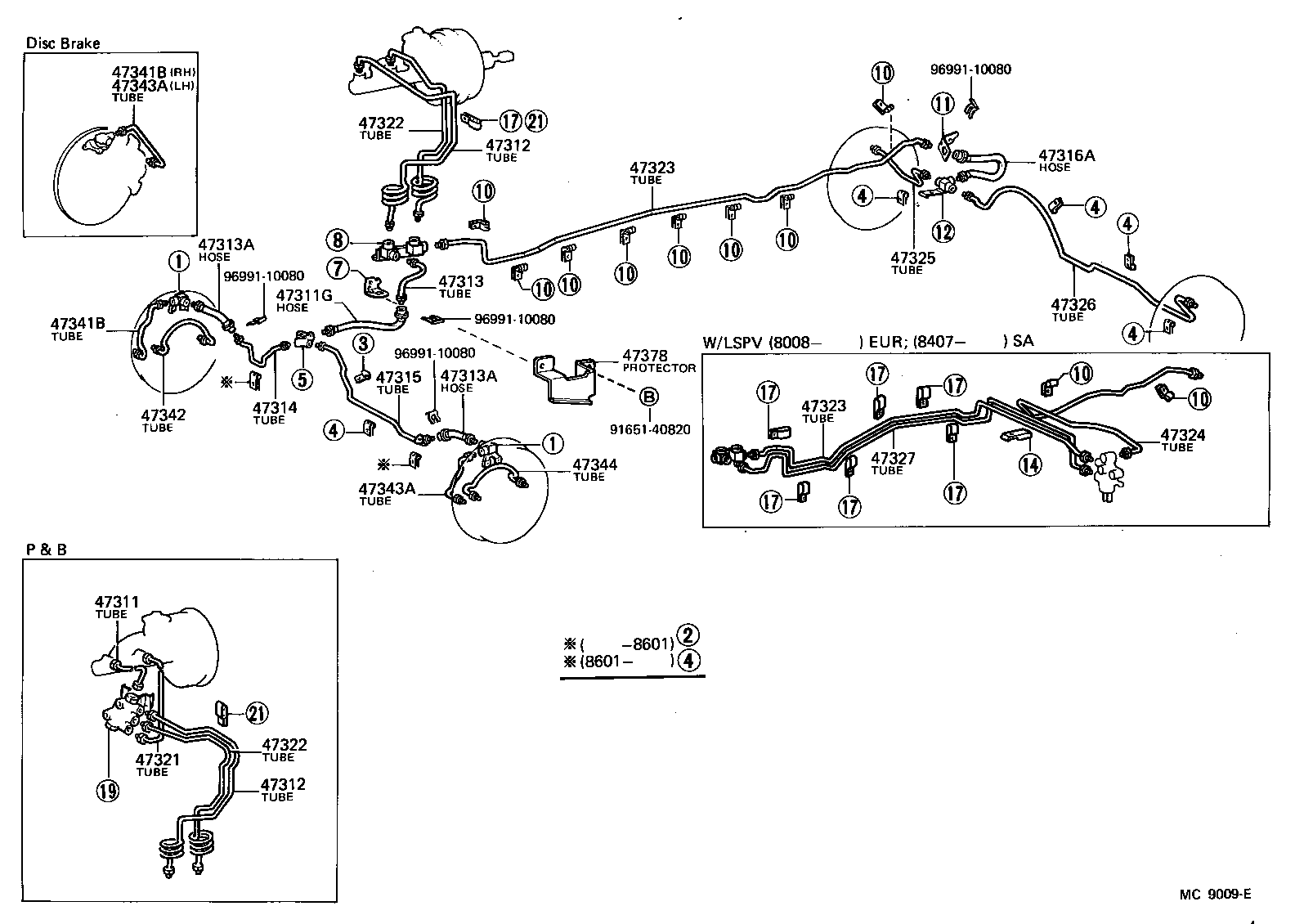

Click highlighted areas on diagram

diagram 47311 47311G 47312 47312 47313 47313A 47313A 47314 47315 47316A 47321 47322 47322 47323 47323 47324 47325 47326 47327 47341B 47341B 47342 47343A 47343A 47344 47378 9165140820 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-30330

BJ60,HJ60..RHD..(ARL,GEN)

 1
47311-30400

BJ60,FJ62,HJ6#..ARL,GEN,ME

 1
47311-30320

BJ60,FJ60,HJ60..ARL,GEN

 1
47311-30330

BJ60,FJ60,HJ60..ARL,GEN

 1
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
96940-33005

FJ6#,HJ6#

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-60190

FJ60,HJ60..RHD..(ARL,GEN)

DISC BRAKE

 1
47312-60191

FJ60,HJ60..RHD..(ARL,GEN)

DISC BRAKE

 1
47312-60192

FJ62,HJ6#..RHD..(ARL,GEN)

DISC BRAKE

 1
47312-60630

FJ62,HJ61..ARL;HJ60..SRF..ARL

DISC BRAKE

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-60190

FJ60,HJ60..RHD..(ARL,GEN)

DISC BRAKE

 1
47312-60191

FJ60,HJ60..RHD..(ARL,GEN)

DISC BRAKE

 1
47312-60192

FJ62,HJ6#..RHD..(ARL,GEN)

DISC BRAKE

 1
47312-60630

FJ62,HJ61..ARL;HJ60..SRF..ARL

DISC BRAKE

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-60090

FJ60,HJ60..ARL,GEN

 1
47313-60091

FJ62,HJ6#..ARL,GEN,ME

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96940-39855

BJ60,FJ6#,HJ6#

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96940-39855

BJ60,FJ6#,HJ6#

 2
47314 - TUBE, FRONT BRAKE, NO.4
47315-60260

FJ60,HJ60

 1
47315-60261

FJ62,HJ6#

 1
47315-60262

FJ62,HJ61;HJ60..SRF;HJ60..5F..HRF

 1
47315-60340

FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR

 1
47315 - TUBE, FRONT BRAKE, NO.5
47316-60141

FJ62,HJ60

 1
47316-60140

FJ60,HJ60

 1
47316-60210

FJ62,HJ6#

 1
47316-60211

FJ62,HJ61;HJ60..SRF;HJ60..5F..HRF

 1
47316-60310

FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-33805

BJ60,FJ62,HJ6#

 1
96940-33605

BJ60,FJ60,HJ60

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-30050

BJ60,FJ60,HJ60..RHD..(ARL,GEN)

 1
47321-60100

BJ60,FJ60,HJ60..ARL,GEN

 1
47321-30120

FJ62..ARL,GEN;BJ60,HJ6#..ARL,GEN,ME

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-60090

FJ60,HJ60..RHD..(ARL,GEN)

DISC BRAKE

 1
47322-60091

FJ60,HJ60..RHD..(ARL,GEN)

DISC BRAKE

 1
47322-60092

FJ62,HJ6#..RHD..(ARL,GEN)

DISC BRAKE

 1
47322-60510

FJ62,HJ61..ARL;HJ60..SRF..ARL

DISC BRAKE

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-60090

FJ60,HJ60..RHD..(ARL,GEN)

DISC BRAKE

 1
47322-60091

FJ60,HJ60..RHD..(ARL,GEN)

DISC BRAKE

 1
47322-60092

FJ62,HJ6#..RHD..(ARL,GEN)

DISC BRAKE

 1
47322-60510

FJ62,HJ61..ARL;HJ60..SRF..ARL

DISC BRAKE

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-60030

BJ60,FJ60,HJ60..ARL,GEN

 1
47323-60031

BJ60,FJ62,HJ6#..ARL,GEN,ME

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-60030

BJ60,FJ60,HJ60..ARL,GEN

 1
47323-60031

BJ60,FJ62,HJ6#..ARL,GEN,ME

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-60011

BJ60,FJ62,HJ6#

 1
47325-60010

BJ60,FJ60,HJ60

 1
47325-60100

HJ60..MTM;BJ60,FJ62,HJ61;HJ60..4FC..EUR

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-60010

BJ60,FJ60,HJ60

 1
47326-60011

BJ60,FJ62,HJ6#

 1
47326-60110

HJ60..MTM;BJ60,FJ62,HJ61;HJ60..4FC..EUR

 1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47341-60031

BJ60,FJ6#,HJ6#

DISC BRAKE

 1
47341-60030

BJ60,FJ60,HJ60

DISC BRAKE

 1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47341-60031

BJ60,FJ6#,HJ6#

DISC BRAKE

 1
47341-60030

BJ60,FJ60,HJ60

DISC BRAKE

 1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47343-60020

BJ60,FJ60,HJ60

DISC BRAKE

 1
47343-60021

BJ60,FJ6#,HJ6#

DISC BRAKE

 1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47343-60020

BJ60,FJ60,HJ60

DISC BRAKE

 1
47343-60021

BJ60,FJ6#,HJ6#

DISC BRAKE

 1
47378 - PROTECTOR, BRAKE TUBE
47378-60040

FJ6#,HJ60

 1
Common parts
91651-40820
96991-10080
