HJ60RG-MQ (1982)
Toyota Land Cruiser
Production
Oct 1982
-
Aug 1987
Engine
2H
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8008-8510)HJ60..RHD

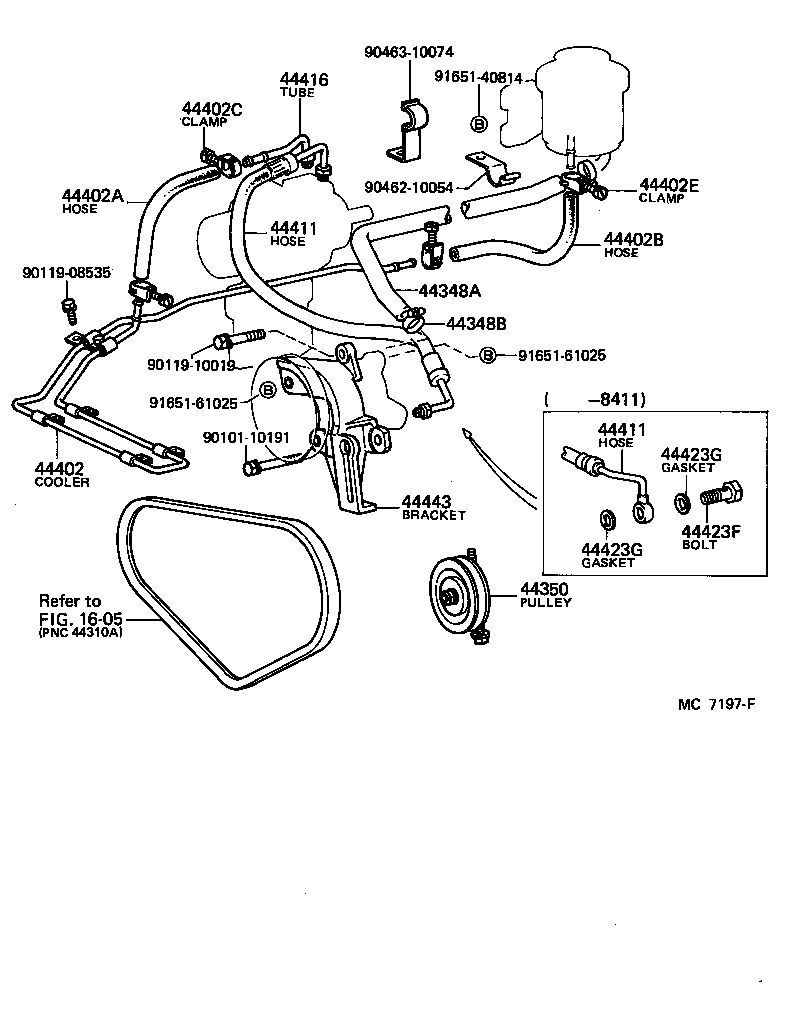

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-60020 |
HJ60 |
1 | ||
| 44348-60070 |
HJ6# |
1 | ||
| 44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE) | ||||
| 90460-26001 |
HJ6# |
2 | ||
| 44350 - PULLEY ASSY, POWER STEERING IDLE | ||||
| 16630-47020 |
HJ6# |
1 | ||
| 44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1 | ||||
| 44420-60080 |
HJ6#..RHD |
1 | ||
| 44402A - HOSE, POWER STEERING OIL COOLER INLET | ||||
| 90445-18089 |
BJ60,FJ6#,HJ6#..RHD |
1 | ||
| 90445-18089 |
FJ60,HJ60..RHD |
1 | ||
| 44402B - HOSE, POWER STEERING OIL COOLER OUTLET | ||||
| 90445-18089 |
HJ6#..RHD |
1 | ||
| 44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE | ||||
| 90460-01001 |
FJ60,HJ60..RHD |
2 | ||
| 90460-01001 |
BJ60,FJ6#,HJ6#..RHD |
2 | ||
| 44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE | ||||
| 90460-01001 |
BJ60,FJ6#,HJ6#..RHD |
2 | ||
| 90460-01001 |
FJ60,HJ60..RHD |
2 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-60270 |
HJ60..RHD |
1 | ||
| 44411-60140 |
HJ60..RHD |
1 | ||
| 44411-60310 |
HJ6#..RHD |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-60270 |
HJ60..RHD |
1 | ||
| 44411-60140 |
HJ60..RHD |
1 | ||
| 44411-60310 |
HJ6#..RHD |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-60060 |
HJ60;FJ60..LHD |
1 | ||
| 44416-60060 |
BJ60,FJ6#,HJ60 |
1 | ||
| 44416-60061 |
BJ60,FJ62,HJ6# |
1 | ||
| 44423F - BOLT, UNION | ||||
| 90401-16004 |
HJ60 |
1 | ||
| 90401-16005 |
HJ60 |
1 | ||
| 44423G - GASKET, UNION BOLT | ||||
| 90430-16242 |
HJ60 |
2 | ||
| 44423G - GASKET, UNION BOLT | ||||
| 90430-16242 |
HJ60 |
2 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-60070 |
HJ60 |
1 | ||
| 44443-60030 |
HJ60 |
1 | ||
| 44443-60071 |
HJ6# |
1 | ||
| Common parts | ||||
| 90101-10191 | ||||
| 90119-08535 | ||||
| 90119-10019 | ||||
| 90462-10054 | ||||
| 90463-10074 | ||||
| 91651-40814 | ||||
| 91651-61025 | ||||
| Linked diagrams | ||||
| 1605 | ||||
(8510- )HJ6#..RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-60020 |
HJ60 |
1 | ||
| 44348-60070 |
HJ6# |
1 | ||
| 44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE) | ||||
| 90460-26001 |
HJ6# |
2 | ||
| 44350 - PULLEY ASSY, POWER STEERING IDLE | ||||
| 16630-47020 |
HJ6# |
1 | ||
| 44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1 | ||||
| 44420-60080 |
HJ6#..RHD |
1 | ||
| 44402A - HOSE, POWER STEERING OIL COOLER INLET | ||||
| 90445-18089 |
BJ60,FJ6#,HJ6#..RHD |
1 | ||
| 90445-18089 |
FJ60,HJ60..RHD |
1 | ||
| 44402B - HOSE, POWER STEERING OIL COOLER OUTLET | ||||
| 90445-18089 |
HJ6#..RHD |
1 | ||
| 44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE | ||||
| 90460-01001 |
FJ60,HJ60..RHD |
2 | ||
| 90460-01001 |
BJ60,FJ6#,HJ6#..RHD |
2 | ||
| 44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE | ||||
| 90460-01001 |
BJ60,FJ6#,HJ6#..RHD |
2 | ||
| 90460-01001 |
FJ60,HJ60..RHD |
2 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-60270 |
HJ60..RHD |
1 | ||
| 44411-60140 |
HJ60..RHD |
1 | ||
| 44411-60310 |
HJ6#..RHD |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16008 |
HJ60 |
1 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-16242 |
HJ6# |
1 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-16242 |
HJ6# |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-60060 |
HJ60;FJ60..LHD |
1 | ||
| 44416-60060 |
BJ60,FJ6#,HJ60 |
1 | ||
| 44416-60061 |
BJ60,FJ62,HJ6# |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-60070 |
HJ60 |
1 | ||
| 44443-60030 |
HJ60 |
1 | ||
| 44443-60071 |
HJ6# |
1 | ||
| Common parts | ||||
| 90119-10019 | ||||
| 90119-10045 | ||||
| 90462-10054 | ||||
| 90949-01186 | ||||
| 91651-40814 | ||||
| 91651-40820 | ||||
| 91651-61025 | ||||
| Linked diagrams | ||||
| 1605 | ||||
