HJ60RG-MQ (1982)
Toyota Land Cruiser

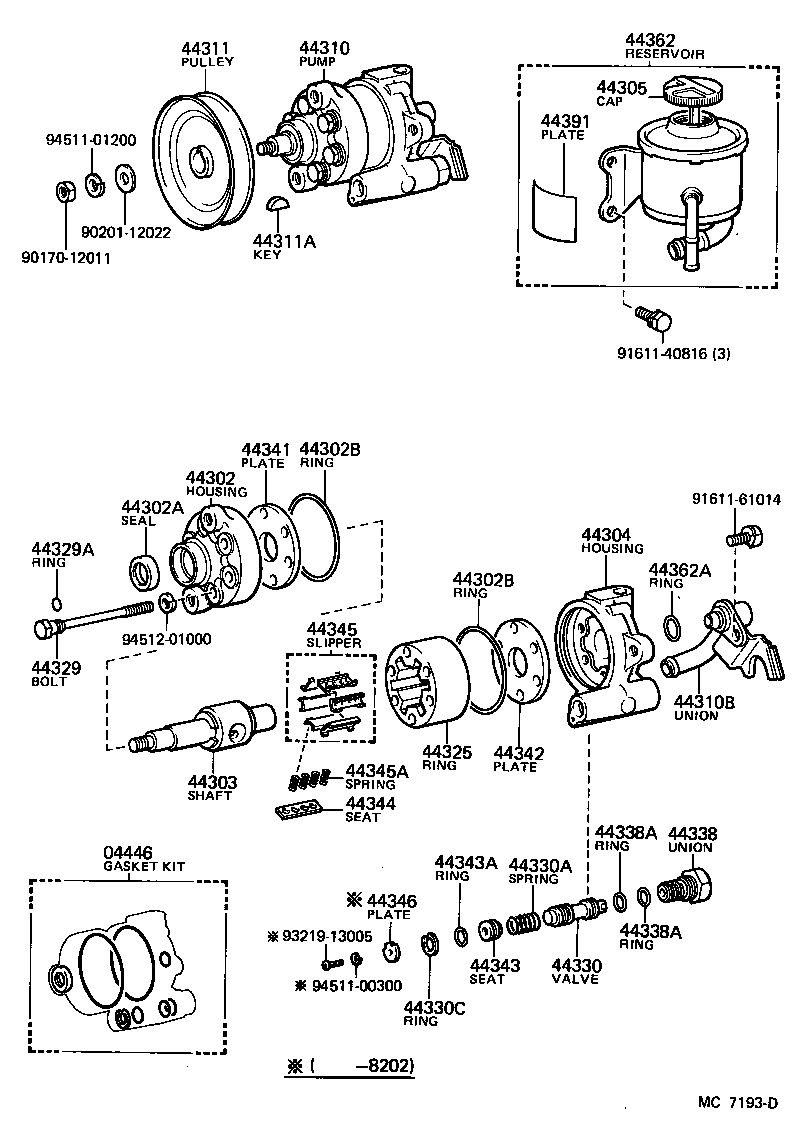

(8008-8411)HJ60
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-35010 |
BJ60,FJ62,HJ6# |
1 | ||
| 04446-60010 |
HJ60 |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-30020 |
BJ60,FJ60,HJ60 |
1 | ||
| 44302-30020 |
FJ60,HJ60 |
1 | ||
| 44302-12010 |
HJ6# |
1 | ||
| 44302A - SEAL, OIL, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90311-21001 |
HJ60 |
1 | ||
| 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90301-69170 |
FJ60,HJ60 |
2 | ||
| 90301-60001 |
BJ60,FJ62,HJ6# |
2 | ||
| 90301-69170 |
BJ60,FJ60,HJ60 |
2 | ||
| 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90301-69170 |
FJ60,HJ60 |
2 | ||
| 90301-60001 |
BJ60,FJ62,HJ6# |
2 | ||
| 90301-69170 |
BJ60,FJ60,HJ60 |
2 | ||
| 44303 - SHAFT SUB-ASSY, W/ROTOR | ||||
| 44303-22011 |
BJ60,FJ60,HJ60 L=39.9750-39.9775 |
1 | ||
| 44303-22021 |
FJ60,HJ60 L=39.9725-39.9750 |
1 | ||
| 44303-22011 |
FJ60,HJ60 L=39.9750-39.9775 |
1 | ||
| 44303-22021 |
BJ60,FJ60,HJ60 L=39.9725-39.9750 |
1 | ||
| 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR | ||||
| 44304-60010 |
HJ60 |
1 | ||
| 44304-35041 |
HJ61;HJ60..MTM;HJ60..4FC..EUR |
1 | ||
| 44304-35040 |
HJ6# |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-30020 |
FJ6#,HJ6# |
1 | ||
| 44310 - PUMP ASSY, VANE | ||||
| 44320-60052 |
HJ60 |
1 | ||
| 44320-60110 |
HJ6# |
1 | ||
| 44320-60050 |
HJ60 |
1 | ||
| 44310B - UNION(FOR VANE PUMP) | ||||
| 90404-16015 |
HJ60 |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-60030 |
HJ6# |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90280-05008 |
BJ60,FJ6#,HJ6# |
1 | ||
| 90280-05008 |
FJ60,HJ60 |
1 | ||
| 44325 - RING, FIXED(FOR VANE PUMP) | ||||
| 44325-30040 |
FJ60,HJ60 MARK 2,L=39.9975-40.0000 |
1 | ||
| 44325-30030 |
FJ60,HJ60 MARK 1,L=39.9950-39.9975 |
1 | ||
| 44325-30030 |
BJ60,FJ60,HJ60 MARK 1,L=39.9950-39.9975 |
1 | ||
| 44325-30040 |
BJ60,FJ60,HJ60 MARK 2,L=39.9975-40.0000 |
1 | ||
| 44329 - BOLT, VANE PUMP FRONT HOUSING & REAR HOUSING SET | ||||
| 44329-30010 |
BJ60,FJ60,HJ60 L=76.5 |
6 | ||
| 44329-30010 |
FJ60,HJ60 L=76.5 |
6 | ||
| 44329A - RING, O(FOR VANE PUMP HOUSING SET BOLT) | ||||
| 96711-19007 |
BJ60,FJ60,HJ60 |
6 | ||
| 96710-01007 |
FJ60,HJ60 |
6 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-60010 |
FJ60,HJ60 MARK A |
1 | ||
| 44330-60040 |
FJ60,HJ60 MARK D |
1 | ||
| 44330-60060 |
FJ60,HJ60 MARK F |
1 | ||
| 44330-60010 |
BJ60,FJ60,HJ60 MARK A |
1 | ||
| 44330-60020 |
BJ60,FJ60,HJ60 MARK B |
1 | ||
| 44330-30100 |
BJ60,FJ62,HJ6# MARK A,MARK A |
1 | ||
| 44330-60050 |
FJ60,HJ60 MARK E |
1 | ||
| 44330-60030 |
FJ60,HJ60 MARK C |
1 | ||
| 44330-60020 |
FJ60,HJ60 MARK B |
1 | ||
| 44330-30140 |
BJ60,FJ62,HJ6# MARK E,MARK E |
1 | ||
| 44330-60050 |
BJ60,FJ60,HJ60 MARK E |
1 | ||
| 44330-60040 |
BJ60,FJ60,HJ60 MARK D |
1 | ||
| 44330-30110 |
BJ60,FJ62,HJ6# MARK B,MARK B |
1 | ||
| 44330-30130 |
BJ60,FJ62,HJ6# MARK D,MARK D |
1 | ||
| 44330-60030 |
BJ60,FJ60,HJ60 MARK C |
1 | ||
| 44330-30120 |
BJ60,FJ62,HJ6# MARK C,MARK C |
1 | ||
| 44330-60060 |
BJ60,FJ60,HJ60 MARK F |
1 | ||
| 44330-30150 |
BJ60,FJ62,HJ6# MARK F,MARK F |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12447 |
BJ60,FJ6#,HJ6# |
1 | ||
| 90501-12103 |
HJ60..MTM;BJ60,FJ62,HJ61;HJ60..4FC..EUR |
1 | ||
| 90501-12447 |
FJ60,HJ60 |
1 | ||
| 44330C - RING, SNAP(FOR FLOW CONTROL VALVE) | ||||
| 96151-01700 |
BJ60,FJ6#,HJ6# |
1 | ||
| 96151-01700 |
FJ60,HJ60 |
1 | ||
| 44338 - UNION, PRESSURE PORT | ||||
| 44338-60020 |
FJ60,HJ60 |
1 | ||
| 44308-35030 |
BJ60,FJ62,HJ6# |
1 | ||
| 44308-60010 |
FJ60,HJ60 |
1 | ||
| 44308-60010 |
BJ60,FJ60,HJ60 |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 96710-01014 |
FJ60,HJ60 ID=14,OD=17 |
2 | ||
| 90301-22001 |
BJ60,FJ62,HJ6# OD=25.5,ID=22.5,OD=25.5 |
2 | ||
| 96711-19014 |
BJ60,FJ60,HJ60 OD=17.0,ID=13.0 |
2 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 96710-01014 |
FJ60,HJ60 ID=14,OD=17 |
2 | ||
| 90301-22001 |
BJ60,FJ62,HJ6# OD=25.5,ID=22.5,OD=25.5 |
2 | ||
| 96711-19014 |
BJ60,FJ60,HJ60 OD=17.0,ID=13.0 |
2 | ||
| 44341 - PLATE, VANE PUMP SIDE, FRONT | ||||
| 44341-30020 |
FJ60,HJ60 |
1 | ||
| 44341-30020 |
BJ60,FJ60,HJ60 |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44341-30020 |
BJ60,FJ60,HJ60 |
1 | ||
| 44341-30020 |
FJ60,HJ60 |
1 | ||
| 44341-12010 |
BJ60,FJ62,HJ6# |
1 | ||
| 44343 - SEAT, FLOW CONTROL SPRING | ||||
| 44343-12040 |
HJ60..MTM;BJ60,FJ62,HJ61;HJ60..4FC..EUR |
1 | ||
| 44343-30020 |
FJ60,HJ60 |
1 | ||
| 44343-12010 |
BJ60,FJ6#,HJ6# |
1 | ||
| 44343A - RING, O(FOR FLOW CONTROL SPRING SEAT) | ||||
| 96711-19014 |
BJ60,FJ60,HJ60 OD=17.6 |
1 | ||
| 96711-19014 |
HJ6# OD=17.6 |
1 | ||
| 96710-01014 |
FJ60,HJ60 |
1 | ||
| 44344 - SEAT, SPRING(FOR VANE PUMP) | ||||
| 44344-30010 |
FJ60,HJ60 |
6 | ||
| 44344-30010 |
BJ60,FJ60,HJ60 |
6 | ||
| 44345 - SLIPPER, VANE PUMP | ||||
| 44307-22020 |
BJ60,FJ60,HJ60 NO MARK,L=39.937-39.932 |
1 | ||
| 44307-22010 |
FJ60,HJ60 NO MARK,L=39.942-39.937 |
1 | ||
| 44307-22020 |
FJ60,HJ60 NO MARK,L=39.937-39.932 |
1 | ||
| 44307-22010 |
BJ60,FJ60,HJ60 NO MARK,L=39.942-39.937 |
1 | ||
| 44345A - SPRING, COMPRESSION(FOR VANE PUMP SLIPPER) | ||||
| 90501-06445 |
FJ60,HJ60 |
24 | ||
| 90501-06445 |
BJ60,FJ60,HJ60 |
24 | ||
| 44346 - PLATE, SNAP RING LOCK | ||||
| 44346-30020 |
FJ60,HJ60 |
1 | ||
| 44362 - RESERVOIR, OIL(FOR VANE PUMP) | ||||
| 44360-60010 |
HJ60 |
1 | ||
| 44362A - RING, O(FOR VANE PUMP OIL RESERVOIR) | ||||
| 90301-25135 |
HJ60 |
1 | ||
| 44391 - PLATE, POWER STEERING OIL RESERVOIR CAUTION | ||||
| 44391-30020 |
BJ60,FJ6#,HJ6# |
1 | ||
| 44391-14010 |
HJ60..MTM;BJ60,FJ62,HJ61;HJ60..4FC..EUR |
1 | ||
| 44391-30010 |
FJ60,HJ60 |
1 | ||
| Common parts | ||||
| 90170-12011 | ||||
| 90201-12022 | ||||
| 91611-40816 | ||||
| 91611-61014 | ||||
| 93219-13005 | ||||
| 94511-00300 | ||||
| 94511-01200 | ||||
| 94512-01000 | ||||

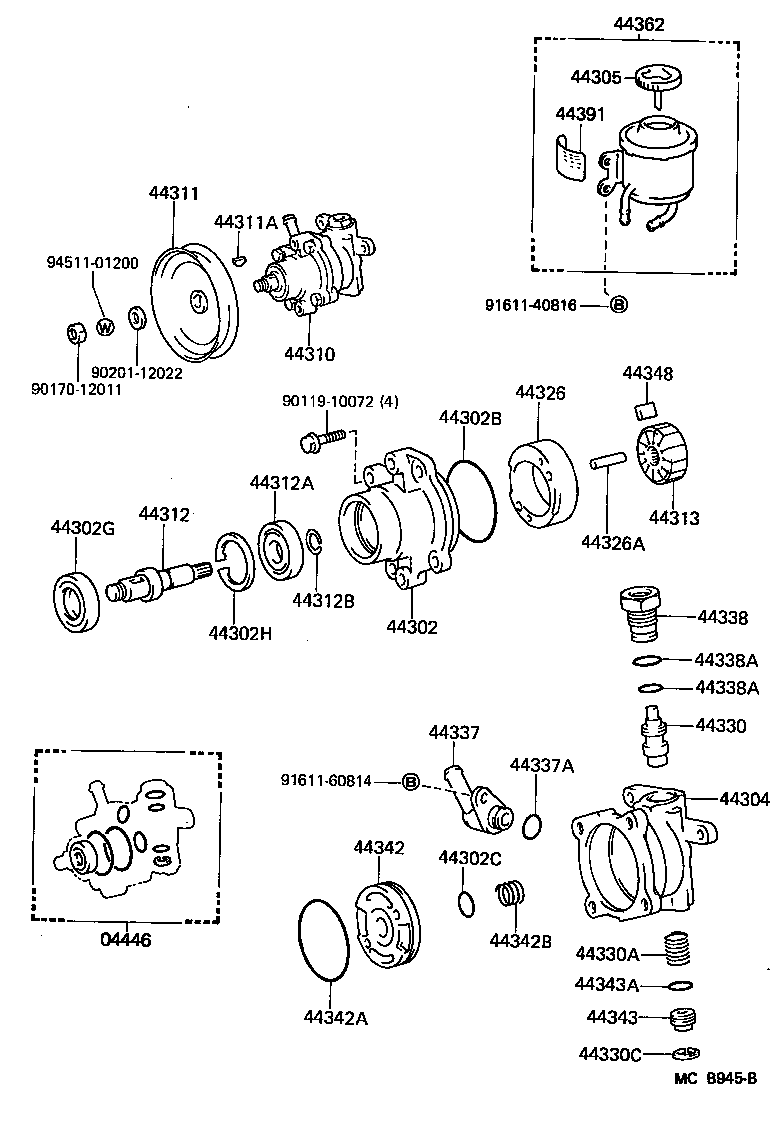

(8411- )HJ6#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-35010 |
BJ60,FJ62,HJ6# |
1 | ||
| 04446-60010 |
HJ60 |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-30020 |
FJ60,HJ60 |
1 | ||
| 44302-30020 |
BJ60,FJ60,HJ60 |
1 | ||
| 44302-12010 |
HJ6# |
1 | ||
| 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90301-69170 |
FJ60,HJ60 |
2 | ||
| 90301-60001 |
BJ60,FJ62,HJ6# |
2 | ||
| 90301-69170 |
BJ60,FJ60,HJ60 |
2 | ||
| 44302C - RING, O, NO.2(FOR VANE PUMP HOUSING) | ||||
| 96711-19016 |
BJ60,FJ62,HJ6# |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-24001 |
BJ60,FJ62,HJ6# |
1 | ||
| 44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90521-44002 |
BJ60,FJ62,HJ6# |
1 | ||
| 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR | ||||
| 44304-60010 |
HJ60 |
1 | ||
| 44304-35041 |
HJ61;HJ60..MTM;HJ60..4FC..EUR |
1 | ||
| 44304-35040 |
HJ6# |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-30020 |
FJ6#,HJ6# |
1 | ||
| 44310 - PUMP ASSY, VANE | ||||
| 44320-60052 |
HJ60 |
1 | ||
| 44320-60110 |
HJ6# |
1 | ||
| 44320-60050 |
HJ60 |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-60030 |
HJ6# |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90280-05008 |
BJ60,FJ6#,HJ6# |
1 | ||
| 90280-05008 |
FJ60,HJ60 |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-12010 |
BJ60,FJ62,HJ6# |
1 | ||
| 44312A - BEARING(FOR VANE PUMP SHAFT) | ||||
| 90363-17004 |
BJ60,FJ62,HJ6# |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-15001 |
BJ60,FJ62,HJ6# |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-12020 |
BJ60,FJ62,HJ6# MARK 1,MARK 1 |
1 | ||
| 44313-12030 |
BJ60,FJ62,HJ6# MARK 2,MARK 2 |
1 | ||
| 44313-12050 |
BJ60,FJ62,HJ6# MARK 4,MARK 4 |
1 | ||
| 44313-12040 |
BJ60,FJ62,HJ6# MARK 3,MARK 3 |
1 | ||
| 44313-12010 |
BJ60,FJ62,HJ6# NO MARK,NO MARK |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-12040 |
BJ60,FJ62,HJ6# MARK 3,MARK 3 |
1 | ||
| 44325-12010 |
BJ60,FJ62,HJ6# NO MARK,NO MARK |
1 | ||
| 44325-12020 |
BJ60,FJ62,HJ6# MARK 1,MARK 1 |
1 | ||
| 44325-12050 |
BJ60,FJ62,HJ6# MARK 4,MARK 4 |
1 | ||
| 44325-12030 |
BJ60,FJ62,HJ6# MARK 2,MARK 2 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-05008 |
BJ60,FJ62,HJ6# L=25,OD=5.0 |
2 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-60010 |
FJ60,HJ60 MARK A |
1 | ||
| 44330-60040 |
FJ60,HJ60 MARK D |
1 | ||
| 44330-60060 |
FJ60,HJ60 MARK F |
1 | ||
| 44330-60010 |
BJ60,FJ60,HJ60 MARK A |
1 | ||
| 44330-60020 |
BJ60,FJ60,HJ60 MARK B |
1 | ||
| 44330-30100 |
BJ60,FJ62,HJ6# MARK A,MARK A |
1 | ||
| 44330-60050 |
FJ60,HJ60 MARK E |
1 | ||
| 44330-60030 |
FJ60,HJ60 MARK C |
1 | ||
| 44330-60020 |
FJ60,HJ60 MARK B |
1 | ||
| 44330-30140 |
BJ60,FJ62,HJ6# MARK E,MARK E |
1 | ||
| 44330-60050 |
BJ60,FJ60,HJ60 MARK E |
1 | ||
| 44330-60040 |
BJ60,FJ60,HJ60 MARK D |
1 | ||
| 44330-30110 |
BJ60,FJ62,HJ6# MARK B,MARK B |
1 | ||
| 44330-30130 |
BJ60,FJ62,HJ6# MARK D,MARK D |
1 | ||
| 44330-60030 |
BJ60,FJ60,HJ60 MARK C |
1 | ||
| 44330-30120 |
BJ60,FJ62,HJ6# MARK C,MARK C |
1 | ||
| 44330-60060 |
BJ60,FJ60,HJ60 MARK F |
1 | ||
| 44330-30150 |
BJ60,FJ62,HJ6# MARK F,MARK F |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12447 |
BJ60,FJ6#,HJ6# |
1 | ||
| 90501-12103 |
HJ60..MTM;BJ60,FJ62,HJ61;HJ60..4FC..EUR |
1 | ||
| 90501-12447 |
FJ60,HJ60 |
1 | ||
| 44330C - RING, SNAP(FOR FLOW CONTROL VALVE) | ||||
| 96151-01700 |
BJ60,FJ6#,HJ6# |
1 | ||
| 96151-01700 |
FJ60,HJ60 |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-60020 |
HJ6# |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 96711-19013 |
HJ6# |
1 | ||
| 44338 - UNION, PRESSURE PORT | ||||
| 44338-60020 |
FJ60,HJ60 |
1 | ||
| 44308-35030 |
BJ60,FJ62,HJ6# |
1 | ||
| 44308-60010 |
FJ60,HJ60 |
1 | ||
| 44308-60010 |
BJ60,FJ60,HJ60 |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 96710-01014 |
FJ60,HJ60 ID=14,OD=17 |
2 | ||
| 90301-22001 |
BJ60,FJ62,HJ6# OD=25.5,ID=22.5,OD=25.5 |
2 | ||
| 96711-19014 |
BJ60,FJ60,HJ60 OD=17.0,ID=13.0 |
2 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 96710-01014 |
FJ60,HJ60 ID=14,OD=17 |
2 | ||
| 90301-22001 |
BJ60,FJ62,HJ6# OD=25.5,ID=22.5,OD=25.5 |
2 | ||
| 96711-19014 |
BJ60,FJ60,HJ60 OD=17.0,ID=13.0 |
2 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44341-30020 |
BJ60,FJ60,HJ60 |
1 | ||
| 44341-30020 |
FJ60,HJ60 |
1 | ||
| 44341-12010 |
BJ60,FJ62,HJ6# |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-53002 |
BJ60,FJ62,HJ6# |
1 | ||
| 44342B - SPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90501-23014 |
BJ60,FJ62,HJ6# |
1 | ||
| 44343 - SEAT, FLOW CONTROL SPRING | ||||
| 44343-12040 |
HJ60..MTM;BJ60,FJ62,HJ61;HJ60..4FC..EUR |
1 | ||
| 44343-30020 |
FJ60,HJ60 |
1 | ||
| 44343-12010 |
BJ60,FJ6#,HJ6# |
1 | ||
| 44343A - RING, O(FOR FLOW CONTROL SPRING SEAT) | ||||
| 96711-19014 |
BJ60,FJ60,HJ60 OD=17.6 |
1 | ||
| 96711-19014 |
HJ6# OD=17.6 |
1 | ||
| 96710-01014 |
FJ60,HJ60 |
1 | ||
| 44348 - PLATE, VANE PUMP | ||||
| 44345-12020 |
BJ60,FJ62,HJ6# L=14.995,ROTOR:MARK 1 |
10 | ||
| 44345-12030 |
BJ60,FJ62,HJ6# L=14.993,ROTOR:MARK 2 |
10 | ||
| 44345-12010 |
BJ60,FJ62,HJ6# L=14.997,ROTOR:NO MARK |
10 | ||
| 44345-12050 |
BJ60,FJ62,HJ6# L=14.989,ROTOR:MARK 4 |
10 | ||
| 44345-12040 |
BJ60,FJ62,HJ6# L=14.991,ROTOR:MARK 3 |
10 | ||
| 44362 - RESERVOIR, OIL(FOR VANE PUMP) | ||||
| 44360-60010 |
HJ60 |
1 | ||
| 44391 - PLATE, POWER STEERING OIL RESERVOIR CAUTION | ||||
| 44391-30020 |
BJ60,FJ6#,HJ6# |
1 | ||
| 44391-14010 |
HJ60..MTM;BJ60,FJ62,HJ61;HJ60..4FC..EUR |
1 | ||
| 44391-30010 |
FJ60,HJ60 |
1 | ||
| Common parts | ||||
| 90119-10072 | ||||
| 90170-12011 | ||||
| 90201-12022 | ||||
| 91611-40816 | ||||
| 91611-60814 | ||||
| 94511-01200 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
