HJ60RG-MQ (1982)

Toyota Land Cruiser

Production Oct 1982 - Aug 1987
Engine 2H
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

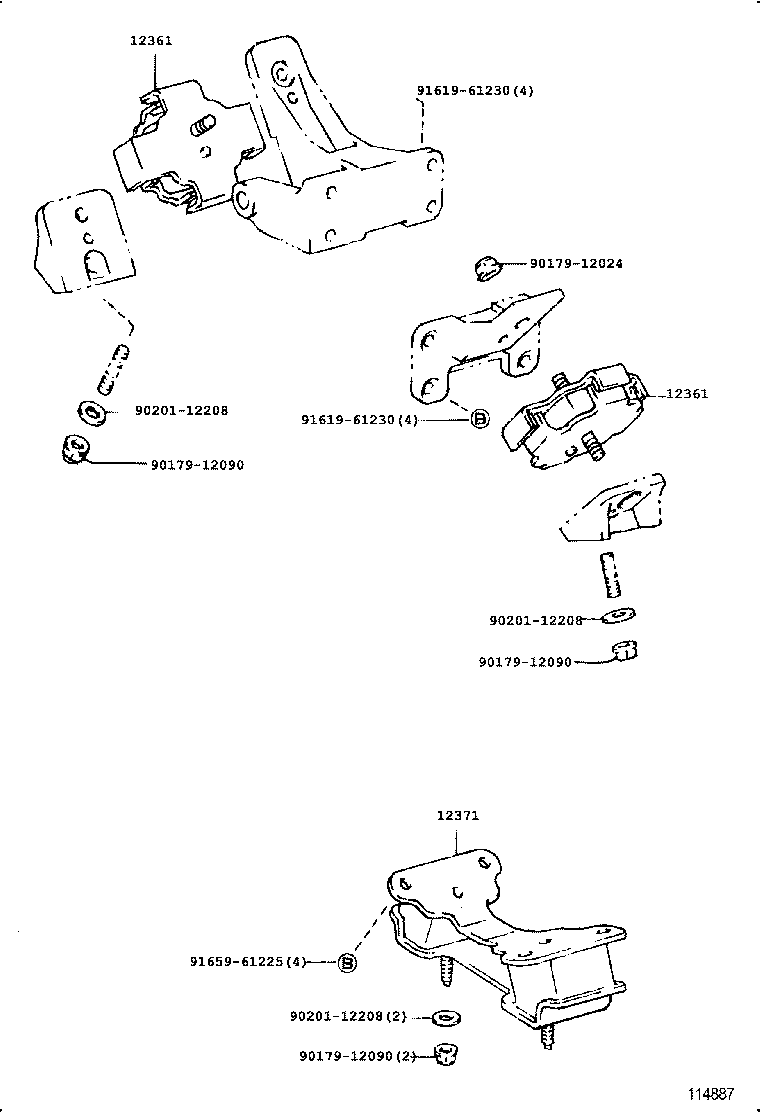

(9001-9108)2H

Click highlighted areas on diagram

diagram 12361 12361 12371 9017912024 9017912090 9017912090 9017912090 9020112208 9020112208 9020112208 9161961230 9161961230 9165961225
Part # Description Qty Price
Common parts
90179-12024
90179-12090
90201-12208
91619-61230
91659-61225

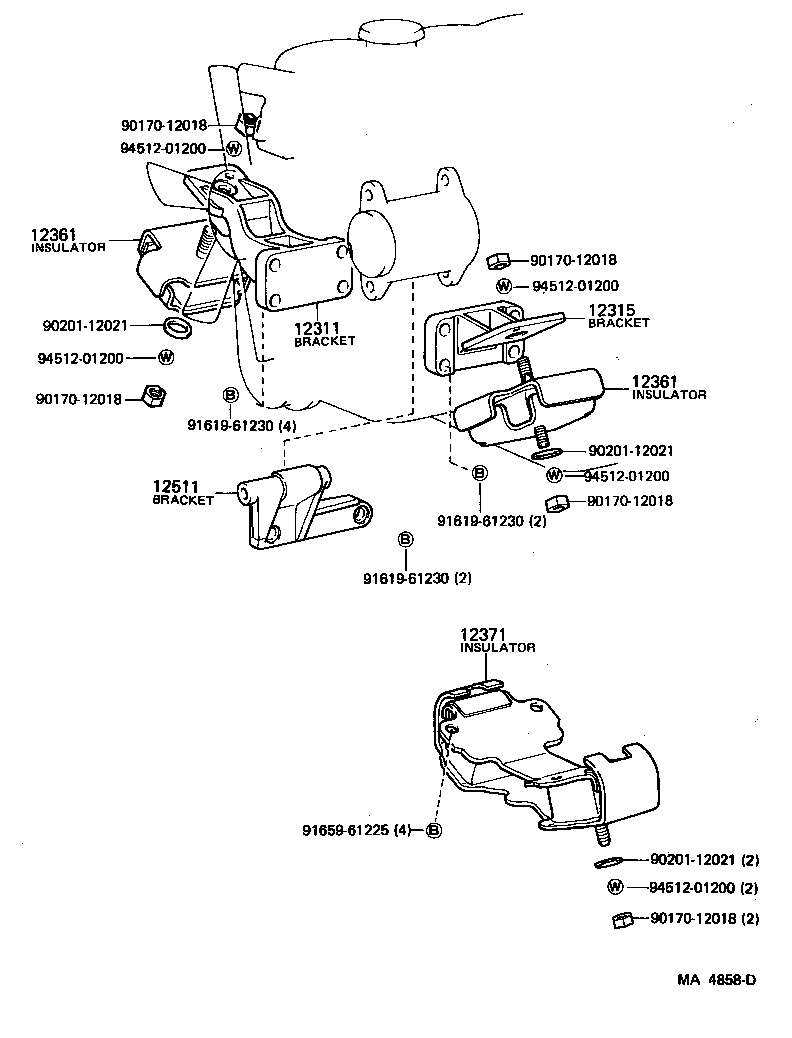

(8008-8411)2H

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12511 9017012018 9017012018 9017012018 9017012018 9017012018 9020112021 9020112021 9020112021 9161961230 9161961230 9161961230 9165961225 9451201200 9451201200 9451201200 9451201200 9451201200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-68010

2H..HJ60

 1
12301-68010

12HT,2H..HJ6#

 1
12311-68020

2H..HJ60

W/POWER STEERING

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-68010

2H..HJ60

 1
12315-68040

12HT,2H..HJ6#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-68051

12HT,2H..HJ6#

 2
12361-68050

2H..HJ60

 2
12361-68010

2H..HJ60

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-68051

12HT,2H..HJ6#

 2
12361-68050

2H..HJ60

 2
12361-68010

2H..HJ60

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-68010

2H..HJ60

 1
12371-68040

12HT,2H..HJ6#..MTM

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-68010

2H..HJ60

 1
12511-68011

2H..HJ60

 1
12511-68030

12HT,2H..HJ6#..ARL

 1
Common parts
90170-12018
90201-12021
91619-61230
91659-61225
94512-01200

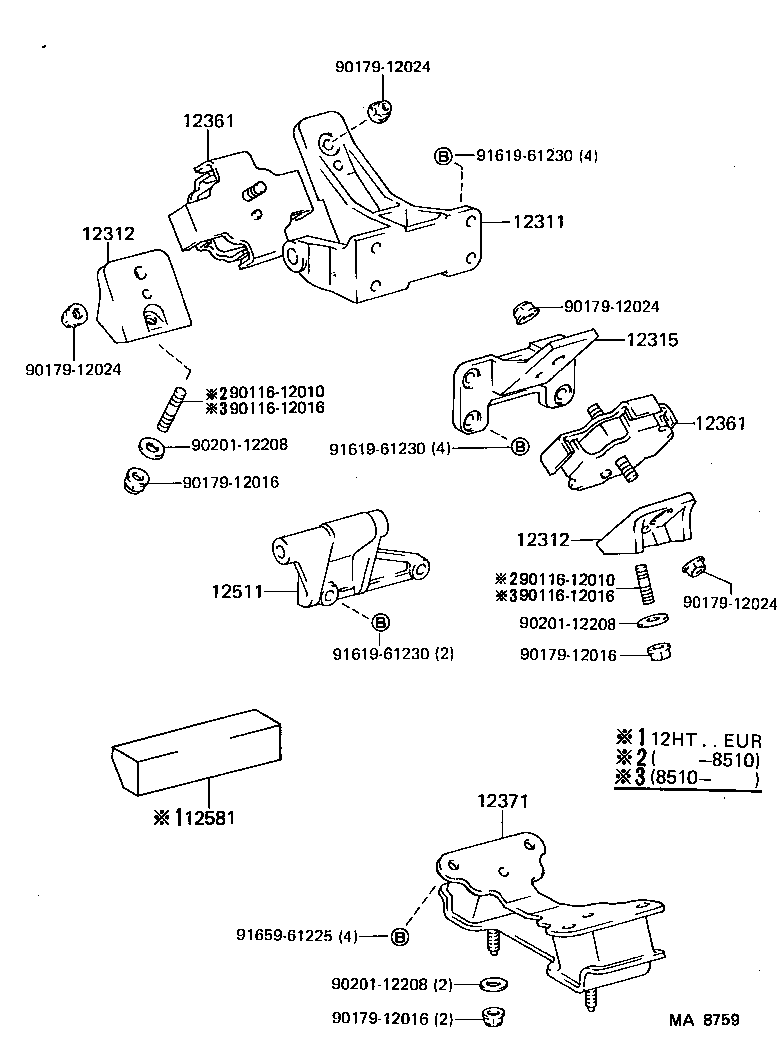

(8411- )12HT,2H

Click highlighted areas on diagram

diagram 12311 12312 12312 12315 12361 12361 12371 12511 12581 9011612010 9011612010 9011612016 9011612016 9017912016 9017912016 9017912016 9017912024 9017912024 9017912024 9017912024 9020112208 9020112208 9020112208 9161961230 9161961230 9161961230 9165961225
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-68010

2H..HJ60

 1
12301-68010

12HT,2H..HJ6#

 1
12311-68020

2H..HJ60

W/POWER STEERING

 1
12312 - BRACKET, ENGINE MOUNTING, FRONT NO.2
12316-68010

12HT,2H..HJ6#

LH

 1
12312-68010

12HT,2H..HJ6#

RH

 1
12312 - BRACKET, ENGINE MOUNTING, FRONT NO.2
12316-68010

12HT,2H..HJ6#

LH

 1
12312-68010

12HT,2H..HJ6#

RH

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-68010

2H..HJ60

 1
12315-68040

12HT,2H..HJ6#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-68051

12HT,2H..HJ6#

 2
12361-68050

2H..HJ60

 2
12361-68010

2H..HJ60

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-68051

12HT,2H..HJ6#

 2
12361-68050

2H..HJ60

 2
12361-68010

2H..HJ60

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-68010

2H..HJ60

 1
12371-68040

12HT,2H..HJ6#..MTM

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-68010

2H..HJ60

 1
12511-68011

2H..HJ60

 1
12511-68030

12HT,2H..HJ6#..ARL

 1
Common parts
90116-12010
90116-12016
90179-12016
90179-12024
90201-12208
91619-61230
91659-61225
