HJ60RG-MNQ (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 2H
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

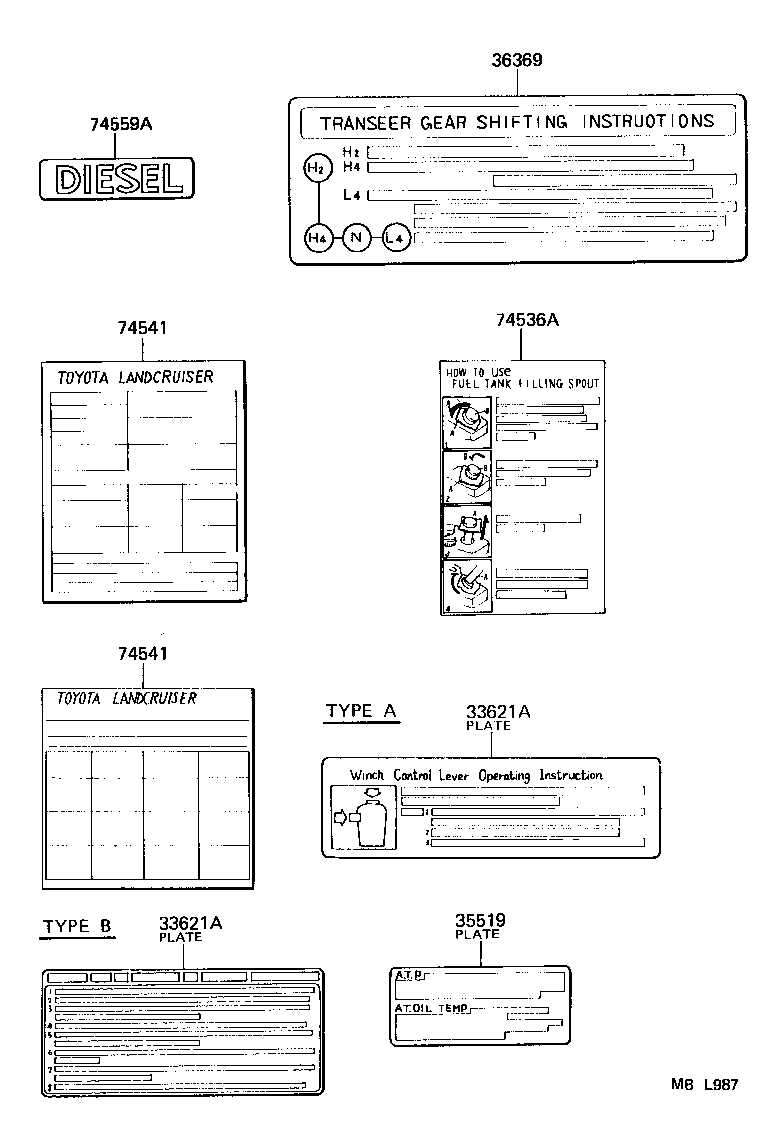

Click highlighted areas on diagram

diagram 33621A 33621A 35519 36369 74536A 74541 74541 74559A
Part # Description Qty Price
36369 - LABEL, TRANSFER INFORMATION
36369-60010

HJ60..ARL,GEN;FJ62..5F..VX..ME;BJ60,FJ62,HJ61..MTM..(GX,STD)

 1
36369-60030

HJ60..ARL,GEN;FJ62..5F..VX..ME;BJ60,FJ62,HJ61..MTM..(GX,STD)

W(*ELC)

 1
74541 - PLATE, TIRE PRESSURE CAUTION
74552-60760

FJ62,HJ6#..SRF..GX..ARL

 1
74552-60761

FJ62,HJ6#..GX..ARL

 1
74541 - PLATE, TIRE PRESSURE CAUTION
74552-60760

FJ62,HJ6#..SRF..GX..ARL

 1
74552-60761

FJ62,HJ6#..GX..ARL

 1
74559A - PLATE, FUEL CAUTION
74559-89101

BJ60,HJ6#

 1
