HJ60RG-MNQ (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 2H
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

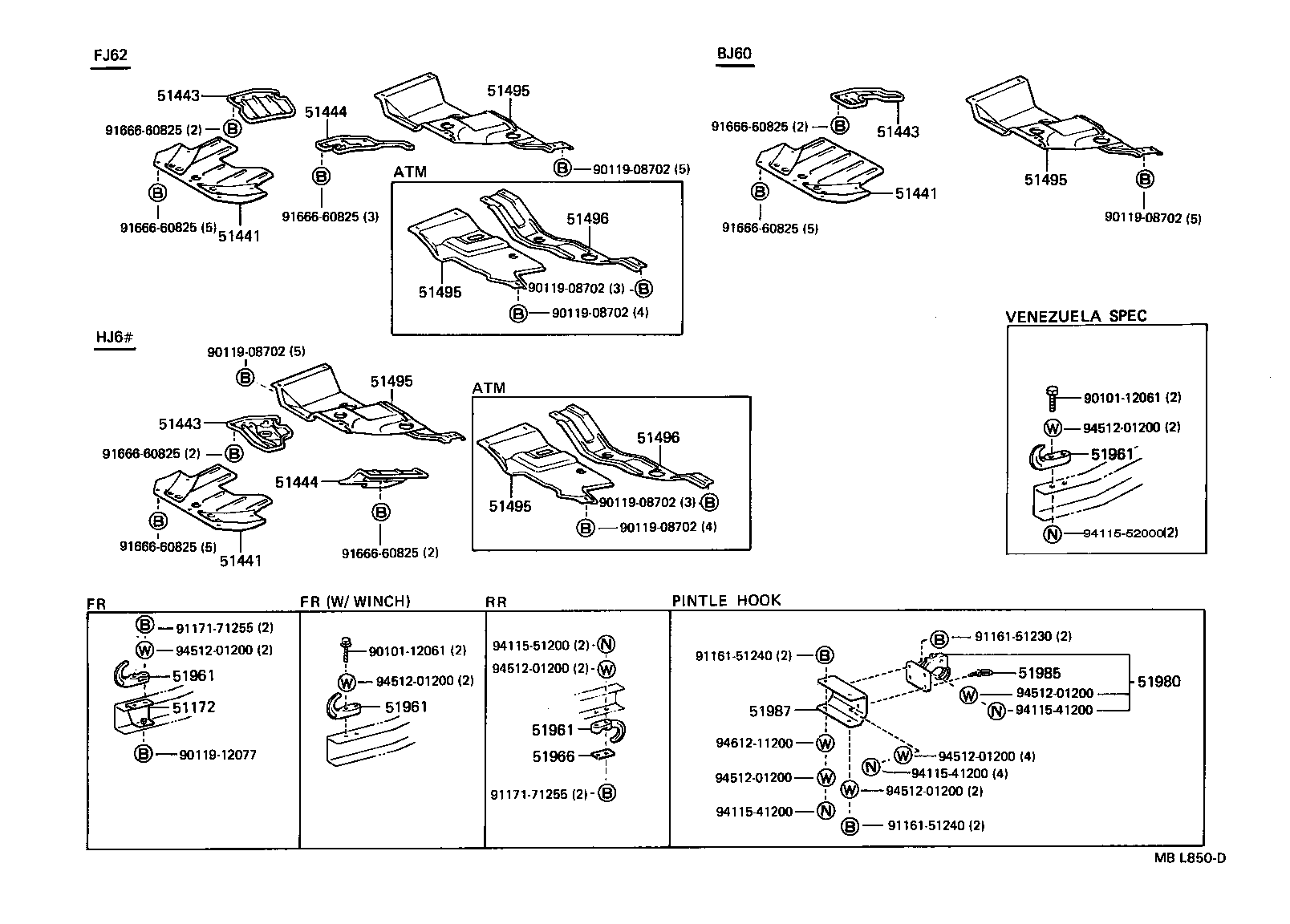

Click highlighted areas on diagram

diagram 51172 51441 51441 51441 51443 51443 51443 51444 51444 51495 51495 51495 51495 51495 51496 51496 51961 51961 51961 51961 51966 51980 51985 51987 9010112061 9010112061 9011908702 9011908702 9011908702 9011908702 9011908702 9011908702 9011908702 9011912077 9116151230 9116151240 9116151240 9117171255 9117171255 9166660825 9166660825 9166660825 9166660825 9166660825 9166660825 9166660825 9166660825 9411541200 9411541200 9411541200 9411551200 9411552000 9451201200 9451201200 9451201200 9451201200 9451201200 9451201200 9451201200 9451201200 9461211200
Part # Description Qty Price
51172 - REINFORCEMENT, SIDE RAIL FRONT HOOK
51172-60010

BJ60,FJ62,HJ6#

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-60061

FJ62,HJ6#

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-60061

FJ62,HJ6#

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-60061

FJ62,HJ6#

 1
51443 - COVER, ENGINE UNDER, REAR RH
51443-60100

HJ6#

 1
51443 - COVER, ENGINE UNDER, REAR RH
51443-60100

HJ6#

 1
51443 - COVER, ENGINE UNDER, REAR RH
51443-60100

HJ6#

 1
51444 - COVER, ENGINE UNDER, REAR LH
51444-60070

HJ6#

 1
51444 - COVER, ENGINE UNDER, REAR LH
51444-60070

HJ6#

 1
51495 - COVER, TRANSMISSION UNDER
58208-60040

BJ60,FJ62,HJ6#..MTM

 1
51495 - COVER, TRANSMISSION UNDER
58208-60040

BJ60,FJ62,HJ6#..MTM

 1
51495 - COVER, TRANSMISSION UNDER
58208-60040

BJ60,FJ62,HJ6#..MTM

 1
51495 - COVER, TRANSMISSION UNDER
58208-60040

BJ60,FJ62,HJ6#..MTM

 1
51495 - COVER, TRANSMISSION UNDER
58208-60040

BJ60,FJ62,HJ6#..MTM

 1
51961 - HOOK, NO.1
51961-36040

BJ60,FJ62,HJ6#

RR

 1
51961-60040

BJ60,FJ62,HJ6#

FR

 1
51961 - HOOK, NO.1
51961-36040

BJ60,FJ62,HJ6#

RR

 1
51961-60040

BJ60,FJ62,HJ6#

FR

 1
51961 - HOOK, NO.1
51961-36040

BJ60,FJ62,HJ6#

RR

 1
51961-60040

BJ60,FJ62,HJ6#

FR

 1
51961 - HOOK, NO.1
51961-36040

BJ60,FJ62,HJ6#

RR

 1
51961-60040

BJ60,FJ62,HJ6#

FR

 1
51966 - RETAINER, REAR HOOK
51966-60010

BJ60,FJ62,HJ6#

 1
Common parts
90101-12061
90119-08702
90119-12077
91161-51230
91161-51240
91171-71255
91666-60825
94115-41200
94115-51200
94115-52000
94512-01200
94612-11200
