HJ60RG-MNQ (1987)
Toyota Land Cruiser
(9001-9208)1HZ ; (9208-9501)1HZ..ARL,GCC,GEN ; (9501-9805)1HZ..HZJ70..STD ; (9501-9
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 22149-54771 | ||||
| 22149-56200 | ||||
| 22172-54264 | ||||
| 22172-6A330 | ||||
| 22331-58490 | ||||
| 22378-5C430 | ||||
| 22395-54010 | ||||
| 22395-54263 | ||||
| 22395-56351 | ||||
| 22395-58200 | ||||
| 22625-17020 | ||||
| 90092-10608 | ||||
| 90093-00803 | ||||
| 90096-90024 | ||||
| 90099-04576 | ||||
| 90099-04946 | ||||
| 90099-04954 | ||||
| 90099-05161 | ||||
| 90099-05190 | ||||
| 90099-05225 | ||||
| 90099-05252 | ||||
| 90099-18022 | ||||
| 90179-06156 | ||||
| Linked diagrams | ||||
| 8301 | ||||

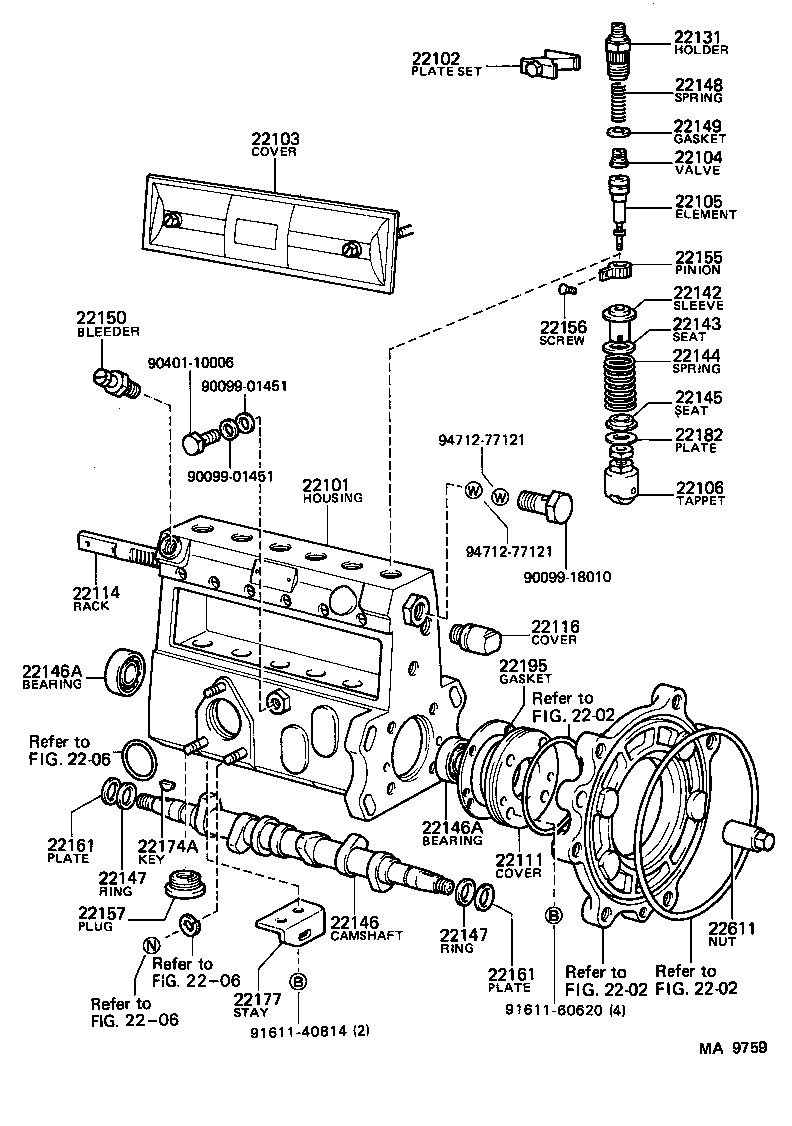

(8708- )2H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22101 - HOUSING SUB-ASSY, INJECTION PUMP | ||||
| 22190-68010 |
2H..HJ60 |
1 | ||
| 22102 - PLATE SET, VALVE HOLDER LOCK | ||||
| 22102-77021 |
2H..HJ60 |
3 | ||
| 22103 - COVER SUB-ASSY, INJECTION PUMP | ||||
| 22103-77130 |
2H..HJ60 |
1 | ||
| 22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY | ||||
| 22104-68110 |
2H..HJ60 |
6 | ||
| 22105 - ELEMENT SUB-ASSY, INJECTION PUMP | ||||
| 22105-48030 |
2H..HJ60 |
6 | ||
| 22106 - TAPPET SUB-ASSY, INJECTION PUMP | ||||
| 22106-46010 |
12HT,2H..HJ6# |
6 | ||
| 22111 - COVER, INJECTION PUMP CAMSHAFT BEARING | ||||
| 22111-68010 |
2H..HJ60 |
1 | ||
| 22114 - RACK, CONTROL | ||||
| 22114-77130 |
2H..HJ60 |
1 | ||
| 22116 - COVER, CONTROL RACK | ||||
| 22116-46010 |
12HT,2H..HJ6#..MTM |
1 | ||
| 22116-46010 |
12HT,2H..HJ6#..MTM |
1 | ||
| 22131 - HOLDER, DELIVERY VALVE | ||||
| 22131-77020 |
2H..HJ60 |
6 | ||
| 22142 - SLEEVE, PLUNGER CONTROL | ||||
| 22142-77020 |
2H..HJ60 |
6 | ||
| 22143 - SEAT, SPRING UPPER | ||||
| 22143-77020 |
2H..HJ60 |
6 | ||
| 22144 - SPRING, PUMP PLUNGER | ||||
| 22144-46010 |
12HT,2H..HJ6# |
6 | ||
| 22145 - SEAT, SPRING, LOWER | ||||
| 22145-46010 |
2H..HJ60 |
6 | ||
| 22146 - CAMSHAFT, INJECTION PUMP | ||||
| 22146-68010 |
2H..HJ60 |
1 | ||
| 22146A - BEARING(FOR INJECTION CAMSHAFT) | ||||
| 90099-10087 |
2H..HJ60 |
2 | ||
| 90099-10087 |
2H..HJ60 |
2 | ||
| 22146A - BEARING(FOR INJECTION CAMSHAFT) | ||||
| 90099-10087 |
2H..HJ60 |
2 | ||
| 90099-10087 |
2H..HJ60 |
2 | ||
| 22147 - RING, CAMSHAFT ADJUST | ||||
| 22147-77020 |
2H..HJ60 |
2 | ||
| 22147-77020 |
2H..HJ60 |
2 | ||
| 22147 - RING, CAMSHAFT ADJUST | ||||
| 22147-77020 |
2H..HJ60 |
2 | ||
| 22147-77020 |
2H..HJ60 |
2 | ||
| 22148 - SPRING, DELIVERY VALVE | ||||
| 22148-68010 |
2H..HJ60 |
6 | ||
| 22149 - GASKET, DELIVERY VALVE | ||||
| 22149-76010 |
2H..HJ60 |
6 | ||
| 22150 - BLEEDER SUB-ASSY, AIR | ||||
| 22150-67010 |
2H..HJ60 |
1 | ||
| 22155 - PINION, PLUNGER CONTROL | ||||
| 22155-76010 |
2H..HJ60 |
6 | ||
| 22156 - SCREW, PLUNGER CONTROL PINION CLAMP | ||||
| 22156-76010 |
12HT,2H..HJ6# |
6 | ||
| 22157 - PLUG, INJECTION PUMP FELT PLATE | ||||
| 22157-48023 |
12HT,2H..HJ6# |
6 | ||
| 22161 - PLATE, CAMSHAFT SHIM | ||||
| 22161-76010 |
2H..HJ60 T=0.10 |
2 | ||
| 22162-76010 |
2H..HJ60 T=0.12 |
2 | ||
| 22163-76010 |
2H..HJ60 T=0.14 |
2 | ||
| 22164-76010 |
2H..HJ60 T=0.16 |
2 | ||
| 22165-76010 |
2H..HJ60 T=0.18 |
2 | ||
| 22166-76010 |
2H..HJ60 T=0.50 |
2 | ||
| 22165-76010 |
2H..HJ60 T=0.18 |
2 | ||
| 22166-76010 |
2H..HJ60 T=0.50 |
2 | ||
| 22164-76010 |
2H..HJ60 T=0.16 |
2 | ||
| 22161-76010 |
2H..HJ60 T=0.10 |
2 | ||
| 22162-76010 |
2H..HJ60 T=0.12 |
2 | ||
| 22163-76010 |
2H..HJ60 T=0.14 |
2 | ||
| 22161 - PLATE, CAMSHAFT SHIM | ||||
| 22161-76010 |
2H..HJ60 T=0.10 |
2 | ||
| 22162-76010 |
2H..HJ60 T=0.12 |
2 | ||
| 22163-76010 |
2H..HJ60 T=0.14 |
2 | ||
| 22164-76010 |
2H..HJ60 T=0.16 |
2 | ||
| 22165-76010 |
2H..HJ60 T=0.18 |
2 | ||
| 22166-76010 |
2H..HJ60 T=0.50 |
2 | ||
| 22165-76010 |
2H..HJ60 T=0.18 |
2 | ||
| 22166-76010 |
2H..HJ60 T=0.50 |
2 | ||
| 22164-76010 |
2H..HJ60 T=0.16 |
2 | ||
| 22161-76010 |
2H..HJ60 T=0.10 |
2 | ||
| 22162-76010 |
2H..HJ60 T=0.12 |
2 | ||
| 22163-76010 |
2H..HJ60 T=0.14 |
2 | ||
| 22174A - KEY(FOR SPLINE SHAFT) | ||||
| 90099-13020 |
2H..HJ60 |
1 | ||
| 22177 - STAY, INJECTION PUMP BODY | ||||
| 22177-68010 |
2H..HJ60 |
1 | ||
| 22182 - PLATE, TAPPET ADJUSTING SHIM | ||||
| 22187-46010 |
12HT,2H..HJ6# T=0.60 |
6 | ||
| 22182-46010 |
12HT,2H..HJ6# T=0.10 |
6 | ||
| 22188-46010 |
12HT,2H..HJ6# T=0.70 |
6 | ||
| 22186-46010 |
12HT,2H..HJ6# T=0.50 |
6 | ||
| 22185-46010 |
12HT,2H..HJ6# T=0.40 |
6 | ||
| 22183-46010 |
12HT,2H..HJ6# T=0.20 |
6 | ||
| 22189-46010 |
12HT,2H..HJ6# T=0.80 |
6 | ||
| 22186-48010 |
12HT,2H..HJ6# T=0.15 |
6 | ||
| 22189-48031 |
12HT,2H..HJ6# T=0.90 |
6 | ||
| 22189-48032 |
12HT,2H..HJ6# T=1.00 |
6 | ||
| 22184-46010 |
12HT,2H..HJ6# T=0.30 |
6 | ||
| 22189-48034 |
12HT,2H..HJ6# T=1.20 |
6 | ||
| 22189-48036 |
12HT,2H..HJ6# T=1.40 |
6 | ||
| 22189-48035 |
12HT,2H..HJ6# T=1.30 |
6 | ||
| 22189-48033 |
12HT,2H..HJ6# T=1.10 |
6 | ||
| 22195 - GASKET, BEARING COVER | ||||
| 22195-68010 |
2H..HJ60 |
1 | ||
| 22611 - NUT, TIMER ROUND | ||||
| 22611-68010 |
2H..HJ60 |
1 | ||
| Common parts | ||||
| 90099-01451 | ||||
| 90099-18010 | ||||
| 90401-10006 | ||||
| 91611-40814 | ||||
| 91611-60620 | ||||
| 94712-77121 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2206 | ||||
