HJ60RG-KRC (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 2H
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001-0701)1HZ,2H,1PZ

Click highlighted areas on diagram

12V 2.5KW,24V 4.5KW

diagram 28011 28100 28110 28118 28119 28119 28120 28130 28139 28140 28150 28159B 28160 28160A 28160A 28165 28175A 28222 28226 28226A 28228A 28229A 28235 28252 9009900218 9009900254 9009901436 9009902205 9009904207 9009904297 9009904473 9009912009 9017910195 9017910195 9161961245 9213661240 9331915008 9411551200 9413061200 9451100600 9451201200 9461211200
Part # Description Qty Price
Common parts
90099-00218
90099-00254
90099-01436
90099-02205
90099-04207
90099-04297
90099-04473
90099-12009
90179-10195
91619-61245
92136-61240
93319-15008
94115-51200
94130-61200
94511-00600
94512-01200
94612-11200

(8708- )12HT,2H

Click highlighted areas on diagram

12V 2.5KW

diagram 28011 28100 28110 28118A 28119A 28119A 28120 28130 28139 28140 28150B 28160 28160A 28160A 28165 28222A 28228A 28229A 28252 9009221001 9009900138 9009901436 9009902205 9009902325 9009904297 9009912009 9161961245 9213661240 9331915008 9411551200 9451100600 9451100600 9451101000 9451201200
Part # Description Qty Price

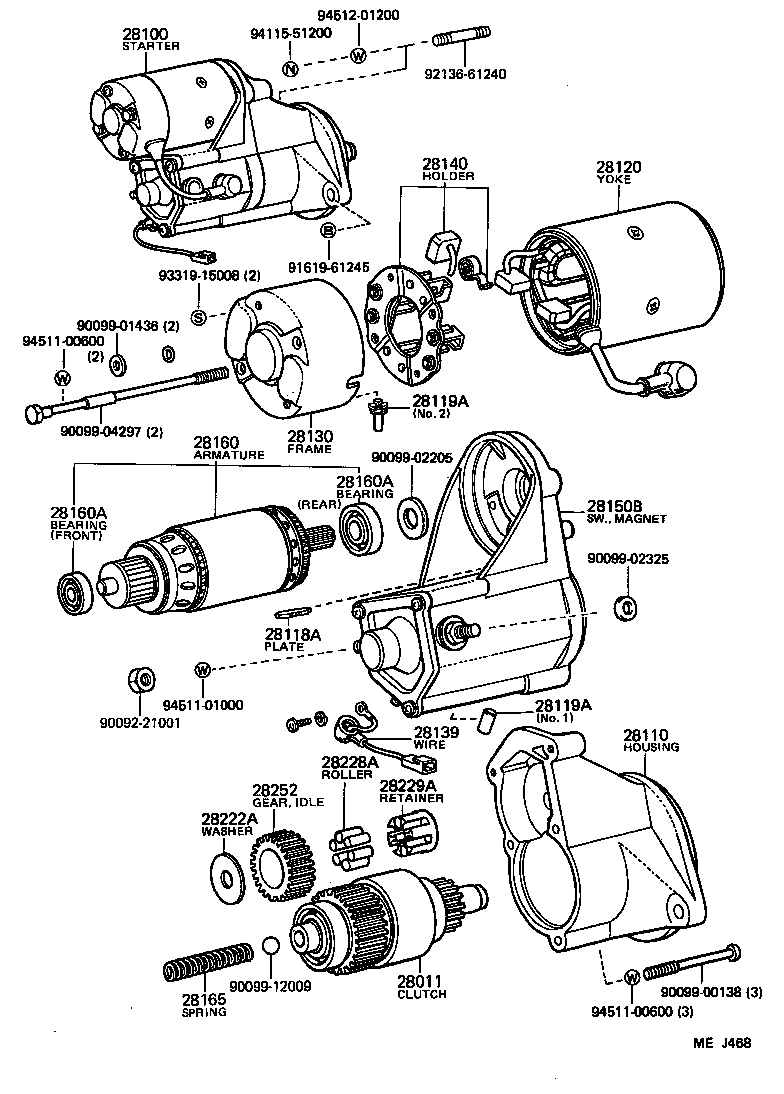

28011 - CLUTCH SUB-ASSY, STARTER
28011-54010

12HT,3B,2H..BJ60,HJ6#

 1
28100 - STARTER ASSY
28100-47081

12HT,2H..HJ6#

12V 2.5KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28115-47070

12HT,2H..HJ6#

 1
28118A - PLATE(FOR STARTER YOKE)
28118-77090

12HT,3B,2H..BJ60,HJ6#

 1
28119A - COVER, STARTER END FRAME
28119-47070

12HT,2H..HJ6#

NO.1

 1
28199-77090

12HT,2H..HJ6#

NO.2

 1
28119A - COVER, STARTER END FRAME
28119-47070

12HT,2H..HJ6#

NO.1

 1
28199-77090

12HT,2H..HJ6#

NO.2

 1
28120 - YOKE ASSY, STARTER
28120-56081

12HT,3B,2H..BJ60,HJ6#

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-46030

12HT,2H..HJ6#

 1
28139 - WIRE, LEAD, NO.1(FOR STARTER)
28139-47070

12HT,2H..HJ6#

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-77090

12HT,3B,2H..BJ60,HJ6#

 1
28150B - SWITCH ASSY, MAGNETIC
28150-47070

12HT,2H..HJ6#

 1
28160 - ARMATURE ASSY, STARTER
28160-47040

12HT,3B,2H..BJ60,HJ6#

 1
28160A - BEARING, STARTER ARMATURE
90099-10119

12HT,3B,2H..BJ60,HJ6#

FRONT

 1
90099-10107

12HT,3B,2H..BJ60,HJ6#

REAR

 1
28160A - BEARING, STARTER ARMATURE
90099-10119

12HT,3B,2H..BJ60,HJ6#

FRONT

 1
90099-10107

12HT,3B,2H..BJ60,HJ6#

REAR

 1
28165 - SPRING, STARTER MAGNET SWITCH RETURN
28165-77090

12HT,3B,2H..BJ60,HJ6#

 1
28222A - WASHER, STARTER IDLE GEAR CLUTCH
28222-77090

12HT,3B,2H..BJ60,HJ6#

 1
28228A - ROLLER, STARTER CLUTCH
28228-56080

12HT,3B,2H..BJ60,HJ6#

 5
28229A - RETAINER, STARTER IDLE GEAR
28229-56080

12HT,3B,2H..BJ60,HJ6#

 1
28252 - GEAR, STARTER IDLE
28254-77090

12HT,3B,2H..BJ60,HJ6#

 1
Common parts
90092-21001
90099-00138
90099-01436
90099-02205
90099-02325
90099-04297
90099-12009
91619-61245
92136-61240
93319-15008
94115-51200
94511-00600
94511-01000
94512-01200
