HJ60RG-KQ (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1982
Engine 2H
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )

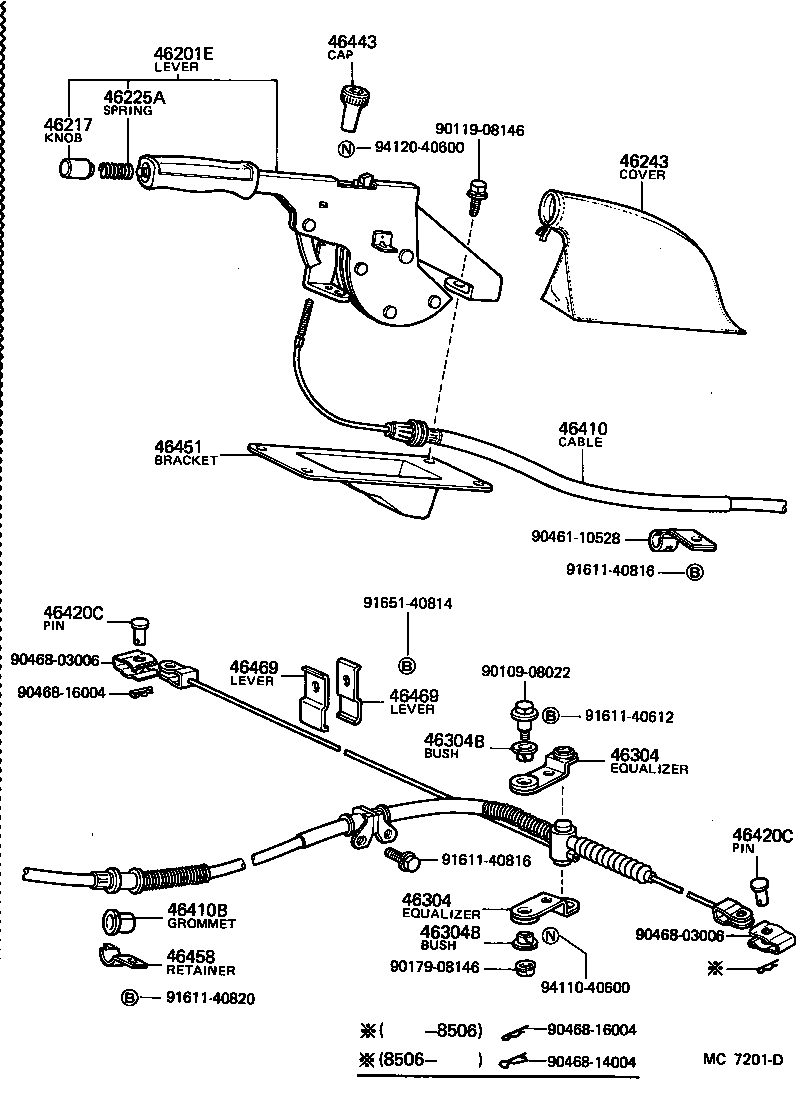

Click highlighted areas on diagram

diagram 46201E 46217 46225A 46243 46304 46304 46304B 46304B 46410 46410B 46420C 46420C 46443 46451 46458 46469 46469 9010908022 9011908146 9017908146 9046110528 9046803006 9046803006 9046814004 9046816004 9046816004 9161140612 9161140816 9161140816 9161140820 9165140814 9411040600 9412040600
Part # Description Qty Price
46201E - LEVER SUB-ASSY, PARKING BRAKE
46210-60040

BJ60,FJ60,HJ60

 1
46217 - KNOB, PARKING BRAKE RELEASE ROD
46217-1002026

BJ60,FJ60,HJ60

DARK BROWN,BROWN,TRIM4#

 1
46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)
90501-10745

BJ60,FJ6#,HJ6#

 1
46243 - COVER, PARKING BRAKE LEVER
46243-60030

BJ60,FJ60,HJ60

 1
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46341-31010

BJ60,FJ6#,HJ6#

 2
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46341-31010

BJ60,FJ6#,HJ6#

 2
46304B - BUSH(FOR PARKING BRAKE EQUALIZER)
90385-12029

BJ60,FJ6#,HJ6#

 2
46304B - BUSH(FOR PARKING BRAKE EQUALIZER)
90385-12029

BJ60,FJ6#,HJ6#

 2
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-60100

BJ60,FJ60,HJ60

 1
46410B - GROMMET(FOR PARKING BRAKE FRONT CABLE)
90480-17158

BJ60,FJ6#,HJ6#

 1
46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE)
90240-08042

BJ60,FJ6#,HJ6#

 2
46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE)
90240-08042

BJ60,FJ6#,HJ6#

 2
46443 - CAP, CABLE ADJUSTING
46443-12020

BJ60,FJ6#,HJ6#

 1
46451 - BRACKET, CABLE SUPPORT
46451-60030

BJ60,FJ6#,HJ6#

 1
46458 - RETAINER, CABLE
46458-30020

BJ60,FJ6#,HJ6#

 1
46469 - LEVER, CABLE GUIDE SUPPORT
46469-60010

BJ60,FJ6#,HJ6#

 2
46469 - LEVER, CABLE GUIDE SUPPORT
46469-60010

BJ60,FJ6#,HJ6#

 2
Common parts
90109-08022
90119-08146
90179-08146
90461-10528
90468-03006
90468-14004
90468-16004
91611-40612
91611-40816
91611-40820
91651-40814
94110-40600
94120-40600
