HJ60RG-KQ (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1982
Engine 2H
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )2F,2H

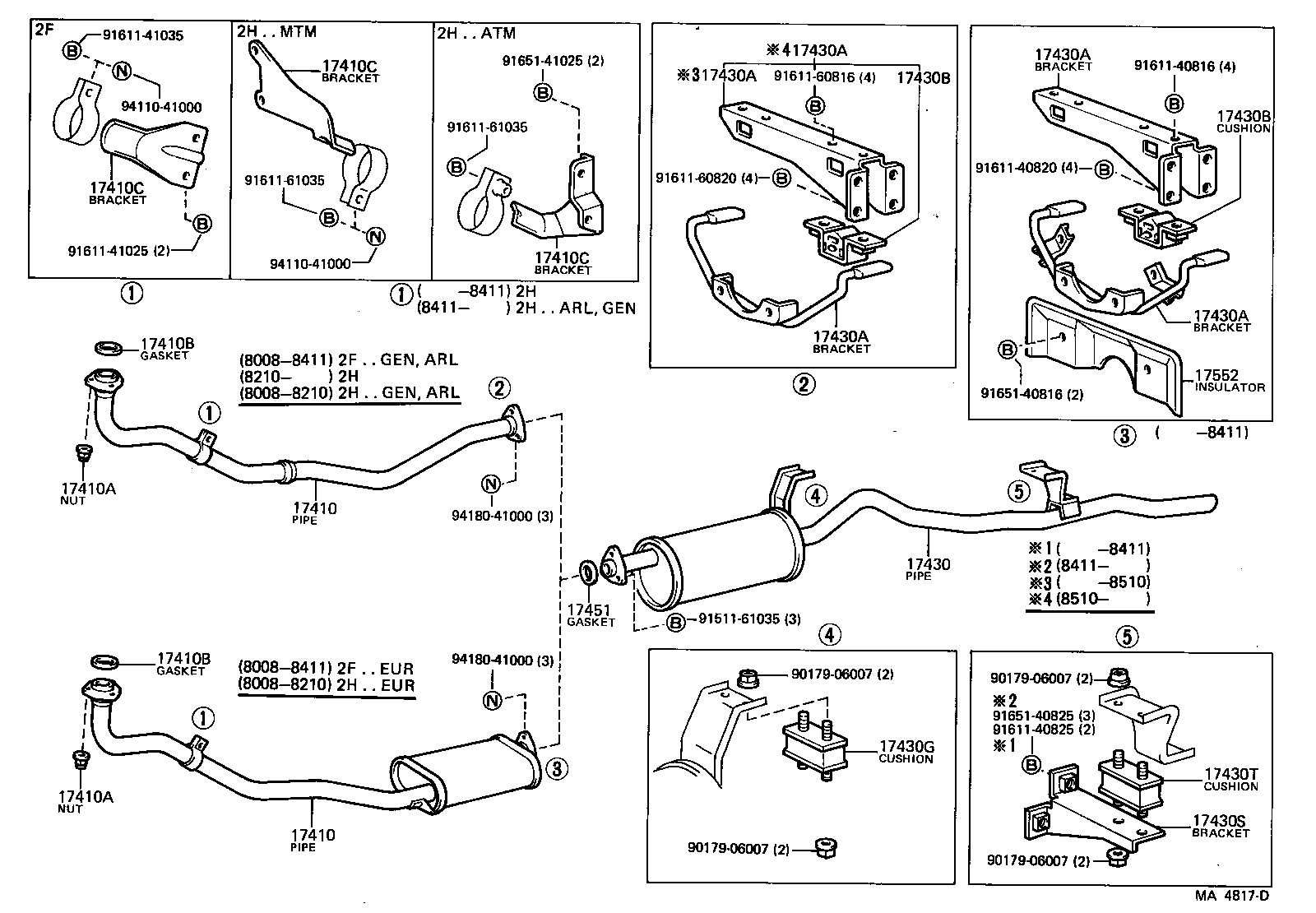

Click highlighted areas on diagram

diagram 17410 17410 17410A 17410A 17410B 17410B 17410C 17410C 17410C 17430 17430A 17430A 17430A 17430A 17430A 17430B 17430B 17430G 17430S 17430T 17451 17552 9017906007 9017906007 9017906007 9017906007 9151161035 9161140816 9161140820 9161140825 9161141025 9161141035 9161160816 9161160820 9161161035 9161161035 9165140816 9165140825 9165141025 9411041000 9411041000 9418041000 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17401-47070

2H..HJ60..ARL,GEN

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17401-47070

2H..HJ60..ARL,GEN

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10010

3B,2F,2H..BJ60,FJ60,HJ60

 3
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10010

3B,2F,2H..BJ60,FJ60,HJ60

 3
17410B - GASKET, EXHAUST PIPE
90917-06005

2H..HJ60

 1
17410B - GASKET, EXHAUST PIPE
90917-06005

2H..HJ60

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-47040

2H..HJ60

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-47040

2H..HJ60

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-47040

2H..HJ60

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-61140

2F,2H..FJ60,HJ60..ARL,GEN

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17505-61040

3B,2F,2H..BJ60,FJ60,HJ60..ARL,GEN

PIPE SUPPORT

 1
17583-61050

3B,2F,3F,2H..BJ60,FJ6#,HJ60

FRAME SIDE

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17505-61040

3B,2F,2H..BJ60,FJ60,HJ60..ARL,GEN

PIPE SUPPORT

 1
17583-61050

3B,2F,3F,2H..BJ60,FJ6#,HJ60

FRAME SIDE

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17505-61040

3B,2F,2H..BJ60,FJ60,HJ60..ARL,GEN

PIPE SUPPORT

 1
17583-61050

3B,2F,3F,2H..BJ60,FJ6#,HJ60

FRAME SIDE

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17505-61040

3B,2F,2H..BJ60,FJ60,HJ60..ARL,GEN

PIPE SUPPORT

 1
17583-61050

3B,2F,3F,2H..BJ60,FJ6#,HJ60

FRAME SIDE

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17505-61040

3B,2F,2H..BJ60,FJ60,HJ60..ARL,GEN

PIPE SUPPORT

 1
17583-61050

3B,2F,3F,2H..BJ60,FJ6#,HJ60

FRAME SIDE

 1
17430B - CUSHION, EXHAUST TAIL PIPE(FOR FRONT)
90917-04052

12HT,3B,2F,3F,2H..BJ60,FJ6#,HJ6#

 2
17430B - CUSHION, EXHAUST TAIL PIPE(FOR FRONT)
90917-04052

12HT,3B,2F,3F,2H..BJ60,FJ6#,HJ6#

 2
17430G - CUSHION, EXHAUST TAIL PIPE(FOR CENTER)
17567-61030

12HT,3B,2F,3F,2H..BJ60,FJ6#,HJ6#

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17574-61050

3B,2F,2H..BJ60,FJ60,HJ60

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17567-61030

12HT,3B,2F,3F,2H..BJ60,FJ6#,HJ6#

 1
17451 - GASKET, EXHAUST PIPE
90917-06024

12HT,2F,3F,2H..FJ6#,HJ6#

 1
Common parts
90179-06007
91511-61035
91611-40816
91611-40820
91611-40825
91611-41025
91611-41035
91611-60816
91611-60820
91611-61035
91651-40816
91651-40825
91651-41025
94110-41000
94180-41000
