Toyota Land cruiser HJ60 ALTERNATOR

HJ60RG-KN (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990

Engine 2H

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9001-9108)2H

Click highlighted areas on diagram

12V 40A

Part #	Description	Period	Qty	Price
Common parts
27378-45020
27378-54010
27383-54010
27387-54010
27387-56070
90041-41000
90099-00893
90099-02208
90099-04322
90099-04948
90099-05118
90099-05119
90099-05185
90105-10041
90119-06005
90119-08167
90179-06158
90201-10283
94512-01000

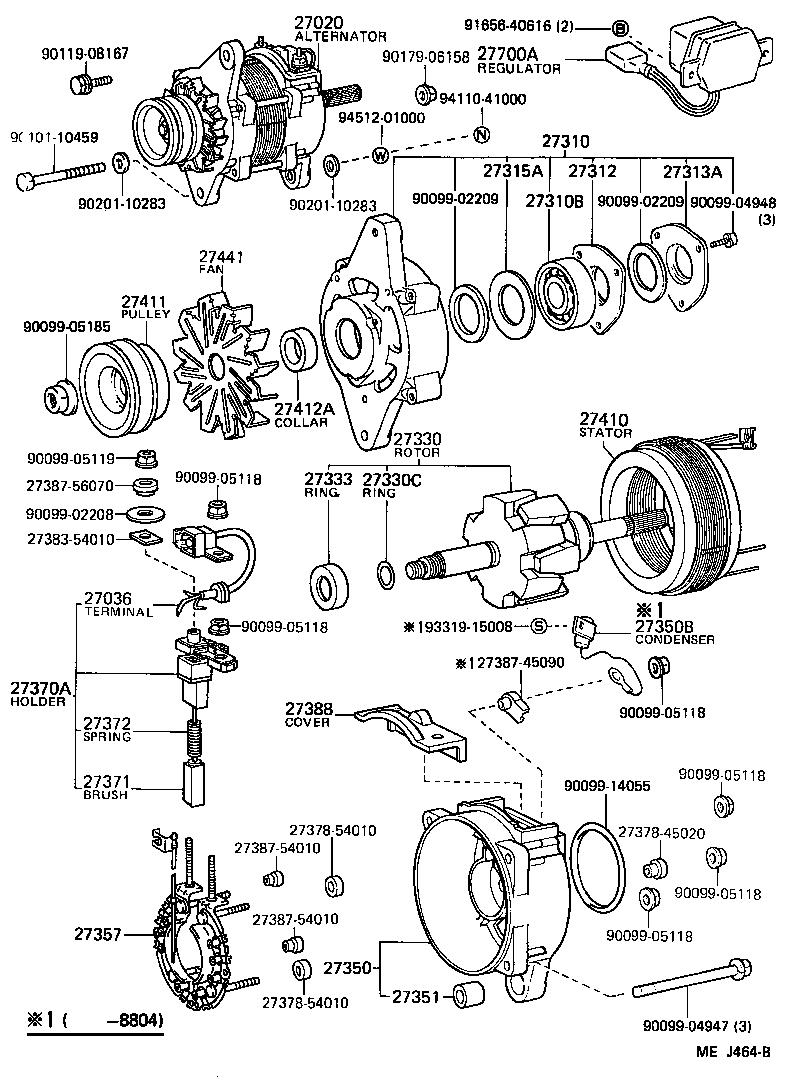

(8708- )2H

Click highlighted areas on diagram

12V 40A,55A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27020-68120	2H..HJ60..LUB..GEN 12V 55A	08/1987 - 06/1990	1
27020-68140	2H..HJ60..SRF..LUB..GEN 12V 80A	08/1987 - 06/1990	1
27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR
27036-54250	2H..HJ60..LUB..GEN	10/1987 - 04/1988	1
27036-68140	2H..HJ60..SRF..LUB..GEN W(DUAL AIR CONDITIONER)	08/1987 - 01/1990	1
27036-54010	2H..HJ60..GEN	08/1987 - 10/1987	1
27036-54250	2H..HJ60..GEN,ME	04/1988 - 01/1990	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-68140	2H..HJ60..SRF..LUB..GEN W(DUAL AIR CONDITIONER)	08/1987 - 01/1990	1
27310-56180	2H..HJ60..LUB..GEN	08/1987 - 01/1990	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10120	2H..HJ60..SRF..LUB..GEN W(DUAL AIR CONDITIONER)	08/1987 - 01/1990	1
90099-10137	3B,2H..BJ60,HJ60..GEN,ME	08/1987 - 08/1988	1
90099-10137	2H..HJ60..GEN,ME	08/1988 - 01/1990	1
27312 - PLATE, RETAINER
27312-57060	3B,2H..BJ60,HJ60..GEN,ME	08/1987 - 08/1988	1
27312-56070	2H..HJ60..SRF..LUB..GEN W(DUAL AIR CONDITIONER)	08/1987 - 01/1990	1
27312-57060	2H..HJ60..GEN,ME	08/1988 - 01/1990	1
27313A - COVER, ALTERNATOR FELT, INNER NO.2
27313-57060	3B,2H..BJ60,HJ60..GEN,ME	08/1987 - 08/1988	1
27313-57060	2H..HJ60..GEN,ME	08/1988 - 01/1990	1
27315A - COVER, ALTERNATOR FELT, INNER NO.1
27315-57060	3B,2H..BJ60,HJ60..GEN,ME	08/1987 - 08/1988	1
27315-56070	2H..HJ60..SRF..LUB..GEN W(DUAL AIR CONDITIONER)	08/1987 - 01/1990	1
27315-57060	2H..HJ60..GEN,ME	08/1988 - 01/1990	1
27330 - ROTOR ASSY, ALTERNATOR
27330-68140	2H..HJ60..SRF..LUB..GEN W(DUAL AIR CONDITIONER)	08/1987 - 01/1990	1
27330-64010	2H..HJ60..LUB..GEN	08/1987 - 01/1990	1
27330C - RING, SNAP
90099-07108	2H..HJ60..SRF..LUB..GEN W(DUAL AIR CONDITIONER)	08/1987 - 01/1990	1
90099-07103	3B,2H..BJ60,HJ60..GEN,ME	08/1987 - 08/1988	1
90099-07103	2H..HJ60..GEN,ME	08/1988 - 01/1990	1
27333 - COLLAR, SPACE(FOR ALTERNATOR ROTOR)
27333-57060	2H..HJ60..GEN,ME	08/1988 - 01/1990	1
27333-57060	3B,2H..BJ60,HJ60..GEN,ME	08/1987 - 08/1988	1
27350 - FRAME ASSY, RECTIFIER END
27350-68140	2H..HJ60..SRF..LUB..GEN W(DUAL AIR CONDITIONER)	08/1987 - 01/1990	1
27350-68040	2H..HJ60..LUB..GEN	08/1987 - 01/1990	1
27350B - CONDENSER, ALTERNATOR
90099-52082	2H..HJ60..SRF..LUB..GEN W(DUAL AIR CONDITIONER)	08/1987 - 10/1987	1
90099-52066	2H..HJ60..GEN	08/1987 - 10/1987	1
90099-52082	12HT,2H..HJ6#..LUB;2H..HJ60..STD..ARL	10/1987 - 01/1990	1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-56013	12HT,3B,2H..BJ60,HJ6#	08/1987 - 08/1988	1
27351-56013	12HT,2H..HJ6#	08/1988 - 01/1990	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-54190	3B,2H..BJ60,HJ60..GEN,ME	08/1987 - 08/1988	1
27357-54190	2H..HJ60..GEN,ME	08/1988 - 01/1990	1
27370A - HOLDER ASSY, ALTERNATOR BRUSH
27370-54010	2H..HJ60..GEN	08/1987 - 10/1987	1
27370-54250	2H..HJ60..GEN,ME	04/1988 - 01/1990	1
27370-54250	2H..HJ60..LUB..GEN	10/1987 - 04/1988	1
27371 - BRUSH, ALTERNATOR
27371-56070	12HT,3B,2H..BJ60,HJ6#	08/1987 - 08/1988	2
27371-56070	12HT,2H..HJ6#	08/1988 - 01/1990	2
27372 - SPRING, ALTERNATOR BRUSH
27372-56070	12HT,3B,2H..BJ60,HJ6#	08/1987 - 08/1988	2
27372-56070	12HT,2H..HJ6#	08/1988 - 01/1990	2
27388 - COVER, ALTERNATOR BRUSH
27388-68040	2H..HJ60..GEN	08/1987 - 10/1987	1
27388-54250	2H..HJ60..LUB..GEN	10/1987 - 04/1988	1
27388-54250	2H..HJ60..GEN,ME	04/1988 - 01/1990	1
27388-68140	2H..HJ60..SRF..LUB..GEN W(DUAL AIR CONDITIONER)	08/1987 - 01/1990	1
27410 - STATOR ASSY, ALTERNATOR
27410-43040	3F..FJ62..ARL;2H..HJ60..LUB..GEN	08/1987 - 01/1990	1
27410-68140	2H..HJ60..SRF..LUB..GEN W(DUAL AIR CONDITIONER)	08/1987 - 01/1990	1
27411 - PULLEY, ALTERNATOR
27411-68140	2H..HJ60..SRF..LUB..GEN W(DUAL AIR CONDITIONER)	08/1987 - 01/1990	1
27411-68041	2H..HJ60..GEN,ME	08/1987 - 01/1990	1
27412A - COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME)
27412-57060	3B,2H..BJ60,HJ60..GEN,ME	08/1987 - 08/1988	1
27412-57060	2H..HJ60..GEN,ME	08/1988 - 01/1990	1
27412-54040	2H..HJ60..SRF..LUB..GEN W(DUAL AIR CONDITIONER)	08/1987 - 01/1990	1
27441 - FAN, ALTERNATOR
27441-56090	3B,2H..BJ60,HJ60..GEN,ME	08/1987 - 08/1988	1
27441-54070	2H..HJ60..SRF..LUB..GEN W(DUAL AIR CONDITIONER)	08/1987 - 01/1990	1
27441-56090	2H..HJ60..GEN,ME	08/1988 - 01/1990	1
27700A - REGULATOR ASSY, GENERATOR
27700-64030	2H..HJ60..SRF..LUB..GEN W(DUAL AIR CONDITIONER)	08/1987 - 01/1990	1
27700-15020	3B,3F,2H..BJ60,FJ62,HJ60..GEN,ME	08/1987 - 08/1988	1
Common parts
27378-45020
27378-54010
27383-54010
27387-45090
27387-54010
27387-56070
90099-02208
90099-02209
90099-04947
90099-04948
90099-05118
90099-05119
90099-05185
90099-14055
90101-10459
90119-08167
90179-06158
90201-10283
91656-40616
93319-15008
94110-41000
94512-01000

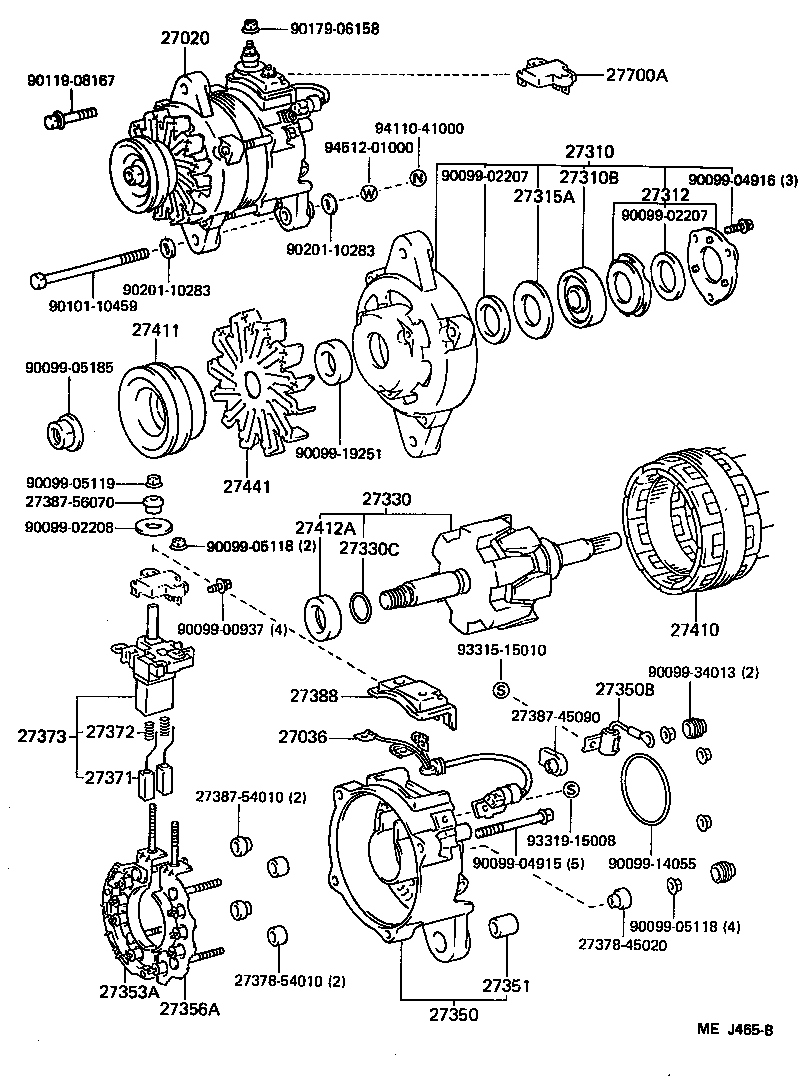

(8708- )12HT,2H

Click highlighted areas on diagram

12V 80A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27020-68120	2H..HJ60..LUB..GEN 12V 55A	08/1987 - 06/1990	1
27020-68140	2H..HJ60..SRF..LUB..GEN 12V 80A	08/1987 - 06/1990	1
27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR
27036-54250	2H..HJ60..LUB..GEN	10/1987 - 04/1988	1
27036-68140	2H..HJ60..SRF..LUB..GEN W(DUAL AIR CONDITIONER)	08/1987 - 01/1990	1
27036-54010	2H..HJ60..GEN	08/1987 - 10/1987	1
27036-54250	2H..HJ60..GEN,ME	04/1988 - 01/1990	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-68140	2H..HJ60..SRF..LUB..GEN W(DUAL AIR CONDITIONER)	08/1987 - 01/1990	1
27310-56180	2H..HJ60..LUB..GEN	08/1987 - 01/1990	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10120	2H..HJ60..SRF..LUB..GEN W(DUAL AIR CONDITIONER)	08/1987 - 01/1990	1
90099-10137	3B,2H..BJ60,HJ60..GEN,ME	08/1987 - 08/1988	1
90099-10137	2H..HJ60..GEN,ME	08/1988 - 01/1990	1
27312 - PLATE, RETAINER
27312-57060	3B,2H..BJ60,HJ60..GEN,ME	08/1987 - 08/1988	1
27312-56070	2H..HJ60..SRF..LUB..GEN W(DUAL AIR CONDITIONER)	08/1987 - 01/1990	1
27312-57060	2H..HJ60..GEN,ME	08/1988 - 01/1990	1
27315A - COVER, ALTERNATOR FELT, INNER NO.1
27315-57060	3B,2H..BJ60,HJ60..GEN,ME	08/1987 - 08/1988	1
27315-56070	2H..HJ60..SRF..LUB..GEN W(DUAL AIR CONDITIONER)	08/1987 - 01/1990	1
27315-57060	2H..HJ60..GEN,ME	08/1988 - 01/1990	1
27330 - ROTOR ASSY, ALTERNATOR
27330-68140	2H..HJ60..SRF..LUB..GEN W(DUAL AIR CONDITIONER)	08/1987 - 01/1990	1
27330-64010	2H..HJ60..LUB..GEN	08/1987 - 01/1990	1
27330C - RING, SNAP
90099-07108	2H..HJ60..SRF..LUB..GEN W(DUAL AIR CONDITIONER)	08/1987 - 01/1990	1
90099-07103	3B,2H..BJ60,HJ60..GEN,ME	08/1987 - 08/1988	1
90099-07103	2H..HJ60..GEN,ME	08/1988 - 01/1990	1
27350 - FRAME ASSY, RECTIFIER END
27350-68140	2H..HJ60..SRF..LUB..GEN W(DUAL AIR CONDITIONER)	08/1987 - 01/1990	1
27350-68040	2H..HJ60..LUB..GEN	08/1987 - 01/1990	1
27350B - CONDENSER, ALTERNATOR
90099-52082	2H..HJ60..SRF..LUB..GEN W(DUAL AIR CONDITIONER)	08/1987 - 10/1987	1
90099-52066	2H..HJ60..GEN	08/1987 - 10/1987	1
90099-52082	12HT,2H..HJ6#..LUB;2H..HJ60..STD..ARL	10/1987 - 01/1990	1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-56013	12HT,3B,2H..BJ60,HJ6#	08/1987 - 08/1988	1
27351-56013	12HT,2H..HJ6#	08/1988 - 01/1990	1
27353A - HOLDER, W/RECTIFIER
27353-68140	12HT,2H..HJ6#..LUB;2H..HJ60..STD..ARL	08/1987 - 01/1990	1
27356A - HOLDER SUB-ASSY, RECTIFIER
27356-68140	12HT,2H..HJ6#..LUB;2H..HJ60..STD..ARL	08/1987 - 01/1990	1
27371 - BRUSH, ALTERNATOR
27371-56070	12HT,2H..HJ6#	08/1988 - 01/1990	2
27371-56070	12HT,3B,2H..BJ60,HJ6#	08/1987 - 08/1988	2
27372 - SPRING, ALTERNATOR BRUSH
27372-56070	12HT,3B,2H..BJ60,HJ6#	08/1987 - 08/1988	2
27372-56070	12HT,2H..HJ6#	08/1988 - 01/1990	2
27373 - HOLDER, ALTERNATOR BRUSH, A
27373-57070	12HT,2H..HJ6#..LUB;2H..HJ60..STD..ARL	08/1987 - 01/1990	1
27388 - COVER, ALTERNATOR BRUSH
27388-68040	2H..HJ60..GEN	08/1987 - 10/1987	1
27388-54250	2H..HJ60..LUB..GEN	10/1987 - 04/1988	1
27388-54250	2H..HJ60..GEN,ME	04/1988 - 01/1990	1
27388-68140	2H..HJ60..SRF..LUB..GEN W(DUAL AIR CONDITIONER)	08/1987 - 01/1990	1
27410 - STATOR ASSY, ALTERNATOR
27410-43040	3F..FJ62..ARL;2H..HJ60..LUB..GEN	08/1987 - 01/1990	1
27410-68140	2H..HJ60..SRF..LUB..GEN W(DUAL AIR CONDITIONER)	08/1987 - 01/1990	1
27411 - PULLEY, ALTERNATOR
27411-68140	2H..HJ60..SRF..LUB..GEN W(DUAL AIR CONDITIONER)	08/1987 - 01/1990	1
27411-68041	2H..HJ60..GEN,ME	08/1987 - 01/1990	1
27412A - COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME)
27412-57060	3B,2H..BJ60,HJ60..GEN,ME	08/1987 - 08/1988	1
27412-57060	2H..HJ60..GEN,ME	08/1988 - 01/1990	1
27412-54040	2H..HJ60..SRF..LUB..GEN W(DUAL AIR CONDITIONER)	08/1987 - 01/1990	1
27441 - FAN, ALTERNATOR
27441-56090	3B,2H..BJ60,HJ60..GEN,ME	08/1987 - 08/1988	1
27441-54070	2H..HJ60..SRF..LUB..GEN W(DUAL AIR CONDITIONER)	08/1987 - 01/1990	1
27441-56090	2H..HJ60..GEN,ME	08/1988 - 01/1990	1
27700A - REGULATOR ASSY, GENERATOR
27700-64030	2H..HJ60..SRF..LUB..GEN W(DUAL AIR CONDITIONER)	08/1987 - 01/1990	1
27700-15020	3B,3F,2H..BJ60,FJ62,HJ60..GEN,ME	08/1987 - 08/1988	1
Common parts
27378-45020
27378-54010
27387-45090
27387-54010
27387-56070
90099-00937
90099-02207
90099-02208
90099-04915
90099-04916
90099-05118
90099-05119
90099-05185
90099-14055
90099-19251
90099-34013
90101-10459
90119-08167
90179-06158
90201-10283
93315-15010
93319-15008
94110-41000
94512-01000
