HJ60RG-KN (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 2H
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )12HT,2H

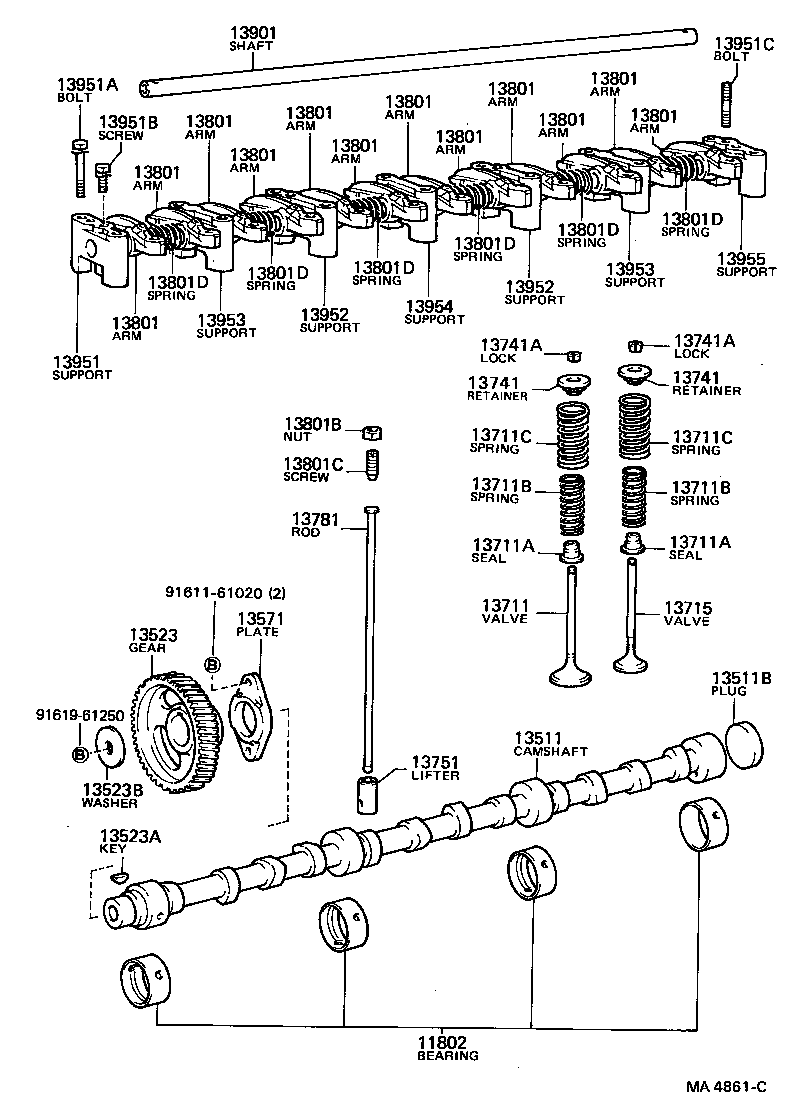

Click highlighted areas on diagram

diagram 11802 13511 13511B 13523 13523A 13523B 13571 13711 13711A 13711A 13711B 13711B 13711C 13711C 13715 13741 13741 13741A 13741A 13751 13781 13801 13801 13801 13801 13801 13801 13801 13801 13801 13801 13801 13801 13801B 13801C 13801D 13801D 13801D 13801D 13801D 13801D 13901 13951 13951A 13951B 13951C 13952 13952 13953 13953 13954 13955 9161161020 9161961250
Part # Description Qty Price
11802 - BEARING SET, CAMSHAFT
11802-68011

12HT,2H..HJ6#

STD

 1
11804-68011

12HT,2H..HJ6#

U/S 0.25

 1
11803-68011

12HT,2H..HJ6#

U/S 0.125

 1
13511 - CAMSHAFT
13511-68010

2H..HJ60

 1
13511B - PLUG, EXPANSION(FOR CAMSHAFT)
90331-55001

12HT,2H..HJ6#

 1
13523 - GEAR OR SPROCKET, CAMSHAFT TIMING
13523-68010

12HT,2H..HJ6#

 1
13523A - KEY, WOODRUFF(FOR TIMING GEAR)
95161-10519

12HT,2H..HJ6#

 1
13523B - WASHER, PLATE(FOR TIMING GEAR)
90201-12006

12HT,2H..HJ6#

 1
13571 - PLATE, CAMSHAFT THRUST
13571-68010

12HT,2H..HJ6#

 1
13711 - VALVE, INTAKE
13711-68010

12HT,2H..HJ6#

 6
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02050

12HT,2H..HJ6#

 12
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02050

12HT,2H..HJ6#

 12
13711B - SPRING, COMPRESSION(FOR INNER)
90501-26017

12HT,2H..HJ6#

 12
13711B - SPRING, COMPRESSION(FOR INNER)
90501-26017

12HT,2H..HJ6#

 12
13711C - SPRING, COMPRESSION(FOR OUTER)
90501-42006

12HT,2H..HJ6#

 12
13711C - SPRING, COMPRESSION(FOR OUTER)
90501-42006

12HT,2H..HJ6#

 12
13715 - VALVE, EXHAUST
13715-68010

2H..HJ60

 6
13741 - RETAINER, VALVE SPRING
13741-68010

12HT,2H..HJ6#

 12
13741 - RETAINER, VALVE SPRING
13741-68010

12HT,2H..HJ6#

 12
13741A - LOCK, VALVE SPRING RETAINER
90913-03018

12HT,2H..HJ6#

 24
13741A - LOCK, VALVE SPRING RETAINER
90913-03018

12HT,2H..HJ6#

 24
13751 - LIFTER, VALVE
13755-47011

12HT,2H..HJ6#

O/S 0.05

 12
13751-47011

12HT,2H..HJ6#

STD

 12
13781 - ROD, VALVE PUSH
13781-68010

12HT,2H..HJ6#

 12
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-68011

2H..HJ60

 12
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-68011

2H..HJ60

 12
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-68011

2H..HJ60

 12
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-68011

2H..HJ60

 12
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-68011

2H..HJ60

 12
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-68011

2H..HJ60

 12
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-68011

2H..HJ60

 12
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-68011

2H..HJ60

 12
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-68011

2H..HJ60

 12
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-68011

2H..HJ60

 12
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-68011

2H..HJ60

 12
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-68011

2H..HJ60

 12
13801B - NUT, HEXAGON(FOR VALVE ADJUSTING)
90170-08005

12HT,2H..HJ6#

 12
13801C - SCREW, VALVE ADJUSTING
90913-05020

12HT,2H..HJ6#

 12
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-16163

12HT,2H..HJ6#

 6
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-16163

12HT,2H..HJ6#

 6
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-16163

12HT,2H..HJ6#

 6
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-16163

12HT,2H..HJ6#

 6
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-16163

12HT,2H..HJ6#

 6
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-16163

12HT,2H..HJ6#

 6
13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1
13901-68010

12HT,2H..HJ6#

 1
13951 - SUPPORT, VALVE ROCKER, NO.1
13951-68010

12HT,2H..HJ6#

 1
13951A - BOLT(FOR ROCKER SUPPORT SET)
91611-60860

12HT,2H..HJ6#

 14
13951B - SCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK)
91611-60816

12HT,2H..HJ6#

 2
13951C - BOLT, STUD(FOR ROCKER SUPPORT)
92112-60828

12HT,2H..HJ6#

 4
13952 - SUPPORT, VALVE ROCKER, NO.2
13952-68010

12HT,2H..HJ6#

 2
13952 - SUPPORT, VALVE ROCKER, NO.2
13952-68010

12HT,2H..HJ6#

 2
13953 - SUPPORT, VALVE ROCKER, NO.3
13953-68010

12HT,2H..HJ6#

 2
13953 - SUPPORT, VALVE ROCKER, NO.3
13953-68010

12HT,2H..HJ6#

 2
13954 - SUPPORT, VALVE ROCKER, NO.4
13954-68010

12HT,2H..HJ6#

 1
13955 - SUPPORT, VALVE ROCKER, NO.5
13955-68010

12HT,2H..HJ6#

 1
Common parts
91611-61020
91619-61250
