HJ60LV-KCW (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1982
Engine 2H
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )

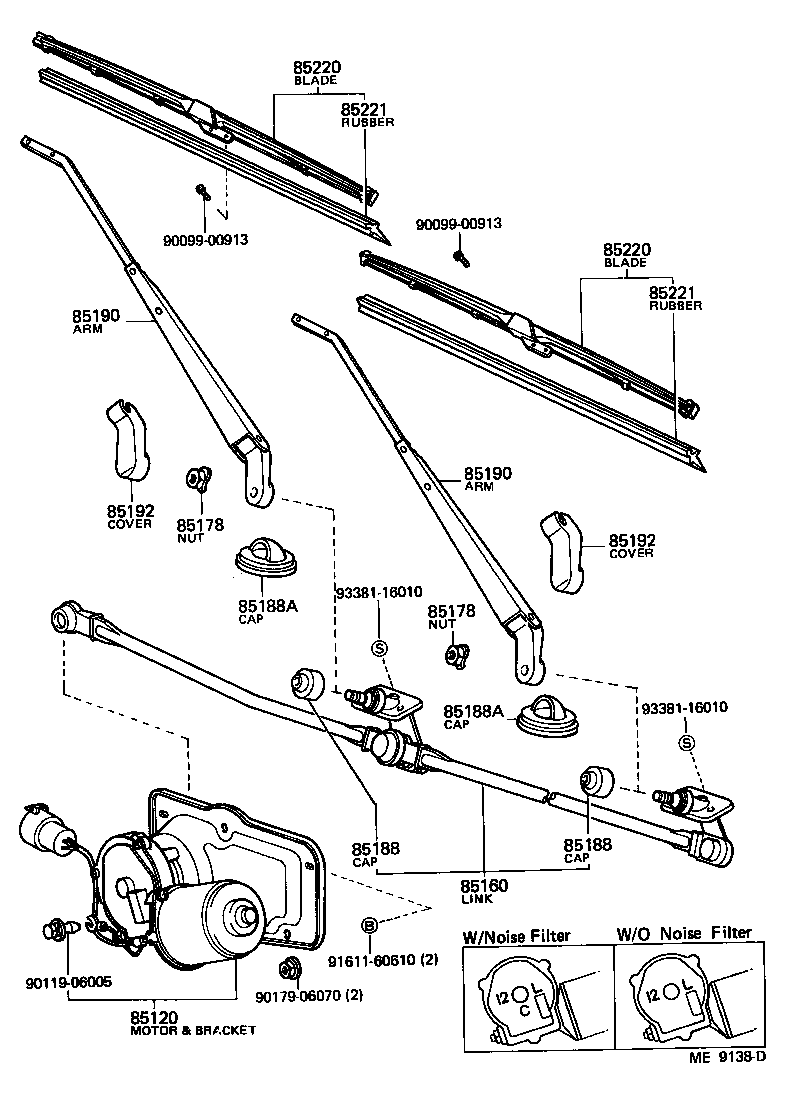

Click highlighted areas on diagram

diagram 85120 85160 85178 85178 85188 85188 85188A 85188A 85190 85190 85192 85192 85220 85220 85221 85221 9009900913 9009900913 9011906005 9017906070 9161160610 9338116010 9338116010
Part # Description Qty Price
85120 - MOTOR AND BRACKET ASSY, WINDSHIELD WIPER
85120-90A20

HJ6#..LHD..EUR

24V

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85160-90A04

BJ60,FJ6#,HJ6#..LHD

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-08026

BJ60,FJ6#,HJ6#

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-08026

BJ60,FJ6#,HJ6#

 2
85188 - CAP, WINDSHIELD WIPER PIVOT, NO.1
85178-90A00

BJ60,FJ6#,HJ6#

 2
85188 - CAP, WINDSHIELD WIPER PIVOT, NO.1
85178-90A00

BJ60,FJ6#,HJ6#

 2
85188A - CAP, WINDSHIELD WIPER PIVOT, NO.2
85247-90A01

BJ60,FJ6#,HJ6#

 2
85188A - CAP, WINDSHIELD WIPER PIVOT, NO.2
85247-90A01

BJ60,FJ6#,HJ6#

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-90A03

FJ60,HJ6#..LHD..EUR

LH

 1
85210-90A02

FJ60,HJ6#..LHD..EUR

RH

 1
85190 - ARM ASSY, WINDSHIELD WIPER
85190-90A03

FJ60,HJ6#..LHD..EUR

LH

 1
85210-90A02

FJ60,HJ6#..LHD..EUR

RH

 1
85192 - COVER, WINDSHIELD WIPER ARM
85192-14010

BJ60,FJ6#,HJ6#..LHD

 2
85192 - COVER, WINDSHIELD WIPER ARM
85192-14010

BJ60,FJ6#,HJ6#..LHD

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-90A03

FJ60,HJ60..LHD..EUR

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-90A03

FJ60,HJ60..LHD..EUR

 2
85221 - BLADE, WINDSHIELD WIPER
85221-90A01

FJ60,HJ60..EUR

 2
85221 - BLADE, WINDSHIELD WIPER
85221-90A01

FJ60,HJ60..EUR

 2
Common parts
90099-00913
90119-06005
90179-06070
91611-60610
93381-16010
