HJ60LV-KCW (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1982
Engine 2H
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )

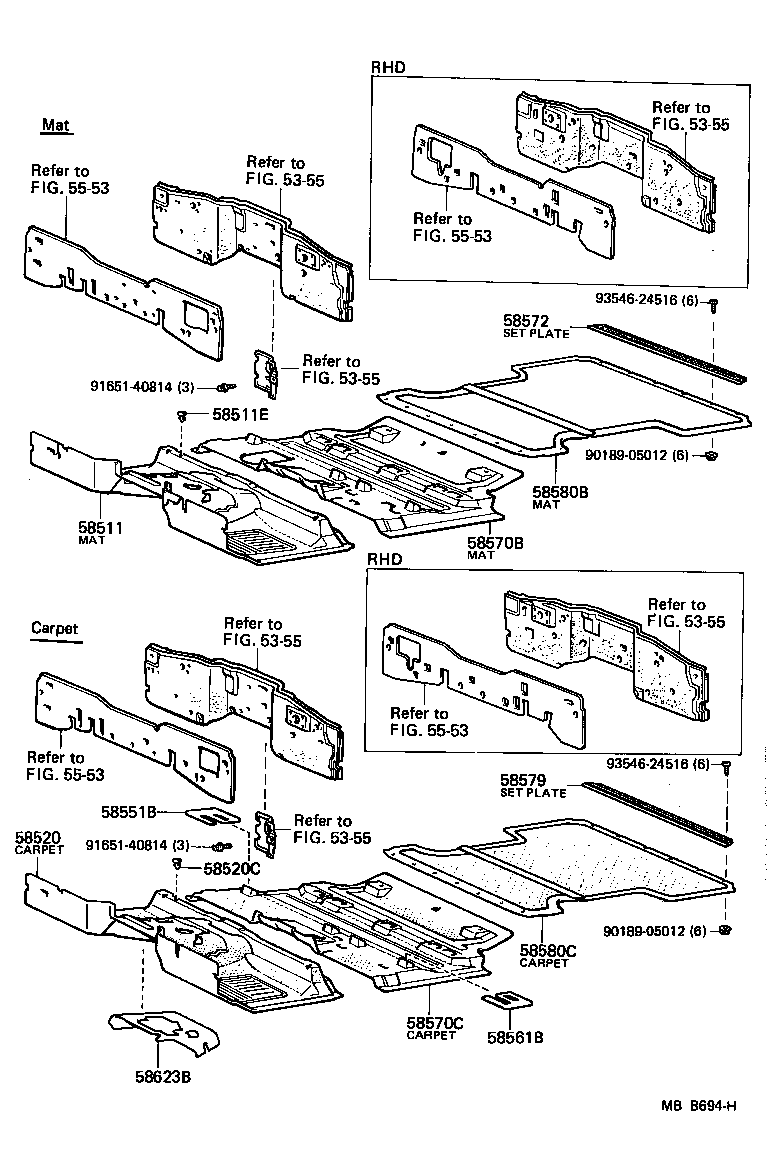

Click highlighted areas on diagram

diagram 5355 5355 5355 5355 5355 5355 5553 5553 5553 5553 58511 58511E 58520 58520C 58551B 58561B 58570B 58570C 58572 58579 58580B 58580C 58623B 9018905012 9018905012 9165140814 9165140814 9354624516 9354624516
Part # Description Qty Price
58511 - MAT, FLOOR, FRONT
58510-90A01

BJ60,FJ60,HJ60..LHD..SOB

BENCH SEAT

 1
58510-90A09

BJ60,FJ60,HJ60..LHD..SOB

SEPARATE SEAT,W/WINCH

 1
58510-90A04

BJ60,FJ60,HJ60..LHD..SOB

SEPARATE SEAT

 1
58510-90A07

BJ60,FJ60,HJ60..LHD..SOB

BENCH SEAT,W/WINCH

 1
58570B - MAT ASSY, REAR FLOOR
58540-90A01

BJ60,FJ60,HJ60..LHD..WGV

BN

 1
58540-90A03

BJ60,FJ60,HJ60..LHD..WGV

SP

 1
58572 - SET PLATE, REAR FLOOR MAT, REAR
58573-90A00

BJ60,FJ6#,HJ6#..WGV

 1
58580B - MAT ASSY, REAR FLOOR, REAR
58581-90A0006

BJ60,FJ60,HJ60..LHD..SOB

DARK BROWN,DARK BROWN,TRIM4#

 1
Common parts
90189-05012
91651-40814
93546-24516
Linked diagrams
5355
5553
