HJ60LG-MNZ (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 2H
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001-9608)

Click highlighted areas on diagram

2-BATTERY

diagram 28800 28800 28800A 28800B 28800C 28800D 28800F 28800F 28897 8271112200 8271112200 9011908116 9011908116 9017908146 9046400373 9165161016
Part # Description Qty Price
Common parts
82711-12200
90119-08116
90179-08146
90464-00373
91651-61016

(8708- )

Click highlighted areas on diagram

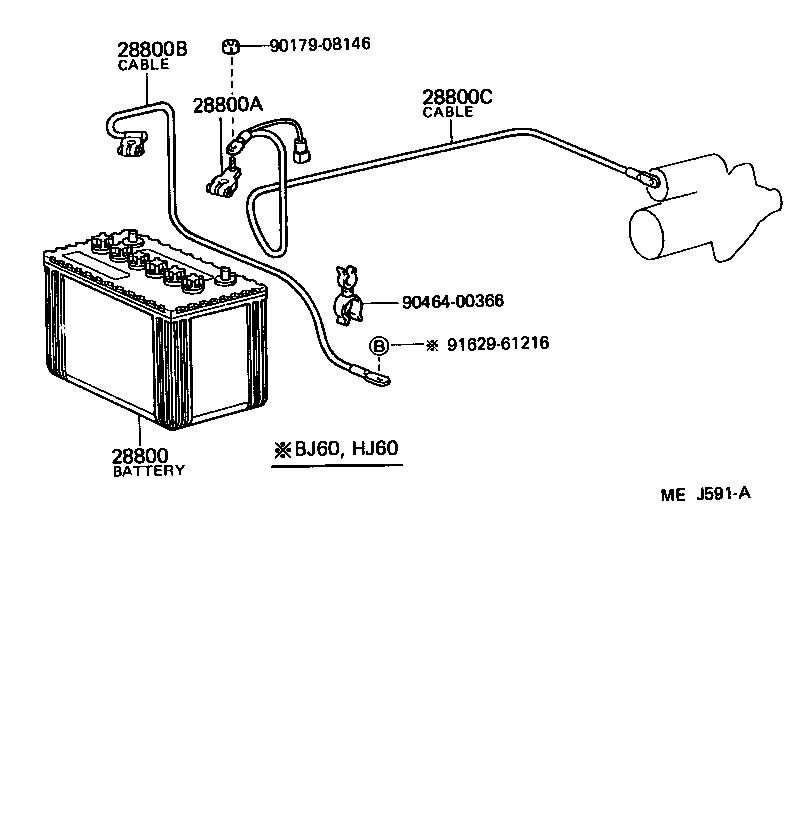

diagram 28800 28800A 28800B 28800C 9017908146 9046400366 9162961216
Part # Description Qty Price
28800 - BATTERY
28800-46012

2H..HJ60..GEN,ME

75D31R

 2
28800-46012

2H..HJ60..GEN,ME

75D31R

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05030

3F..FJ62..ARL,ME;12HT,3B,2H..BJ60,HJ6#;3F..FJ62..(STD,VX)..GEN

 1
28800B - CABLE, BATTERY TO GROUND
82123-90A00

12HT,2H..HJ6#

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
90982-01352

3B,2H..BJ60,HJ60..GEN,ME

 1
90982-01414

12HT,3B,2H..BJ60,HJ6#

 1
90982-01353

3B,2H..BJ60,HJ60..GEN,ME

W(ELECTRIC WINCH,12V)

 1
90982-01414

2H..HJ60..LUB..GEN

W(12V 80A ALTERNATOR)

 1
Common parts
90179-08146
90464-00366
91629-61216
