HJ60LG-MNZ (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 2H
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9001-0907)HZJ78 ; (9001-0907)FJ7#,FZJ70,71,73,74,75,78,HJ75,HZJ70,71,73,75,KZJ7#,L

Click highlighted areas on diagram

diagram 58811A 58839A 58865A 58866A 58901A 58905 58912 58915 58923A 58944A 58959B 58964 58965A 58968A 58968A 58976 58993 58995A 58996A 58997 9015950002 9015950002 9018305094 9018305094 9018305094 9165140616 9356055016 9356055016 9356055016 9356055016 9356854512 9356854512 9356854512 9616000500 9616000500
Part # Description Qty Price
Common parts
90159-50002
90183-05094
91651-40616
93560-55016
93568-54512
96160-00500

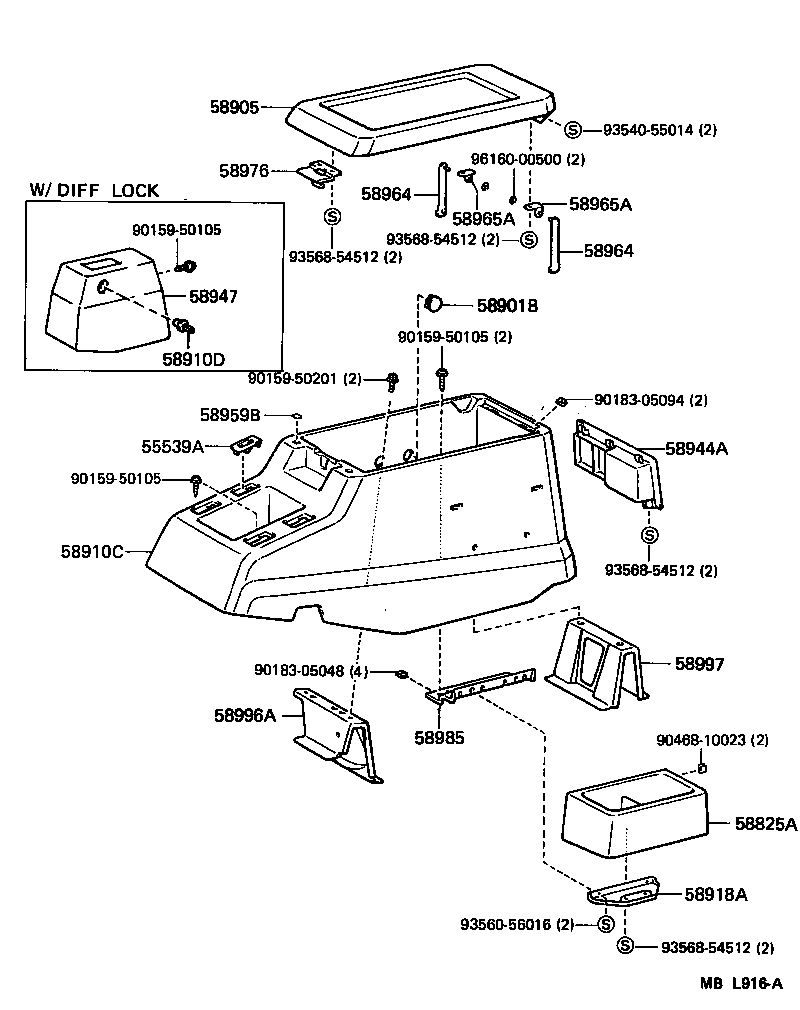

ILLUST NO. 2 OF 2(8708- )LHD

Click highlighted areas on diagram

diagram 55539A 58825A 58901B 58905 58910C 58910D 58918A 58944A 58947 58959B 58964 58964 58965A 58965A 58976 58985 58996A 58997 9015950105 9015950105 9015950105 9015950201 9018305048 9018305094 9046810023 9354055014 9356056016 9356854512 9356854512 9356854512 9356854512 9616000500
Part # Description Qty Price
55539A - COVER, SPARE SWITCH HOLE
55539-2002013

FJ62,HJ60..GX..GEN

SHADOW GRAY,TRIM1#

 3
55539-2002026

BJ60,HJ60..GEN;FJ62..5F..SRF..GEN;FJ62..5F..(GX,VX)..ME;FJ62..(4F,4FC)..(GEN,ME);FJ62,HJ61..(4FC,5F)..HRF..LUB

SEPIA BROWN,TRIM4#

 4
55539-2002026

HJ60..GX..GEN;HJ60..RHD..STD..GEN;BJ60,FJ62..(GX,STD)..GEN

SEPIA BROWN,TRIM4#

 3
55539-2002013

HJ60..LUB..GEN;FJ62,HJ61..HRF..ARL;FJ62..(GX,VX)..(GEN,ME)

SHADOW GRAY,TRIM1#

 4
58825A - POCKET, CONSOLE BOX
58825-90A0103

HJ60..LUB..GEN;FJ62,HJ61..HRF..ARL;FJ62..(GX,VX)..(GEN,ME)

SHADOW GRAY,TRIM1#

 1
58825-90A0106

BJ60,HJ60..GEN;FJ62..5F..SRF..GEN;FJ62..5F..(GX,VX)..ME;FJ62..(4F,4FC)..(GEN,ME);FJ62,HJ61..(4FC,5F)..HRF..LUB

SEPIA BROWN,TRIM4#

 1
58901B - PLUG, HOLE(FOR REAR CONSOLE BOX)
90950-0107306

BJ60,HJ60..GEN;FJ62..5F..SRF..GEN;FJ62..5F..(GX,VX)..ME;FJ62..(4F,4FC)..(GEN,ME);FJ62,HJ61..(4FC,5F)..HRF..LUB

SEPIA BROWN,TRIM4#

 4
90950-0107303

HJ60..LUB..GEN;FJ62,HJ61..HRF..ARL;FJ62..(GX,VX)..(GEN,ME)

SHADOW GRAY,TRIM1#

 4
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58951-90A0103

HJ60..LUB..GEN;FJ62,HJ61..HRF..ARL;FJ62..(GX,VX)..(GEN,ME)

SHADOW GRAY,TRIM1#

 1
58951-90A0106

BJ60,HJ60..GEN;FJ62..5F..SRF..GEN;FJ62..5F..(GX,VX)..ME;FJ62..(4F,4FC)..(GEN,ME);FJ62,HJ61..(4FC,5F)..HRF..LUB

SEPIA BROWN,TRIM4#

 1
58910C - BOX ASSY, CONSOLE, REAR
58911-90A0303

FJ62,HJ60..LHD..(GX,VX)..GEN

W(REAR HEATER),SHADOW GRAY,TRIM1#

 1
58911-90A0203

HJ60..LHD..GX..GEN;FJ62..5F..SRF..SOB..GX;FJ62..LHD..5F..HRF..GX;FJ62..LHD..(4F,4FC)..GX;FJ62..LHD..5F..SRF..LUB..GEN

SHADOW GRAY,TRIM1#

 1
58911-90A0306

HJ60..LHD..LUB;BJ60,FJ62..LHD..GEN

W(REAR HEATER),SEPIA BROWN,TRIM4#

 1
58911-90A0506

FJ62..MTM..GEN;HJ60..LUB..GEN;HJ60..RHD..STD..GEN

W(*DL & REAR HEATER),SEPIA BROWN,TRIM4#

 1
58911-90A0206

FJ62..LHD..5F..GEN;HJ60..LHD..GX..GEN;FJ62..5F..SOB..GX..ME;BJ60,FJ62..LHD..(4F,4FC)..(GX,STD)

SEPIA BROWN,TRIM4#

 1
58911-90A0603

FJ62,HJ60..MTM..GX..GEN

W(*DL),SHADOW GRAY,TRIM1#

 1
58911-90A0503

FJ62,HJ60..MTM..(GX,VX)..GEN

W(*DL & REAR HEATER),SHADOW GRAY,TRIM1#

 1
58911-90A0606

FJ62,HJ60..MTM..(GX,STD)..GEN

W(*DL),SEPIA BROWN,TRIM4#

 1
58910D - CLIP(FOR CONSOLE BOX)
90467-0704106

FJ62,HJ61;HJ60..ARL,GEN

SEPIA BROWN,TRIM4#

 2
90467-0704103

HJ60..LUB;FJ62,HJ61..GX,VX

GRAY,TRIM1#

 2
58918A - BRACKET, BOX SUPPORT
58918-90A00

BJ60,HJ60..GEN;FJ62..5F..SRF..GEN;FJ62..5F..(GX,VX)..ME;FJ62..(4F,4FC)..(GEN,ME);FJ62,HJ61..(4FC,5F)..HRF..LUB

 1
58944A - COVER, CONSOLE, REAR
58944-90A0103

FJ62,HJ61..HRF..ARL;FJ62,HJ60..(GX,VX)..GEN

W(REAR HEATER),SHADOW GRAY,TRIM1#

 1
58944-90A0006

HJ60..GX..GEN;HJ60..RHD..STD..GEN;BJ60,FJ62..(GX,STD)..GEN

SEPIA BROWN,TRIM4#

 1
58944-90A0003

FJ62,HJ60..GX..GEN

SHADOW GRAY,TRIM1#

 1
58944-90A0106

BJ60,FJ62..GEN;HJ60..LUB..GEN;FJ62,HJ61..HRF..ARL;HJ60..RHD..STD..GEN

W(REAR HEATER),SEPIA BROWN,TRIM4#

 1
58947 - COVER, DIFFERENTIAL LOCK LEVER
58947-90A0006

FJ62,HJ60..MTM..(GX,STD)..GEN

SEPIA BROWN,TRIM4#

 1
58947-90A0003

FJ62,HJ60..MTM..GX..GEN

SHADOW GRAY,TRIM1#

 1
58947-90A0303

FJ62,HJ60..LHD..MTM..GX..GEN

W(CONSOL BOX),SHADOW GRAY,TRIM1#

 1
58947-90A0306

FJ62,HJ60..LHD..MTM..(GX,STD)..GEN

W(CONSOL BOX),SEPIA BROWN,TRIM4#

 1
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
58959-16010

BJ60,HJ60..GEN;FJ62..5F..SRF..GEN;FJ62..5F..(GX,VX)..ME;FJ62..(4F,4FC)..(GEN,ME);FJ62,HJ61..(4FC,5F)..HRF..LUB

 2
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-30030

BJ60,HJ60..GEN;FJ62..5F..SRF..GEN;FJ62..5F..(GX,VX)..ME;FJ62..(4F,4FC)..(GEN,ME);FJ62,HJ61..(4FC,5F)..HRF..LUB

LH

 1
58964-90K00

BJ60,HJ60..GEN;FJ62..5F..SRF..GEN;FJ62..5F..(GX,VX)..ME;FJ62..(4F,4FC)..(GEN,ME);FJ62,HJ61..(4FC,5F)..HRF..LUB

RH

 1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-30030

BJ60,HJ60..GEN;FJ62..5F..SRF..GEN;FJ62..5F..(GX,VX)..ME;FJ62..(4F,4FC)..(GEN,ME);FJ62,HJ61..(4FC,5F)..HRF..LUB

LH

 1
58964-90K00

BJ60,HJ60..GEN;FJ62..5F..SRF..GEN;FJ62..5F..(GX,VX)..ME;FJ62..(4F,4FC)..(GEN,ME);FJ62,HJ61..(4FC,5F)..HRF..LUB

RH

 1
58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2
58965-20020

BJ60,HJ60..GEN;FJ62..5F..SRF..GEN;FJ62..5F..(GX,VX)..ME;FJ62..(4F,4FC)..(GEN,ME);FJ62,HJ61..(4FC,5F)..HRF..LUB

RH

 1
58965-12010

BJ60,HJ60..GEN;FJ62..5F..SRF..GEN;FJ62..5F..(GX,VX)..ME;FJ62..(4F,4FC)..(GEN,ME);FJ62,HJ61..(4FC,5F)..HRF..LUB

LH

 1
58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2
58965-20020

BJ60,HJ60..GEN;FJ62..5F..SRF..GEN;FJ62..5F..(GX,VX)..ME;FJ62..(4F,4FC)..(GEN,ME);FJ62,HJ61..(4FC,5F)..HRF..LUB

RH

 1
58965-12010

BJ60,HJ60..GEN;FJ62..5F..SRF..GEN;FJ62..5F..(GX,VX)..ME;FJ62..(4F,4FC)..(GEN,ME);FJ62,HJ61..(4FC,5F)..HRF..LUB

LH

 1
58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK
58976-20010

BJ60,HJ60..GEN;FJ62..5F..SRF..GEN;FJ62..5F..(GX,VX)..ME;FJ62..(4F,4FC)..(GEN,ME);FJ62,HJ61..(4FC,5F)..HRF..LUB

 1
58985 - RETAINER, CONSOLE BOX
58985-90A00

BJ60,HJ60..GEN;FJ62..5F..SRF..GEN;FJ62..5F..(GX,VX)..ME;FJ62..(4F,4FC)..(GEN,ME);FJ62,HJ61..(4FC,5F)..HRF..LUB

 2
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-90A04

HJ60..LHD..GEN;FJ62..LHD..5F..GEN;FJ62..5F..(GX,VX)..ME;BJ60,FJ62..LHD..(4F,4FC)

 1
58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3
58997-90A02

BJ60..GEN;HJ60..LHD..GEN;FJ62..LHD..(4F,4FC);FJ62..5F..(GX,VX)..ME;FJ62..LHD..5F..SRF..GEN;FJ62,HJ61..(4FC,5F)..HRF..LUB

 1
Common parts
90159-50105
90159-50201
90183-05048
90183-05094
90468-10023
93540-55014
93560-56016
93568-54512
96160-00500
