HJ60LG-MNZ (1987)
Toyota Land Cruiser
ILLUST NO. 2 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04481 - SHACKLE KIT, FRONT SPRING | ||||
| 04481-60030 |
BJ60,FJ62,HJ6# |
2 | ||
| 04482 - PIN KIT, FRONT SPRING | ||||
| 04482-60040 |
BJ60,FJ62,HJ6# |
2 | ||
| 48048 - SEAT SUB-ASSY, SPRING, RH | ||||
| 48048-60021 |
BJ60,FJ62,HJ6# |
1 | ||
| 48049 - SEAT SUB-ASSY, SPRING, LH | ||||
| 48049-60021 |
BJ60,FJ62,HJ6# |
1 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90389-18002 |
BJ60,FJ62,HJ6# |
8 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90389-18002 |
BJ60,FJ62,HJ6# |
8 | ||
| 48110B - BUSH(FOR FRONT SPRING PIN) | ||||
| 90389-18002 |
BJ60,FJ62,HJ6# |
4 | ||
| 48331 - BUMPER, FRONT SPRING, NO.1 | ||||
| 48304-60031 |
BJ60,FJ62,HJ6# |
2 | ||
| 48401A - BRACKET SUB-ASSY, SPRING, NO.1 | ||||
| 48401-60020 |
BJ60,FJ62,HJ6# |
2 | ||
| 48412B - BRACKET, SPRING, NO.2 RH | ||||
| 48412-60021 |
BJ60,FJ62,HJ6# |
1 | ||
| 48413B - BRACKET, SPRING, NO.2 LH | ||||
| 48413-60032 |
BJ60,FJ62,HJ6# |
1 | ||
| 48475 - PLATE, DISTANCE(FOR FRONT) | ||||
| 48475-60020 |
BJ60,FJ62,HJ6# |
1 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90117-14054 |
HJ6# L=220 |
1 | ||
| 90117-14038 |
HJ6# L=210 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-69095 |
BJ60,FJ62,HJ6# |
1 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02017 |
BJ60,FJ62,HJ6# |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02114 |
BJ60,FJ62,HJ6# |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02114 |
BJ60,FJ62,HJ6# |
4 | ||
| 48510E - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03011 |
BJ60,FJ62,HJ6# |
2 | ||
| 48510H - BUSH(FOR FRONT SHOCK ABSORBER) | ||||
| 90385-19003 |
BJ60,FJ62,HJ6# NO.1 |
4 | ||
| 90948-01031 |
BJ60,FJ62,HJ6# NO.2 |
4 | ||
| 48510H - BUSH(FOR FRONT SHOCK ABSORBER) | ||||
| 90385-19003 |
BJ60,FJ62,HJ6# NO.1 |
4 | ||
| 90948-01031 |
BJ60,FJ62,HJ6# NO.2 |
4 | ||
| 48510H - BUSH(FOR FRONT SHOCK ABSORBER) | ||||
| 90385-19003 |
BJ60,FJ62,HJ6# NO.1 |
4 | ||
| 90948-01031 |
BJ60,FJ62,HJ6# NO.2 |
4 | ||
| 48510H - BUSH(FOR FRONT SHOCK ABSORBER) | ||||
| 90385-19003 |
BJ60,FJ62,HJ6# NO.1 |
4 | ||
| 90948-01031 |
BJ60,FJ62,HJ6# NO.2 |
4 | ||
| 48512A - BRACKET, FRONT SHOCK ABSORBER, UPPER RH | ||||
| 48512-60031 |
BJ60,FJ62,HJ6# |
1 | ||
| 48513 - BRACKET, FRONT SHOCK ABSORBER, UPPER LH | ||||
| 48512-60031 |
BJ60,FJ62,HJ6# |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-69095 |
BJ60,FJ62,HJ6# |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-08686 | ||||
| 90119-12088 | ||||
| 90179-14023 | ||||
| 90201-14006 | ||||
| 90201-15012 | ||||
| 94115-51400 | ||||
| 94184-61000 | ||||

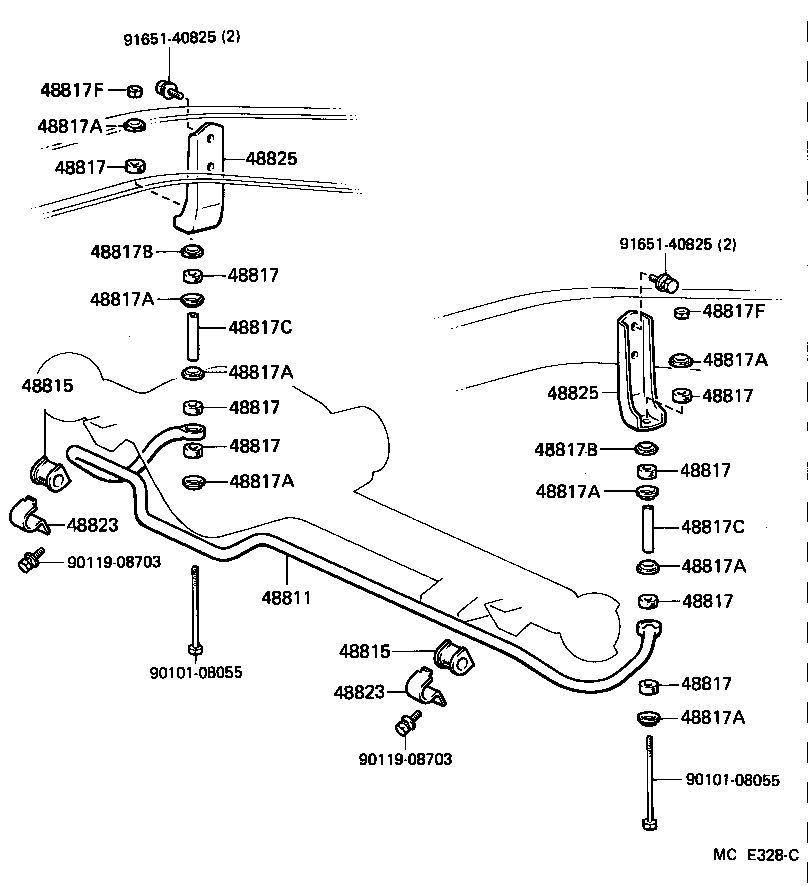

ILLUST NO. 1 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-60070 |
BJ60,FJ62,HJ6#..GX,VX |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-20060 |
BJ60,FJ62,HJ6#..GX,VX |
2 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-20060 |
BJ60,FJ62,HJ6#..GX,VX |
2 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-30010 |
BJ60,FJ62,HJ6# |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-30010 |
BJ60,FJ62,HJ6# |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-30010 |
BJ60,FJ62,HJ6# |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-30010 |
BJ60,FJ62,HJ6# |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-30010 |
BJ60,FJ62,HJ6# |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-30010 |
BJ60,FJ62,HJ6# |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-30010 |
BJ60,FJ62,HJ6# |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-30010 |
BJ60,FJ62,HJ6# |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02032 |
BJ60,FJ62,HJ6# |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02032 |
BJ60,FJ62,HJ6# |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02032 |
BJ60,FJ62,HJ6# |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02032 |
BJ60,FJ62,HJ6# |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02032 |
BJ60,FJ62,HJ6# |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02032 |
BJ60,FJ62,HJ6# |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02032 |
BJ60,FJ62,HJ6# |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02032 |
BJ60,FJ62,HJ6# |
8 | ||
| 48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR) | ||||
| 90948-02015 |
BJ60,FJ62,HJ6# |
2 | ||
| 48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR) | ||||
| 90948-02015 |
BJ60,FJ62,HJ6# |
2 | ||
| 48817C - COLLAR(FOR STABILIZER BAR) | ||||
| 90387-09006 |
BJ60,FJ62,HJ6# |
2 | ||
| 48817C - COLLAR(FOR STABILIZER BAR) | ||||
| 90387-09006 |
BJ60,FJ62,HJ6# |
2 | ||
| 48817F - NUT(FOR FRONT STABILIZER BAR) | ||||
| 94183-60800 |
BJ60,FJ62,HJ6# |
2 | ||
| 48817F - NUT(FOR FRONT STABILIZER BAR) | ||||
| 94183-60800 |
BJ60,FJ62,HJ6# |
2 | ||
| 48823 - COVER, STABILIZER LINK(FOR FRONT) | ||||
| 48823-27010 |
BJ60,FJ62,HJ6# |
2 | ||
| 48823 - COVER, STABILIZER LINK(FOR FRONT) | ||||
| 48823-27010 |
BJ60,FJ62,HJ6# |
2 | ||
| 48825 - BRACKET, STABILIZER, NO.2 | ||||
| 48825-60010 |
BJ60,FJ62,HJ6# |
2 | ||
| 48825 - BRACKET, STABILIZER, NO.2 | ||||
| 48825-60010 |
BJ60,FJ62,HJ6# |
2 | ||
| Common parts | ||||
| 90101-08055 | ||||
| 90119-08703 | ||||
| 91651-40825 | ||||

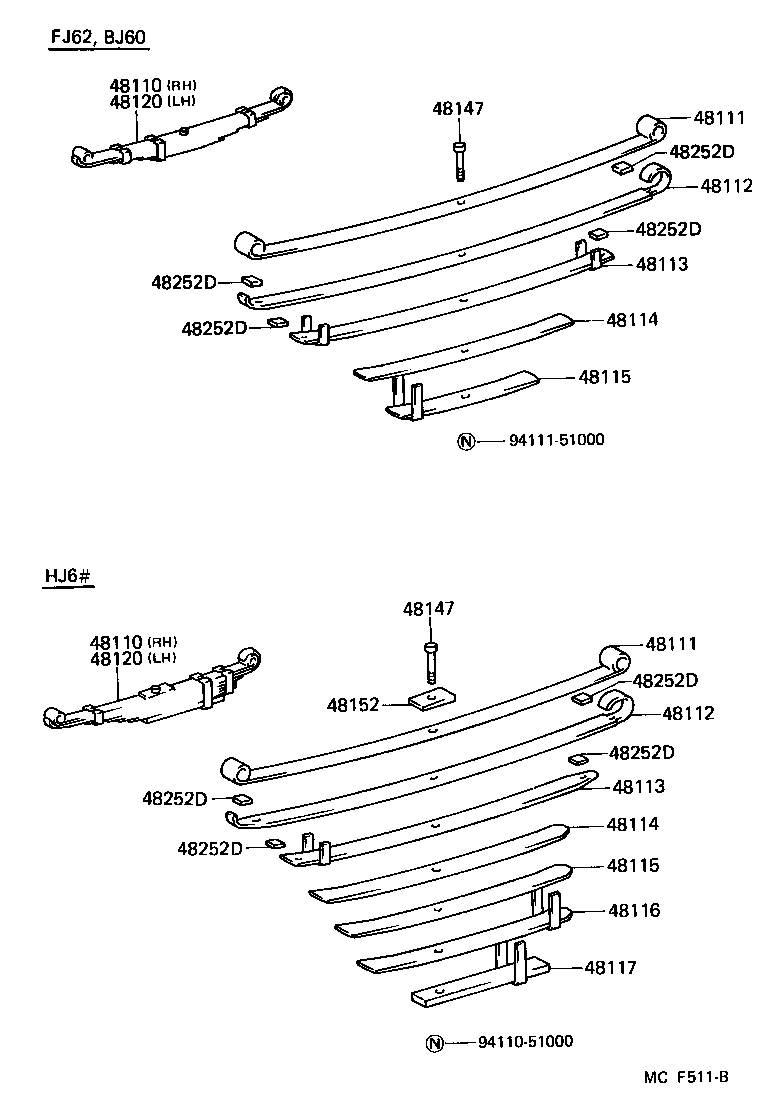

ILLUST NO. 3 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-60361 |
HJ60..GEN |
1 | ||
| 48110-60362 |
HJ60..GEN,ME |
1 | ||
| 48110-60460 |
HJ60..GEN W(WINCH) |
1 | ||
| 48110-60461 |
HJ60..GEN,ME W(WINCH) |
1 | ||
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-60361 |
HJ60..GEN |
1 | ||
| 48110-60362 |
HJ60..GEN,ME |
1 | ||
| 48110-60460 |
HJ60..GEN W(WINCH) |
1 | ||
| 48110-60461 |
HJ60..GEN,ME W(WINCH) |
1 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48111-60460 |
HJ60..GEN,ME W(WINCH) |
2 | ||
| 48111-60361 |
HJ60..GEN,ME |
2 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48111-60460 |
HJ60..GEN,ME W(WINCH) |
2 | ||
| 48111-60361 |
HJ60..GEN,ME |
2 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-60460 |
HJ60..GEN,ME W(WINCH) |
2 | ||
| 48112-60361 |
HJ60..GEN,ME |
2 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-60460 |
HJ60..GEN,ME W(WINCH) |
2 | ||
| 48112-60361 |
HJ60..GEN,ME |
2 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-60361 |
HJ60..GEN,ME |
2 | ||
| 48102-60460 |
HJ60..GEN,ME W(WINCH) |
2 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-60361 |
HJ60..GEN,ME |
2 | ||
| 48102-60460 |
HJ60..GEN,ME W(WINCH) |
2 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48114-60361 |
HJ60..GEN |
2 | ||
| 48114-60362 |
HJ60..GEN,ME |
2 | ||
| 48114-60460 |
HJ60..GEN W(WINCH) |
2 | ||
| 48114-60461 |
HJ60..GEN,ME W(WINCH) |
2 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48114-60361 |
HJ60..GEN |
2 | ||
| 48114-60362 |
HJ60..GEN,ME |
2 | ||
| 48114-60460 |
HJ60..GEN W(WINCH) |
2 | ||
| 48114-60461 |
HJ60..GEN,ME W(WINCH) |
2 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48115-60361 |
HJ60..GEN |
2 | ||
| 48115-60460 |
HJ60..GEN W(WINCH) |
2 | ||
| 48115-60362 |
HJ60..GEN,ME |
2 | ||
| 48115-60461 |
HJ60..GEN,ME W(WINCH) |
2 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48115-60361 |
HJ60..GEN |
2 | ||
| 48115-60460 |
HJ60..GEN W(WINCH) |
2 | ||
| 48115-60362 |
HJ60..GEN,ME |
2 | ||
| 48115-60461 |
HJ60..GEN,ME W(WINCH) |
2 | ||
| 48116 - LEAF, FRONT SPRING, NO.6 | ||||
| 48103-60361 |
HJ60..GEN |
2 | ||
| 48103-60460 |
HJ60..GEN W(WINCH) |
2 | ||
| 48103-60362 |
HJ60..GEN,ME |
2 | ||
| 48103-60461 |
HJ60..GEN,ME W(WINCH) |
2 | ||
| 48117 - LEAF, FRONT SPRING, NO.7 | ||||
| 48104-60310 |
HJ6# |
2 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-60460 |
HJ60..GEN W(WINCH) |
1 | ||
| 48110-60361 |
HJ60..GEN |
1 | ||
| 48110-60362 |
HJ60..GEN,ME |
1 | ||
| 48110-60461 |
HJ60..GEN,ME W(WINCH) |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-60460 |
HJ60..GEN W(WINCH) |
1 | ||
| 48110-60361 |
HJ60..GEN |
1 | ||
| 48110-60362 |
HJ60..GEN,ME |
1 | ||
| 48110-60461 |
HJ60..GEN,ME W(WINCH) |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-60310 |
HJ6# |
2 | ||
| 48147-60311 |
HJ6# |
2 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-60310 |
HJ6# |
2 | ||
| 48147-60311 |
HJ6# |
2 | ||
| 48152 - SEAT, FRONT SPRING | ||||
| 48152-60310 |
HJ60..GEN,ME |
2 | ||
| 48152-60310 |
HJ6# |
2 | ||
| 48252D - SILENCER | ||||
| 48252-26070 |
HJ6# |
14 | ||
| 48252-26070 |
HJ60;FJ62,HJ61..ARL |
8 | ||
| 48252D - SILENCER | ||||
| 48252-26070 |
HJ6# |
14 | ||
| 48252-26070 |
HJ60;FJ62,HJ61..ARL |
8 | ||
| 48252D - SILENCER | ||||
| 48252-26070 |
HJ6# |
14 | ||
| 48252-26070 |
HJ60;FJ62,HJ61..ARL |
8 | ||
| 48252D - SILENCER | ||||
| 48252-26070 |
HJ6# |
14 | ||
| 48252-26070 |
HJ60;FJ62,HJ61..ARL |
8 | ||
| 48252D - SILENCER | ||||
| 48252-26070 |
HJ6# |
14 | ||
| 48252-26070 |
HJ60;FJ62,HJ61..ARL |
8 | ||
| 48252D - SILENCER | ||||
| 48252-26070 |
HJ6# |
14 | ||
| 48252-26070 |
HJ60;FJ62,HJ61..ARL |
8 | ||
| 48252D - SILENCER | ||||
| 48252-26070 |
HJ6# |
14 | ||
| 48252-26070 |
HJ60;FJ62,HJ61..ARL |
8 | ||
| 48252D - SILENCER | ||||
| 48252-26070 |
HJ6# |
14 | ||
| 48252-26070 |
HJ60;FJ62,HJ61..ARL |
8 | ||
| Common parts | ||||
| 94110-51000 | ||||
| 94111-51000 | ||||
