HJ60LG-MNZ (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 2H
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )2H

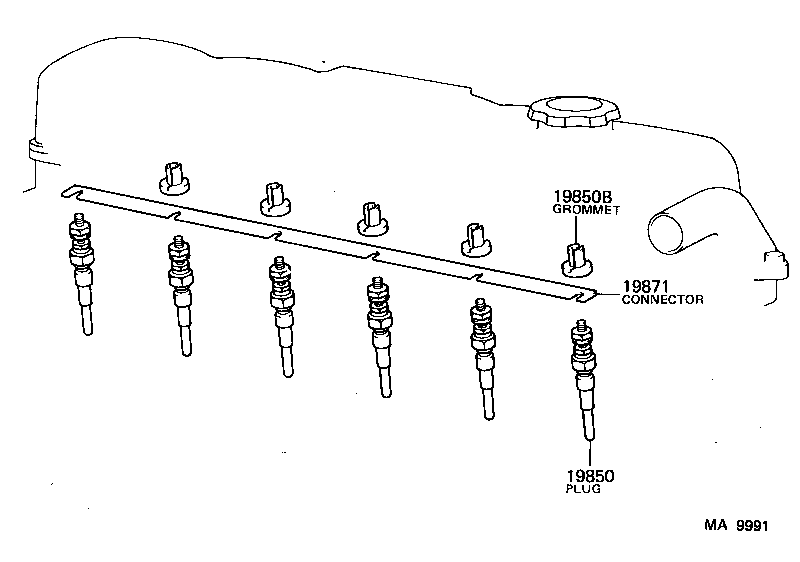

Click highlighted areas on diagram

diagram 19850 19850B 19871
Part # Description Qty Price
19850 - PLUG ASSY, GLOW
19850-64031

2H..HJ60

*BV-GV=12V-11V

 6
19850-68010

2H..HJ60..GEN

*BV-GV=12V-10.5V

 6
19850B - GROMMET, SCREW(FOR GLOW PLUG)
90189-04024

2H..HJ60

 5
19871 - CONNECTOR, GLOW PLUG NO.1
19871-68011

2H..HJ60

 1
