HJ60LG-MNZ (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 2H
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001-9108)2H

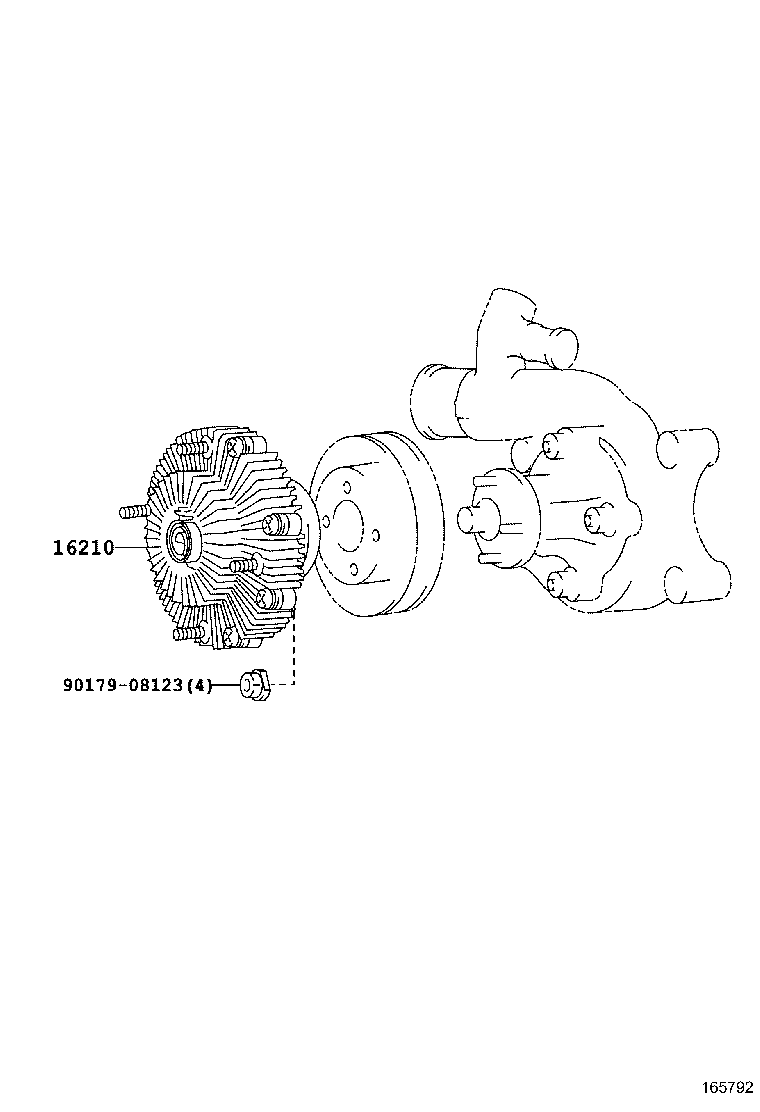

Click highlighted areas on diagram

diagram 16210 9017908123
Part # Description Qty Price
Common parts
90179-08123

(8708- )12HT,2H

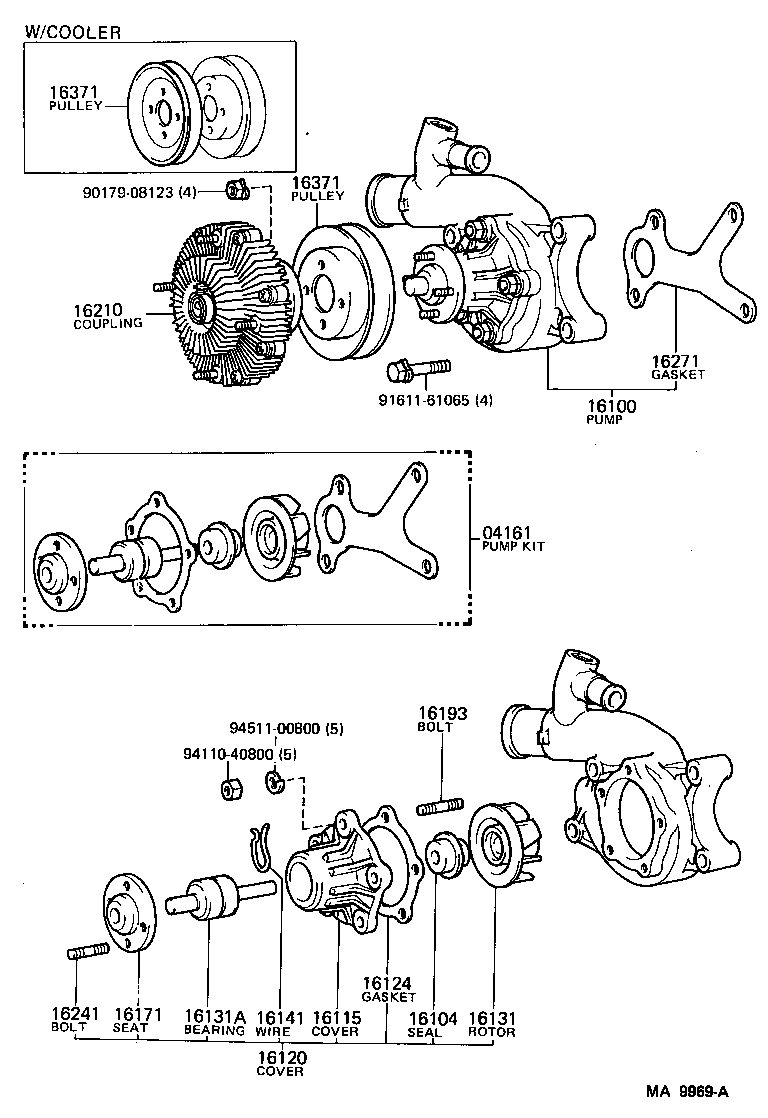

Click highlighted areas on diagram

diagram 04161 16100 16104 16115 16120 16124 16131 16131A 16141 16171 16193 16210 16241 16271 16371 16371 9017908123 9161161065 9411040800 9451100800
Part # Description Qty Price
04161 - PUMP KIT, WATER
04161-68010

12HT,2H..HJ6#

 1
16100 - PUMP ASSY, ENGINE WATER
16100-69035

12HT,2H..HJ6#

 1
16104 - SEAL SET, WATER PUMP
16104-15020

12HT,2H..HJ6#

 1
16104-15020

12HT,2H..HJ6#

 1
16115 - COVER, WATER PUMP
16115-68010

12HT,2H..HJ6#

 1
16120 - COVER ASSY, WATER PUMP
16120-69015

12HT,2H..HJ6#

 1
16124 - GASKET, WATER PUMP COVER
16129-68010

12HT,2H..HJ6#

 1
16131 - ROTOR, WATER PUMP
16131-68010

12HT,2H..HJ6#

 1
16131A - BEARING, WATER PUMP
90369-35016

12HT,2H..HJ6#

 2
16141 - WIRE, WATER PUMP BEARING RETAINING
16141-68010

12HT,2H..HJ6#

 1
16141-68010

12HT,2H..HJ6#

 1
16171 - SEAT, WATER PUMP PULLEY
16171-41170

12HT,2H..HJ6#

 1
16193 - BOLT, STUD(FOR WATER PUMP COVER)
16193-47020

12HT,2H..HJ6#

 5
16210 - COUPLING ASSY, FLUID
16210-68021

2H..HJ60..HRF

 1
16241 - BOLT, STUD(FOR WATER PUMP COUPLING)
90116-08112

12HT,2H..HJ6#

 4
16271 - GASKET, WATER PUMP
16271-68010

12HT,2H..HJ6#

 1
16371 - PULLEY, FAN
16371-68040

2H..HJ60..HRF

AIR CONDITIONER(DUAL,HIGH ROOF)

 1
16371-68010

2H..HJ60..GEN,ME

 1
88452-60011

2H..HJ60..HRF

AIR CONDITIONER (SINGLE) OR (DUAL,HIGH ROOF)

 1
16371 - PULLEY, FAN
16371-68040

2H..HJ60..HRF

AIR CONDITIONER(DUAL,HIGH ROOF)

 1
16371-68010

2H..HJ60..GEN,ME

 1
88452-60011

2H..HJ60..HRF

AIR CONDITIONER (SINGLE) OR (DUAL,HIGH ROOF)

 1
Common parts
90179-08123
91611-61065
94110-40800
94511-00800
