HJ60LG-MN (1987)
Toyota Land Cruiser

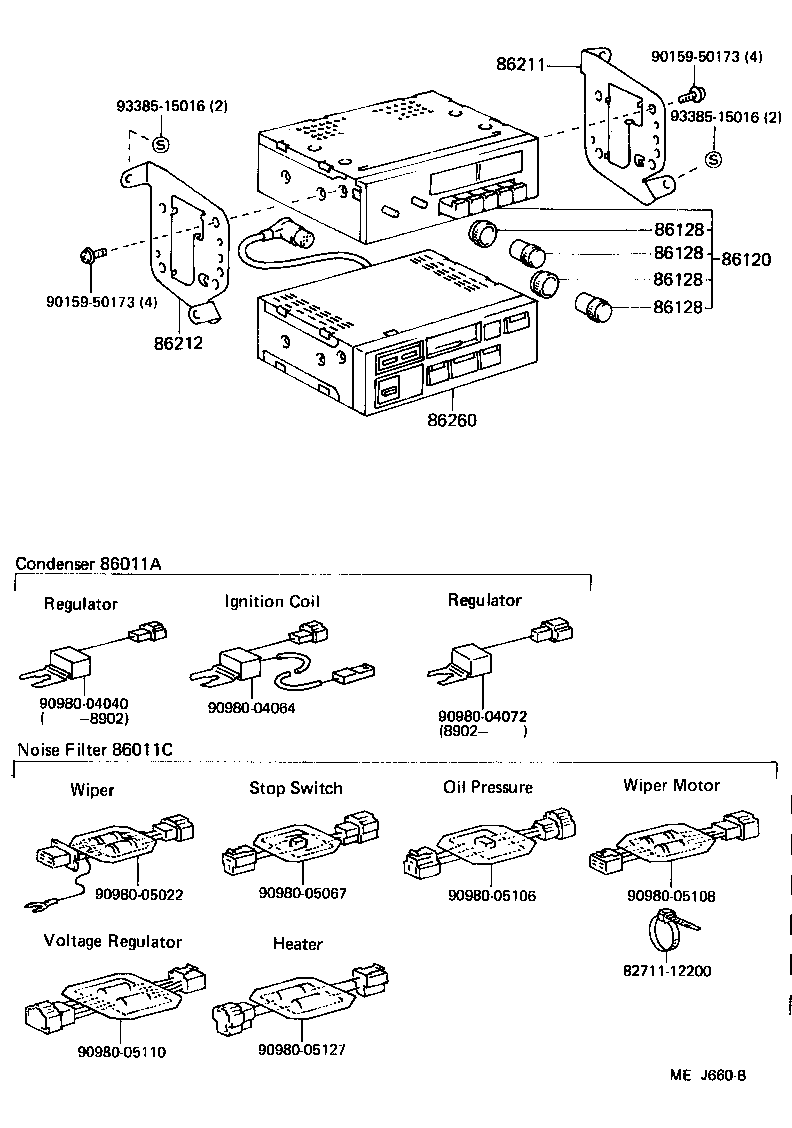

ILLUST NO. 1 OF 4(9001-0907)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 82711-14110 | ||||
| 90149-50032 | ||||
| 90153-50010 | ||||
| 90159-50173 | ||||
| 90463-15003 | ||||
| 90464-00056 | ||||
| 90464-00073 | ||||
| 90980-04040 | ||||
| 90980-05022 | ||||
| 90980-05067 | ||||
| 90980-05086 | ||||
| 90980-05106 | ||||
| 90980-05108 | ||||
| 90980-05110 | ||||
ILLUST NO. 3 OF 4(9001-0907)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 86128-12160 | ||||
| 86128-12180 | ||||
| 86128-16300 | ||||
| 86128-17310 | ||||
| 86128-17330 | ||||
| 86128-20010 | ||||
| 86128-20030 | ||||
| 86128-20050 | ||||
| 86128-22710 | ||||
| 86128-22770 | ||||
ILLUST NO. 4 OF 4(9001-0907)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 86128-02020 | ||||
| 86128-02030 | ||||
| 86128-04010 | ||||
| 86128-17470 | ||||
| 86128-35010 | ||||
| 86128-35050 | ||||
| 86128-37010 | ||||
| 86128-37030 | ||||
| 90011-23001 | ||||
| 90011-23002 | ||||
ILLUST NO. 1 OF 3(8708- )GEN,ME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04040 |
BJ60,HJ60..GEN,ME |
1 | ||
| 90980-04040 |
HJ60..GEN,ME |
1 | ||
| 90980-04072 |
HJ60..GEN,ME |
1 | ||
| 86011C - FILTER, NOISE | ||||
| 90980-05067 |
BJ60,FJ62,HJ6# STOP SWITCH |
1 | ||
| 90980-05110 |
BJ60,FJ62,HJ6# VOLTAGE REGULATOR |
1 | ||
| 90980-05108 |
FJ62,HJ60..SRF..(GX,VX)..GEN |
1 | ||
| 90980-05106 |
BJ60,FJ62,HJ6# OIL PRESSURE |
1 | ||
| 90980-05022 |
BJ60,FJ62,HJ6# WIPER |
1 | ||
| 90980-05127 |
BJ60,FJ62,HJ6# HEATER |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-16460 |
FJ62..GEN,ME;BJ60,HJ60..GEN MATSUSHITA,ID=5108,AM/SW/ 1 SPEAKER |
1 | ||
| 86120-22760 |
FJ62..VX..GEN;BJ60,HJ60..GEN,ME;FJ62..(GX,STD)..(GEN,ME) AM/FM/SW 1 SPEAKER |
1 | ||
| 86120-16530 |
FJ62..STD..ME;FJ62..(GX,STD)..GEN;BJ60,HJ60..(GX,STD)..(GEN,ME) MATSUSHITA,ID=5010,AM 1 SPEAKER |
1 | ||
| 86120-32280 |
FJ62..5F..GEN;BJ60,HJ60..GEN;FJ62..5F..(GX,VX)..ME;FJ62..(4F,4FC)..(GEN,ME) MATSUSHITA,AM/FM MPX 2 SPEAKER |
1 | ||
| 86120-22780 |
FJ62..5F..SRF..VX;HJ60..SRF..LUB..GEN;FJ62..4F..SRF..SOB..GX;FJ62..5F..SRF..GX..GEN;FJ62..(4F,4FC)..SRF..LUB..(GEN,ME) AM/FM MPX 4 SPEAKER |
1 | ||
| 86128 - KNOB, RADIO RECEIVER | ||||
| 86128-20050 |
FJ62..STD..ME;BJ60,FJ62,HJ60..(GX,STD)..GEN TUNE |
1 | ||
| 86128-20010 |
FJ62,HJ60..LUB..GX..GEN;FJ62..SRF..SOB..GX..GEN PWR/VOL |
1 | ||
| 86128-20030 |
FJ62,HJ60..LUB..GEN;FJ62..SRF..SOB..GX..GEN TONE |
1 | ||
| 86128-20030 |
FJ62,HJ60..LUB..GX..GEN;FJ62..SRF..SOB..GX..GEN TONE,SELECT |
1 | ||
| 86128-20030 |
HJ60..LUB..GEN;FJ62..4F..HRF..LUB;FJ62..LHD..(4FC,5F)..HRF;FJ62..SRF..(GX,VX)..(GEN,ME) TONE,SELECT |
2 | ||
| 86128-22790 |
FJ62..5F..SRF..VX;HJ60..SRF..LUB..GEN;FJ62..4F..SRF..SOB..GX;FJ62..5F..SRF..GX..GEN;FJ62..(4F,4FC)..SRF..LUB..(GEN,ME) PWR/VOL |
1 | ||
| 86128-22770 |
FJ62..GEN,ME;BJ60,HJ60..GEN TUNE |
1 | ||
| 86128-22810 |
FJ62..5F..SRF..VX;HJ60..SRF..LUB..GEN;FJ62..4F..SRF..SOB..GX;FJ62..5F..SRF..GX..GEN;FJ62..(4F,4FC)..SRF..LUB..(GEN,ME) TUNE |
1 | ||
| 86128 - KNOB, RADIO RECEIVER | ||||
| 86128-20050 |
FJ62..STD..ME;BJ60,FJ62,HJ60..(GX,STD)..GEN TUNE |
1 | ||
| 86128-20010 |
FJ62,HJ60..LUB..GX..GEN;FJ62..SRF..SOB..GX..GEN PWR/VOL |
1 | ||
| 86128-20030 |
FJ62,HJ60..LUB..GEN;FJ62..SRF..SOB..GX..GEN TONE |
1 | ||
| 86128-20030 |
FJ62,HJ60..LUB..GX..GEN;FJ62..SRF..SOB..GX..GEN TONE,SELECT |
1 | ||
| 86128-20030 |
HJ60..LUB..GEN;FJ62..4F..HRF..LUB;FJ62..LHD..(4FC,5F)..HRF;FJ62..SRF..(GX,VX)..(GEN,ME) TONE,SELECT |
2 | ||
| 86128-22790 |
FJ62..5F..SRF..VX;HJ60..SRF..LUB..GEN;FJ62..4F..SRF..SOB..GX;FJ62..5F..SRF..GX..GEN;FJ62..(4F,4FC)..SRF..LUB..(GEN,ME) PWR/VOL |
1 | ||
| 86128-22770 |
FJ62..GEN,ME;BJ60,HJ60..GEN TUNE |
1 | ||
| 86128-22810 |
FJ62..5F..SRF..VX;HJ60..SRF..LUB..GEN;FJ62..4F..SRF..SOB..GX;FJ62..5F..SRF..GX..GEN;FJ62..(4F,4FC)..SRF..LUB..(GEN,ME) TUNE |
1 | ||
| 86128 - KNOB, RADIO RECEIVER | ||||
| 86128-20050 |
FJ62..STD..ME;BJ60,FJ62,HJ60..(GX,STD)..GEN TUNE |
1 | ||
| 86128-20010 |
FJ62,HJ60..LUB..GX..GEN;FJ62..SRF..SOB..GX..GEN PWR/VOL |
1 | ||
| 86128-20030 |
FJ62,HJ60..LUB..GEN;FJ62..SRF..SOB..GX..GEN TONE |
1 | ||
| 86128-20030 |
FJ62,HJ60..LUB..GX..GEN;FJ62..SRF..SOB..GX..GEN TONE,SELECT |
1 | ||
| 86128-20030 |
HJ60..LUB..GEN;FJ62..4F..HRF..LUB;FJ62..LHD..(4FC,5F)..HRF;FJ62..SRF..(GX,VX)..(GEN,ME) TONE,SELECT |
2 | ||
| 86128-22790 |
FJ62..5F..SRF..VX;HJ60..SRF..LUB..GEN;FJ62..4F..SRF..SOB..GX;FJ62..5F..SRF..GX..GEN;FJ62..(4F,4FC)..SRF..LUB..(GEN,ME) PWR/VOL |
1 | ||
| 86128-22770 |
FJ62..GEN,ME;BJ60,HJ60..GEN TUNE |
1 | ||
| 86128-22810 |
FJ62..5F..SRF..VX;HJ60..SRF..LUB..GEN;FJ62..4F..SRF..SOB..GX;FJ62..5F..SRF..GX..GEN;FJ62..(4F,4FC)..SRF..LUB..(GEN,ME) TUNE |
1 | ||
| 86128 - KNOB, RADIO RECEIVER | ||||
| 86128-20050 |
FJ62..STD..ME;BJ60,FJ62,HJ60..(GX,STD)..GEN TUNE |
1 | ||
| 86128-20010 |
FJ62,HJ60..LUB..GX..GEN;FJ62..SRF..SOB..GX..GEN PWR/VOL |
1 | ||
| 86128-20030 |
FJ62,HJ60..LUB..GEN;FJ62..SRF..SOB..GX..GEN TONE |
1 | ||
| 86128-20030 |
FJ62,HJ60..LUB..GX..GEN;FJ62..SRF..SOB..GX..GEN TONE,SELECT |
1 | ||
| 86128-20030 |
HJ60..LUB..GEN;FJ62..4F..HRF..LUB;FJ62..LHD..(4FC,5F)..HRF;FJ62..SRF..(GX,VX)..(GEN,ME) TONE,SELECT |
2 | ||
| 86128-22790 |
FJ62..5F..SRF..VX;HJ60..SRF..LUB..GEN;FJ62..4F..SRF..SOB..GX;FJ62..5F..SRF..GX..GEN;FJ62..(4F,4FC)..SRF..LUB..(GEN,ME) PWR/VOL |
1 | ||
| 86128-22770 |
FJ62..GEN,ME;BJ60,HJ60..GEN TUNE |
1 | ||
| 86128-22810 |
FJ62..5F..SRF..VX;HJ60..SRF..LUB..GEN;FJ62..4F..SRF..SOB..GX;FJ62..5F..SRF..GX..GEN;FJ62..(4F,4FC)..SRF..LUB..(GEN,ME) TUNE |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-90A06 |
BJ60,FJ62,HJ6# |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-90A03 |
BJ60,FJ62,HJ6# |
1 | ||
| 86260 - TAPE PLAYER ASSY | ||||
| 86260-30250 |
FJ62..5F..GEN;BJ60,HJ60..GEN;FJ62..5F..(GX,VX)..ME;FJ62..(4F,4FC)..(GEN,ME) |
1 | ||
| 86260-22160 |
FJ62..SOB..VX;HJ60..LUB..GEN;FJ62..5F..GX..GEN;FJ62..5F..LUB..VX..ME;FJ62..4F..SRF..SOB..GX;FJ62..(4F,4FC)..LUB..(GEN,ME) |
1 | ||
| 86260-17011 |
BJ60;FJ62..STD..ME;FJ62,HJ60..GEN AUTO REVERSE W(AMPLIFIER) |
1 | ||
| 86260-89105 |
FJ62..VX..GEN;HJ60..LUB..GEN;HJ60..RHD..STD..GEN;BJ60,FJ62..(GX,STD)..(GEN,ME) AUTO REVERSE |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90159-50173 | ||||
| 90980-04040 | ||||
| 90980-04064 | ||||
| 90980-04072 | ||||
| 90980-05022 | ||||
| 90980-05067 | ||||
| 90980-05106 | ||||
| 90980-05108 | ||||
| 90980-05110 | ||||
| 90980-05127 | ||||
| 93385-15016 | ||||
ILLUST NO. 2 OF 3(8708- )FJ62,HJ6#..GX,VX
REAR AMPLIFIER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-60070 | ||||
| 91666-40625 | ||||
| 93560-54014 | ||||
| Linked diagrams | ||||
| 8602 | ||||
ILLUST NO. 3 OF 3(8708- )
RADIO KNOB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 86120-16460 | ||||
| 86120-16530 | ||||
| 86120-22760 | ||||
| 86120-22780 | ||||
| 86128-20010 | ||||
| 86128-20030 | ||||
| 86128-20050 | ||||
| 86128-22770 | ||||
| 86128-22790 | ||||
| 86128-22810 | ||||
ILLUST NO. 3 OF 3(8708- )
RADIO KNOB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 86120-32270 | ||||
| 86120-32280 | ||||
| 86120-90A13 | ||||
| 86120-90A14 | ||||
| 86128-14170 | ||||
| 86128-14190 | ||||
| 86128-17070 | ||||
| 86128-20010 | ||||
| 86128-20030 | ||||
| 86128-22690 | ||||
| 86128-22770 | ||||
| 86128-22850 | ||||
