HJ60LG-MN (1987)
Toyota Land Cruiser
(9001-0907)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 93568-55012 | ||||
| Linked diagrams | ||||
| 3312 | ||||
| 5551 | ||||
| 8202 | ||||
| 8712 | ||||
(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

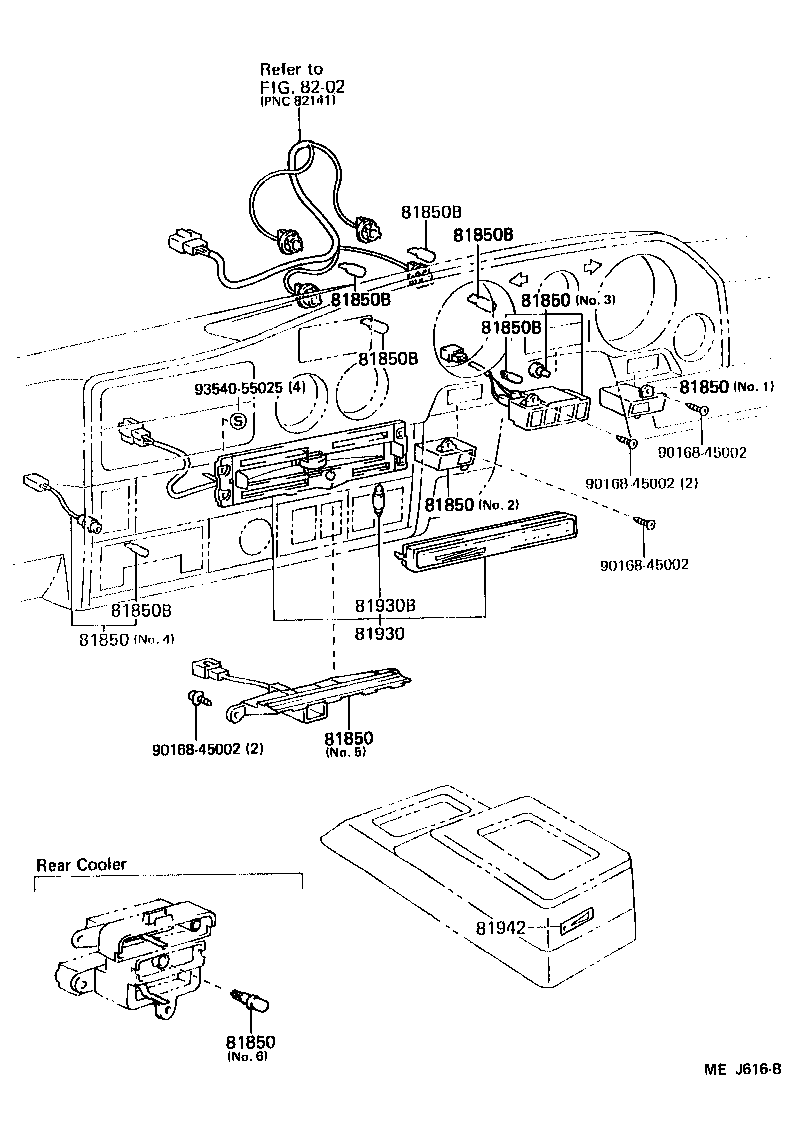

| 81850 - LAMP ASSY, INDICATOR | ||||
| 81850-90A23 |
BJ60,HJ60..LHD NO.1 |
1 | ||
| 81850-90A19 |
HJ60..LUB;HJ60..RHD..STD;FJ62,HJ61..ARL,GEN W(DIFFERENTIAL LOCK) |
1 | ||
| 81850-16230 |
HJ60..RHD..GEN;FJ62..5F..SRF..VX;HJ60..LHD..4F..GX;FJ62..SRF..SOB..GEN;HJ6#..(4FC,5F)..SRF..LUB;FJ62..(4F,4FC)..SRF..LUB;FJ62..5F..SRF..LUB..(ARL,GEN) 12V 1.4W,GREEN,NO.6 |
1 | ||
| 81850-90A26 |
HJ60..LHD W(SEDIMENTER),NO.2 |
1 | ||
| 81850-90A31 |
HJ60..LUB..GX;FJ62..LHD..4F..GX;FJ62..5F..HRF..GEN;FJ62,HJ61..RHD..GX;FJ62..5F..SRF..SOB..GX |
1 | ||
| 81850-90A25 |
BJ60,FJ62,HJ60..LHD NO.2 |
1 | ||
| 81850-90A20 |
BJ60,FJ62,HJ6#..ARL,GEN W(AIR CLEANER WARNING) |
1 | ||
| 81850-90A21 |
HJ60..LUB;HJ60..RHD..STD;FJ62,HJ61..ARL,GEN W(DIFFERENTIAL LOCK & AIR CLEANER WARNING) |
1 | ||
| 81850 - LAMP ASSY, INDICATOR | ||||
| 81850-90A23 |
BJ60,HJ60..LHD NO.1 |
1 | ||
| 81850-90A19 |
HJ60..LUB;HJ60..RHD..STD;FJ62,HJ61..ARL,GEN W(DIFFERENTIAL LOCK) |
1 | ||
| 81850-16230 |
HJ60..RHD..GEN;FJ62..5F..SRF..VX;HJ60..LHD..4F..GX;FJ62..SRF..SOB..GEN;HJ6#..(4FC,5F)..SRF..LUB;FJ62..(4F,4FC)..SRF..LUB;FJ62..5F..SRF..LUB..(ARL,GEN) 12V 1.4W,GREEN,NO.6 |
1 | ||
| 81850-90A26 |
HJ60..LHD W(SEDIMENTER),NO.2 |
1 | ||
| 81850-90A31 |
HJ60..LUB..GX;FJ62..LHD..4F..GX;FJ62..5F..HRF..GEN;FJ62,HJ61..RHD..GX;FJ62..5F..SRF..SOB..GX |
1 | ||
| 81850-90A25 |
BJ60,FJ62,HJ60..LHD NO.2 |
1 | ||
| 81850-90A20 |
BJ60,FJ62,HJ6#..ARL,GEN W(AIR CLEANER WARNING) |
1 | ||
| 81850-90A21 |
HJ60..LUB;HJ60..RHD..STD;FJ62,HJ61..ARL,GEN W(DIFFERENTIAL LOCK & AIR CLEANER WARNING) |
1 | ||
| 81850 - LAMP ASSY, INDICATOR | ||||
| 81850-90A23 |
BJ60,HJ60..LHD NO.1 |
1 | ||
| 81850-90A19 |
HJ60..LUB;HJ60..RHD..STD;FJ62,HJ61..ARL,GEN W(DIFFERENTIAL LOCK) |
1 | ||
| 81850-16230 |
HJ60..RHD..GEN;FJ62..5F..SRF..VX;HJ60..LHD..4F..GX;FJ62..SRF..SOB..GEN;HJ6#..(4FC,5F)..SRF..LUB;FJ62..(4F,4FC)..SRF..LUB;FJ62..5F..SRF..LUB..(ARL,GEN) 12V 1.4W,GREEN,NO.6 |
1 | ||
| 81850-90A26 |
HJ60..LHD W(SEDIMENTER),NO.2 |
1 | ||
| 81850-90A31 |
HJ60..LUB..GX;FJ62..LHD..4F..GX;FJ62..5F..HRF..GEN;FJ62,HJ61..RHD..GX;FJ62..5F..SRF..SOB..GX |
1 | ||
| 81850-90A25 |
BJ60,FJ62,HJ60..LHD NO.2 |
1 | ||
| 81850-90A20 |
BJ60,FJ62,HJ6#..ARL,GEN W(AIR CLEANER WARNING) |
1 | ||
| 81850-90A21 |
HJ60..LUB;HJ60..RHD..STD;FJ62,HJ61..ARL,GEN W(DIFFERENTIAL LOCK & AIR CLEANER WARNING) |
1 | ||
| 81850 - LAMP ASSY, INDICATOR | ||||
| 81850-90A23 |
BJ60,HJ60..LHD NO.1 |
1 | ||
| 81850-90A19 |
HJ60..LUB;HJ60..RHD..STD;FJ62,HJ61..ARL,GEN W(DIFFERENTIAL LOCK) |
1 | ||
| 81850-16230 |
HJ60..RHD..GEN;FJ62..5F..SRF..VX;HJ60..LHD..4F..GX;FJ62..SRF..SOB..GEN;HJ6#..(4FC,5F)..SRF..LUB;FJ62..(4F,4FC)..SRF..LUB;FJ62..5F..SRF..LUB..(ARL,GEN) 12V 1.4W,GREEN,NO.6 |
1 | ||
| 81850-90A26 |
HJ60..LHD W(SEDIMENTER),NO.2 |
1 | ||
| 81850-90A31 |
HJ60..LUB..GX;FJ62..LHD..4F..GX;FJ62..5F..HRF..GEN;FJ62,HJ61..RHD..GX;FJ62..5F..SRF..SOB..GX |
1 | ||
| 81850-90A25 |
BJ60,FJ62,HJ60..LHD NO.2 |
1 | ||
| 81850-90A20 |
BJ60,FJ62,HJ6#..ARL,GEN W(AIR CLEANER WARNING) |
1 | ||
| 81850-90A21 |
HJ60..LUB;HJ60..RHD..STD;FJ62,HJ61..ARL,GEN W(DIFFERENTIAL LOCK & AIR CLEANER WARNING) |
1 | ||
| 81850 - LAMP ASSY, INDICATOR | ||||
| 81850-90A23 |
BJ60,HJ60..LHD NO.1 |
1 | ||
| 81850-90A19 |
HJ60..LUB;HJ60..RHD..STD;FJ62,HJ61..ARL,GEN W(DIFFERENTIAL LOCK) |
1 | ||
| 81850-16230 |
HJ60..RHD..GEN;FJ62..5F..SRF..VX;HJ60..LHD..4F..GX;FJ62..SRF..SOB..GEN;HJ6#..(4FC,5F)..SRF..LUB;FJ62..(4F,4FC)..SRF..LUB;FJ62..5F..SRF..LUB..(ARL,GEN) 12V 1.4W,GREEN,NO.6 |
1 | ||
| 81850-90A26 |
HJ60..LHD W(SEDIMENTER),NO.2 |
1 | ||
| 81850-90A31 |
HJ60..LUB..GX;FJ62..LHD..4F..GX;FJ62..5F..HRF..GEN;FJ62,HJ61..RHD..GX;FJ62..5F..SRF..SOB..GX |
1 | ||
| 81850-90A25 |
BJ60,FJ62,HJ60..LHD NO.2 |
1 | ||
| 81850-90A20 |
BJ60,FJ62,HJ6#..ARL,GEN W(AIR CLEANER WARNING) |
1 | ||
| 81850-90A21 |
HJ60..LUB;HJ60..RHD..STD;FJ62,HJ61..ARL,GEN W(DIFFERENTIAL LOCK & AIR CLEANER WARNING) |
1 | ||
| 81850 - LAMP ASSY, INDICATOR | ||||
| 81850-90A23 |
BJ60,HJ60..LHD NO.1 |
1 | ||
| 81850-90A19 |
HJ60..LUB;HJ60..RHD..STD;FJ62,HJ61..ARL,GEN W(DIFFERENTIAL LOCK) |
1 | ||
| 81850-16230 |
HJ60..RHD..GEN;FJ62..5F..SRF..VX;HJ60..LHD..4F..GX;FJ62..SRF..SOB..GEN;HJ6#..(4FC,5F)..SRF..LUB;FJ62..(4F,4FC)..SRF..LUB;FJ62..5F..SRF..LUB..(ARL,GEN) 12V 1.4W,GREEN,NO.6 |
1 | ||
| 81850-90A26 |
HJ60..LHD W(SEDIMENTER),NO.2 |
1 | ||
| 81850-90A31 |
HJ60..LUB..GX;FJ62..LHD..4F..GX;FJ62..5F..HRF..GEN;FJ62,HJ61..RHD..GX;FJ62..5F..SRF..SOB..GX |
1 | ||
| 81850-90A25 |
BJ60,FJ62,HJ60..LHD NO.2 |
1 | ||
| 81850-90A20 |
BJ60,FJ62,HJ6#..ARL,GEN W(AIR CLEANER WARNING) |
1 | ||
| 81850-90A21 |
HJ60..LUB;HJ60..RHD..STD;FJ62,HJ61..ARL,GEN W(DIFFERENTIAL LOCK & AIR CLEANER WARNING) |
1 | ||
| 81850B - BULB, INDICATOR LAMP | ||||
| 99132-12034 |
BJ60,FJ62,HJ6#..ARL,GEN 12V 3.4W |
1 | ||
| 99132-12034 |
BJ60,FJ62;HJ60..GEN 12V 3.4W |
4 | ||
| 99132-12034 |
HJ60..GEN,ME 12V 3.4W |
5 | ||
| 81850B - BULB, INDICATOR LAMP | ||||
| 99132-12034 |
BJ60,FJ62,HJ6#..ARL,GEN 12V 3.4W |
1 | ||
| 99132-12034 |
BJ60,FJ62;HJ60..GEN 12V 3.4W |
4 | ||
| 99132-12034 |
HJ60..GEN,ME 12V 3.4W |
5 | ||
| 81850B - BULB, INDICATOR LAMP | ||||
| 99132-12034 |
BJ60,FJ62,HJ6#..ARL,GEN 12V 3.4W |
1 | ||
| 99132-12034 |
BJ60,FJ62;HJ60..GEN 12V 3.4W |
4 | ||
| 99132-12034 |
HJ60..GEN,ME 12V 3.4W |
5 | ||
| 81850B - BULB, INDICATOR LAMP | ||||
| 99132-12034 |
BJ60,FJ62,HJ6#..ARL,GEN 12V 3.4W |
1 | ||
| 99132-12034 |
BJ60,FJ62;HJ60..GEN 12V 3.4W |
4 | ||
| 99132-12034 |
HJ60..GEN,ME 12V 3.4W |
5 | ||
| 81850B - BULB, INDICATOR LAMP | ||||
| 99132-12034 |
BJ60,FJ62,HJ6#..ARL,GEN 12V 3.4W |
1 | ||
| 99132-12034 |
BJ60,FJ62;HJ60..GEN 12V 3.4W |
4 | ||
| 99132-12034 |
HJ60..GEN,ME 12V 3.4W |
5 | ||
| 81850B - BULB, INDICATOR LAMP | ||||
| 99132-12034 |
BJ60,FJ62,HJ6#..ARL,GEN 12V 3.4W |
1 | ||
| 99132-12034 |
BJ60,FJ62;HJ60..GEN 12V 3.4W |
4 | ||
| 99132-12034 |
HJ60..GEN,ME 12V 3.4W |
5 | ||
| 81930 - LAMP ASSY, HEATER CONTROL INDICATOR, NO.1 | ||||
| 81930-90A10 |
HJ60..LHD..LUB;FJ62..(GX,VX)..ME |
1 | ||
| 81930B - BULB, HEATER CONTROL INDICATOR LAMP | ||||
| 90981-11010 |
BJ60,FJ62,HJ6# 12V 2W |
1 | ||
| 81942 - SHEET, HEATER CONTROL NAME | ||||
| 86995-90A02 |
BJ60,FJ62,HJ60..GEN;FJ62,HJ61..HRF..ARL |
1 | ||
| Common parts | ||||
| 90168-45002 | ||||
| 93540-55025 | ||||
| Linked diagrams | ||||
| 8202 | ||||
