HJ60LG-MN (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 2H
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )HJ60..LHD

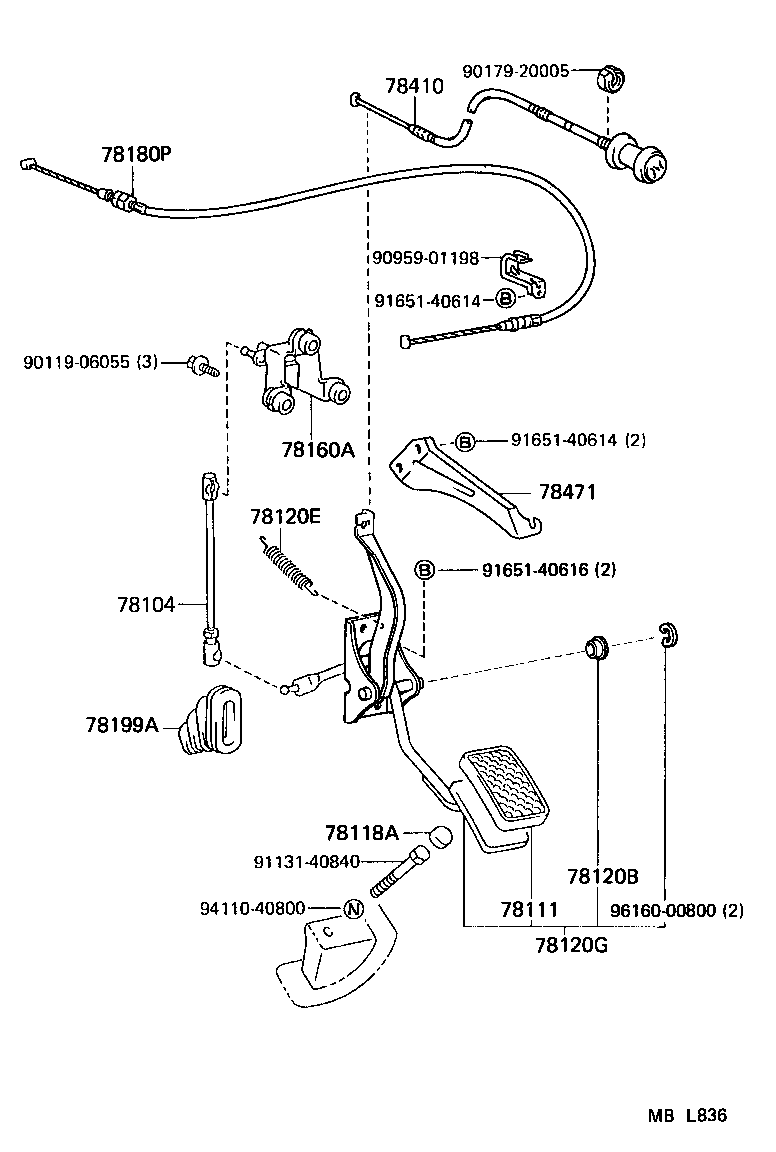

Click highlighted areas on diagram

diagram 78104 78111 78118A 78120B 78120E 78120G 78160A 78180P 78199A 78410 78471 9011906055 9017920005 9095901198 9113140840 9165140614 9165140614 9165140616 9411040800 9616000800
Part # Description Qty Price
78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78104-90A01

BJ60,FJ62,HJ60..LHD

 1
78111 - PEDAL, ACCELERATOR
78111-95110

BJ60,FJ62,HJ6#

 1
78118A - STOPPER, ACCELERATOR PEDAL
78118-90K00

BJ60,FJ62,HJ6#

 1
78120B - BUSH (FOR ACCELERATOR LINK ROD)
90386-10138

BJ60,FJ62,HJ60..LHD

 2
78120E - SPRING, TENSION (FOR ACCELERATOR LINK ROD)
90506-12262

BJ60,FJ62,HJ60..LHD

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-90A06

BJ60,FJ62,HJ60..LHD

 1
78160A - BELLCRANK ASSY, ACCEL CONTROL W/BRACKET
78160-90A02

BJ60,FJ62,HJ60..LHD

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-90A13

HJ60..LHD

 1
78199A - BOOT, ACCELERATOR PEDAL ROD
78199-90352

BJ60,FJ62,HJ60..LHD

 1
78410 - CABLE ASSY, THROTTLE CONTROL
78410-90A02

BJ60,FJ62,HJ60..LHD

 1
78410-90A02

BJ60,HJ60..LHD

 1
78471 - BRACKET, THROTTLE CONTROL CABLE
78471-90A00

BJ60,FJ62,HJ60..LHD

 1
Common parts
90119-06055
90179-20005
90959-01198
91131-40840
91651-40614
91651-40616
94110-40800
96160-00800
