HJ60LG-MN (1987)
Toyota Land Cruiser
Production
Aug 1987
-
Jan 1990
Engine
2H
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )

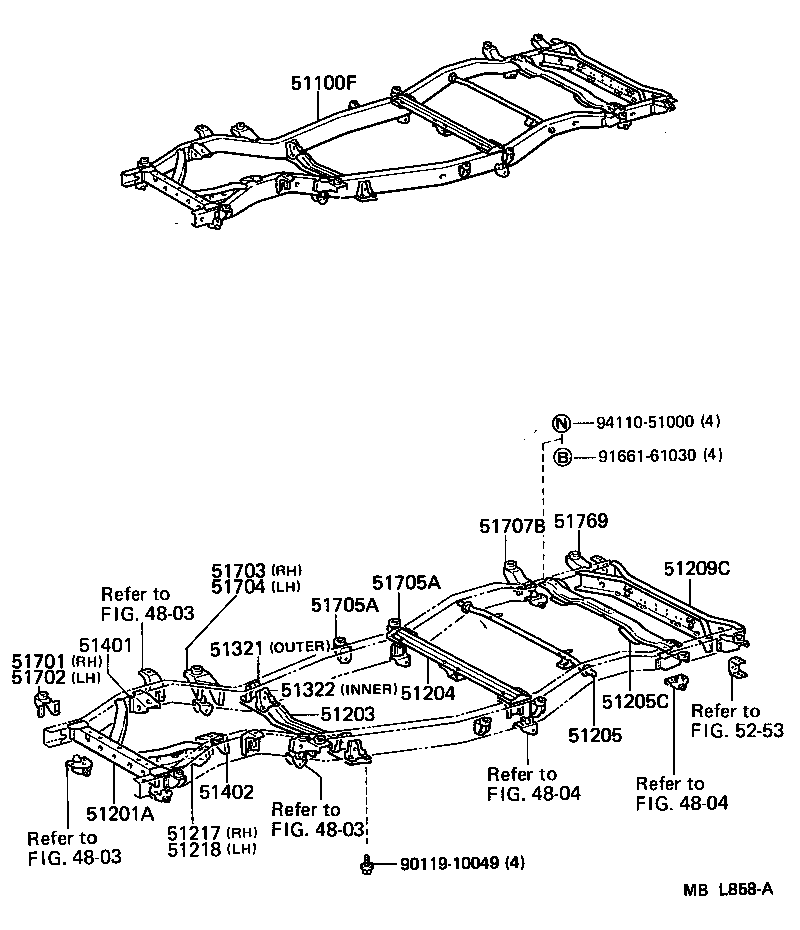

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51100F - FRAME SUB-ASSY | ||||
| 51001-60604 |
HJ60..LHD |
1 | ||
| 51001-60663 |
HJ60..LHD W(WINCH) |
1 | ||
| 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT | ||||
| 51201-60080 |
BJ60,FJ62,HJ6# |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51202-60073 |
BJ60,FJ62,HJ6#..MTM |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-60102 |
BJ60,FJ62,HJ6# |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51204-60052 |
BJ60,FJ62,HJ6# |
1 | ||
| 51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5 | ||||
| 51205-60010 |
BJ60,FJ62,HJ6# |
1 | ||
| 51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR | ||||
| 51209-60090 |
BJ60,FJ62,HJ6# |
1 | ||
| 51217 - REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH | ||||
| 51217-60011 |
BJ60,FJ62,HJ6# |
1 | ||
| 51218 - REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH | ||||
| 51218-60011 |
BJ60,FJ62,HJ6# |
1 | ||
| 51321 - GUSSET, CROSSMEMBER, NO.2 RH | ||||
| 51321-60011 |
BJ60,FJ62,HJ6#..MTM |
2 | ||
| 51322 - GUSSET, CROSSMEMBER, NO.2 LH | ||||
| 51322-60011 |
BJ60,FJ62,HJ6#..MTM |
2 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51401-60021 |
HJ6# |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51422-60052 |
HJ6# |
1 | ||
| 51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH | ||||
| 51701-60051 |
BJ60,FJ62,HJ6# |
1 | ||
| 51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH | ||||
| 51702-60020 |
BJ60,FJ62,HJ6# |
1 | ||
| 51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH | ||||
| 51703-60020 |
BJ60,FJ62,HJ6# |
1 | ||
| 51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH | ||||
| 51704-60010 |
BJ60,FJ62,HJ6# |
1 | ||
| 51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 | ||||
| 51705-60062 |
BJ60,FJ62,HJ6# FRONT |
2 | ||
| 51705-60110 |
BJ60,FJ62,HJ6# REAR |
2 | ||
| 51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 | ||||
| 51705-60062 |
BJ60,FJ62,HJ6# FRONT |
2 | ||
| 51705-60110 |
BJ60,FJ62,HJ6# REAR |
2 | ||
| 51707B - BRACKET SUB-ASSY, CAB MOUNTING, NO.4 | ||||
| 51707-60030 |
BJ60,FJ62,HJ6# |
2 | ||
| 51769 - BRACKET, BODY REAR END MOUNTING | ||||
| 51709-60020 |
BJ60,FJ62,HJ6# |
2 | ||
| Common parts | ||||
| 90119-10049 | ||||
| 91661-61030 | ||||
| 94110-51000 | ||||
| Linked diagrams | ||||
| 4803 | ||||
| 4804 | ||||
| 5253 | ||||
