HJ60LG-ME (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 2H
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001-0701)ARL,GCC,GEN

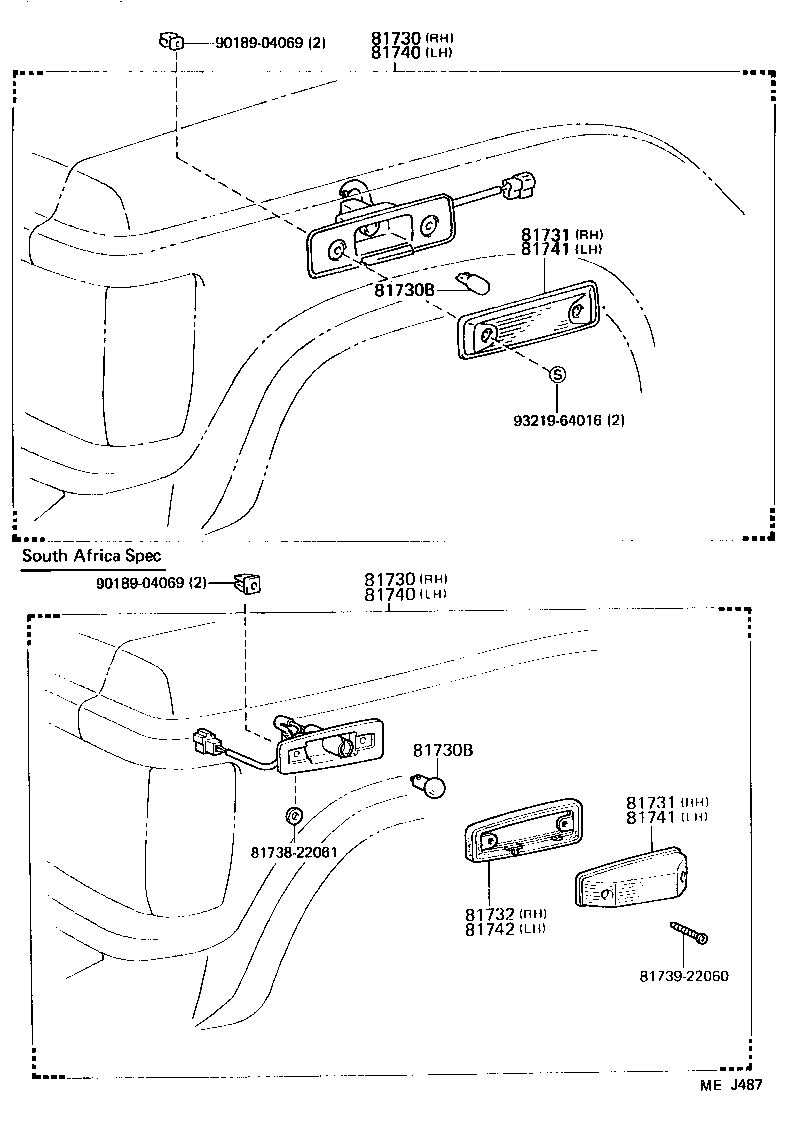

Click highlighted areas on diagram

diagram 6477790A00 81730 81730 81730B 81731 81732 81735 81740 81740 81741 81742
Part # Description Qty Price
Common parts
64777-90A00

(8708- )

Click highlighted areas on diagram

diagram 81730 81730 81730B 81730B 81731 81731 81732 8173822061 8173922060 81740 81740 81741 81741 81742 9018904069 9018904069 9321964016
Part # Description Qty Price
81730 - LAMP ASSY, SIDE TURN SIGNAL, RH
81730-14090

BJ60,FJ62,HJ6#

 1
81730 - LAMP ASSY, SIDE TURN SIGNAL, RH
81730-14090

BJ60,FJ62,HJ6#

 1
81730B - BULB (FOR SIDE TURN SIGNAL LAMP)
99132-12050

BJ60,FJ62,HJ6#

12V 5W

 2
81730B - BULB (FOR SIDE TURN SIGNAL LAMP)
99132-12050

BJ60,FJ62,HJ6#

12V 5W

 2
81731 - LENS, SIDE TURN SIGNAL LAMP, RH
81731-14090

BJ60,FJ62,HJ6#

 1
81731 - LENS, SIDE TURN SIGNAL LAMP, RH
81731-14090

BJ60,FJ62,HJ6#

 1
81740 - LAMP ASSY, SIDE TURN SIGNAL, LH
81740-14090

BJ60,FJ62,HJ6#

 1
81740 - LAMP ASSY, SIDE TURN SIGNAL, LH
81740-14090

BJ60,FJ62,HJ6#

 1
81741 - LENS, SIDE TURN SIGNAL LAMP, LH
81741-14090

BJ60,FJ62,HJ6#

 1
81741 - LENS, SIDE TURN SIGNAL LAMP, LH
81741-14090

BJ60,FJ62,HJ6#

 1
Common parts
81738-22061
81739-22060
90189-04069
93219-64016
