HJ47LP-K3 (1980)
Toyota Land Cruiser
Production
Aug 1980
-
Oct 1984
Engine
2H
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8008- )HJ47

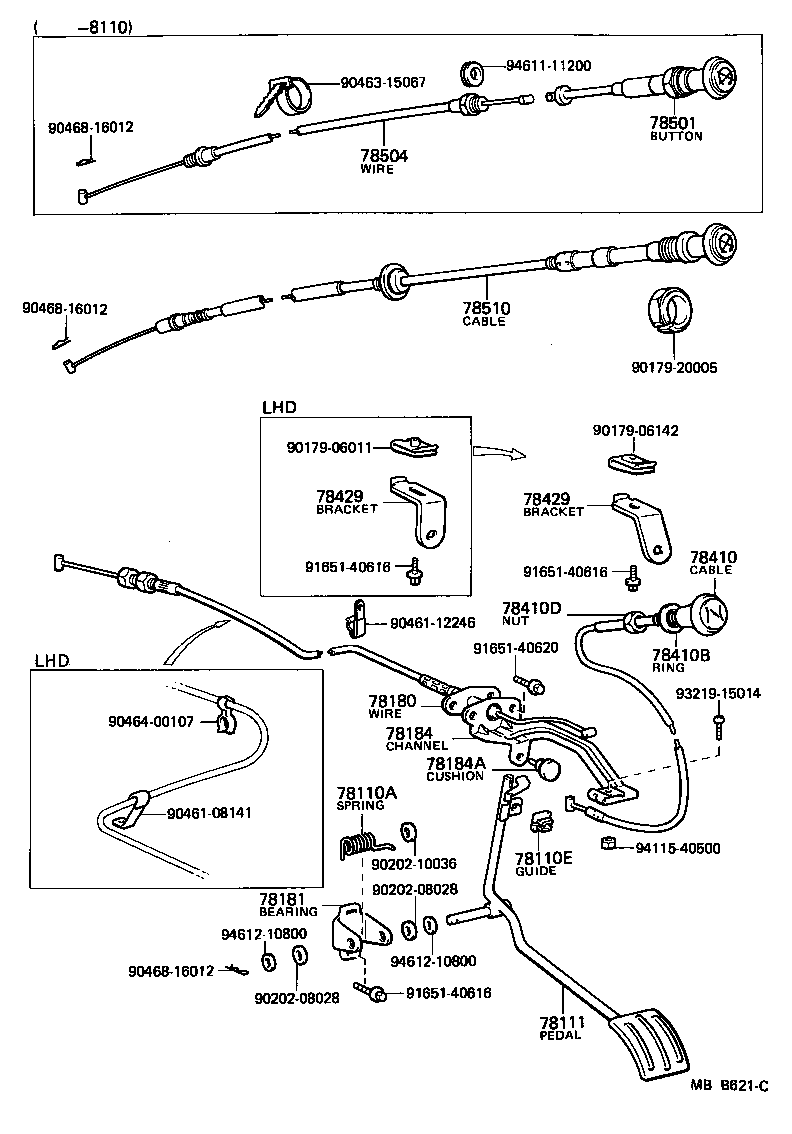

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78110E - GUIDE, THROTTLE WIRE | ||||
| 78449-90300 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78101-90309 |
BJ4#,HJ47..LHD |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-90802 |
HJ47..LHD |
1 | ||
| 78180-90806 |
HJ47..LHD |
1 | ||
| 78181 - BEARING, ACCELERATOR PEDAL ROD SUPPORT | ||||
| 78104-90302 |
BJ4#,HJ47..LHD |
1 | ||
| 78184 - CHANNEL, ACCELERATOR IDLE ADJUSTING STOPPER | ||||
| 78441-90303 |
BJ4#,HJ47..LHD |
1 | ||
| 78184A - CUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL) | ||||
| 90541-06008 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 78410 - CABLE ASSY, THROTTLE CONTROL | ||||
| 78410-90800 |
BJ4#,FJ4#,HJ47..EUR,GEN |
1 | ||
| 78410B - RING, THROTTLE | ||||
| 78311-90351 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 78410D - NUT, THROTTLE | ||||
| 90170-11002 |
BJ4#,FJ4#,HJ47 |
1 | ||
| 78429 - BRACKET, THROTTLE ROD | ||||
| 78442-90301 |
FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F;BJ4#,FJ43,45,HJ47..LHD |
1 | ||
| 78429 - BRACKET, THROTTLE ROD | ||||
| 78442-90301 |
FJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F;BJ4#,FJ43,45,HJ47..LHD |
1 | ||
| 78501 - BUTTON SUB-ASSY, STOP | ||||
| 78501-90800 |
BJ4#,HJ47..GEN |
1 | ||
| 78504 - WIRE SUB-ASSY, STOP FLEXIBLE | ||||
| 78504-90305 |
HJ47..GEN |
1 | ||
| Common parts | ||||
| 90179-06011 | ||||
| 90179-06142 | ||||
| 90179-20005 | ||||
| 90202-08028 | ||||
| 90202-10036 | ||||
| 90461-08141 | ||||
| 90461-12246 | ||||
| 90463-15067 | ||||
| 90464-00107 | ||||
| 90468-16012 | ||||
| 91651-40616 | ||||
| 91651-40620 | ||||
| 93219-15014 | ||||
| 94115-40500 | ||||
| 94611-11200 | ||||
| 94612-10800 | ||||
