HJ45P-B (1972)

Toyota Land Cruiser

Production Apr 1972 - Jan 1975
Engine H
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(9001-9908)LHD..HT,SOT ; (9908-0701)FZJ70,71,73,74,75,HZJ71..LHD..CBU ; (0701-0808)

Click highlighted areas on diagram

BENCH

diagram 71013S 71014S 71071S 71072S 71073S 71074S 71133 71148 7138960040 71396A 71410S 71420S 71430S 71440S 71511S 71512S 71521 71537A 71551S 71552S 71610S 71620S 71705 71706 71811C 71812C 71910A 71931 71931 72053C 72053D 72054A 72054B 72110A 72110A 72110E 72110F 72120 72130A 72130A 72137A 72137A 72137B 72138B 72140A 72157A 72158 72205D 72206B 72210B 72510A 72510B 72510D 72520D 72570B 72580A 73080A 73810A 73847B 74841B 74842B 74843A 74844A 9011908079 9011908079 9011908079 9011908301 9011908301 9011910560 9011910619 9011910708 9011910708 9011910896 9011910896 9011910896 9015940206 9015940269 9015940269 9016740044 9016740044 9016840011 9016840036 9016840049 9020214007 9038612041 9038612051 9038708053 9038908104 9046707032 9046804006 9046804006 9052308001 9056218094 9338315012 9338315012 9338315012 9338315012
Part # Description Qty Price
Common parts
71389-60040
90119-08079
90119-08301
90119-10560
90119-10619
90119-10708
90119-10896
90159-40206
90159-40269
90167-40044
90168-40011
90168-40036
90168-40049
90202-14007
90386-12041
90386-12051
90387-08053
90389-08104
90467-07032
90468-04006
90523-08001
90562-18094
93383-15012

ILLUST NO. 1 OF 3(9001-0701)RHD..PIC

Click highlighted areas on diagram

BENCH

diagram 71013S 71014S 71071S 71072S 71073S 71074S 71133 71148 7138960040 71410S 71420S 71430S 71440S 71511S 71512S 71521 71537A 71551S 71552S 71587 71610S 71620S 71811C 71812C 71910A 71931 71931 72053C 72053D 72054A 72054B 72110A 72120 72130A 72140A 72205D 72206B 72510A 72510B 72510D 72520D 72570B 72580A 73183B 9011908079 9011908301 9011908301 9011910560 9011910560 9011910708 9011910708 9011910896 9011910896 9016740044 9016740044 9016840036 9016840049 9020214007 9038612041 9038612051 9038708053 9038908104 9046707032 9052308001 9054113006 9056218094 9321955016 9321955016 9331215016 9331215016 9338315012 9338315012 9338315012 9338315012
Part # Description Qty Price
Common parts
71389-60040
90119-08079
90119-08301
90119-10560
90119-10708
90119-10896
90167-40044
90168-40036
90168-40049
90202-14007
90386-12041
90386-12051
90387-08053
90389-08104
90467-07032
90523-08001
90541-13006
90562-18094
93219-55016
93312-15016
93383-15012

ILLUST NO. 2 OF 3(9001-0701)FJ70,73,FZJ70,71,73,74,HZJ70,71,73,KZJ70,LJ70,72,PZJ70,73,RJ70 ; (0701-0

Click highlighted areas on diagram

diagram 58048A 71015 71017A 71033 71075B 71077B 71324A 71382A 71611 71651 71651B 71663 71671 71931A 71931A 71955A 71955A 72603 72604 72607 72645 72660A 72660A 72660E 72660E 72665 72666 72690A 72694 78910 78920 78935 78935 78935 78935 78950 79929 8271112120 9010511007 9011910035 9011910037 9011910101 9011910493 9015960108 9016840011 9016840011 9016840011 9018308003 9018308003 9020208039 9020208039 9020208039 9020208039 9020411042 9024908141 9038710069 9038909005 9046708053 9165160620 9331316014 9331616014 9616000600
Part # Description Qty Price
Common parts
82711-12120
90105-11007
90119-10035
90119-10037
90119-10101
90119-10493
90159-60108
90168-40011
90183-08003
90202-08039
90204-11042
90249-08141
90387-10069
90389-09005
90467-08053
91651-60620
93313-16014
93316-16014
96160-00600

ILLUST NO. 2 OF 3(9001-0701)PIC ; (0701-0808)FZJ79

Click highlighted areas on diagram

diagram 71033B 71034A 71034B 71065 71066 71067 71068 71085B 71086B 71088B 71089B 71398A 71398B 71700 71704 71704B 71721 71722 71761A 71761B 71800 79929 79929 7997760040 7997760040 9011908258 9011908300 9011908653 9017908143 9018308003 9018308003 9020208039 9020208039 9020208039 9020208039 9024908141 9024908141 9038708052 9054009060 9331116010 9331116010 9331116010 9453101200 9461310800 9461410800 9616000600 9616000600
Part # Description Qty Price
Common parts
79977-60040
90119-08258
90119-08300
90119-08653
90179-08143
90183-08003
90202-08039
90249-08141
90387-08052
90540-09060
93311-16010
94531-01200
94613-10800
94614-10800
96160-00600

ILLUST NO. 2 OF 3(9001-0701)FJ70,73,FZJ70,71,73,74,HZJ70,71,73,KZJ70,LJ70,72,PZJ70,73,RJ70 ; (0701-0

Click highlighted areas on diagram

diagram 71033B 71034A 71085B 71086B 71088B 71089B 71700 71704 71704B 71710A 71720A 71721 71722 71761A 71761B 71800 7997760040 7997760040 9011908364 9024908141 9024908141 9050820072 9050820072 9616000600 9616000600
Part # Description Qty Price
Common parts
79977-60040
90119-08364
90249-08141
90508-20072
96160-00600

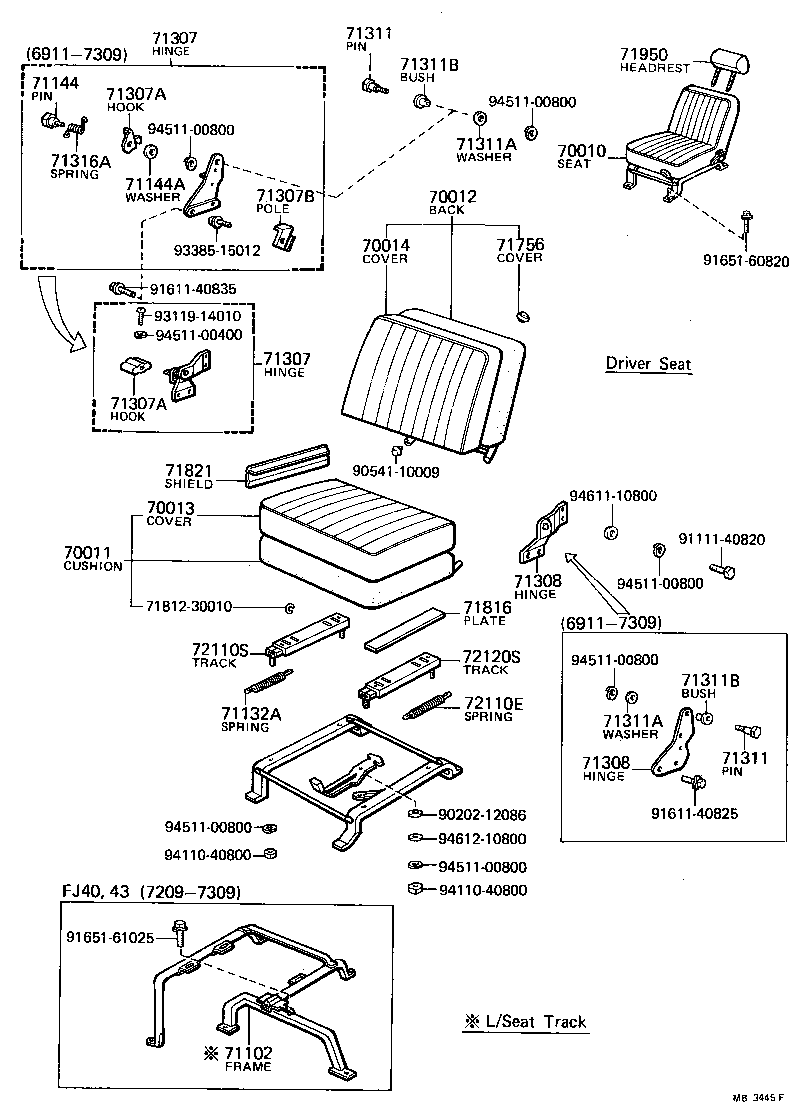

(6903-7309)FJ40,43,45,HJ45..RHD

Click highlighted areas on diagram

diagram 70010 70011 70012 70013 70014 71102 71132A 71144 71144A 71307 71307 71307A 71307A 71307B 71308 71308 71311 71311 71311A 71311A 71311B 71311B 71316A 71756 7181230010 71816 71821 71950 72110E 72110S 72120S 9020212086 9054110009 9111140820 9161140825 9161140835 9165160820 9165161025 9311914010 9338515012 9411040800 9411040800 9451100400 9451100800 9451100800 9451100800 9451100800 9451100800 9451100800 9461110800 9461210800
Part # Description Qty Price
70011 - CUSHION ASSY, NO.1 SEAT
71410-90319

FJ4#,HJ45..RHD

DRIVER SIDE,W/SEAT TRACK

 1
71410-90319

FJ45,HJ45..RHD

DRIVER SIDE,W/SEAT TRACK

 1
71420-90319

FJ45,HJ45..RHD

ASSISTANT SIDE

 1
71410-90342

FJ4#,HJ45..RHD

DRIVER SIDE,W/SEAT TRACK

 1
71410-90343

BJ4#,FJ4#,HJ45..RHD

DRIVER SIDE,W/SEAT TRACK

 1
71450-90342

FJ45,HJ45..RHD

ASSISTANT SIDE

 1
70012 - BACK ASSY, NO.1 SEAT
71430-90305

FJ45,HJ45..RHD

DRIVER SIDE

 1
71440-90304

FJ45,HJ45..RHD

ASSISTANT SIDE

 1
71430-90347

FJ45,HJ45..RHD

DRIVER SIDE

 1
71470-90341

FJ45,HJ45..RHD

ASSISTANT SIDE

 1
70013 - COVER ASSY, NO.1 SEAT CUSHION
71072-90311

FJ45,HJ45..RHD

ASSISTANT SIDE

 1
70014 - COVER ASSY, NO.1 SEAT BACK
71074-90312

FJ45,HJ45

ASSISTANT SIDE

 1
71307 - HINGE SUB-ASSY, DRIVER SEAT, RH
71160-90310

FJ40,43,45..RHD

 1
71307 - HINGE SUB-ASSY, DRIVER SEAT, RH
71160-90310

FJ40,43,45..RHD

 1
71307A - HOOK, DRIVER SEAT HINGE, RH
71316-90310

FJ40,43,45..RHD

 1
71307A - HOOK, DRIVER SEAT HINGE, RH
71316-90310

FJ40,43,45..RHD

 1
71308 - HINGE SUB-ASSY, DRIVER SEAT, LH
71307-90333

FJ40,43,45..RHD

 1
71308 - HINGE SUB-ASSY, DRIVER SEAT, LH
71307-90333

FJ40,43,45..RHD

 1
71816 - PLATE, DRIVER SEAT LEATHER SET
71823-60010

FJ4#,HJ45

 2
72120S - TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT)
72130-90330

BJ4#,FJ4#,HJ45..RHD

BENCH SEAT

 1
Common parts
71812-30010
90202-12086
90541-10009
91111-40820
91611-40825
91611-40835
91651-60820
91651-61025
93119-14010
93385-15012
94110-40800
94511-00400
94511-00800
94611-10800
94612-10800

(6903-7309)FJ40,43,45,HJ45..RHD

Click highlighted areas on diagram

diagram 70010 70010 70011 70012 70013 70014 71132 71144 71144A 71242 71242 71243 71243A 71243A 71243B 71281 71311 71311 71311A 71311A 71311B 71311B 71316B 71756 71822 71950 7554 7574 9054110009 9111140820 9161140825 9161140825 9165140616 9165160820 9165160820 9165160820 9311914010 9311914010 9338515012 9451100400 9451100800 9451100800 9451100800 9451100800 9461110800
Part # Description Qty Price
70011 - CUSHION ASSY, NO.1 SEAT
71410-90319

FJ4#,HJ45..RHD

DRIVER SIDE,W/SEAT TRACK

 1
71410-90319

FJ45,HJ45..RHD

DRIVER SIDE,W/SEAT TRACK

 1
71420-90319

FJ45,HJ45..RHD

ASSISTANT SIDE

 1
71410-90342

FJ4#,HJ45..RHD

DRIVER SIDE,W/SEAT TRACK

 1
71410-90343

BJ4#,FJ4#,HJ45..RHD

DRIVER SIDE,W/SEAT TRACK

 1
71450-90342

FJ45,HJ45..RHD

ASSISTANT SIDE

 1
70012 - BACK ASSY, NO.1 SEAT
71430-90305

FJ45,HJ45..RHD

DRIVER SIDE

 1
71440-90304

FJ45,HJ45..RHD

ASSISTANT SIDE

 1
71430-90347

FJ45,HJ45..RHD

DRIVER SIDE

 1
71470-90341

FJ45,HJ45..RHD

ASSISTANT SIDE

 1
70013 - COVER ASSY, NO.1 SEAT CUSHION
71072-90311

FJ45,HJ45..RHD

ASSISTANT SIDE

 1
70014 - COVER ASSY, NO.1 SEAT BACK
71074-90312

FJ45,HJ45

ASSISTANT SIDE

 1
71242 - HINGE, PASSENGER SEAT BACK, RH
71308-90333

FJ40,43,45..RHD

 1
71242 - HINGE, PASSENGER SEAT BACK, RH
71308-90333

FJ40,43,45..RHD

 1
71243 - HINGE, PASSENGER SEAT BACK, LH
71190-90310

FJ40,43,45..RHD

 1
71243A - HOOK, PASSENGER SEAT HINGE, LH
71316-90310

FJ40,43,45..RHD

 1
71243A - HOOK, PASSENGER SEAT HINGE, LH
71316-90310

FJ40,43,45..RHD

 1
Common parts
90541-10009
91111-40820
91611-40825
91651-40616
91651-60820
93119-14010
93385-15012
94511-00400
94511-00800
94611-10800
Linked diagrams
7554
7574

(6903-8007)BJ4#,FJ4#,HJ45

Click highlighted areas on diagram

diagram 70020 70021 70021 70021 70022 70022 70023 70023 70024 70024 71609 71609 71609 71609 71609A 71609A 71844 72532 72532 9016740011 9020704010 9111140620 9165140820 9165140820 9165640820 9165640820 9165640820 9321915030 9331515012 9331515012 9331515012 9331515012 9353014020 9411040600 9411540500 9451200500 9451200600 9461210500 9461310600
Part # Description Qty Price
Common parts
90167-40011
90207-04010
91111-40620
91651-40820
91656-40820
93219-15030
93315-15012
93530-14020
94110-40600
94115-40500
94512-00500
94512-00600
94612-10500
94613-10600
