HDJ80R-GNPNXQ (1990)
Toyota Land Cruiser

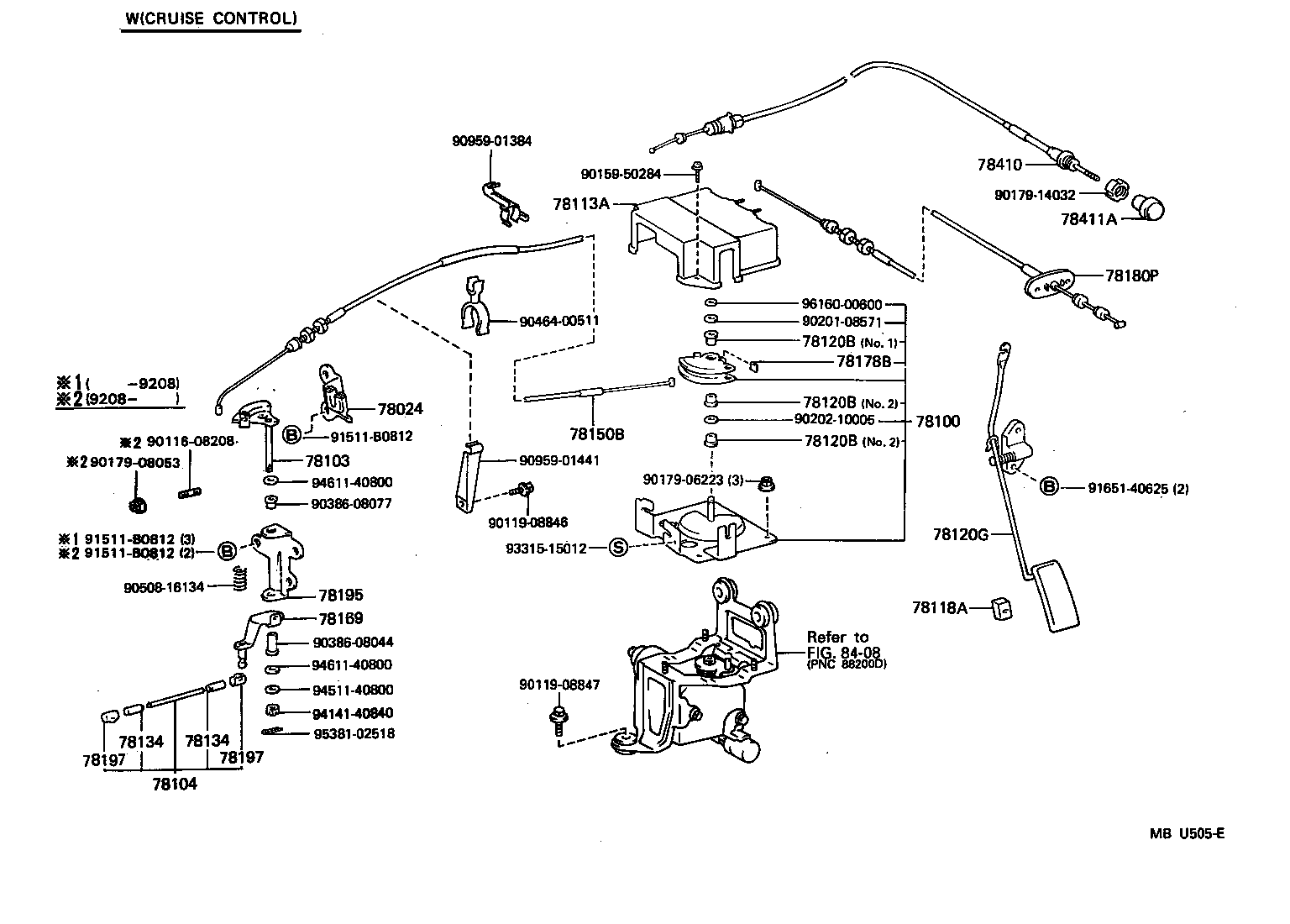

(9001-9501)HDJ80..4FC..ARL
W(CRUISE CONTROL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-60010 |
HDJ80,HZJ80 |
1 | ||
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78100-60040 |
HDJ80..4FC..ARL |
1 | ||
| 78103 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1 | ||||
| 78103-60020 |
HDJ80,HZJ80 |
1 | ||
| 78103-60020 |
HDJ80,HZJ80 |
1 | ||
| 78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2 | ||||
| 78104-60010 |
HDJ80,HZJ80 |
1 | ||
| 78113A - COVER, AUTO DRIVE ACCELERATOR LINK | ||||
| 78113-60040 |
FJ80,HDJ80..4FC..ARL |
1 | ||
| 78118A - STOPPER, ACCELERATOR PEDAL | ||||
| 78118-60010 |
FJ80,FZJ80,HDJ80,HZJ80..RHD |
1 | ||
| 78120B - BUSH (FOR ACCELERATOR LINK ROD) | ||||
| 90386-08005 |
FJ80,HDJ80..4FC..ARL NO.1 |
1 | ||
| 90386-08077 |
FJ80,HDJ80..4FC..ARL NO.2 |
1 | ||
| 78120B - BUSH (FOR ACCELERATOR LINK ROD) | ||||
| 90386-08005 |
FJ80,HDJ80..4FC..ARL NO.1 |
1 | ||
| 90386-08077 |
FJ80,HDJ80..4FC..ARL NO.2 |
1 | ||
| 78120B - BUSH (FOR ACCELERATOR LINK ROD) | ||||
| 90386-08005 |
FJ80,HDJ80..4FC..ARL NO.1 |
1 | ||
| 90386-08077 |
FJ80,HDJ80..4FC..ARL NO.2 |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-60030 |
FJ80,HDJ80,HZJ80..RHD |
1 | ||
| 78120-60070 |
FJ80,HDJ80..4FC..ARL |
1 | ||
| 78134 - END, ACCELERATOR CONNECTING ROD | ||||
| 78134-10010 |
HDJ80,HZJ80 |
2 | ||
| 78134 - END, ACCELERATOR CONNECTING ROD | ||||
| 78134-10010 |
HDJ80,HZJ80 |
2 | ||
| 78150B - CABLE ASSY, ACCELERATOR AUTO DRIVE | ||||
| 78150-60020 |
HDJ80..4FC..ARL |
1 | ||
| 78150-60021 |
HDJ80..4FC..ARL |
1 | ||
| 78169 - HANGER, ACCELERATOR SPRING | ||||
| 78169-60010 |
HDJ80,HZJ80 |
1 | ||
| 78178B - DAMPER, ACCEL CONTROL NO.4 ROD BRACKET | ||||
| 78178-14010 |
FJ80,HDJ80..4FC..ARL |
2 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-60100 |
HDJ80..4FC..ARL |
1 | ||
| 78180-60120 |
HDJ80..4FC..ARL W(*CRC) |
1 | ||
| 78180-60101 |
HDJ80..4FC..ARL |
1 | ||
| 78180-60101 |
HDJ80..4FC..ARL |
1 | ||
| 78195 - BRACKET, ACCELERATOR LINK | ||||
| 78195-60010 |
HDJ80,HZJ80 |
1 | ||
| 78197 - CLIP, ACCELERATOR JOINT BALL | ||||
| 78197-10010 |
HDJ80,HZJ80 |
2 | ||
| 78197 - CLIP, ACCELERATOR JOINT BALL | ||||
| 78197-10010 |
HDJ80,HZJ80 |
2 | ||
| 78410 - CABLE ASSY, THROTTLE CONTROL | ||||
| 78410-60100 |
HDJ80,HZJ80..RHD |
1 | ||
| 78411A - KNOB, THROTTLE CONTROL CABLE | ||||
| 78402-60030 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| Common parts | ||||
| 90116-08208 | ||||
| 90119-08846 | ||||
| 90119-08847 | ||||
| 90159-50284 | ||||
| 90179-06223 | ||||
| 90179-08053 | ||||
| 90179-14032 | ||||
| 90201-08571 | ||||
| 90202-10005 | ||||
| 90386-08044 | ||||
| 90386-08077 | ||||
| 90464-00511 | ||||
| 90508-16134 | ||||
| 90959-01384 | ||||
| 90959-01441 | ||||
| 91511-B0812 | ||||
| 91651-40625 | ||||
| 93315-15012 | ||||
| 94141-40840 | ||||
| 94511-40800 | ||||
| 94611-40800 | ||||
| 95381-02518 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 8408 | ||||

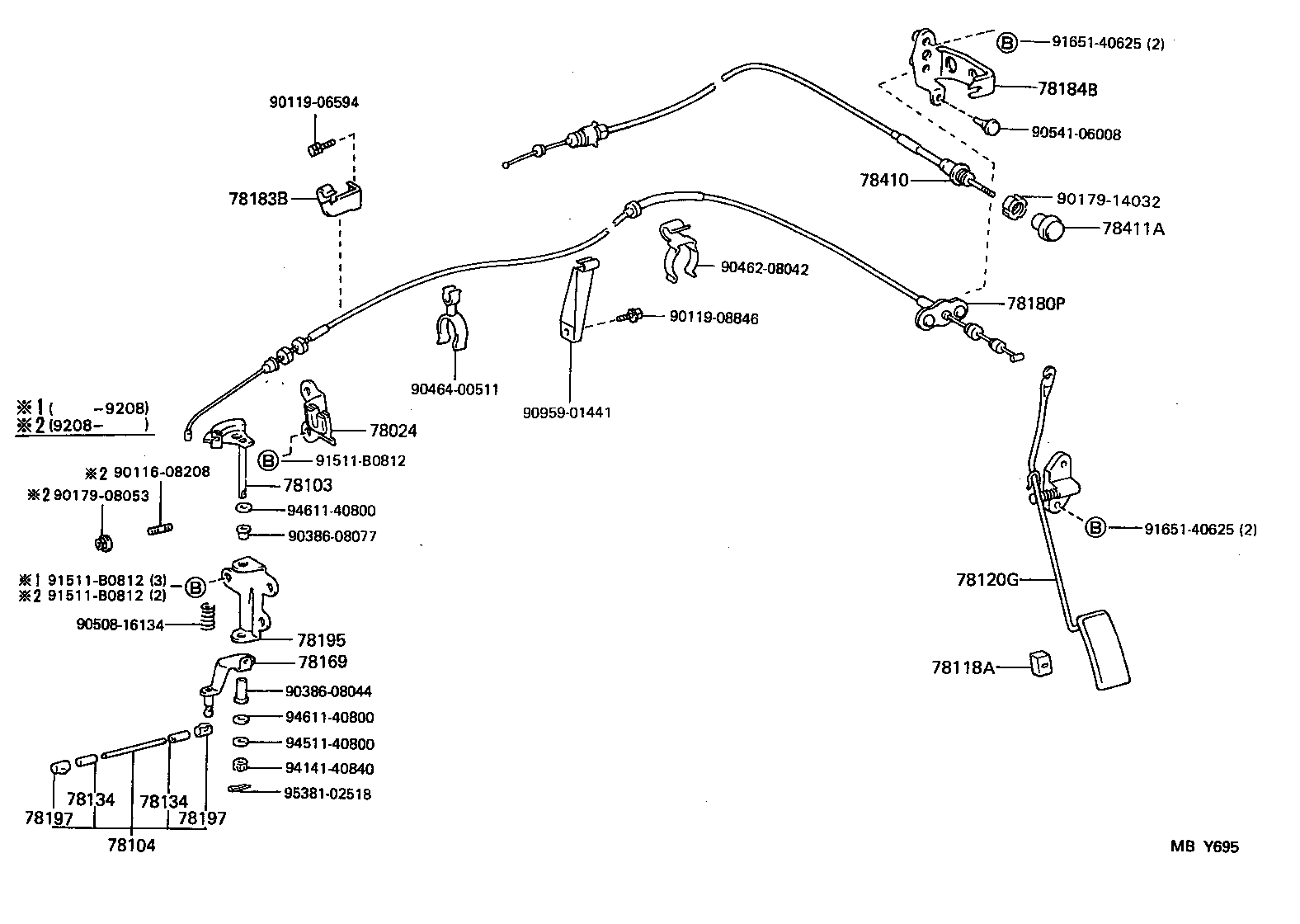

(9001-9501)HDJ80..RHD ; (9501- )RHD..TD2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-60010 |
HDJ80,HZJ80 |
1 | ||
| 78103 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1 | ||||
| 78103-60020 |
HDJ80,HZJ80 |
1 | ||
| 78103-60020 |
HDJ80,HZJ80 |
1 | ||
| 78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2 | ||||
| 78104-60010 |
HDJ80,HZJ80 |
1 | ||
| 78118A - STOPPER, ACCELERATOR PEDAL | ||||
| 78118-60010 |
FJ80,FZJ80,HDJ80,HZJ80..RHD |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-60030 |
FJ80,HDJ80,HZJ80..RHD |
1 | ||
| 78120-60070 |
FJ80,HDJ80..4FC..ARL |
1 | ||
| 78134 - END, ACCELERATOR CONNECTING ROD | ||||
| 78134-10010 |
HDJ80,HZJ80 |
2 | ||
| 78134 - END, ACCELERATOR CONNECTING ROD | ||||
| 78134-10010 |
HDJ80,HZJ80 |
2 | ||
| 78169 - HANGER, ACCELERATOR SPRING | ||||
| 78169-60010 |
HDJ80,HZJ80 |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-60100 |
HDJ80..4FC..ARL |
1 | ||
| 78180-60120 |
HDJ80..4FC..ARL W(*CRC) |
1 | ||
| 78180-60101 |
HDJ80..4FC..ARL |
1 | ||
| 78180-60101 |
HDJ80..4FC..ARL |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 90959-01384 |
HDJ80..4FC..ARL W(*CRC) |
1 | ||
| 78183-60050 |
HDJ80..4FC..ARL W(*66) |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-60040 |
HDJ80,HZJ80 |
1 | ||
| 78195 - BRACKET, ACCELERATOR LINK | ||||
| 78195-60010 |
HDJ80,HZJ80 |
1 | ||
| 78197 - CLIP, ACCELERATOR JOINT BALL | ||||
| 78197-10010 |
HDJ80,HZJ80 |
2 | ||
| 78197 - CLIP, ACCELERATOR JOINT BALL | ||||
| 78197-10010 |
HDJ80,HZJ80 |
2 | ||
| 78410 - CABLE ASSY, THROTTLE CONTROL | ||||
| 78410-60100 |
HDJ80,HZJ80..RHD |
1 | ||
| 78411A - KNOB, THROTTLE CONTROL CABLE | ||||
| 78402-60030 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| Common parts | ||||
| 90116-08208 | ||||
| 90119-06594 | ||||
| 90119-08846 | ||||
| 90179-08053 | ||||
| 90179-14032 | ||||
| 90386-08044 | ||||
| 90386-08077 | ||||
| 90462-08042 | ||||
| 90464-00511 | ||||
| 90508-16134 | ||||
| 90541-06008 | ||||
| 90959-01441 | ||||
| 91511-B0812 | ||||
| 91651-40625 | ||||
| 94141-40840 | ||||
| 94511-40800 | ||||
| 94611-40800 | ||||
| 95381-02518 | ||||
