HDJ80R-GNPNXQ (1990)
Toyota Land Cruiser
ILLUST NO. 2 OF 3(9001- )RHD
POWER STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-10582 | ||||
| 90170-10208 | ||||
ILLUST NO. 1 OF 3(9001- )RHD
POWER STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-12382 | ||||
| 90179-12085 | ||||
| 94511-02200 | ||||

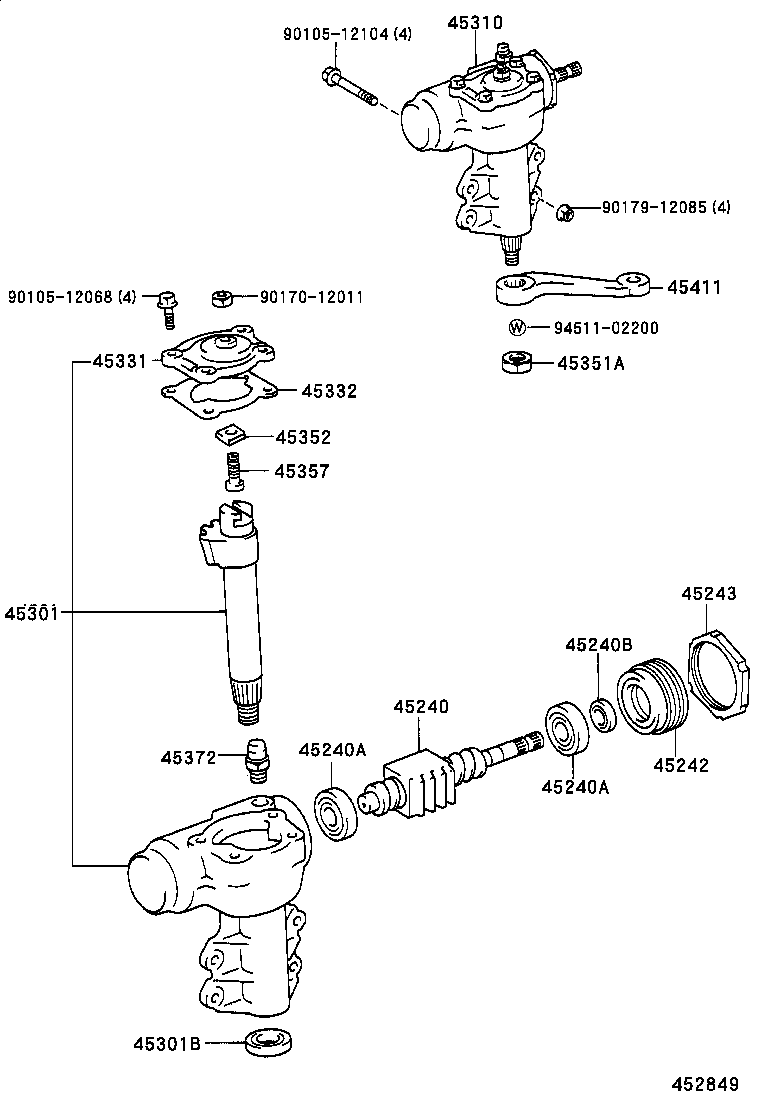

ILLUST NO. 1 OF 3(9001- )FZJ70,75..ARL ; (9001- )FJ7#,FZJ70,73,75,HJ75,HZJ70,73,75,KZJ7#,LJ7#,
MANUAL STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-12068 | ||||
| 90105-12104 | ||||
| 90170-12011 | ||||
| 90179-12085 | ||||
| 94511-02200 | ||||

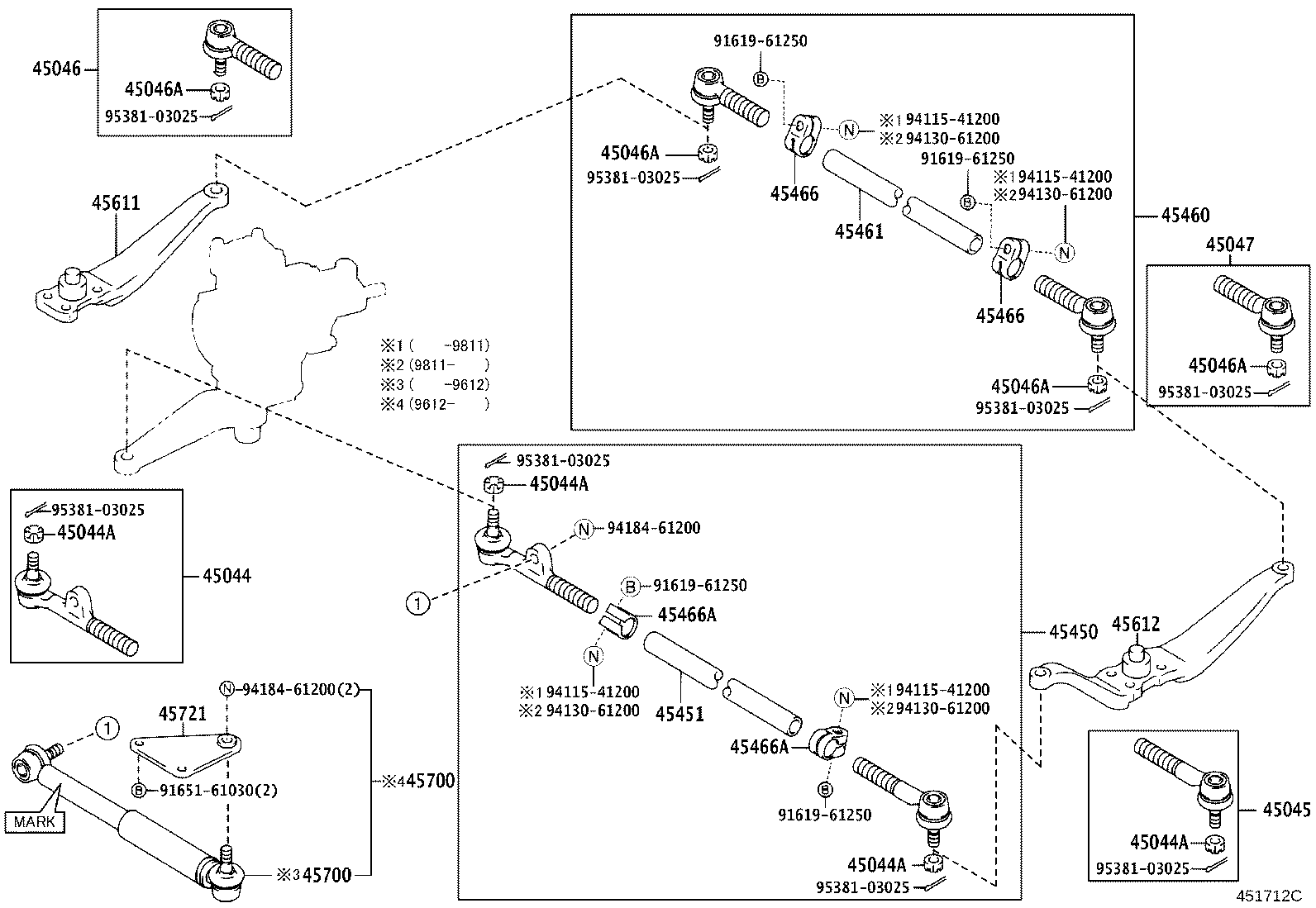

ILLUST NO. 3 OF 3(9001- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45044 - END SUB-ASSY, STEERING RELAY ROD, RH | ||||
| 45044-69115 |
FJ80,FZJ80,HDJ80,HZJ80..RHD |
1 | ||
| 45044A - NUT, CASTLE(FOR RELAY ROD) | ||||
| 90171-14042 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 90171-14042 |
FZJ80..LUB;FZJ80..RHD..STD;HZJ80..LHD..STD;HDJ80,HZJ80..GX,VX;FZJ80..SOB..(GX,VX);FZJ80,HZJ80..STD..(ARL,GCC)..(CBR,DSL) |
2 | ||
| 45044A - NUT, CASTLE(FOR RELAY ROD) | ||||
| 90171-14042 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 90171-14042 |
FZJ80..LUB;FZJ80..RHD..STD;HZJ80..LHD..STD;HDJ80,HZJ80..GX,VX;FZJ80..SOB..(GX,VX);FZJ80,HZJ80..STD..(ARL,GCC)..(CBR,DSL) |
2 | ||
| 45044A - NUT, CASTLE(FOR RELAY ROD) | ||||
| 90171-14042 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 90171-14042 |
FZJ80..LUB;FZJ80..RHD..STD;HZJ80..LHD..STD;HDJ80,HZJ80..GX,VX;FZJ80..SOB..(GX,VX);FZJ80,HZJ80..STD..(ARL,GCC)..(CBR,DSL) |
2 | ||
| 45044A - NUT, CASTLE(FOR RELAY ROD) | ||||
| 90171-14042 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 90171-14042 |
FZJ80..LUB;FZJ80..RHD..STD;HZJ80..LHD..STD;HDJ80,HZJ80..GX,VX;FZJ80..SOB..(GX,VX);FZJ80,HZJ80..STD..(ARL,GCC)..(CBR,DSL) |
2 | ||
| 45045 - END SUB-ASSY, STEERING RELAY ROD, LH | ||||
| 45045-69065 |
FJ80,FZJ80,HDJ80,HZJ80..RHD |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45047-69085 |
HDJ80..ARL;HDJ80..LHD;FZJ80..RHD..STD;FZJ80..STD..GCC;FZJ80..SOB..(GX,VX);HZJ80..LHD..SOB..GEN;HZJ80..SOB..(ARL,GCC);FZJ80..4FC..LUB..(GX,STD);FZJ80,HZJ80..LUB..(CBR,DSL);FZJ80..5F..LUB..(ARL,GCC)..EFI;FZJ80..4FC..LUB..VX..(ARL,GCC) |
1 | ||
| 45047-69085 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-14042 |
FZJ80,HDJ80,HZJ80 |
2 | ||
| 90171-14042 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-14042 |
FZJ80,HDJ80,HZJ80 |
2 | ||
| 90171-14042 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-14042 |
FZJ80,HDJ80,HZJ80 |
2 | ||
| 90171-14042 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-14042 |
FZJ80,HDJ80,HZJ80 |
2 | ||
| 90171-14042 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-69135 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 45046-69135 |
HDJ80..ARL;HDJ80..LHD;FZJ80..RHD..STD;FZJ80..STD..GCC;FZJ80..SOB..(GX,VX);HZJ80..LHD..SOB..GEN;HZJ80..SOB..(ARL,GCC);FZJ80..4FC..LUB..(GX,STD);FZJ80,HZJ80..LUB..(CBR,DSL);FZJ80..5F..LUB..(ARL,GCC)..EFI;FZJ80..4FC..LUB..VX..(ARL,GCC) |
1 | ||
| 45450 - ROD ASSY, STEERING RELAY | ||||
| 45450-69115 |
FJ80,FZJ80,HDJ80,HZJ80..RHD |
1 | ||
| 45450-69115 |
FZJ80,HDJ80,HZJ80..RHD |
1 | ||
| 45451 - ROD, STEERING RELAY | ||||
| 45451-60120 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 45451-60120 |
FZJ80..LUB;FZJ80..RHD..STD;HZJ80..LHD..STD;HDJ80,HZJ80..GX,VX;FZJ80..SOB..(GX,VX);FZJ80,HZJ80..STD..(ARL,GCC)..(CBR,DSL) |
1 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-69155 |
HDJ80..ARL;HDJ80..LHD;FZJ80..RHD..STD;FZJ80..STD..GCC;FZJ80..SOB..(GX,VX);HZJ80..LHD..SOB..GEN;HZJ80..SOB..(ARL,GCC);FZJ80..4FC..LUB..(GX,STD);FZJ80,HZJ80..LUB..(CBR,DSL);FZJ80..5F..LUB..(ARL,GCC)..EFI;FZJ80..4FC..LUB..VX..(ARL,GCC) |
1 | ||
| 45460-69155 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45461-60110 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 45461-60110 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-36010 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 45466-36010 |
FZJ80,HDJ80,HZJ80 |
2 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-36010 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 45466-36010 |
FZJ80,HDJ80,HZJ80 |
2 | ||
| 45466A - CLAMP, RELAY ROD END | ||||
| 45466-36020 |
FZJ80..LUB;FZJ80..RHD..STD;HZJ80..LHD..STD;HDJ80,HZJ80..GX,VX;FZJ80..SOB..(GX,VX);FZJ80,HZJ80..STD..(ARL,GCC)..(CBR,DSL) |
2 | ||
| 45466-36020 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 45466A - CLAMP, RELAY ROD END | ||||
| 45466-36020 |
FZJ80..LUB;FZJ80..RHD..STD;HZJ80..LHD..STD;HDJ80,HZJ80..GX,VX;FZJ80..SOB..(GX,VX);FZJ80,HZJ80..STD..(ARL,GCC)..(CBR,DSL) |
2 | ||
| 45466-36020 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-60080 |
FJ80,FZJ80,HDJ80,HZJ80..RHD |
1 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-60070 |
FJ80,FZJ80,HDJ80,HZJ80..RHD |
1 | ||
| 45700 - DAMPER ASSY, STEERING | ||||
| 45700-60050 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 45700-60051 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 45700-60051 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 45700 - DAMPER ASSY, STEERING | ||||
| 45700-60050 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 45700-60051 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 45700-60051 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 45721 - BRACKET, STEERING DAMPER | ||||
| 45721-60090 |
FJ80,FZJ80,HDJ80,HZJ80..RHD |
1 | ||
| Common parts | ||||
| 91619-61250 | ||||
| 91651-61030 | ||||
| 94115-41200 | ||||
| 94130-61200 | ||||
| 94184-61200 | ||||
| 95381-03025 | ||||

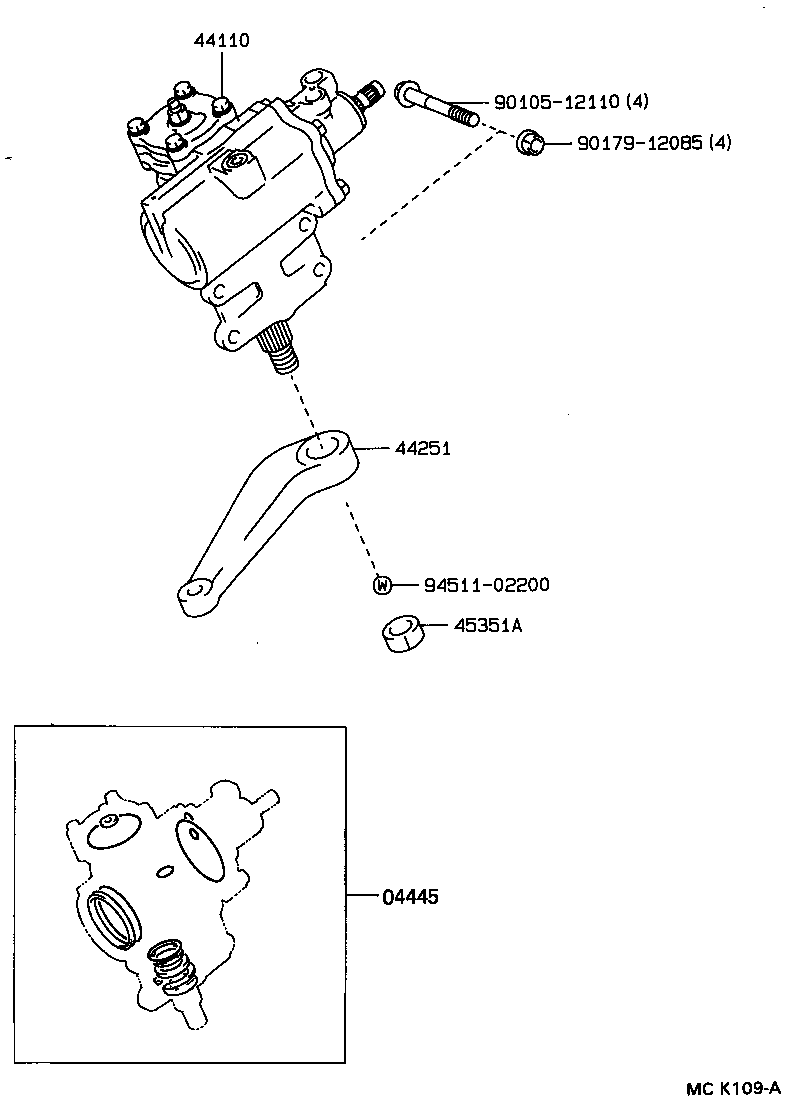

ILLUST NO. 1 OF 3(9001- )RHD
W(POWER STEEIRNG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445 - GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL) | ||||
| 04445-60050 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 04445-60050 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-60200 |
FJ80,FZJ80,HDJ80,HZJ80..RHD |
1 | ||
| 44110-60201 |
HDJ80..ARL;FZJ80..STD..EFI;FZJ80..RHD..VX..CBR |
1 | ||
| 44251 - ARM, PITMAN | ||||
| 45411-60200 |
FJ80,FZJ80,HDJ80,HZJ80..RHD |
1 | ||
| 45411-60200 |
FZJ80,HDJ80,HZJ80..RHD |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-22058 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 90170-22058 |
HDJ80..ARL;FZJ80..STD..EFI;FZJ80..RHD..VX..CBR |
1 | ||
| Common parts | ||||
| 90105-12110 | ||||
| 90179-12085 | ||||
| 94511-02200 | ||||

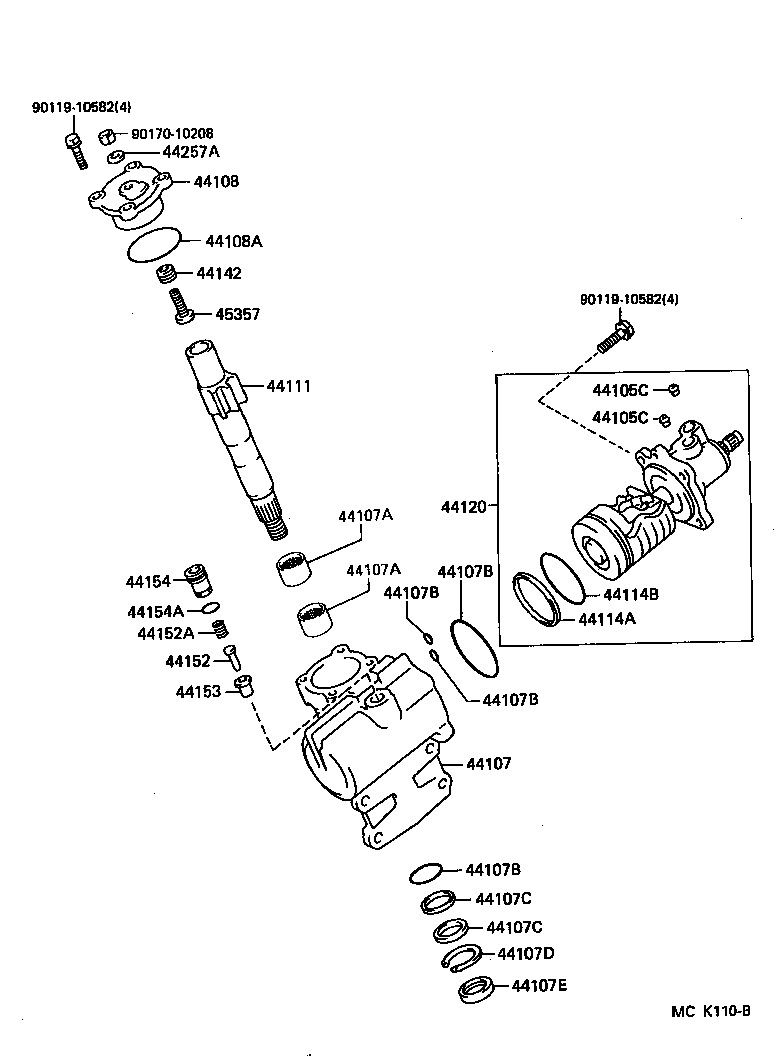

ILLUST NO. 2 OF 3(9001- )RHD
W(POWER STEEIRNG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-06005 |
FZJ80,HDJ80,HZJ80 |
2 | ||
| 90410-06005 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-06005 |
FZJ80,HDJ80,HZJ80 |
2 | ||
| 90410-06005 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 44107 - HOUSING SUB-ASSY, POWER STEERING GEAR | ||||
| 44107-60070 |
FJ80,FZJ80,HDJ80,HZJ80..RHD |
2 | ||
| 44107-60070 |
FJ80,HDJ80,HZJ80..RHD |
1 | ||
| 44107-60070 |
HDJ80..ARL;FZJ80..STD..EFI;FZJ80..RHD..VX..CBR |
1 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-36006 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 90364-36016 |
FZJ80,HDJ80,HZJ80 |
2 | ||
| 90364-36016 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-36006 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 90364-36016 |
FZJ80,HDJ80,HZJ80 |
2 | ||
| 90364-36016 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-75001 |
FZJ80,HDJ80,HZJ80 ID=75,OD=80,T=2.5 |
1 | ||
| 90301-75001 |
FJ80,FZJ80,HDJ80,HZJ80 ID=75,OD=80,T=2.5 |
1 | ||
| 90301-37006 |
FJ80,FZJ80,HDJ80,HZJ80 ID=37.7,OD=44.7 |
1 | ||
| 90301-37006 |
FZJ80,HDJ80,HZJ80 ID=37.7,OD=44.7 |
1 | ||
| 96711-19010 |
FJ80,FZJ80,HDJ80,HZJ80 ID=9.8,OD=13.6 |
2 | ||
| 96711-19010 |
FZJ80,HDJ80,HZJ80 ID=9.8,OD=13.6 |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-75001 |
FZJ80,HDJ80,HZJ80 ID=75,OD=80,T=2.5 |
1 | ||
| 90301-75001 |
FJ80,FZJ80,HDJ80,HZJ80 ID=75,OD=80,T=2.5 |
1 | ||
| 90301-37006 |
FJ80,FZJ80,HDJ80,HZJ80 ID=37.7,OD=44.7 |
1 | ||
| 90301-37006 |
FZJ80,HDJ80,HZJ80 ID=37.7,OD=44.7 |
1 | ||
| 96711-19010 |
FJ80,FZJ80,HDJ80,HZJ80 ID=9.8,OD=13.6 |
2 | ||
| 96711-19010 |
FZJ80,HDJ80,HZJ80 ID=9.8,OD=13.6 |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-75001 |
FZJ80,HDJ80,HZJ80 ID=75,OD=80,T=2.5 |
1 | ||
| 90301-75001 |
FJ80,FZJ80,HDJ80,HZJ80 ID=75,OD=80,T=2.5 |
1 | ||
| 90301-37006 |
FJ80,FZJ80,HDJ80,HZJ80 ID=37.7,OD=44.7 |
1 | ||
| 90301-37006 |
FZJ80,HDJ80,HZJ80 ID=37.7,OD=44.7 |
1 | ||
| 96711-19010 |
FJ80,FZJ80,HDJ80,HZJ80 ID=9.8,OD=13.6 |
2 | ||
| 96711-19010 |
FZJ80,HDJ80,HZJ80 ID=9.8,OD=13.6 |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-75001 |
FZJ80,HDJ80,HZJ80 ID=75,OD=80,T=2.5 |
1 | ||
| 90301-75001 |
FJ80,FZJ80,HDJ80,HZJ80 ID=75,OD=80,T=2.5 |
1 | ||
| 90301-37006 |
FJ80,FZJ80,HDJ80,HZJ80 ID=37.7,OD=44.7 |
1 | ||
| 90301-37006 |
FZJ80,HDJ80,HZJ80 ID=37.7,OD=44.7 |
1 | ||
| 96711-19010 |
FJ80,FZJ80,HDJ80,HZJ80 ID=9.8,OD=13.6 |
2 | ||
| 96711-19010 |
FZJ80,HDJ80,HZJ80 ID=9.8,OD=13.6 |
2 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-35001 |
FJ80,FZJ80,HDJ80,HZJ80 ID=35.7,OD=38.1 |
1 | ||
| 90562-36002 |
FJ80,FZJ80,HDJ80,HZJ80 ID=36.0,OD=44.0 |
1 | ||
| 90562-35001 |
FZJ80,HDJ80,HZJ80 ID=35.7,OD=38.1 |
1 | ||
| 90562-36002 |
FZJ80,HDJ80,HZJ80 ID=36.0,OD=44.0 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-35001 |
FJ80,FZJ80,HDJ80,HZJ80 ID=35.7,OD=38.1 |
1 | ||
| 90562-36002 |
FJ80,FZJ80,HDJ80,HZJ80 ID=36.0,OD=44.0 |
1 | ||
| 90562-35001 |
FZJ80,HDJ80,HZJ80 ID=35.7,OD=38.1 |
1 | ||
| 90562-36002 |
FZJ80,HDJ80,HZJ80 ID=36.0,OD=44.0 |
1 | ||
| 44107D - RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING) | ||||
| 90521-48002 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 90521-48002 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING) | ||||
| 90311-36005 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 90311-36005 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 44108 - COVER SUB-ASSY, SIDE | ||||
| 44108-60020 |
FJ80,FZJ80,HDJ80,HZJ80..RHD |
1 | ||
| 44108A - RING, O(FOR SIDE COVER) | ||||
| 90301-64002 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 90301-64002 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 44111 - SHAFT, CROSS | ||||
| 44111-60030 |
HDJ80..ARL;FZJ80..STD..EFI;FZJ80..RHD..VX..CBR |
1 | ||
| 44111-60030 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 44114A - RING(FOR POWER PISTON NUT) | ||||
| 90562-77002 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 90562-77002 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 44114B - RING, O(FOR POWER PISTON NUT) | ||||
| 90301-73002 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 90301-73002 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 44120 - VALVE ASSY, W/BALL NUT | ||||
| 44120-60170 |
HDJ80..ARL;FZJ80..STD..EFI;FZJ80..RHD..VX..CBR |
1 | ||
| 44120-60170 |
FJ80,FZJ80,HDJ80,HZJ80..RHD |
1 | ||
| 44142 - NUT, LOCK | ||||
| 44142-60020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 44142-60020 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 44152 - PLUNGER, POWER PISTON | ||||
| 44152-30020 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 44152-30020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 44152A - SPRING, COMPRESSION(FOR POWER PISTON PLUNGER) | ||||
| 90501-20095 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 90501-20095 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 44153 - GUIDE, POWER PISTON PLUNGER | ||||
| 44153-30020 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 44153-30020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 44154 - NUT, POWER PISTON PLUNGER GUIDE | ||||
| 44154-30020 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 44154-30020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 44154A - RING, O(FOR POWER PISTON PLUNGER GUIDE NUT) | ||||
| 96711-19014 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 96711-19014 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 44257A - WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW) | ||||
| 90210-10001 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 90210-10001 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-60030 |
HDJ80;FJ80..VX;FZJ80,HZJ80..ARL,GCC;FZJ80,HZJ80..VX..GEN;FJ80..(GX,STD)..(ARL,GCC) |
1 | ||
| 45357-60030 |
HDJ80;FZJ80,HZJ80..ARL,GCC;FZJ80,HZJ80..VX..GEN;FZJ80,HZJ80..4FC..(GX,STD)..GEN |
1 | ||
| Common parts | ||||
| 90119-10582 | ||||
| 90170-10208 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
