HDJ80R-GNPNXQ (1990)
Toyota Land Cruiser

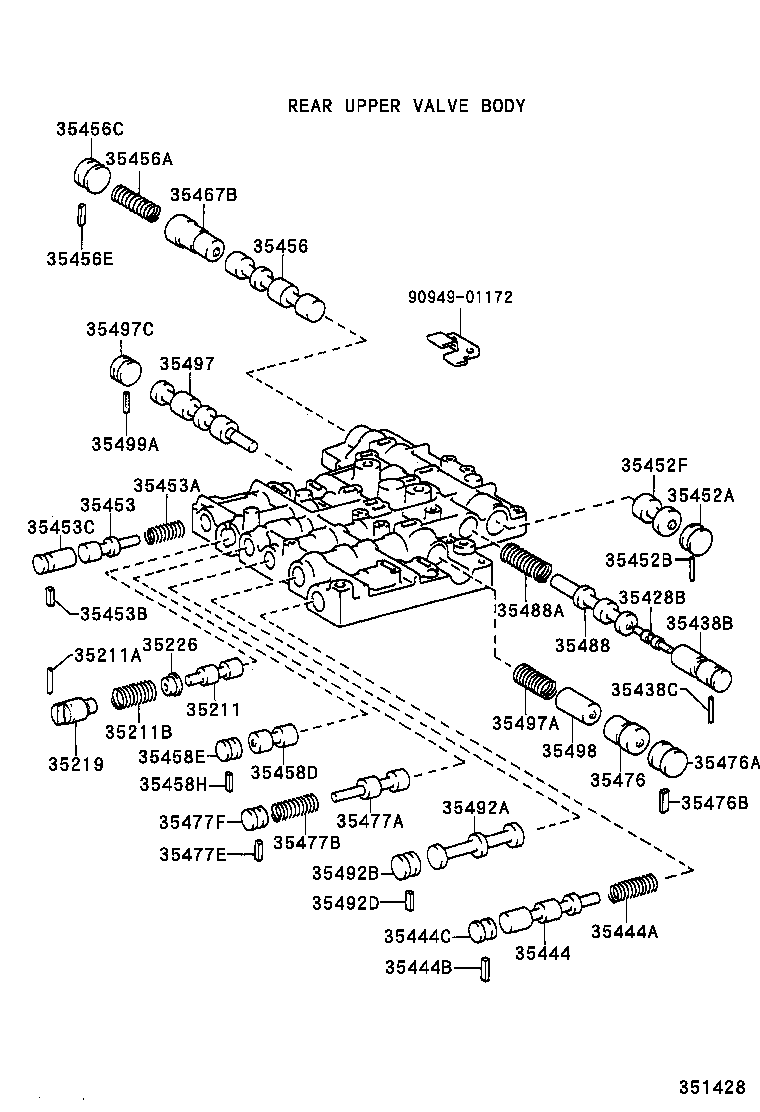

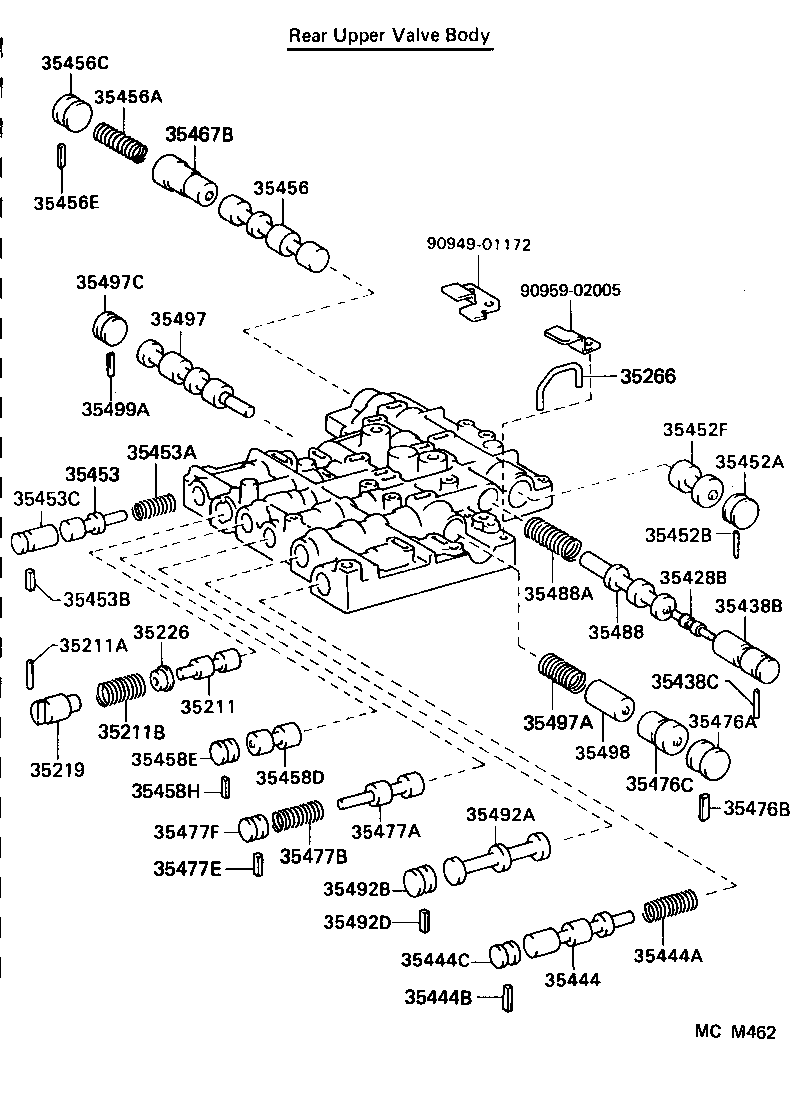

ILLUST NO. 3 OF 5(9001-9201)4FC
A440F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90949-01172 | ||||

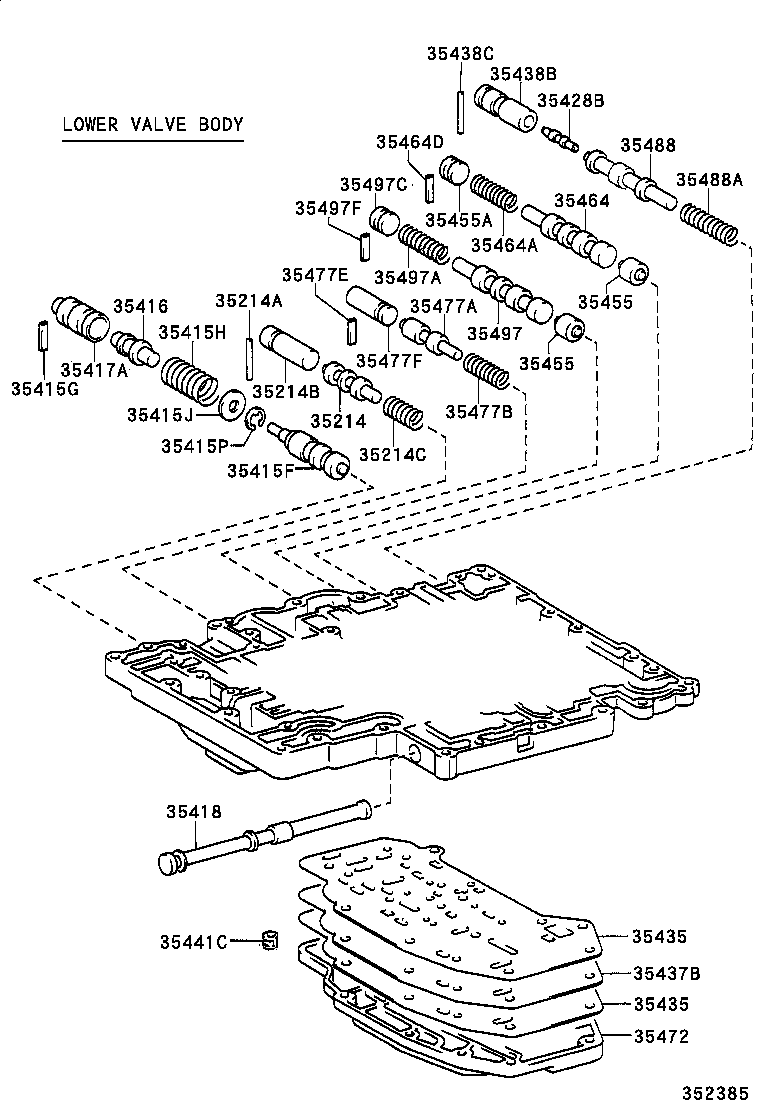

ILLUST NO. 1 OF 5(9001-9201)4FC
A440F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90949-01173 | ||||
| 91611-60625 | ||||
ILLUST NO. 2 OF 5(9001-9201)4FC
A440F
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 4 OF 5(9001-9201)4FC
A440F
| Part # | Description | Qty | Price |
|---|

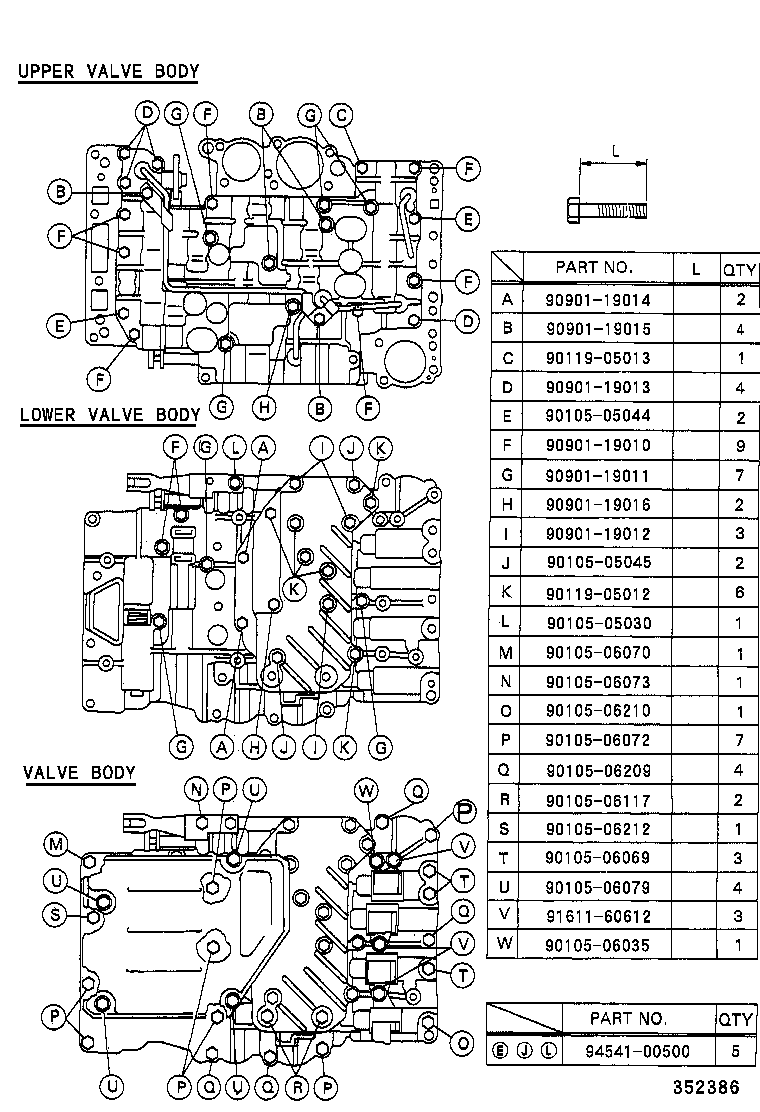

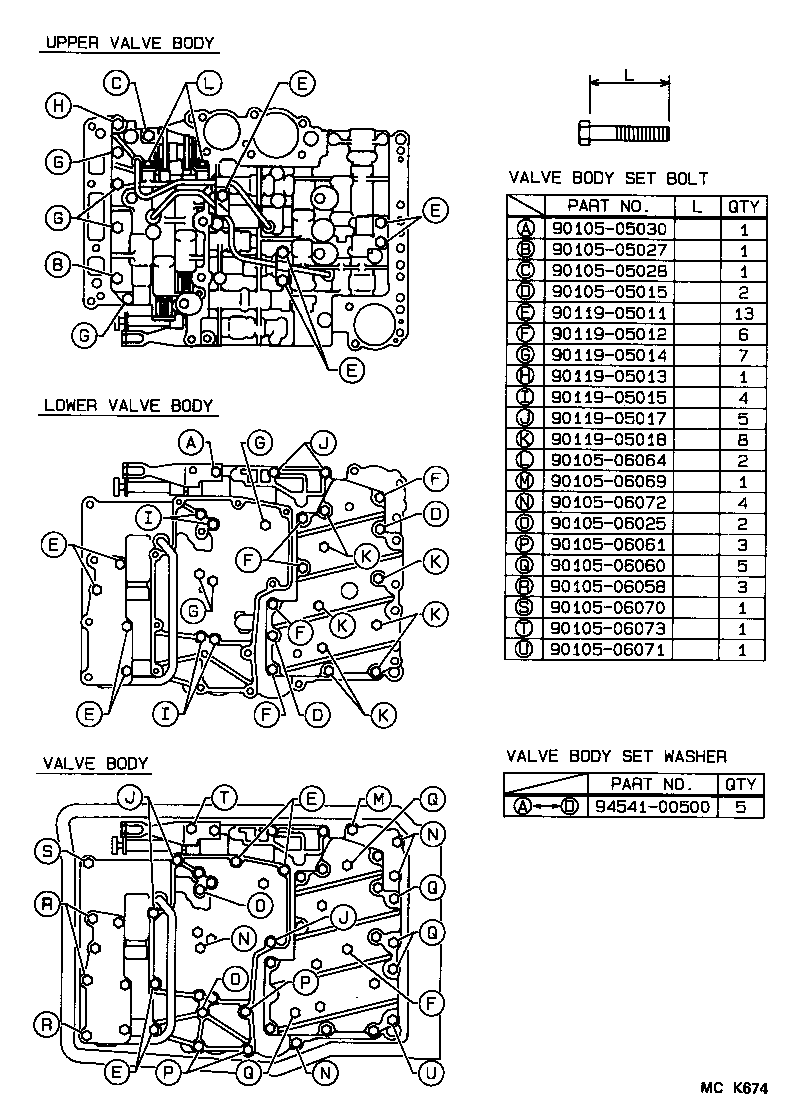

ILLUST NO. 5 OF 5(9001-9201)4FC
A440F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-05002 | ||||
| 90105-05007 | ||||
| 90105-05015 | ||||
| 90105-05016 | ||||
| 90105-05017 | ||||
| 90105-05023 | ||||
| 90105-05025 | ||||
| 90105-05027 | ||||
| 90105-05028 | ||||
| 90105-05029 | ||||
| 90105-05030 | ||||
| 90105-06025 | ||||
| 90105-06058 | ||||
| 90105-06060 | ||||
| 90105-06061 | ||||
| 90105-06064 | ||||
| 90105-06069 | ||||
| 90105-06070 | ||||
| 90105-06071 | ||||
| 90105-06072 | ||||
| 90105-06073 | ||||
| 94541-00500 | ||||

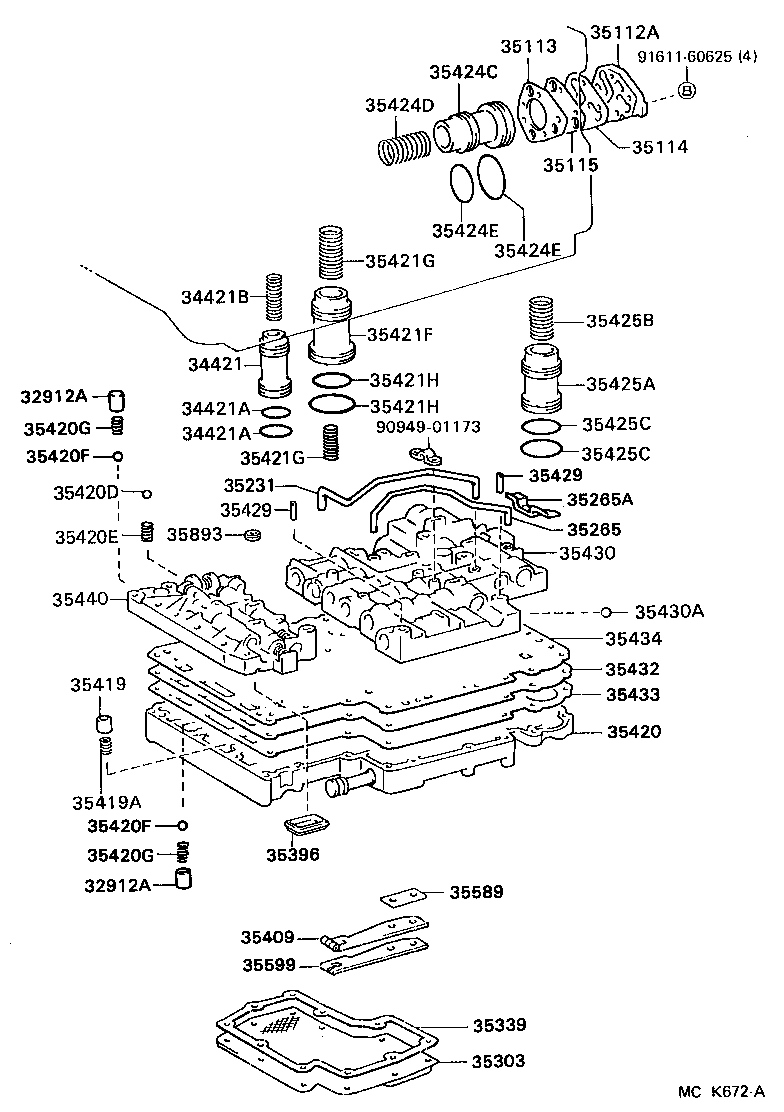

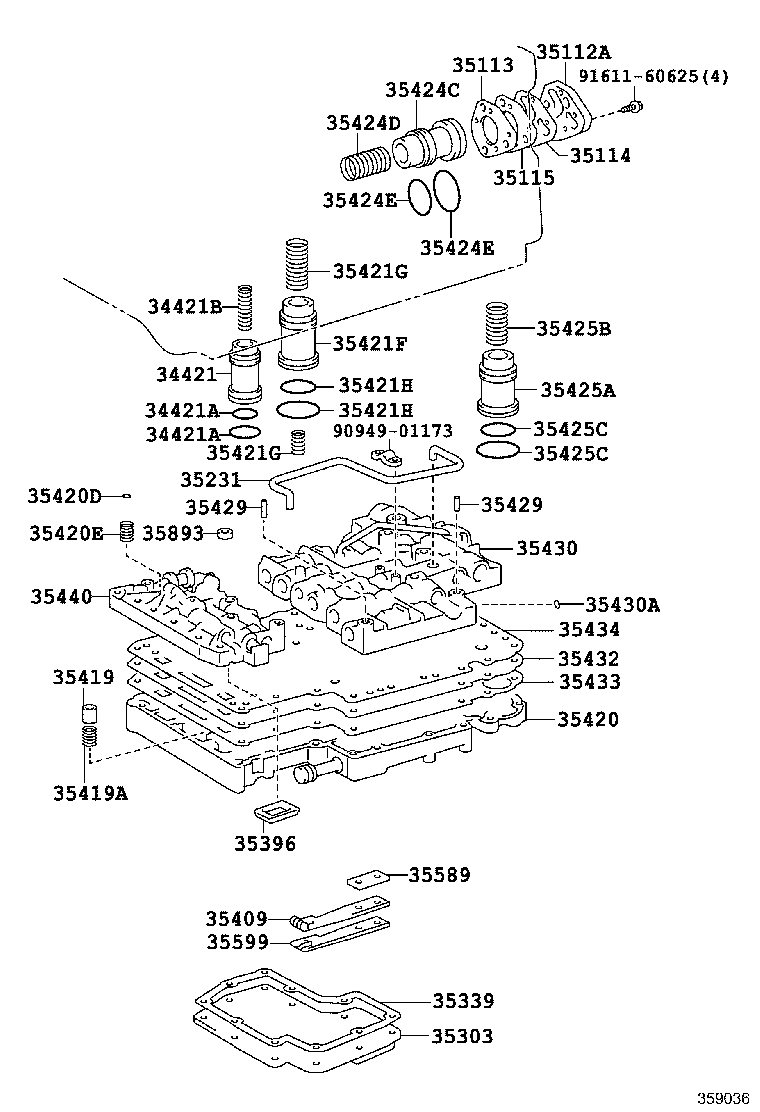

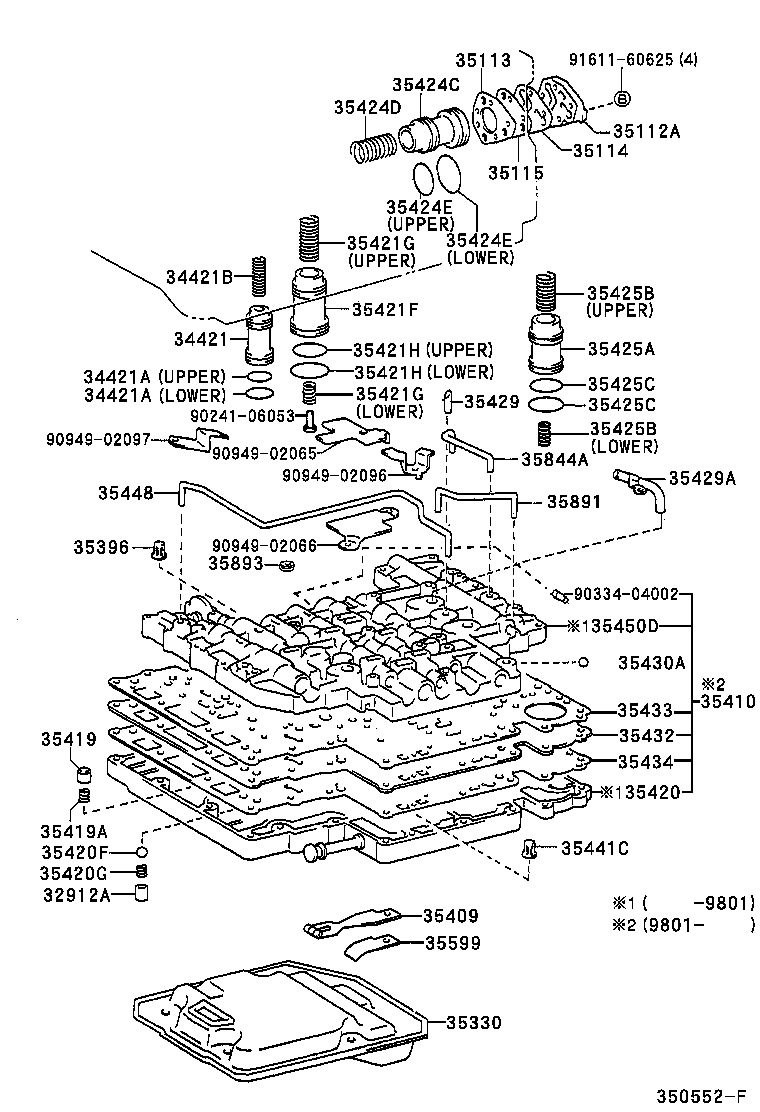

ILLUST NO. 1 OF 4(9208- )4FC
A440F,A442F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32912A - CAGE, CHECK VALVE(FOR VALVE BODY) | ||||
| 32912-60010 |
HDJ80..4FC |
2 | ||
| 34421 - PISTON, OVERDRIVE BRAKE ACCUMULATOR | ||||
| 34421-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 34421A - RING, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON) | ||||
| 90301-26003 |
FJ80,HDJ80,HZJ80..4FC UPPER |
1 | ||
| 90301-29003 |
FJ80,HDJ80,HZJ80..4FC LOWER |
1 | ||
| 34421A - RING, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON) | ||||
| 90301-26003 |
FJ80,HDJ80,HZJ80..4FC UPPER |
1 | ||
| 90301-29003 |
FJ80,HDJ80,HZJ80..4FC LOWER |
1 | ||
| 34421B - SPRING (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON) | ||||
| 90501-33008 |
HDJ80..4FC |
1 | ||
| 35112A - COVER, FRONT CLUTCH ACCUMULATOR | ||||
| 35112-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35113 - GASKET, FRONT CLUTCH ACCUMLATOR, NO.2 | ||||
| 35113-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35114 - GASKET, FRONT CLUTCH ACCUMLATOR, NO.1 | ||||
| 35114-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35115 - PLATE, FRONT CLUTCH ACCUMULATOR | ||||
| 35115-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35396 - STRAINER, THROTTLE OIL | ||||
| 35396-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-60010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35419 - VALVE, CHECK, NO.1 | ||||
| 35419-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) | ||||
| 90501-12129 |
HDJ80..4FC |
1 | ||
| 35420 - BODY ASSY, LOWER VALVE | ||||
| 35420-60060 |
HDJ80..4FC..ARL W(CRUISE CONTROL) |
1 | ||
| 35420-60040 |
HDJ80..4FC |
1 | ||
| 35420-36050 |
HDJ80..4FC |
1 | ||
| 35420F - BALL, CHECK, NO.1 | ||||
| 90360-10006 |
HDJ80..4FC |
2 | ||
| 35420G - SPRING, BARREL SHAPED | ||||
| 90503-04004 |
HDJ80..4FC |
2 | ||
| 35421F - PISTON, ACCUMULATOR, NO.2 | ||||
| 35402-60010 |
HDJ80..4FC |
1 | ||
| 35402-60030 |
FZJ80,HDJ80..4FC |
1 | ||
| 35402-60020 |
FJ80,HDJ80..4FC..(EFI,TD2) |
1 | ||
| 35402-60020 |
FJ80,HDJ80,HZJ80..4FC..(DSL,EFI,TD2) |
1 | ||
| 35421G - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90501-40024 |
HDJ80..4FC UPPER |
1 | ||
| 90501-18085 |
HDJ80..4FC LOWER |
1 | ||
| 90501-40028 |
HDJ80..4FC UPPER |
1 | ||
| 35421G - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90501-40024 |
HDJ80..4FC UPPER |
1 | ||
| 90501-18085 |
HDJ80..4FC LOWER |
1 | ||
| 90501-40028 |
HDJ80..4FC UPPER |
1 | ||
| 35421H - RING (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90301-37004 |
FJ80,HDJ80,HZJ80..4FC LOWER |
1 | ||
| 90301-29003 |
FJ80,HDJ80,HZJ80..4FC UPPER |
1 | ||
| 35421H - RING (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90301-37004 |
FJ80,HDJ80,HZJ80..4FC LOWER |
1 | ||
| 90301-29003 |
FJ80,HDJ80,HZJ80..4FC UPPER |
1 | ||
| 35424C - PISTON, C-1 ACCUMULATOR | ||||
| 35424-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-27008 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-24002 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-24002 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35405-60030 |
FZJ80,HDJ80..4FC |
1 | ||
| 35405-60030 |
HDJ80..4FC |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-35009 |
FJ80,HDJ80,HZJ80..4FC..(CBR,DSL,TD2) |
1 | ||
| 90501-34007 |
HDJ80..4FC |
1 | ||
| 90501-35009 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-35009 |
FJ80,HDJ80,HZJ80..4FC..(CBR,DSL,TD2) |
1 | ||
| 90501-34007 |
HDJ80..4FC |
1 | ||
| 90501-35009 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-33006 |
FJ80,HDJ80,HZJ80..4FC LOWER |
1 | ||
| 90301-28003 |
FJ80,HDJ80,HZJ80..4FC UPPER |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-33006 |
FJ80,HDJ80,HZJ80..4FC LOWER |
1 | ||
| 90301-28003 |
FJ80,HDJ80,HZJ80..4FC UPPER |
1 | ||
| 35429 - TUBE, LINE PRESSURE | ||||
| 35429-36010 |
FJ80,HDJ80,HZJ80..4FC |
2 | ||
| 35430A - BALL (FOR REAR UPPER VALVE BODY) | ||||
| 90360-06004 |
FJ80,HDJ80,HZJ80..4FC OD=6.35 |
7 | ||
| 35432 - PLATE, VALVE BODY, NO.1 | ||||
| 35432-60050 |
HDJ80..4FC |
1 | ||
| 35432-60060 |
HDJ80..4FC..ARL W(CRUISE CONTROL) |
1 | ||
| 35432-36040 |
FZJ80,HDJ80..4FC |
1 | ||
| 35432-36041 |
FZJ80,HDJ80..4FC |
1 | ||
| 35433 - GASKET, VALVE BODY, NO.1 | ||||
| 35433-60020 |
HDJ80..4FC |
1 | ||
| 35433-36020 |
FZJ80,HDJ80..4FC |
1 | ||
| 35434 - GASKET, VALVE BODY, NO.2 | ||||
| 35434-60020 |
HDJ80..4FC |
1 | ||
| 35434-36020 |
FZJ80,HDJ80..4FC |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-60010 |
FJ80,HDJ80..4FC..ARL |
1 | ||
| 35450D - BODY ASSY, UPPER VALVE | ||||
| 35450-36020 |
HDJ80..4FC |
1 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-60010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35893 - GASKET, CENTER SUPPORT APPLY | ||||
| 35893-36010 |
FJ80,HDJ80,HZJ80..4FC |
4 | ||
| Common parts | ||||
| 90241-06053 | ||||
| 90334-04002 | ||||
| 90949-02065 | ||||
| 90949-02066 | ||||
| 90949-02096 | ||||
| 90949-02097 | ||||
| 91611-60625 | ||||

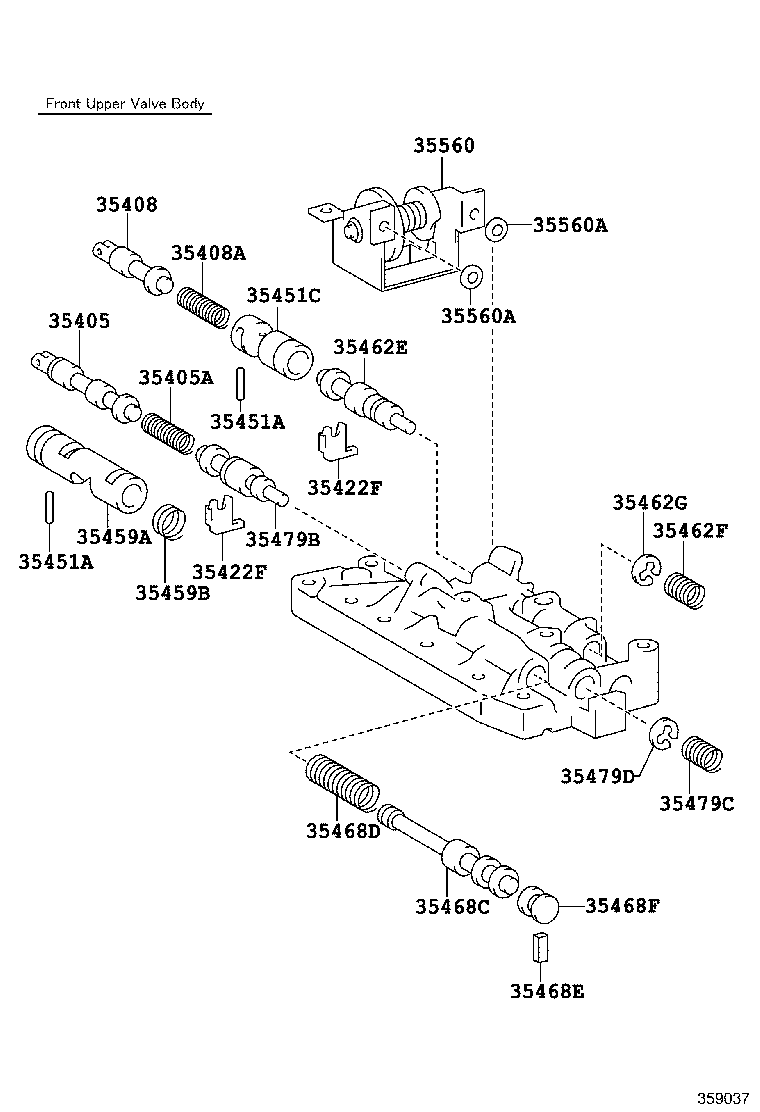

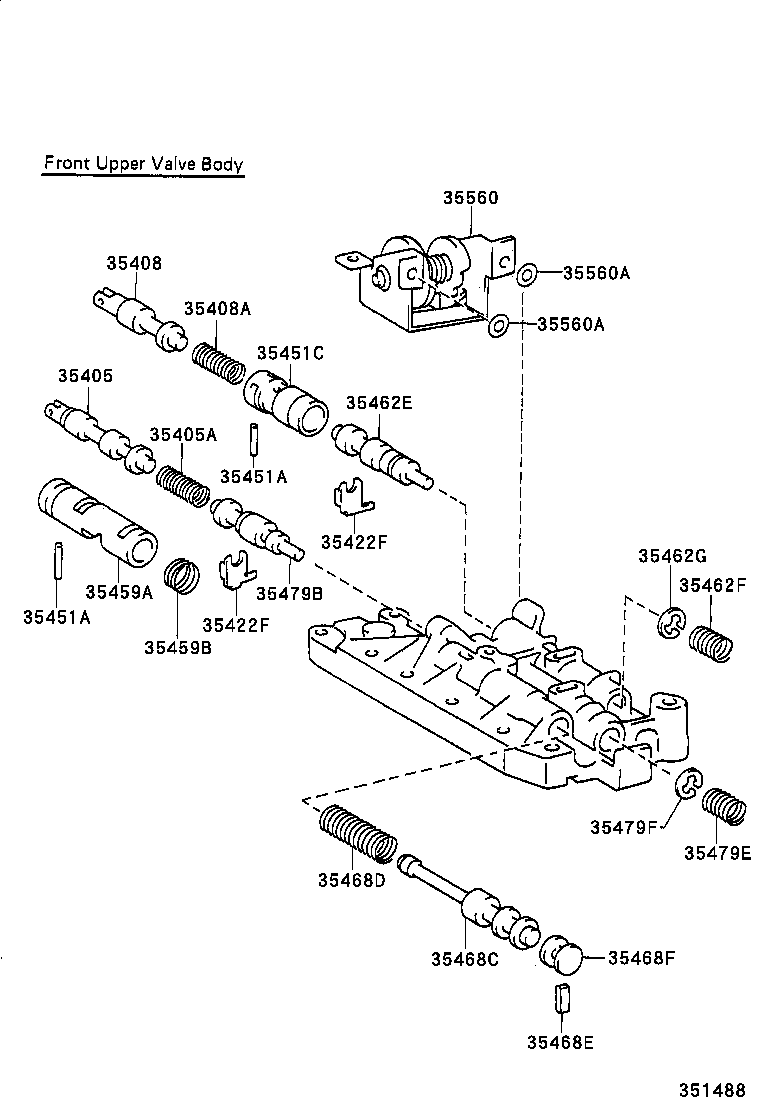

ILLUST NO. 2 OF 5(9001-9208)4FC
A440F,A442F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35405 - PLUG SUB-ASSY, SECONDARY DOWN SHIFT | ||||
| 35405-60020 |
HDJ80..4FC |
1 | ||
| 35405A - SPRING, COMPRESSION(FOR SECONDARY DOWN SHIFT PLUG) | ||||
| 90501-10171 |
HDJ80..4FC |
1 | ||
| 35408 - PLUG SUB-ASSY, PRIMARY DOWN SHIFT | ||||
| 35408-36020 |
HDJ80..4FC |
1 | ||
| 35408-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35408-36021 |
HDJ80..4FC |
1 | ||
| 35408A - SPRING, COMPRESSION (FOR PRIMARY DOWN SHIFT PLUG) | ||||
| 90501-11030 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35422F - STOPPER, VALVE VIBRATING | ||||
| 35422-22010 |
FJ80,HDJ80,HZJ80..4FC SECONDARY |
1 | ||
| 35422-36010 |
FJ80,HDJ80,HZJ80..4FC PRIMARY |
1 | ||
| 35422F - STOPPER, VALVE VIBRATING | ||||
| 35422-22010 |
FJ80,HDJ80,HZJ80..4FC SECONDARY |
1 | ||
| 35422-36010 |
FJ80,HDJ80,HZJ80..4FC PRIMARY |
1 | ||
| 35451A - PIN, STRAIGHT (FOR THROTTLE VALVE SLEEVE) | ||||
| 90250-03036 |
FJ80,HDJ80,HZJ80..4FC |
2 | ||
| 35451A - PIN, STRAIGHT (FOR THROTTLE VALVE SLEEVE) | ||||
| 90250-03036 |
FJ80,HDJ80,HZJ80..4FC |
2 | ||
| 35451C - SLEEVE, THROTTLE VALVE, NO.1 | ||||
| 35451-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35451-36021 |
FZJ80,HDJ80..4FC |
1 | ||
| 35451-36021 |
HDJ80..4FC |
1 | ||
| 35451-36020 |
FZJ80,HDJ80..4FC |
1 | ||
| 35459A - SLEEVE, THROTTLE VALVE, NO.2 | ||||
| 35459-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35459B - SPRING (FOR THROTTLE VALVE SLEEVE) | ||||
| 90501-15006 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35462E - VALVE, PRIMARY THROTTLE | ||||
| 35462-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35462F - SPRING, COMPRESSION (FOR PRIMARY THROTTLE VALVE) | ||||
| 90501-07049 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35462G - RING, E (FOR PRIMARY THROTTLE VALVE) | ||||
| 90523-06005 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35468C - VALVE, SECONDARY REGULATOR | ||||
| 35468-60010 |
HDJ80..4FC |
1 | ||
| 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) | ||||
| 90501-17019 |
HDJ80..4FC |
1 | ||
| 35468E - KEY, STRAIGHT (FOR SECONDARY REGULATOR VALVE) | ||||
| 90282-03006 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35468F - PLUG (FOR SECONDARY REGULATOR VALVE) | ||||
| 90339-04010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35479B - VALVE, SECONDARY THROTTLE | ||||
| 35479-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35479E - SPRING, COMPRESSION (FOR SECONDARY THROTTLE VALVE) | ||||
| 90501-07049 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35479F - RING, E (FOR SECONDARY THROTTLE VALVE) | ||||
| 90523-06005 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35560 - CAM ASSY, THROTTLE VALVE | ||||
| 35560-60050 |
HDJ80..4FC |
1 | ||
| 35560-60051 |
HDJ80..4FC..ARL W(CRUISE CONTROL) |
1 | ||
| 35560-60051 |
HDJ80..4FC |
1 | ||
| 35560A - SHIM (FOR THROTTLE VALVE CAM) | ||||
| 90564-06002 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35560A - SHIM (FOR THROTTLE VALVE CAM) | ||||
| 90564-06002 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||

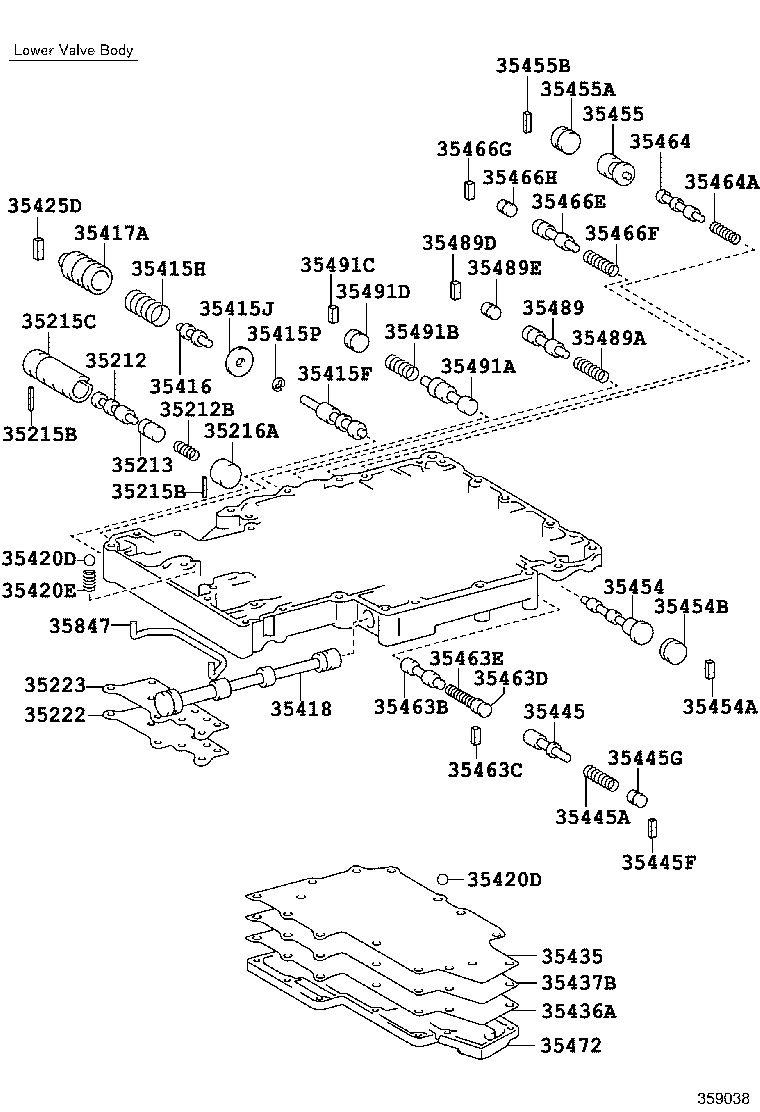

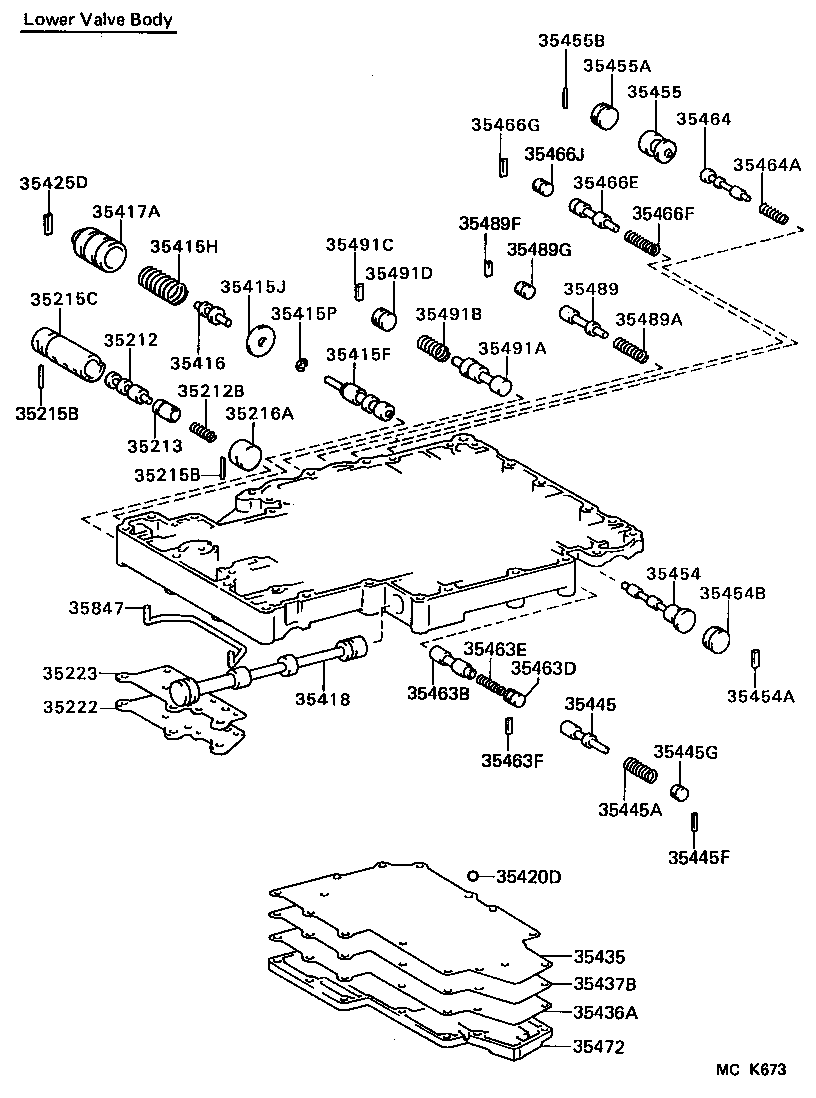

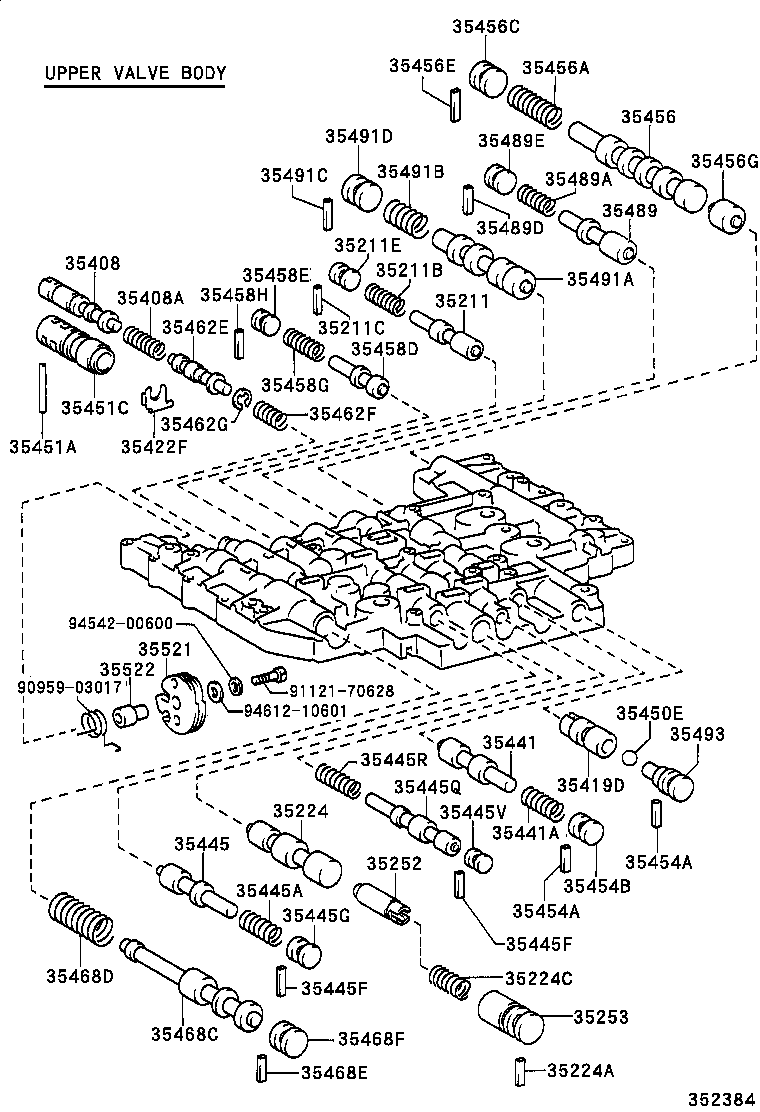

ILLUST NO. 2 OF 4(9208- )4FC
A440F,A442F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35211 - VALVE, LOCK UP SIGNAL | ||||
| 35211-36011 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35211B - SPRING, COMPRESSION (FOR LOCK UP SIGNAL VALVE) | ||||
| 90501-12094 |
HDJ80..4FC |
1 | ||
| 35408 - PLUG SUB-ASSY, PRIMARY DOWN SHIFT | ||||
| 35408-36020 |
HDJ80..4FC |
1 | ||
| 35408-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35408-36021 |
HDJ80..4FC |
1 | ||
| 35408A - SPRING, COMPRESSION (FOR PRIMARY DOWN SHIFT PLUG) | ||||
| 90501-11030 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35422F - STOPPER, VALVE VIBRATING | ||||
| 35422-22010 |
FJ80,HDJ80,HZJ80..4FC SECONDARY |
1 | ||
| 35422-36010 |
FJ80,HDJ80,HZJ80..4FC PRIMARY |
1 | ||
| 35445 - VALVE, LOW MODULATOR | ||||
| 35445-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35445A - SPRING, COMPRESSION (FOR LOW MODULATOR VALVE) | ||||
| 90501-10189 |
FZJ80,HDJ80..4FC |
1 | ||
| 90501-09099 |
HDJ80..4FC |
1 | ||
| 35445F - KEY, STRAIGHT (FOR LOW MODULATOR VALVE) | ||||
| 90282-03007 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35445F - KEY, STRAIGHT (FOR LOW MODULATOR VALVE) | ||||
| 90282-03007 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35445G - PLUG (FOR LOW MODULATOR VALVE) | ||||
| 90339-04009 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35451A - PIN, STRAIGHT (FOR THROTTLE VALVE SLEEVE) | ||||
| 90250-03036 |
FJ80,HDJ80,HZJ80..4FC |
2 | ||
| 35451C - SLEEVE, THROTTLE VALVE, NO.1 | ||||
| 35451-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35451-36021 |
FZJ80,HDJ80..4FC |
1 | ||
| 35451-36021 |
HDJ80..4FC |
1 | ||
| 35451-36020 |
FZJ80,HDJ80..4FC |
1 | ||
| 35454A - KEY, STRAIGHT (FOR LOW COAST SHIFT VALVE) | ||||
| 90282-03006 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35454A - KEY, STRAIGHT (FOR LOW COAST SHIFT VALVE) | ||||
| 90282-03006 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35454B - PLUG (FOR LOW COAST SHIFT VALVE) | ||||
| 90339-06004 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35456 - VALVE, 2-3 SHIFT | ||||
| 35456-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) | ||||
| 90501-11041 |
HDJ80..4FC |
1 | ||
| 35456C - PLUG (FOR 2-3 SHIFT VALVE) | ||||
| 90339-04011 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35456E - PIN, STRAIGHT (FOR 2-3 SHIFT VALVE) | ||||
| 90282-03006 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35458D - VALVE, CUT BACK | ||||
| 35458-60010 |
HDJ80..4FC |
1 | ||
| 35458E - PLUG (FOR CUT BACK VALVE) | ||||
| 90339-04017 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35458H - KEY, STRAIGHT (FOR CUT BACK VALVE) | ||||
| 90282-03006 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35462E - VALVE, PRIMARY THROTTLE | ||||
| 35462-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35462F - SPRING, COMPRESSION (FOR PRIMARY THROTTLE VALVE) | ||||
| 90501-07049 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35462G - RING, E (FOR PRIMARY THROTTLE VALVE) | ||||
| 90523-06005 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35468C - VALVE, SECONDARY REGULATOR | ||||
| 35468-60010 |
HDJ80..4FC |
1 | ||
| 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) | ||||
| 90501-17019 |
HDJ80..4FC |
1 | ||
| 35468E - KEY, STRAIGHT (FOR SECONDARY REGULATOR VALVE) | ||||
| 90282-03006 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35468F - PLUG (FOR SECONDARY REGULATOR VALVE) | ||||
| 90339-04010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35489 - VALVE, 3-2 KICK DOWN ORIFICE CONTROL | ||||
| 35489-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35489A - SPRING (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE) | ||||
| 90501-08075 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35491A - VALVE, ACCUMULATOR CONTROL, NO.1 | ||||
| 35491-60010 |
HDJ80..4FC |
1 | ||
| 35491B - SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1 | ||||
| 90501-11051 |
HDJ80..4FC |
1 | ||
| 35491C - KEY, STRAIGHT (FOR ACCUMULATOR CONTROL VALVE NO.1) | ||||
| 90282-03007 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35491D - PLUG (FOR ACCUMULATOR CONTROL VALVE NO.1) | ||||
| 90339-04029 |
HDJ80..4FC |
1 | ||
| Common parts | ||||
| 90959-03017 | ||||
| 91121-70628 | ||||
| 94542-00600 | ||||
| 94612-10601 | ||||
ILLUST NO. 3 OF 4(9208- )4FC
A440F,A442F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35415F - VALVE, PRIMARY REGULATOR | ||||
| 35415-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35415H - SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE) | ||||
| 90501-20108 |
HDJ80..4FC |
1 | ||
| 35415J - WASHER (FOR PRIMARY REGULATOR VALVE) | ||||
| 90201-06566 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35415P - RING, E (FOR PRIMARY REGULATOR VALVE) | ||||
| 90523-06004 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35416 - PLUNGER, PRIMARY REGULATOR VALVE, NO.1 | ||||
| 35416-60010 |
HDJ80..4FC |
1 | ||
| 35417A - SLEEVE, PRIMARY REGULATOR VALVE | ||||
| 35417-60010 |
HDJ80..4FC |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35428B - PLUG, 2-3 SHIFT TIMING VALVE | ||||
| 35428-60040 |
HDJ80..4FC |
1 | ||
| 35435 - GASKET, VALVE BODY PLATE, NO.3 | ||||
| 35435-36011 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35435 - GASKET, VALVE BODY PLATE, NO.3 | ||||
| 35435-36011 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35437B - PLATE, VALVE BODY COVER | ||||
| 35437-36011 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35438B - SLEEVE, 2-3 SHIFT TIMING VALVE PLUG | ||||
| 35438-60030 |
HDJ80..4FC |
1 | ||
| 35438-60010 |
HDJ80..4FC..ARL W(CRUISE CONTROL) |
1 | ||
| 35438C - PIN, STRAIGHT (FOR 2-3 SHIFT TIMING VALVE PLUG SLEEVE) | ||||
| 90250-03051 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-60010 |
FJ80,HDJ80..4FC..ARL |
1 | ||
| 35455 - PLUG, 1-2 SHIFT VALVE LOW | ||||
| 35455-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35455 - PLUG, 1-2 SHIFT VALVE LOW | ||||
| 35455-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35455A - PLUG (FOR 1-2 SHIFT VALVE LOW PLUG) | ||||
| 90339-06009 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35464 - VALVE, 1-2 SHIFT | ||||
| 35464-36011 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) | ||||
| 90501-07040 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35472 - COVER, VALVE BODY, NO.2 | ||||
| 35472-36011 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35477A - VALVE, OVERDRIVE CLUTCH EXHAUST | ||||
| 35477-30030 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35477B - SPRING, COMPRESSION (FOR OVERDRIVE CLUTCH EXHAUST VALVE | ||||
| 90501-07042 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35477E - KEY, STRAIGHT (FOR OVERDRIVE CLUTCH EXHAUST VALVE) | ||||
| 90282-03006 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35477F - PLUG (FOR OVERDRIVE CLUTCH EXHAUST VALVE) | ||||
| 90339-04021 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35488 - VALVE, 2-3 SHIFT TIMING | ||||
| 35488-60010 |
HDJ80..4FC |
1 | ||
| 35488A - SPRING, COMPRESSION (FOR 2-3 SHIFT TIMING VALVE) | ||||
| 90501-09124 |
FZJ80,HDJ80..4FC |
1 | ||
| 90501-10169 |
HDJ80..4FC |
1 | ||
| 35497 - VALVE, 3-4 SHIFT | ||||
| 35497-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE) | ||||
| 90501-10168 |
HDJ80..4FC |
1 | ||
| 35497C - PLUG (FOR 3-4 SHIFT VALVE) | ||||
| 90339-05009 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
ILLUST NO. 4 OF 4(9208- )4FC
A440F,A442F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-05030 | ||||
| 90105-05044 | ||||
| 90105-05045 | ||||
| 90105-06035 | ||||
| 90105-06069 | ||||
| 90105-06070 | ||||
| 90105-06072 | ||||
| 90105-06073 | ||||
| 90105-06079 | ||||
| 90105-06117 | ||||
| 90105-06209 | ||||
| 90105-06210 | ||||
| 90105-06212 | ||||
| 90119-05012 | ||||
| 90119-05013 | ||||
| 90901-19010 | ||||
| 90901-19011 | ||||
| 90901-19012 | ||||
| 90901-19013 | ||||
| 90901-19014 | ||||
| 90901-19015 | ||||
| 90901-19016 | ||||
| 91611-60612 | ||||
| 94541-00500 | ||||
ILLUST NO. 1 OF 5(9001-9208)HDJ80..4FC
A442F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32912A - CAGE, CHECK VALVE(FOR VALVE BODY) | ||||
| 32912-60010 |
HDJ80..4FC |
2 | ||
| 32912A - CAGE, CHECK VALVE(FOR VALVE BODY) | ||||
| 32912-60010 |
HDJ80..4FC |
2 | ||
| 34421 - PISTON, OVERDRIVE BRAKE ACCUMULATOR | ||||
| 34421-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 34421A - RING, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON) | ||||
| 90301-26003 |
FJ80,HDJ80,HZJ80..4FC UPPER |
1 | ||
| 90301-29003 |
FJ80,HDJ80,HZJ80..4FC LOWER |
1 | ||
| 34421A - RING, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON) | ||||
| 90301-26003 |
FJ80,HDJ80,HZJ80..4FC UPPER |
1 | ||
| 90301-29003 |
FJ80,HDJ80,HZJ80..4FC LOWER |
1 | ||
| 34421B - SPRING (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON) | ||||
| 90501-33008 |
HDJ80..4FC |
1 | ||
| 35112A - COVER, FRONT CLUTCH ACCUMULATOR | ||||
| 35112-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35113 - GASKET, FRONT CLUTCH ACCUMLATOR, NO.2 | ||||
| 35113-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35114 - GASKET, FRONT CLUTCH ACCUMLATOR, NO.1 | ||||
| 35114-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35115 - PLATE, FRONT CLUTCH ACCUMULATOR | ||||
| 35115-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35231 - TUBE, LOCK UP SIGNAL VALVE APPLY | ||||
| 35231-60010 |
HDJ80..4FC |
1 | ||
| 35265 - TUBE, CLUTCH PRESSURE APPLY | ||||
| 35265-60010 |
HDJ80..4FC |
1 | ||
| 35265A - BRACKET (FOR CLUTCH PRESSURE APPLY TUBE) | ||||
| 90959-02006 |
HDJ80..4FC |
1 | ||
| 35303 - STRAINER SUB-ASSY, OIL | ||||
| 35303-60010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35339 - GASKET, OIL STRAINER | ||||
| 35339-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35396 - STRAINER, THROTTLE OIL | ||||
| 35396-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-60010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35419 - VALVE, CHECK, NO.1 | ||||
| 35419-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) | ||||
| 90501-12129 |
HDJ80..4FC |
1 | ||
| 35420 - BODY ASSY, LOWER VALVE | ||||
| 35420-60060 |
HDJ80..4FC..ARL W(CRUISE CONTROL) |
1 | ||
| 35420-60040 |
HDJ80..4FC |
1 | ||
| 35420-36050 |
HDJ80..4FC |
1 | ||
| 35420D - BALL (FOR LOWER VALVE BODY) | ||||
| 90360-06004 |
FJ80,HDJ80,HZJ80..4FC OD=6.35 |
2 | ||
| 35420F - BALL, CHECK, NO.1 | ||||
| 90360-10006 |
HDJ80..4FC |
2 | ||
| 35420F - BALL, CHECK, NO.1 | ||||
| 90360-10006 |
HDJ80..4FC |
2 | ||
| 35420G - SPRING, BARREL SHAPED | ||||
| 90503-04004 |
HDJ80..4FC |
2 | ||
| 35420G - SPRING, BARREL SHAPED | ||||
| 90503-04004 |
HDJ80..4FC |
2 | ||
| 35421F - PISTON, ACCUMULATOR, NO.2 | ||||
| 35402-60010 |
HDJ80..4FC |
1 | ||
| 35402-60030 |
FZJ80,HDJ80..4FC |
1 | ||
| 35402-60020 |
FJ80,HDJ80..4FC..(EFI,TD2) |
1 | ||
| 35402-60020 |
FJ80,HDJ80,HZJ80..4FC..(DSL,EFI,TD2) |
1 | ||
| 35421G - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90501-40024 |
HDJ80..4FC UPPER |
1 | ||
| 90501-18085 |
HDJ80..4FC LOWER |
1 | ||
| 90501-40028 |
HDJ80..4FC UPPER |
1 | ||
| 35421G - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90501-40024 |
HDJ80..4FC UPPER |
1 | ||
| 90501-18085 |
HDJ80..4FC LOWER |
1 | ||
| 90501-40028 |
HDJ80..4FC UPPER |
1 | ||
| 35421H - RING (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90301-37004 |
FJ80,HDJ80,HZJ80..4FC LOWER |
1 | ||
| 90301-29003 |
FJ80,HDJ80,HZJ80..4FC UPPER |
1 | ||
| 35421H - RING (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90301-37004 |
FJ80,HDJ80,HZJ80..4FC LOWER |
1 | ||
| 90301-29003 |
FJ80,HDJ80,HZJ80..4FC UPPER |
1 | ||
| 35424C - PISTON, C-1 ACCUMULATOR | ||||
| 35424-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-27008 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-24002 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-24002 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35405-60030 |
FZJ80,HDJ80..4FC |
1 | ||
| 35405-60030 |
HDJ80..4FC |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-35009 |
FJ80,HDJ80,HZJ80..4FC..(CBR,DSL,TD2) |
1 | ||
| 90501-34007 |
HDJ80..4FC |
1 | ||
| 90501-35009 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-33006 |
FJ80,HDJ80,HZJ80..4FC LOWER |
1 | ||
| 90301-28003 |
FJ80,HDJ80,HZJ80..4FC UPPER |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-33006 |
FJ80,HDJ80,HZJ80..4FC LOWER |
1 | ||
| 90301-28003 |
FJ80,HDJ80,HZJ80..4FC UPPER |
1 | ||
| 35429 - TUBE, LINE PRESSURE | ||||
| 35429-36010 |
FJ80,HDJ80,HZJ80..4FC |
2 | ||
| 35429 - TUBE, LINE PRESSURE | ||||
| 35429-36010 |
FJ80,HDJ80,HZJ80..4FC |
2 | ||
| 35430 - BODY ASSY, REAR UPPER VALVE | ||||
| 35430-60170 |
HDJ80..4FC..ARL W(CRUISE CONTROL) |
1 | ||
| 35430-60160 |
HDJ80..4FC |
1 | ||
| 35430A - BALL (FOR REAR UPPER VALVE BODY) | ||||
| 90360-06004 |
FJ80,HDJ80,HZJ80..4FC OD=6.35 |
7 | ||
| 35432 - PLATE, VALVE BODY, NO.1 | ||||
| 35432-60050 |
HDJ80..4FC |
1 | ||
| 35432-60060 |
HDJ80..4FC..ARL W(CRUISE CONTROL) |
1 | ||
| 35432-36040 |
FZJ80,HDJ80..4FC |
1 | ||
| 35432-36041 |
FZJ80,HDJ80..4FC |
1 | ||
| 35433 - GASKET, VALVE BODY, NO.1 | ||||
| 35433-60020 |
HDJ80..4FC |
1 | ||
| 35433-36020 |
FZJ80,HDJ80..4FC |
1 | ||
| 35434 - GASKET, VALVE BODY, NO.2 | ||||
| 35434-60020 |
HDJ80..4FC |
1 | ||
| 35434-36020 |
FZJ80,HDJ80..4FC |
1 | ||
| 35440 - BODY ASSY, FRONT UPPER VALVE | ||||
| 35440-60040 |
HDJ80..4FC |
1 | ||
| 35440-60041 |
HDJ80..4FC |
1 | ||
| 35589 - SPACER, MANUAL DETENT SPRING | ||||
| 35589-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-60010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35893 - GASKET, CENTER SUPPORT APPLY | ||||
| 35893-36010 |
FJ80,HDJ80,HZJ80..4FC |
4 | ||
| Common parts | ||||
| 90949-01173 | ||||
| 91611-60625 | ||||
ILLUST NO. 4 OF 5(9001-9208)HDJ80..4FC
A442F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35212 - VALVE, LOCK UP RELAY | ||||
| 35212-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35212B - SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE) | ||||
| 90501-11024 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35213 - VALVE, LOCK UP RELAY CONTROL | ||||
| 35213-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35215B - PIN, STRAIGHT (FOR LOCK UP RELAY VALVE SLEEVE) | ||||
| 90250-04054 |
FJ80,HDJ80,HZJ80..4FC SLEEVE NO.2 SIDE |
1 | ||
| 90250-03051 |
FJ80,HDJ80,HZJ80..4FC SLEEVE NO.1 SIDE |
1 | ||
| 35215B - PIN, STRAIGHT (FOR LOCK UP RELAY VALVE SLEEVE) | ||||
| 90250-04054 |
FJ80,HDJ80,HZJ80..4FC SLEEVE NO.2 SIDE |
1 | ||
| 90250-03051 |
FJ80,HDJ80,HZJ80..4FC SLEEVE NO.1 SIDE |
1 | ||
| 35215C - SLEEVE, LOCK UP RELAY VALVE, NO.1 | ||||
| 35215-60010 |
HDJ80..4FC |
1 | ||
| 35216A - SLEEVE, LOCK UP RELAY VALVE, NO.2 | ||||
| 35216-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35222 - PLATE, LOCK UP RELAY VALVE BODY | ||||
| 35222-60010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35223 - GASKET, LOCK UP RELAY VALVE BODY | ||||
| 35223-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35415F - VALVE, PRIMARY REGULATOR | ||||
| 35415-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35415H - SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE) | ||||
| 90501-20108 |
HDJ80..4FC |
1 | ||
| 35415J - WASHER (FOR PRIMARY REGULATOR VALVE) | ||||
| 90201-06566 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35415P - RING, E (FOR PRIMARY REGULATOR VALVE) | ||||
| 90523-06004 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35416 - PLUNGER, PRIMARY REGULATOR VALVE, NO.1 | ||||
| 35416-60010 |
HDJ80..4FC |
1 | ||
| 35417A - SLEEVE, PRIMARY REGULATOR VALVE | ||||
| 35417-60010 |
HDJ80..4FC |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35420D - BALL (FOR LOWER VALVE BODY) | ||||
| 90360-06004 |
FJ80,HDJ80,HZJ80..4FC OD=6.35 |
2 | ||
| 35425D - SEAT, PRIMARY REGULATOR VALVE SLEEVE | ||||
| 35425-22010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35435 - GASKET, VALVE BODY PLATE, NO.3 | ||||
| 35435-36011 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35436A - GASKET, VALVE BODY PLATE, NO.4 | ||||
| 35436-36011 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35437B - PLATE, VALVE BODY COVER | ||||
| 35437-36011 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35445 - VALVE, LOW MODULATOR | ||||
| 35445-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35445A - SPRING, COMPRESSION (FOR LOW MODULATOR VALVE) | ||||
| 90501-10189 |
FZJ80,HDJ80..4FC |
1 | ||
| 90501-09099 |
HDJ80..4FC |
1 | ||
| 35445F - KEY, STRAIGHT (FOR LOW MODULATOR VALVE) | ||||
| 90282-03007 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35445G - PLUG (FOR LOW MODULATOR VALVE) | ||||
| 90339-04009 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35454 - VALVE, LOW COAST SHIFT | ||||
| 35454-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35454A - KEY, STRAIGHT (FOR LOW COAST SHIFT VALVE) | ||||
| 90282-03006 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35454B - PLUG (FOR LOW COAST SHIFT VALVE) | ||||
| 90339-06004 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35455 - PLUG, 1-2 SHIFT VALVE LOW | ||||
| 35455-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35455A - PLUG (FOR 1-2 SHIFT VALVE LOW PLUG) | ||||
| 90339-06009 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35455B - PIN, STRAIGHT (FOR 1-2 SHIFT VALVE LOW PLUG) | ||||
| 90250-03050 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35463B - VALVE, 1-2 RELAY | ||||
| 35463-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35463D - PLUG (FOR 1-2 RELAY VALVE) | ||||
| 90339-04019 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35463E - SPRING, COMPRESSION (FOR 1-2 RELAY VALVE) | ||||
| 90501-06043 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35463F - PIN, STRAIGHT (FOR 1-2 SHIFT VALVE) | ||||
| 90250-03051 |
FJ80,HDJ80..4FC..(EFI,TD2) |
1 | ||
| 35464 - VALVE, 1-2 SHIFT | ||||
| 35464-36011 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) | ||||
| 90501-07040 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35466E - VALVE, 2ND LOCK | ||||
| 35466-60010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35466F - SPRING, COMPRESSION (FOR 2ND LOCK VALVE) | ||||
| 90501-08062 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35466G - KEY, STRAIGHT (FOR 2ND LOCK VALVE) | ||||
| 90282-03005 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35466J - PLUG (FOR 2ND LOCK VALVE) | ||||
| 90339-04017 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35472 - COVER, VALVE BODY, NO.2 | ||||
| 35472-36011 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35489 - VALVE, 3-2 KICK DOWN ORIFICE CONTROL | ||||
| 35489-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35489A - SPRING (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE) | ||||
| 90501-08075 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35489F - KEY, STRAIGHT (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE) | ||||
| 90282-03007 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35489G - PLUG (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE) | ||||
| 90339-04017 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35491A - VALVE, ACCUMULATOR CONTROL, NO.1 | ||||
| 35491-60010 |
HDJ80..4FC |
1 | ||
| 35491B - SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1 | ||||
| 90501-11051 |
HDJ80..4FC |
1 | ||
| 35491C - KEY, STRAIGHT (FOR ACCUMULATOR CONTROL VALVE NO.1) | ||||
| 90282-03007 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35491D - PLUG (FOR ACCUMULATOR CONTROL VALVE NO.1) | ||||
| 90339-04029 |
HDJ80..4FC |
1 | ||
| 35847 - TUBE, TRANSMISSION LUBE APPLY | ||||
| 35847-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
ILLUST NO. 5 OF 5(9001-9208)HDJ80..4FC
A442F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-05015 | ||||
| 90105-05027 | ||||
| 90105-05028 | ||||
| 90105-05030 | ||||
| 90105-06025 | ||||
| 90105-06058 | ||||
| 90105-06060 | ||||
| 90105-06061 | ||||
| 90105-06064 | ||||
| 90105-06069 | ||||
| 90105-06070 | ||||
| 90105-06071 | ||||
| 90105-06072 | ||||
| 90105-06073 | ||||
| 90119-05011 | ||||
| 90119-05012 | ||||
| 90119-05013 | ||||
| 90119-05014 | ||||
| 90119-05015 | ||||
| 90119-05017 | ||||
| 90119-05018 | ||||
| 94541-00500 | ||||
ILLUST NO. 3 OF 5(9001-9208)4FC
A440F,A442F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35211 - VALVE, LOCK UP SIGNAL | ||||
| 35211-36011 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35211A - PIN, STRAIGHT (FOR LOCK UP SIGNAL VALVE) | ||||
| 90250-03051 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35211B - SPRING, COMPRESSION (FOR LOCK UP SIGNAL VALVE) | ||||
| 90501-12094 |
HDJ80..4FC |
1 | ||
| 35219 - PLUG, LOCK UP SIGNAL VALVE | ||||
| 35219-60011 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35226 - SEAT, LOCK UP SIGNAL VALVE SPRING | ||||
| 35226-36011 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35266 - CLAMP, CLUTCH PRESSURE APPLY TUBE | ||||
| 35266-60010 |
FJ80,HDJ80..4FC..ARL |
1 | ||
| 35428B - PLUG, 2-3 SHIFT TIMING VALVE | ||||
| 35428-60040 |
HDJ80..4FC |
1 | ||
| 35438B - SLEEVE, 2-3 SHIFT TIMING VALVE PLUG | ||||
| 35438-60030 |
HDJ80..4FC |
1 | ||
| 35438-60010 |
HDJ80..4FC..ARL W(CRUISE CONTROL) |
1 | ||
| 35438C - PIN, STRAIGHT (FOR 2-3 SHIFT TIMING VALVE PLUG SLEEVE) | ||||
| 90250-03051 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35444 - VALVE, INTERMEDIATE MODULATOR | ||||
| 35444-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35444A - SPRING, COMPRESSION (FOR INTERMEDIATE MODULATOR VALVE) | ||||
| 90501-10107 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35444B - KEY, STRAIGHT (FOR INTERMEDIATE MODULATOR VALVE) | ||||
| 90282-03006 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35444C - PLUG (FOR INTERMEDIATE MODULATOR VALVE) | ||||
| 90339-04031 |
HDJ80..4FC |
1 | ||
| 35452A - PLUG (FOR 2-3 SHIFT VALVE PLUG) | ||||
| 90339-05008 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35452B - PIN, STRAIGHT (FOR 2-3 SHIFT VALVE PLUG) | ||||
| 90250-02016 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35452F - PLUG, 2-3 SHIFT VALVE | ||||
| 35452-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35453 - VALVE, DETENT REGULATOR | ||||
| 35445-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35453A - SPRING, COMPRESSION (FOR DETENT REGULATOR VALVE) | ||||
| 90501-09057 |
HDJ80..4FC |
1 | ||
| 35453B - KEY, STRAIGHT (FOR DETENT REGULATOR VALVE) | ||||
| 90282-03006 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35453C - PLUG (FOR DETENT REGULATOR VALVE) | ||||
| 90339-04015 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35456 - VALVE, 2-3 SHIFT | ||||
| 35456-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) | ||||
| 90501-11041 |
HDJ80..4FC |
1 | ||
| 35456C - PLUG (FOR 2-3 SHIFT VALVE) | ||||
| 90339-04011 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35456E - PIN, STRAIGHT (FOR 2-3 SHIFT VALVE) | ||||
| 90282-03006 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35458D - VALVE, CUT BACK | ||||
| 35458-60010 |
HDJ80..4FC |
1 | ||
| 35458E - PLUG (FOR CUT BACK VALVE) | ||||
| 90339-04017 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35458H - KEY, STRAIGHT (FOR CUT BACK VALVE) | ||||
| 90282-03006 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35467B - VALVE, INTERMEDIATE COAST SHIFT | ||||
| 35467-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35476A - PLUG, STRAIGHT (FOR 3RD COAST SHIFT) | ||||
| 90339-04012 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35476B - PIN, LOCATING (FOR 3RD COAST SHIFT) | ||||
| 90282-03006 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35476C - VALVE, 3RD COAST | ||||
| 35476-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35477A - VALVE, OVERDRIVE CLUTCH EXHAUST | ||||
| 35477-30030 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35477B - SPRING, COMPRESSION (FOR OVERDRIVE CLUTCH EXHAUST VALVE | ||||
| 90501-07042 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35477E - KEY, STRAIGHT (FOR OVERDRIVE CLUTCH EXHAUST VALVE) | ||||
| 90282-03006 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35477F - PLUG (FOR OVERDRIVE CLUTCH EXHAUST VALVE) | ||||
| 90339-04021 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35488 - VALVE, 2-3 SHIFT TIMING | ||||
| 35488-60010 |
HDJ80..4FC |
1 | ||
| 35488A - SPRING, COMPRESSION (FOR 2-3 SHIFT TIMING VALVE) | ||||
| 90501-09124 |
FZJ80,HDJ80..4FC |
1 | ||
| 90501-10169 |
HDJ80..4FC |
1 | ||
| 35492A - VALVE, MANUAL DOWN TIMING | ||||
| 35492-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35492-36010 |
FJ80,HDJ80..4FC |
1 | ||
| 35492-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35492B - PLUG (FOR MANUAL DOWN TIMING VALVE) | ||||
| 90339-06008 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35492D - KEY, STRAIGHT (FOR MANUAL DOWN TIMING VALVE) | ||||
| 90282-03006 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35497 - VALVE, 3-4 SHIFT | ||||
| 35497-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE) | ||||
| 90501-10168 |
HDJ80..4FC |
1 | ||
| 35497C - PLUG (FOR 3-4 SHIFT VALVE) | ||||
| 90339-05009 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35498 - VALVE, 3-4 COAST SHIFT | ||||
| 35498-36010 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 35499A - PIN, STRAIGHT (FOR 3-4 SHIFT VALVE) | ||||
| 90250-02016 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| Common parts | ||||
| 90949-01172 | ||||
| 90959-02005 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
